Page 33 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 3.TEMPERATURE SENSOR Ignition on, engine not running. Disconnect the suspected sensor. Connect a jumper wire between the Sensor Signal circuit and the (K900) Sensor ground or (G930) AAT Reuturn circui

Page 34 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 4.EXCESSIVE RESISTANCE IN THE TEMPERATURE SENSOR SIGNAL CIRCUIT Turn the ignition off. Disconnect the PCM harness connectors. CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness

Page 35 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 5.EXCESSIVE RESISTANCE IN THE (K900) SENSOR GROUND CIRCUIT Measure the resistance of the (K900) Sensor ground circuit from the Sensor harness connector to the appropriate terminal of special tool #881

Page 36 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 6.(G930) SENSOR GROUND CIRCUIT OPEN Measure the resistance of the (G930) AAT return circuit from the AAT Sensor harness connector to the C5 TIPM harness connector. Is the resistance below 5.0 ohms? Ye

Page 37 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P126B-ASD CONTROL CIRCUIT 2 LOW For a complete wiring diagramRefer to Section 8W.

Page 38 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual When Monitored: With the ignition on. Battery voltage greater than 10 volts. Set Condition: A shorted condition is detected in the ASD control circuit. One Trip Fault.Three good trips to turn off the

Page 39 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 3.(K342) ASD CONTROL OUTPUT CIRCUIT SHORTED TO GROUND Turn the ignition off Disconnect the C10 TIPM harness connector. Measure resistance between ground and (K342) ASD Control Output circuit at the C1

Page 40 of 5267

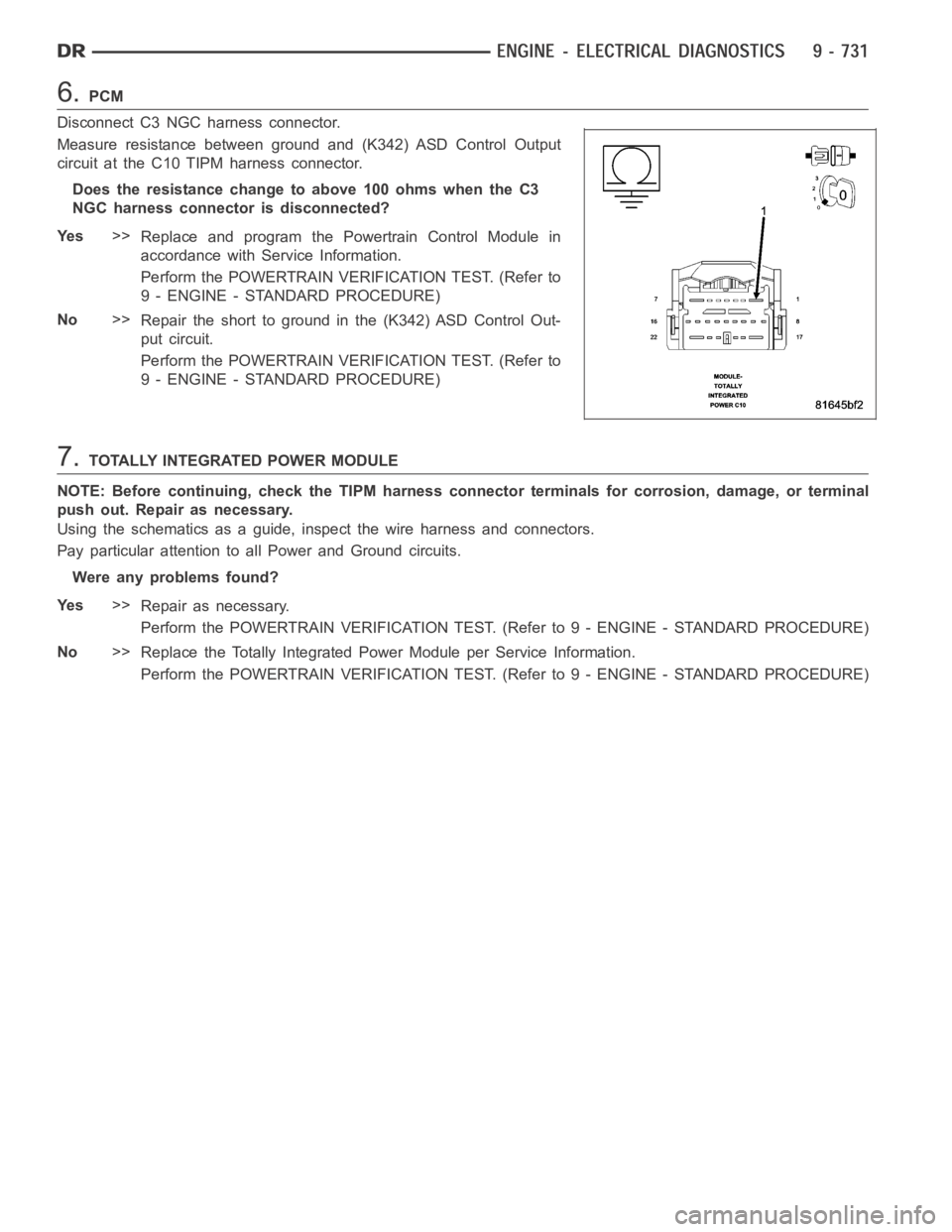

DODGE RAM SRT-10 2006 Service Repair Manual 6.PCM Disconnect C3 NGC harness connector. Measure resistance between ground and (K342) ASD Control Output circuit at the C10 TIPM harness connector. Does the resistance change to above 100 ohms when
