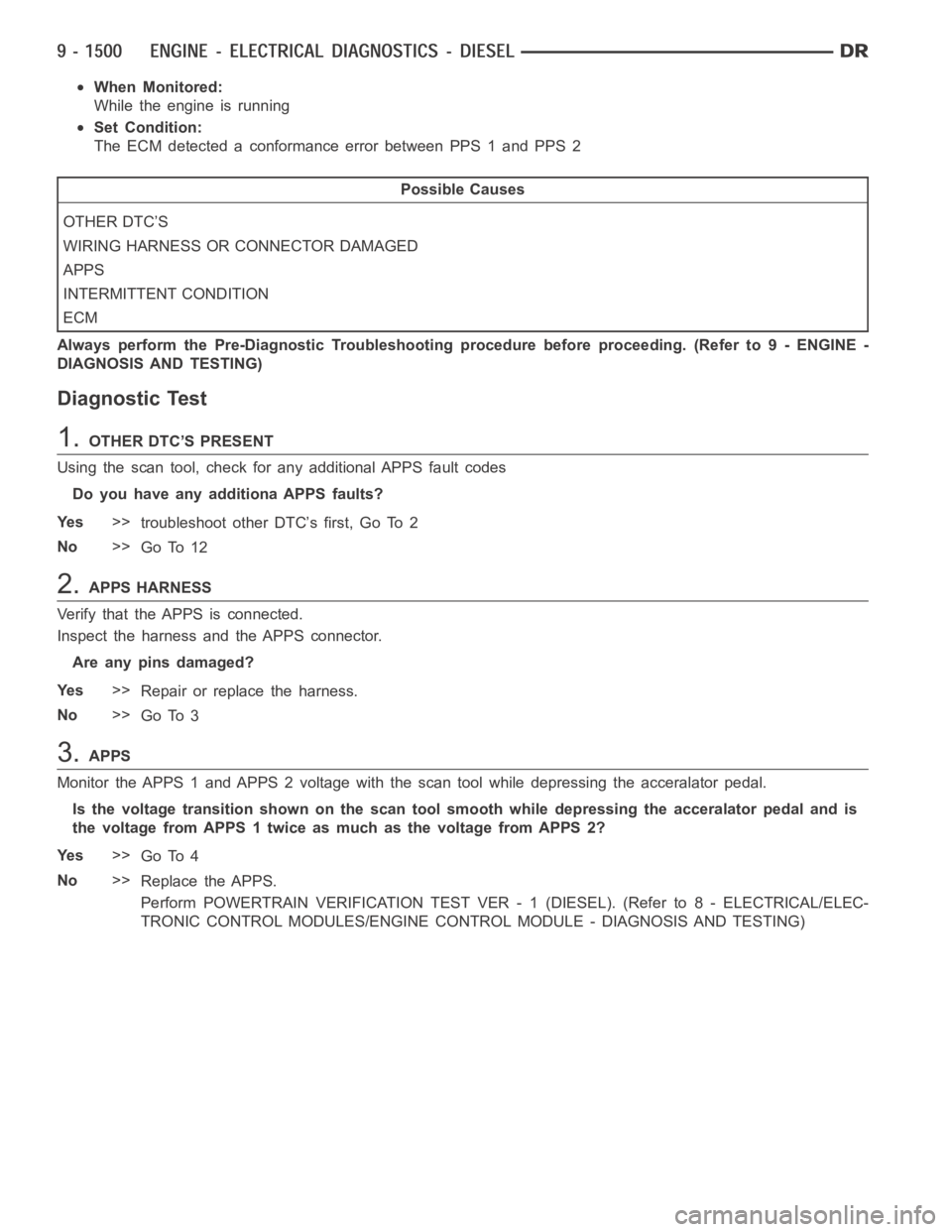

Page 809 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual When Monitored: While the engine is running Set Condition: The ECM detected a conformance error between PPS 1 and PPS 2 Possible Causes OTHER DTC’S WIRING HARNESS OR CONNECTOR DAMAGED APPS INTERMITT

Page 810 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 4.OPEN SIGNAL CIRCUIT Disconnect the ECM connectors. Disconnect the APPS connector. NOTE: Check connectors - Clean/repair as necessary. Measure the resistance of the APPS 1 signal circuit between the

Page 811 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 6.SIGNAL CIRCUIT SHORTED TO GROUND Measure the resistance between the APPS 1 signal circuit at the sensor connector and battery negative. Is the resistance greater than 100 K ohms? Ye s>> Go To 7 No>>

Page 812 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 8.SUPPLY CIRCUIT SHORTED TO GROUND Measure the resistance between the APPS 1 supply circuit at the sen- sor connector and battery negative. Is the resistance greater than 100 K ohms? Ye s>> Go To 9 No

Page 813 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 10.RETURN CIRCUIT OPEN Measure the resistance on the APPS 1 return circuit between the sen- sor connector and the ECM connector. Is the resistance less than 10 ohms? Ye s>> Go To 11 No>> Repair the op

Page 814 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 12.RETURN CIRCUIT SHORTED TO OTHER CIRCUITS Measure the resistance between the APPS 1 return circuit at the ECM connector and all other circuits in the ECM connector. Ye s>> Go To 13 No>> Repair the r

Page 815 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 14.OPEN SUPPLY CIRCUIT Measure the resistance of the APPS 2 supply circuit between the APPS sensor connector and the ECM connector. Is the resistance less than 10 ohms? Ye s>> Go To 15 No>> Repair or

Page 816 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 16.SIGNAL CIRCUIT SHORTED TO OTHER CIRCUITS Measure the resistance between the APPS 2 signal circuit at the ECM connector and all other circuits in the ECM connector. Is the resistance greater than 10
