2006 DODGE RAM SRT-10 Service Repair Manual

Page 4657 of 5267

DODGE RAM SRT-10 2006  Service Repair Manual page page
WINCH
DESCRIPTION ............................... 321
OPERATION ................................. 321
WARNING ................................... 321
DIAGNOSIS AND TESTING – WINCH ........

Page 4658 of 5267

DODGE RAM SRT-10 2006  Service Repair Manual WINCH
DESCRIPTION
The winch uses the electrical power from the vehicle charging system to power a motor that winds wire rope into
the winch drum by means of planetary gear reduction.
The winch assembl

Page 4659 of 5267

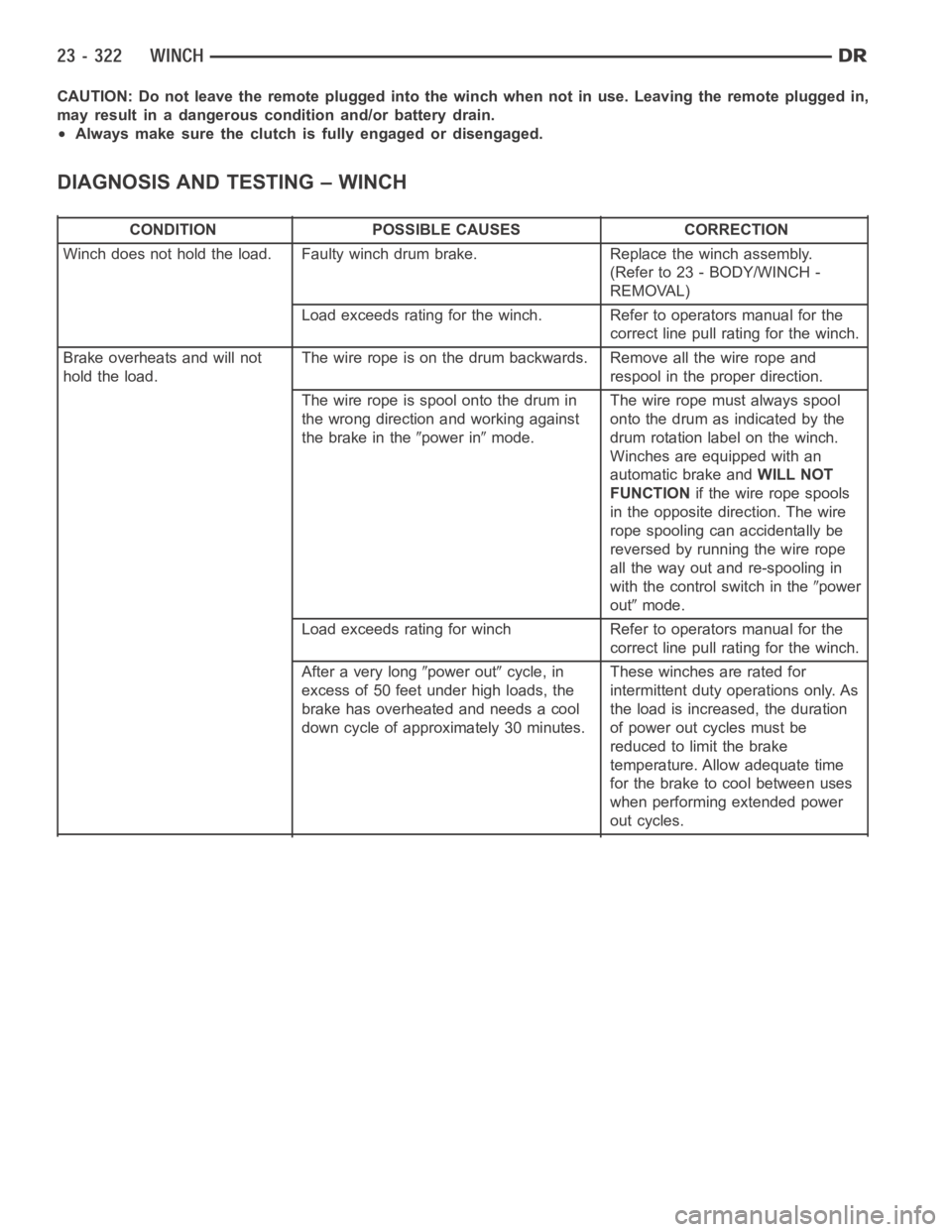

DODGE RAM SRT-10 2006  Service Repair Manual CAUTION: Do not leave the remote plugged into the winch when not in use. Leaving the remote plugged in,
may result in a dangerous condition and/or battery drain.
Always make sure the clutch is fully e

Page 4660 of 5267

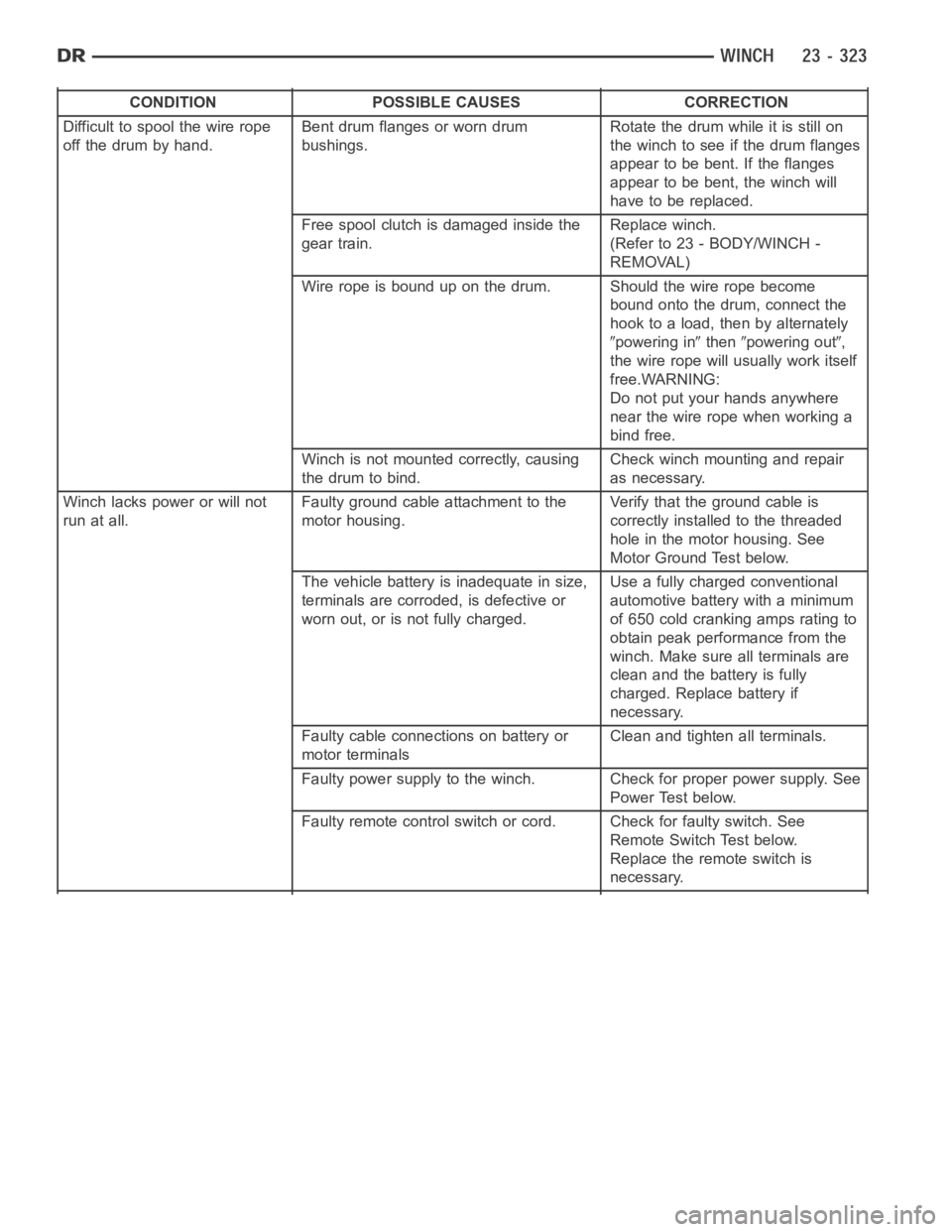

DODGE RAM SRT-10 2006  Service Repair Manual CONDITION POSSIBLE CAUSES CORRECTION
Difficult to spool the wire rope
off the drum by hand.Bent drum flanges or worn drum
bushings.Rotate the drum while it is still on
the winch to see if the drum fla

Page 4661 of 5267

DODGE RAM SRT-10 2006  Service Repair Manual CONDITION POSSIBLE CAUSES CORRECTION
When remote control switch is
activated, there is only a
clickingsound, and the winch
does not operate in either
power inorpower out
modes.Low battery charge, corr

Page 4662 of 5267

DODGE RAM SRT-10 2006  Service Repair Manual CONDITION POSSIBLE CAUSES CORRECTION
When the remote control is
activated, the winch will not
operate and no “clicking” sound
is heard.Tripped or damaged Low Voltage
Interrupt (LVI)Use a fully cha

Page 4663 of 5267

DODGE RAM SRT-10 2006  Service Repair Manual 2. Remove the winch assembly (2) as necessary to gain access to the relay pack and cover (Refer to 23 - BODY/
WINCH - REMOVAL).
3. Disconnect the three cables connected to the
motor on the studs marke

Page 4664 of 5267

DODGE RAM SRT-10 2006  Service Repair Manual 5. Apply 12 volts to the small terminal (1) of relay #2 (2) and measure the resistance across the two large studs.
6. Apply 12 volts to the small terminal (2) of relay #3
(1) and measure the resistanc
