Page 4513 of 5267

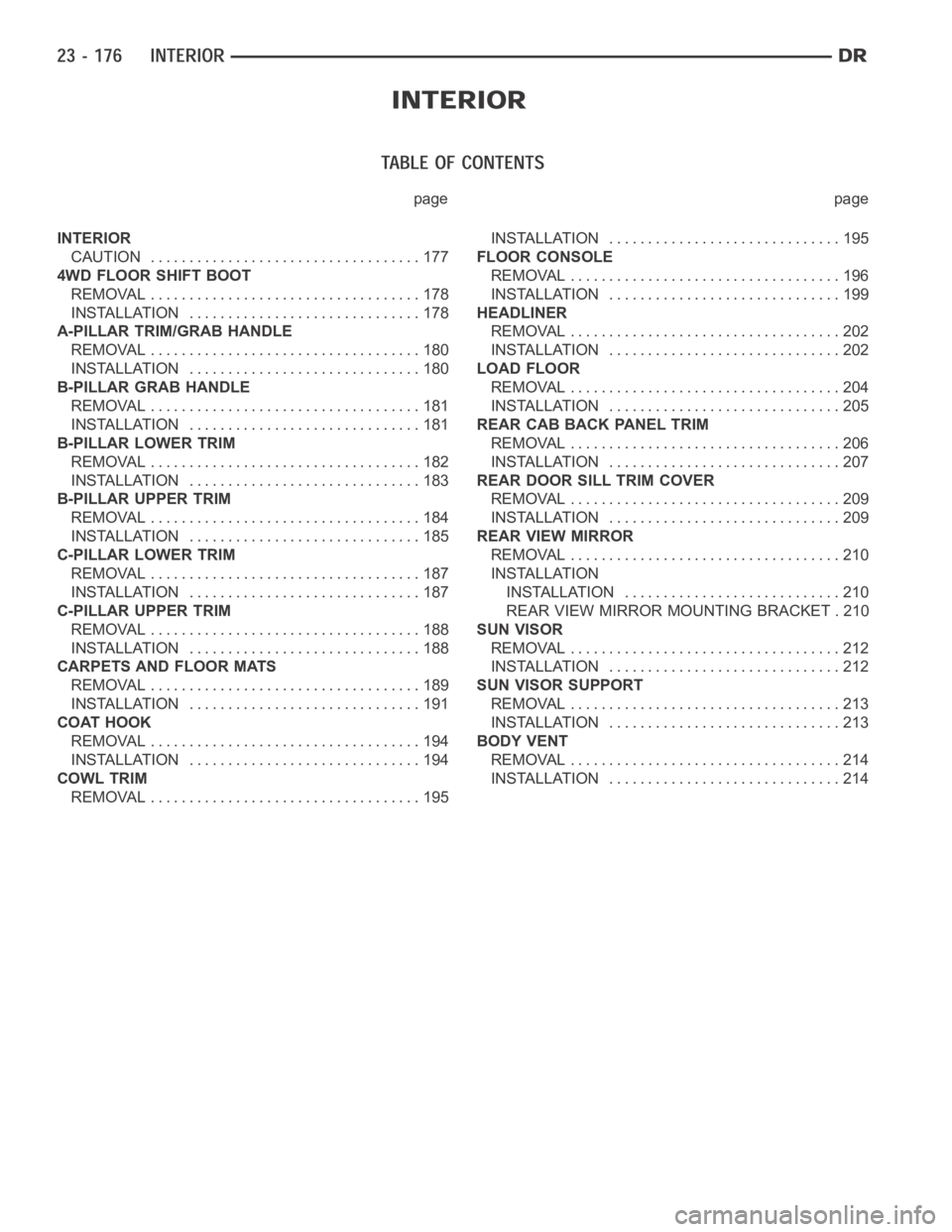

DODGE RAM SRT-10 2006 Service Repair Manual page page INTERIOR CAUTION ................................... 177 4WD FLOOR SHIFT BOOT REMOVAL ................................... 178 INSTALLATION .............................. 178 A-PILLAR TRIM/GR

Page 4514 of 5267

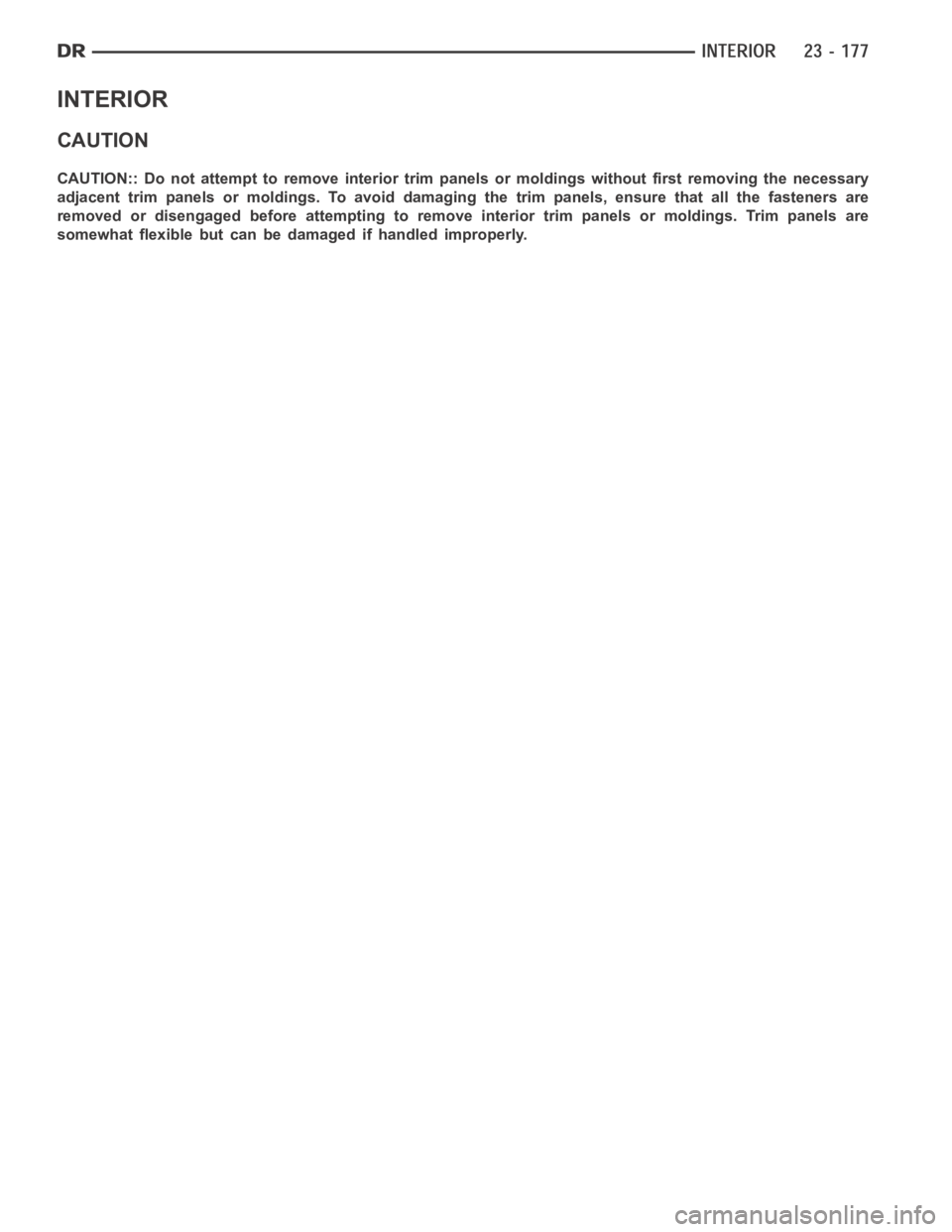

DODGE RAM SRT-10 2006 Service Repair Manual INTERIOR CAUTION CAUTION:: Do not attempt to remove interior trim panels or moldings without first removing the necessary adjacent trim panels or moldings. To avoid damaging the trim panels, ensure th

Page 4515 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 4WD FLOOR SHIFT BOOT REMOVAL 1. Using a small flat-bladed tool, remove the insert (2) from the top of the shift knob (1). 2. Remove the nut (3) that secures the shift knob to the gear shift lever. 3.

Page 4516 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 4. Install the nut (3) that secures the shift knob (1) to the gear shift lever. Tighten the nut to 27 Nꞏm (20 ft. lbs.). 5. Install the insert (2) into the top of the shift knob.

Page 4517 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual A-PILLAR TRIM/GRAB HANDLE REMOVAL 1. Using a small flat-bladed tool, carefully open the two fastener covers (3) located in the a-pillar trim panel (2). 2. Remove the two bolts (4) that secure the a-pi

Page 4518 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual B-PILLAR GRAB HANDLE REMOVAL 1. Using a small flat-bladed tool, carefully open the two fastener covers (2) located on the grab handle (1). 2. Remove the two bolts (3) that secure the grab han- dle to

Page 4519 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual B-PILLAR LOWER TRIM REMOVAL REGULAR CAB 1. Remove the cowl trim panel (Refer to 23 - BODY/ INTERIOR/COWL TRIM - REMOVAL). 2. Remove the upper B-pillar trim panel (Refer to 23 - BODY/INTERIOR/B-PILLAR

Page 4520 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual INSTALLATION REGULAR CAB 1. Route the seat belt (1) through the slot in the lower B-pillar trim panel (3) and position the trim panel to the B-pillar (4). 2. Engage the retaining tabs that secure the
