Page 721 of 5267

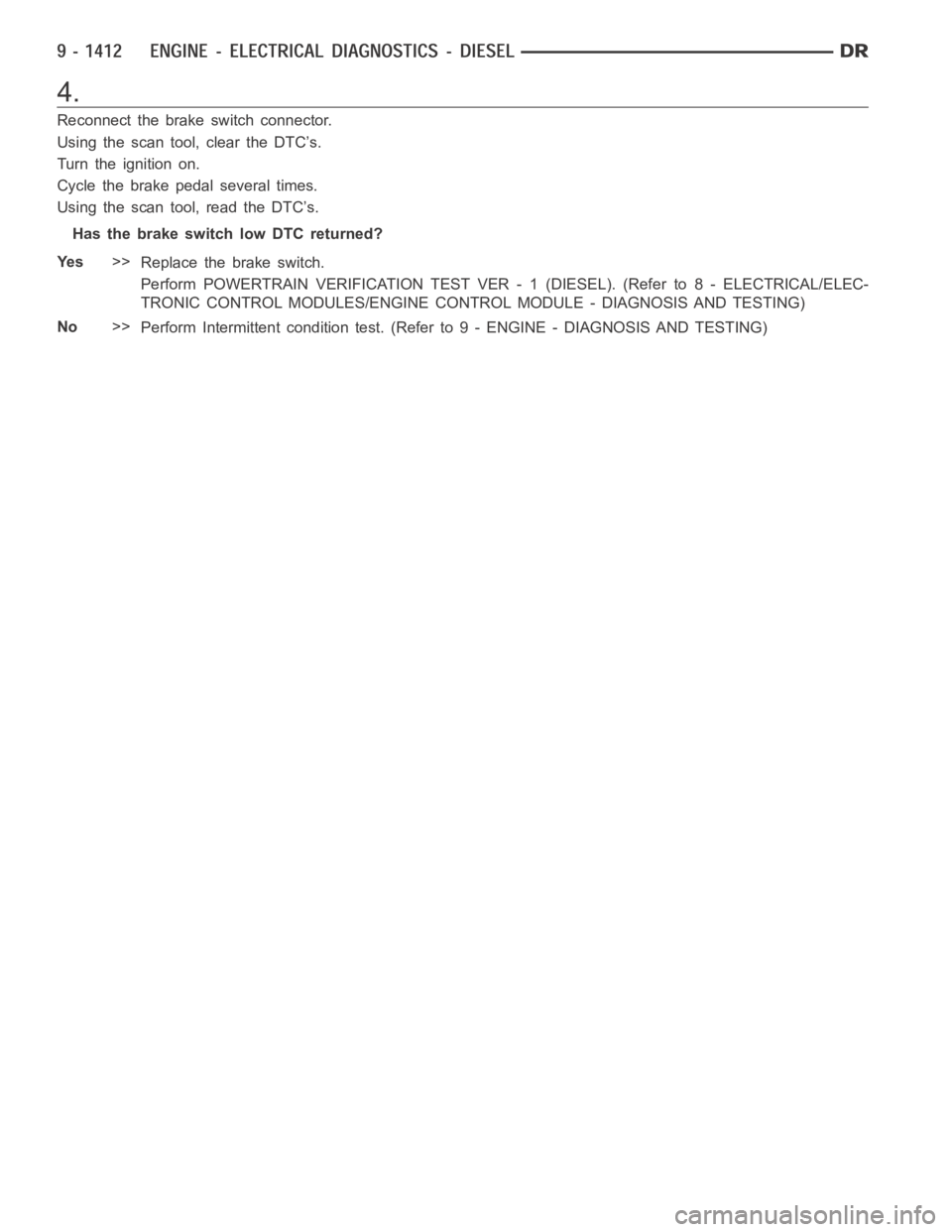

DODGE RAM SRT-10 2006 Service Repair Manual 4. Reconnect the brake switch connector. Using the scan tool, clear the DTC’s. Turn the ignition on. Cycle the brake pedal several times. Using the scan tool, read the DTC’s. Has the brake switch

Page 722 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P0573-HIGH VOLTAGE DETECTED AT THE BRAKE SWITCH For a complete wiring diagramRefer to Section 8W.

Page 723 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual When Monitored: While the ignition is on. Set Condition: The brake switch status is = to ON and the not brake switch status is = to OFF for a calibrated amount of time. Possible Causes DAMAGED WIRING

Page 724 of 5267

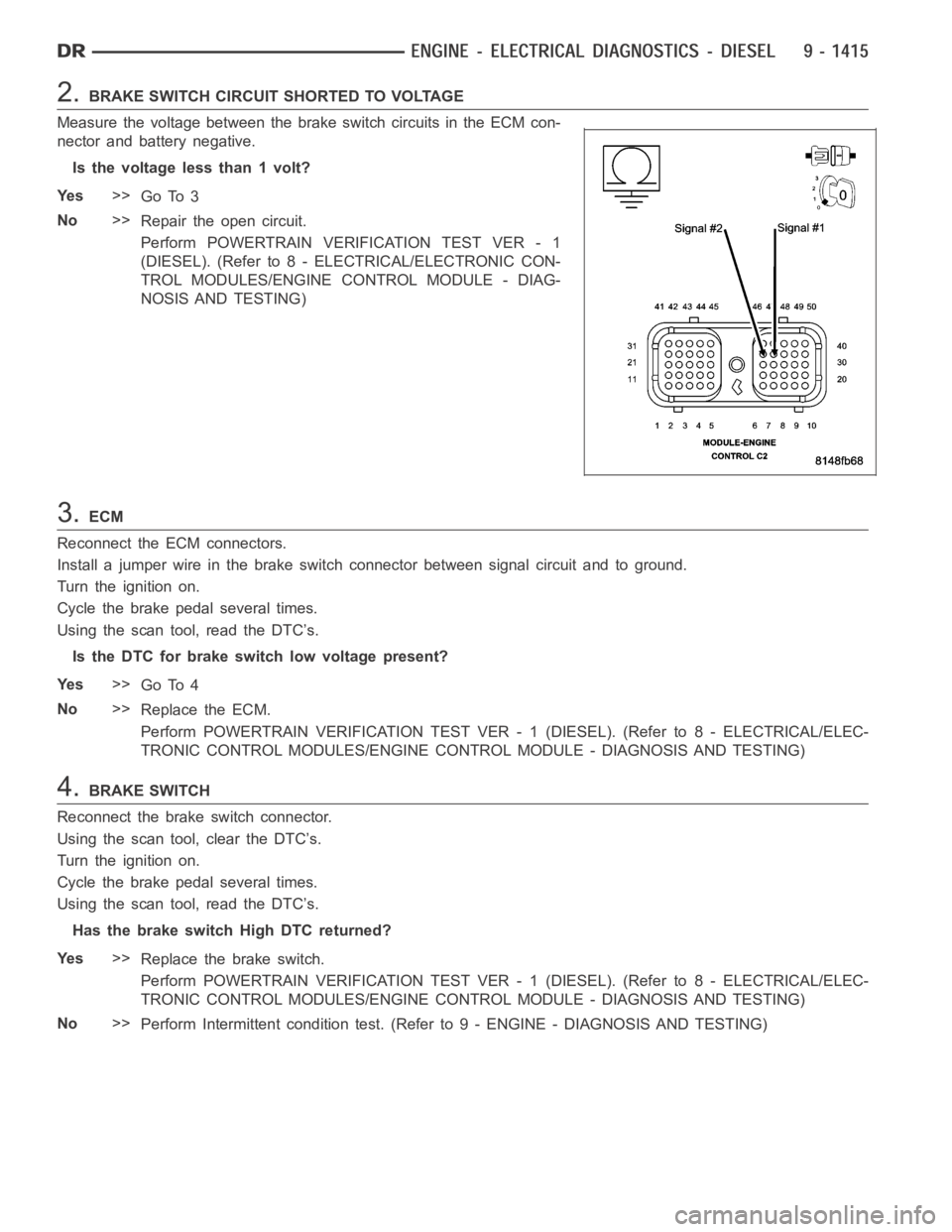

DODGE RAM SRT-10 2006 Service Repair Manual 2.BRAKE SWITCH CIRCUIT SHORTED TO VOLTAGE Measure the voltage between the brake switch circuits in the ECM con- nector and battery negative. Is the voltage less than 1 volt? Ye s>> Go To 3 No>> Repair

Page 725 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P0580-LOW VOLTAGE DETECTED AT THE SPEED CONTROL SWITCH For a complete wiring diagramRefer to Section 8W.

Page 726 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual When Monitored: While the ignition is on Set Condition: Speed control MUX switch below 1.0 volts for 5 seconds. Possible Causes S/C WIRING HARNESS OBSERVABLE PROBLEM S/C SWITCH (ON/OFF) CLOCKSPRING SH

Page 727 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 4.S/C SWITCH (RESUME/ACCEL) Turn the ignition off. Disconnect the S/C RESUME/ACCEL Switch harness connector. NOTE: Check connectors - Clean/repair as necessary. Ignition on, engine not running. With t

Page 728 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 7.S/C SIGNAL CIRCUIT SHORTED TO SENSOR GROUND Measure the resistance between the S/C Signal Circuit and the Sensor Ground Circuit at the ON/OFF switch harness connector. Is the resistance below 5.0 oh
