Page 73 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P1279-STARTER CONTROL CIRCUIT 2 OPEN (TIPM) For a complete wiring diagramRefer to Section 8W.

Page 74 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual When Monitored: With the ignition on. Battery voltage greater than 10.4 volts and the ASD sense switch is on. Set Condition: Actual Starter state is not equal to desired state. One Trip Fault. Three g

Page 75 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 4.TIPM OPERATION Reconnect the C9 TIPM harness connector. Using a 12-volt test light connected ground, probe the (T40) Stater Relay Output circuit in the Starter Relay harness connector. Crank the eng

Page 76 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P127A-STARTER CONTROL CIRCUIT 2 OVERCURRENT For a complete wiring diagramRefer to Section 8W.

Page 77 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual When Monitored: With the ignition on. Battery voltage greater than 10.4 volts. Set Condition: The TIPM has detected on overcurrent condition in the Starter Control circuit. One Trip Fault. Three good

Page 78 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 4.(T40) STARTER RELAY OUTPUT CIRCUIT SHORTED TO GROUND Disconnect the C9 TIPM harness connector. Measure the resistance between ground and the (T40) Starter Relay Output circuit at the C9 TIPM harness

Page 79 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P127C-FUEL PUMP CONTROL CIRCUIT 2 LOW For a complete wiring diagramRefer to Section 8W.

Page 80 of 5267

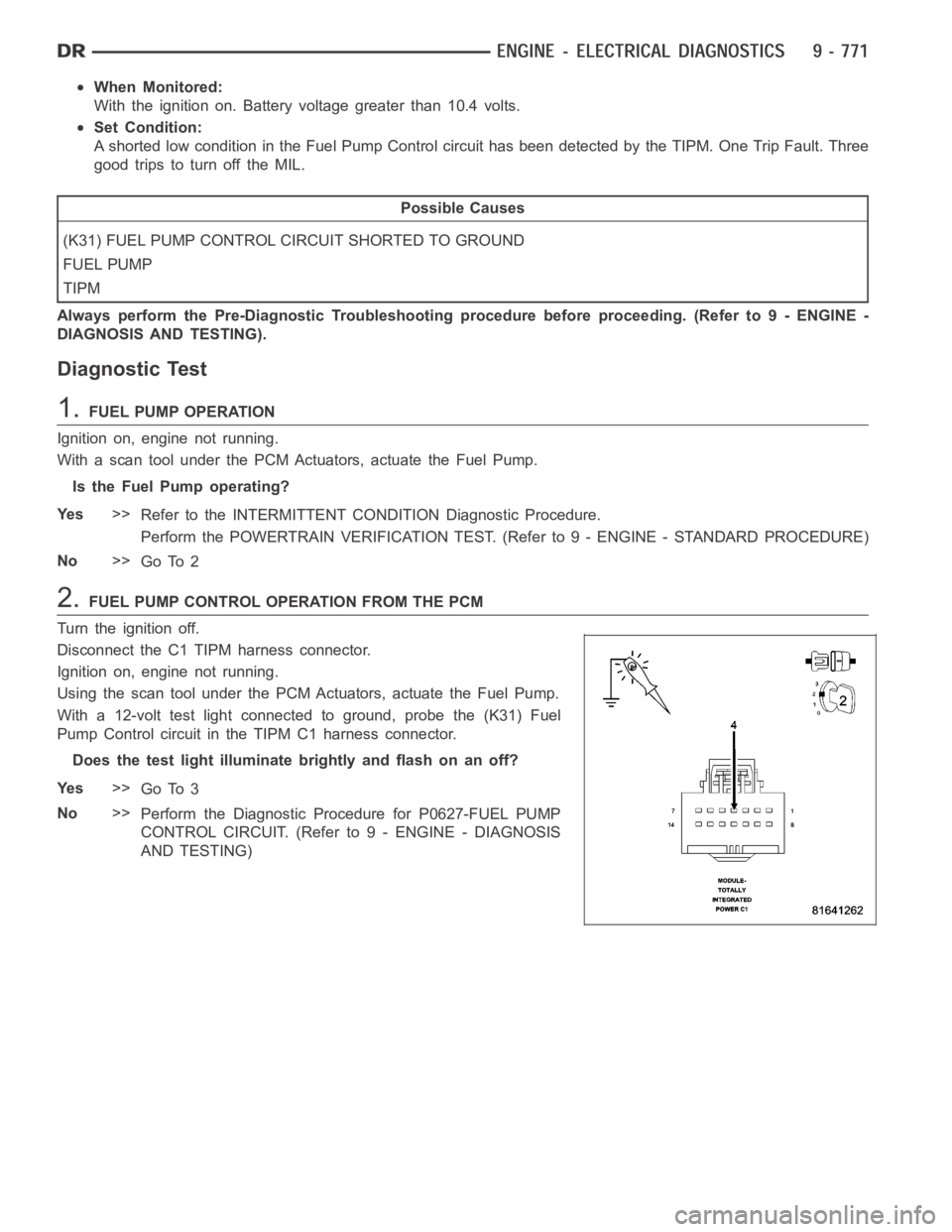

DODGE RAM SRT-10 2006 Service Repair Manual When Monitored: With the ignition on. Battery voltage greater than 10.4 volts. Set Condition: A shorted low condition in the Fuel Pump Control circuit has been detected by the TIPM. One Trip Fault. Th
