DODGE RAM SRT-10 2006 Service Repair Manual 2.CHECK IF THE DTC P0765 IS PRESENT
With the scan tool, check Transmission DTCs.
Is the DTC P0765 also present?
Ye s>>
Refer to the Transmission category and perform diagnostics for the symptom P0765-

Page 3250 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 7.CHECK THE LINE PRESSURE SENSOR OPERATION
Turn the ignition off to the lock position.
Remove the Ignition Switch Feed fuse from the TIPM.
CAUTION: Removal of the Ignition Switch Feed fuse from the TI

7.CHECK THE LINE PRESSURE SENSOR OPERATION
Turn the ignition off to the lock position.
Remove the Ignition Switch Feed fuse from the TIPM.
CAUTION: Removal of the Ignition Switch Feed fuse from the TIPM will prevent the vehicle from being
startedingear.
WARNING: The Ignition Switch Feed fuse must be removed from the TIPM. Failure to do so can result in
personal injury or death.
Install the Transmission Simulator, Miller tool #8333.
With the Transmission Simulator select the
OFFposition on theInput/Output Speedswitch.
Ignition on, engine not running.
With the scan tool, monitor the Line Pressure while turning the Pressure Switch selector to each of the 3 line pres-
sure positions on the Transmission Simulator.
NOTE: All three scan tool Line Pressure readings should be steady and ±14 kPa or 2.0 psi of the reading
specified on the Transmission Simulator.
Did the scan tool Line Pressure readings match the specified readings on the Transmission Simulator
and remain steady in all three positions?
Ye s>>
Replace the Line Pressure Sensor per the Service Information.
Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21- TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)
No>>
Go To 8
8.CHECK THE (F856) 5-VOLT SUPPLY CIRCUIT FOR AN OPEN
Turn the ignition off to the lock position.
Disconnect Transmission Simulator.
Disconnect the PCM C1 harness connector and connect Miller tool
#8815.
CAUTION: Do not probe the PCM harness connectors. Probing the
PCM harness connectors will damage the PCM terminals resulting
in poor terminal to pin connection. Install Miller tool #8815 to per-
form diagnosis.
Measure the resistance of the (F856) 5-volt Supply circuit from the Line
Pressure Sensor harness connector to the appropriate terminal of Miller
tool #8815.
Is the resistance above 5.0 ohms?
Ye s>>
Repair the (F856) 5-volt Supply circuit for an open.
Perform 45RFE/545RFE TRANSMISSION VERIFICATION
TEST - VER 1. (Refer to 21 - TRANSMISSION/TRANS-
AXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PRO-
CEDURE)
No>>
Go To 9

Page 3251 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 9.CHECK THE (F856) 5-VOLT SUPPLY CIRCUIT FOR A SHORT TO GROUND
Measure the resistance between ground and the (F856) 5-volt Supply
circuit.
Is the resistance below 5.0 ohms?
Ye s>>
Repair the (F856) 5-

Page 3252 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 11 .CHECK THE WIRING AND CONNECTORS
Turn the ignition off to the lock position.
Remove the Ignition Switch Feed fuse from the TIPM.
CAUTION: Removal of the Ignition Switch Feed fuse from the TIPM will

11 .CHECK THE WIRING AND CONNECTORS
Turn the ignition off to the lock position.
Remove the Ignition Switch Feed fuse from the TIPM.
CAUTION: Removal of the Ignition Switch Feed fuse from the TIPM will prevent the vehicle from being
startedingear.
WARNING: The Ignition Switch Feed fuse must be removed from the TIPM. Failure to do so can result in
personal injury or death.
Remove the Line Pressure Adapter, Miller tool #8259 and 0-300 psi Test Gauge, Miller tool #C-3293-SP.
Install the Transmission Simulator, Miller tool #8333.
On the Transmission Simulator, turn the Pressure Switch selector switch to UD.
Ignition on, engine not running.
With the scan tool, monitor the UD Pressure Switch state while pressing andholding the Pressure Switch test but-
ton and wiggling the wire harness and connectors that pertain to the UD Pressure Switch.
Did the UD Pressure Switch state change to closed and remain closed while wiggling the wires?
Ye s>>
Go To 12
No>>
Go To 14
12.CHECK FOR EXCESSIVE DEBRIS
Turn the ignition off to the lock position.
Remove the Transmission Simulator, Miller tool #8333.
Remove and inspect the Transmission Oil Pan per the Service Information.
Does the Transmission Oil Pan contain excessive debris or contamination?
Ye s>>
Repair the cause of the excessive debris in the Transmission Oil Pan. Referto the Service Information
for the proper procedures.
Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21- TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)
No>>
Go To 13
13.CHECK THE UD HYDRAULIC CLUTCH CIRCUIT
Remove the Valve Body and air check the UD hydraulic clutch circuit (in the case) for leakage per the Service
Information.
NOTE: The UD hydraulic clutch circuit contains a small bleed orifice. A small amount of air leakage is nor-
mal.
Was there excessive air leakage noticed during the air check?
Ye s>>
Repair as necessary. Check the UD clutch piston, piston seals and bleed orifice, reaction shaft support
seal rings, and machining of the main mating faces of the pump housing, pumpvalve body, and reaction
shaft support.
Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21- TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)
No>>
Disassemble and inspect the Valve Body and repair as necessary. Inspect the UD Accumulator piston
and seals. If no problems are found in the Valve Body, replace the Transmission Solenoid/TRS Assem-
bly per the Service Information.
Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21- TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)

Page 3253 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 14.CHECK THE (T29) UD PRESSURE SWITCH SENSE CIRCUIT FOR AN OPEN
Turn the ignition off to the lock position.
Remove the Transmission Simulator, Miller tool #8333.
Disconnect the PCM C4 harness connecto

Page 3254 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 16.CHECK THE (T29) UD PRESSURE SWITCH SENSE CIRCUIT FOR A SHORT TO ANOTHER CIRCUIT
Disconnect all PCM harness connectors.
Disconnect the Transmission Solenoid/TRS Assembly harness connec-
tor.
NOTE: M

16.CHECK THE (T29) UD PRESSURE SWITCH SENSE CIRCUIT FOR A SHORT TO ANOTHER CIRCUIT
Disconnect all PCM harness connectors.
Disconnect the Transmission Solenoid/TRS Assembly harness connec-
tor.
NOTE: Make sure the Transmission Solenoid/TRS Assembly har-
ness connector is disconnected.
Measure the resistance between the (T29) UD Pressure Switch Sense
circuit and all other circuits in the Transmission Solenoid/TRS Assembly
harness connector.
Is the resistance below 5.0 ohms between the (T29) UD Pres-
sure Switch Sense circuit and any other circuit(s) in the Trans-
mission Solenoid/TRS Assembly harness connector?
Ye s>>
Repair the (T29) UD Pressure Switch Sense circuit for a
short to another circuit(s).
Perform 45RFE/545RFE TRANSMISSION VERIFICATION
TEST - VER 1. (Refer to 21 - TRANSMISSION/TRANS-
AXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PRO-
CEDURE)
No>>
Using the schematics as a guide, check the Powertrain Control Module (PCM)terminals for corrosion,
damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems
are found, replace the PCM per the Service Information. With the scan tool,perform QUICK LEARN.
Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21- TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)
17.INTERMITTENT WIRING AND CONNECTORS
The conditions necessary to set this DTC are not present at this time.
Using the schematics as a guide, inspect the wiring and connectors specifictothiscircuit.
Wiggle the wires while checking for shorted and open circuits.
With the scan tool, check the DTC EVENT DATA to help identify the conditionsin which the DTC was set.
If the DTC EVENT DATA shows the DTC P0875 set while the Line Pressure was significantly below the Desired
Line Pressure reading, check for causes of low line pressure (low fluid level, broken or mis-installed primary oil filter
or filter seal, sticking Main Regulator Valve in the Pump Valve Body etc.).IfthedatashowstheDTCsetwhilethe
Line Pressure reading was significantly higher than the Desired Line Pressure, check the Line Pressure Sensor and
related wiring.
Where there any problems found?
Ye s>>
Repair as necessary.
Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21- TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)
No>>
Te s t C o m p l e t e .

Page 3255 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P0876-UD PRESSURE SWITCH RATIONALITY
For a complete wiring diagramRefer to Section 8W

Page 3256 of 5267

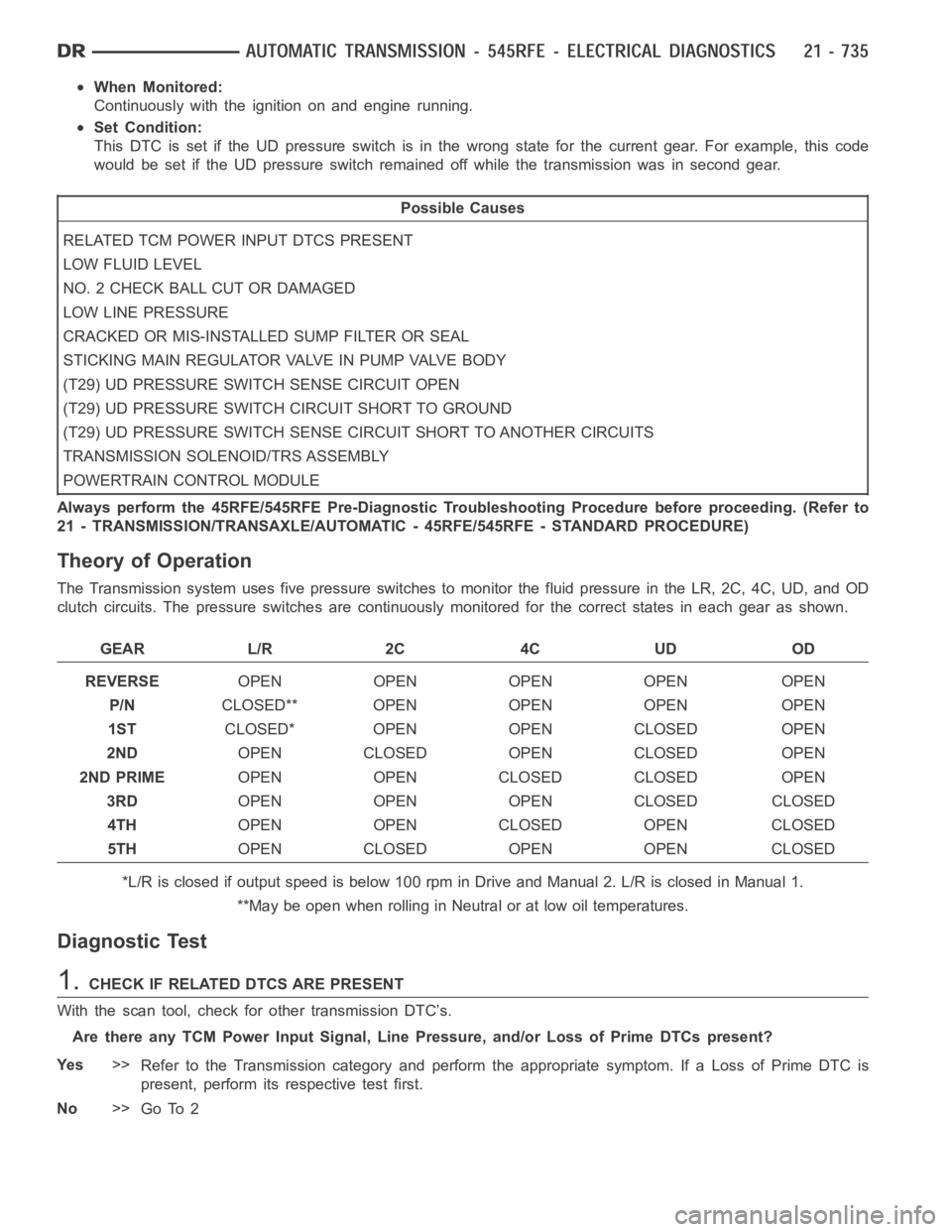

DODGE RAM SRT-10 2006 Service Repair Manual When Monitored:
Continuously with the ignition on and engine running.
Set Condition:
This DTC is set if the UD pressure switch is in the wrong state for the currentgear. For example, this code
would b
