DODGE RAM SRT-10 2006 Service Repair Manual TIRES
DESCRIPTION
TIRES
Tires are designed and engineered for each specific vehicle. They providethe best overall performance for normal
operation. The ride and handling characteristics match the vehi

TIRES
DESCRIPTION
TIRES
Tires are designed and engineered for each specific vehicle. They providethe best overall performance for normal
operation. The ride and handling characteristics match the vehicle’s requirements. With proper care they will give
excellent reliability, traction,skid resistance, and tread life.
Driving habits have more effect on tire life than any other factor. Carefuldrivers will obtain in most cases, much
greater mileage than severe use or careless drivers. A few of the driving habits which will shorten the life of any tire
are:
Rapid acceleration
Severe brake applications
High speed driving
Excessive speeds on turns
Striking curbs and other obstacles
Radial-ply tires are more prone to irregular tread wear. It is important tofollow the tire rotation interval (Refer to 22
- TIRES/WHEELS - STANDARD PROCEDURE). This will help to achieve a greater tread life.
TIRE IDENTIFICATION
Tire type, size, aspect ratio and speed rating are
encoded in the letters and numbers imprinted on the
side wall of the tire. Refer to the chart to decipher the
tire identification code.
Performance tires have a speed rating letter after the
aspect ratio number. The speed rating is not always
printed on the tire sidewall. These ratings are:
Qup to 100 mph
Sup to 112 mph
Tup to 118 mph
Uup to 124 mph
Hup to 130 mph
Vup to 149 mph
Zmore than 149 mph (consult the tire manufac-
turer for the specific speed rating)
An All Season type tire will have eitherM+S,M&SorM–S(indicating mud and snow traction) imprinted on the
side wall.
TIRE CHAINS
Tire snow chains may be used oncertainmodels. Refer to the Owner’s Manual for more information.
SPARE / TEMPORARY TIRE
The temporary spare tire is designed for emergency use only. The original tire should be repaired or replaced at the
first opportunity, then reinstalled. Do not exceed speeds of 80 KMH (50 MPH). when using the temporary spare tire.
Refer to Owner’s Manual for complete details.
RADIAL – PLY TIRES
Radial-ply tires improve handling, tread life and ride quality, and decrease rolling resistance.
Radial-ply tires must always be used in sets of four. Under no circumstances should they be used on the front only.
They may be mixed with temporary spare tires when necessary. A maximum speedof80KMH(50MPH)isrec-
ommended while a temporary spare is in use.

Page 4322 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual Radial-ply tires have the same load-carrying capacity as other types of tires of the same size. They also use the
same recommended inflation pressures.
The use of oversized tires, either in the front

Page 4323 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual Over inflation will cause rapid center wear (1) reduc-
tion in the tire’s ability to cushion shocks.
Improper inflation can cause:
Uneven wear patterns
Reduced tread life
Reduced fuel economy
Unsati

Page 4324 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual TIRE WEAR PATTERNS
Under inflation will cause wear on the shoulders of tire. Over inflation will cause wear at the center of tire.
Excessive camber causes the tire to run at an angle to the road. One

Page 4325 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual TIRE/VEHICLE LEAD
Use the following Vehicle Lead Diagnosis And Correction Chart to diagnoseand correct a vehicle lead or drift prob-
lem.

Page 4326 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual STANDARD PROCEDURE
TIRE REPAIR AREA
For proper repairing, a radial tire must be removed
from the wheel. Repairs should only be made if the
defect, or puncture, is in the tread area (1). The tire
shoul

Page 4327 of 5267

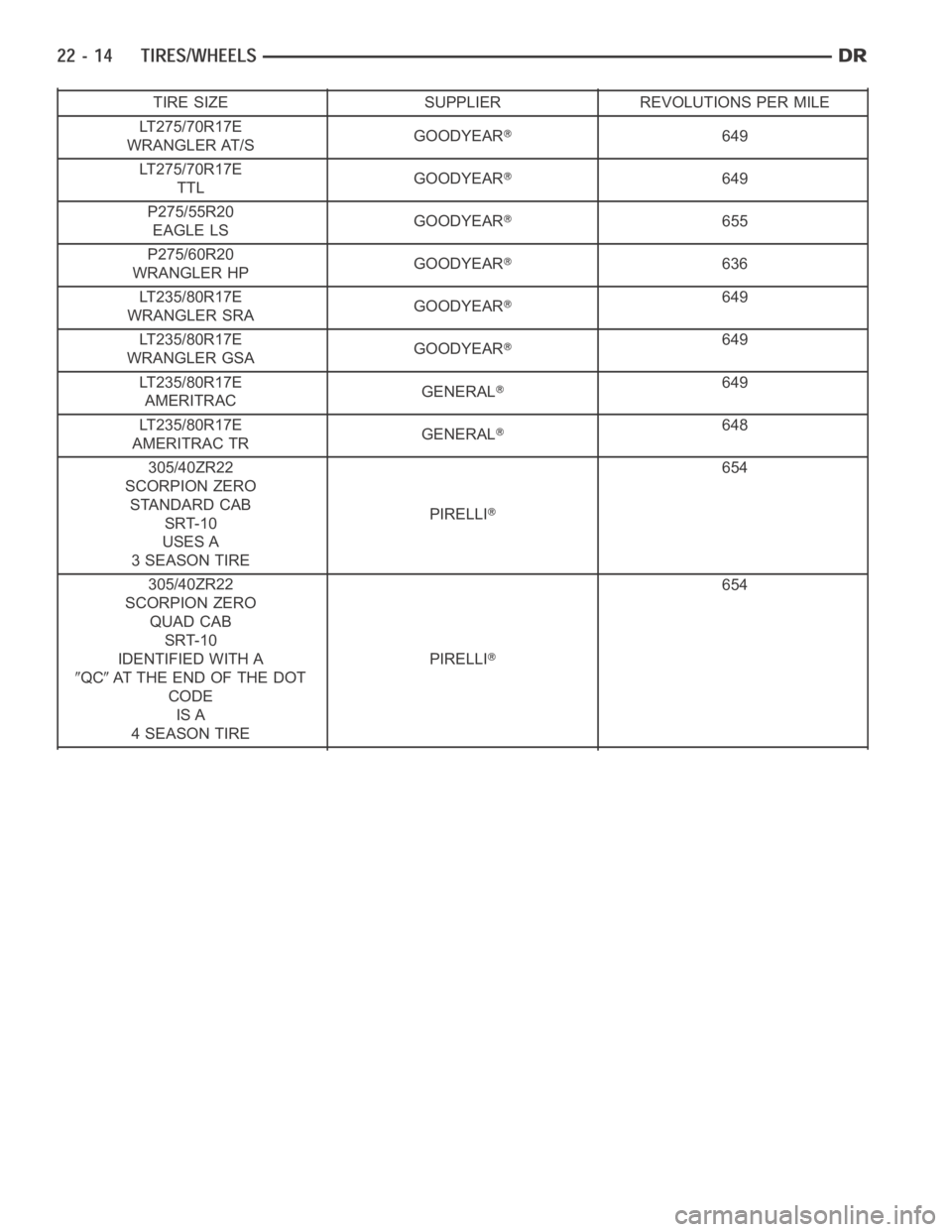

DODGE RAM SRT-10 2006 Service Repair Manual TIRE SIZE SUPPLIER REVOLUTIONS PER MILE
LT275/70R17E
WRANGLER AT/SGOODYEAR
649
LT275/70R17E
TTLGOODYEAR
649
P275/55R20
EAGLE LSGOODYEAR
655
P275/60R20
WRANGLER HPGOODYEAR
636
LT235/80R17E
WRANGLER SRA

Page 4328 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual WHEELS
DESCRIPTION
DESCRIPTION
Original equipment wheels are designed for the specified Maximum VehicleCapacity.
All models use steel or aluminum drop center wheels.
Aluminum wheels require special ba
