Page 2793 of 5267

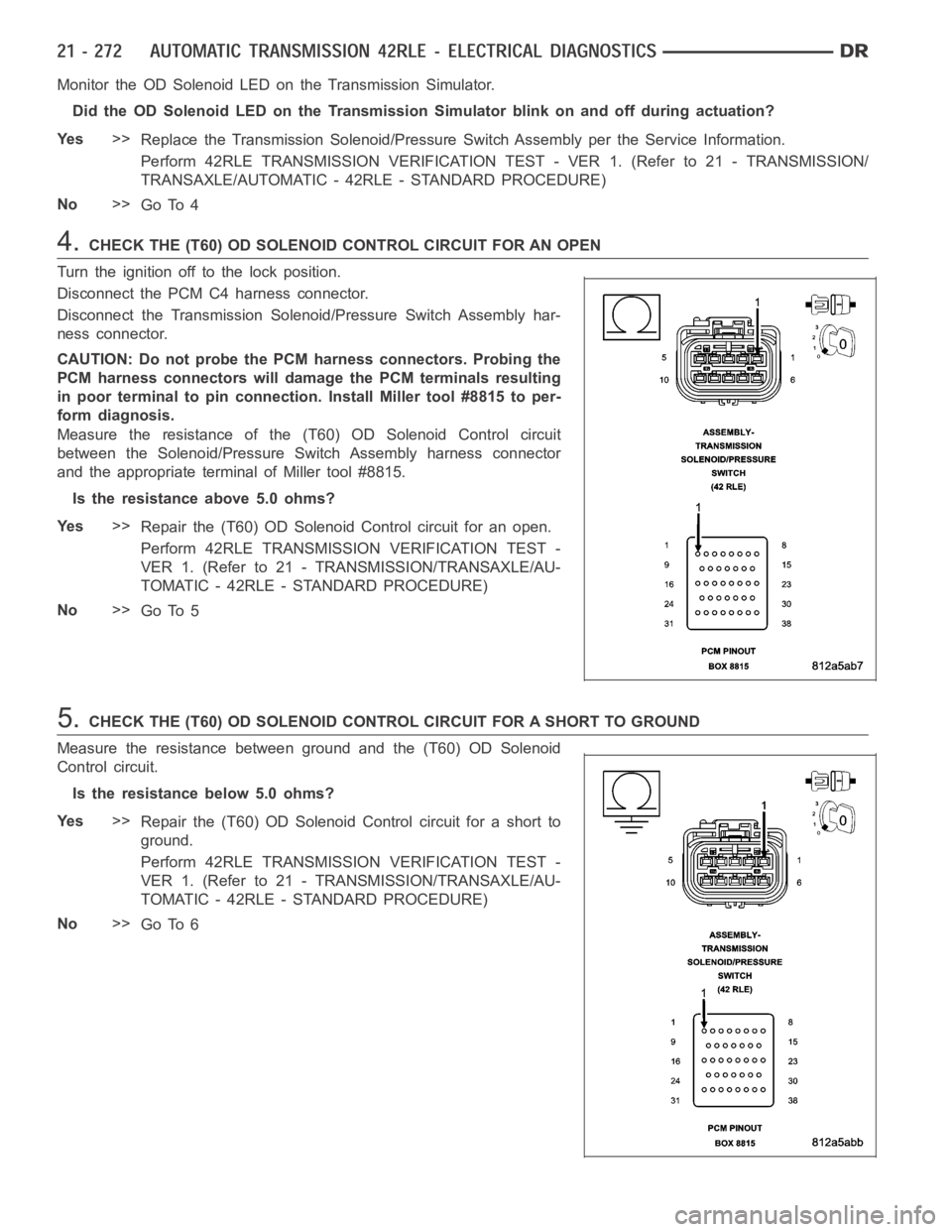

DODGE RAM SRT-10 2006 Service Repair Manual Monitor the OD Solenoid LED on the Transmission Simulator.
Did the OD Solenoid LED on the Transmission Simulator blink on and off during actuation?
Ye s>>
Replace the Transmission Solenoid/Pressure Sw

Page 2794 of 5267

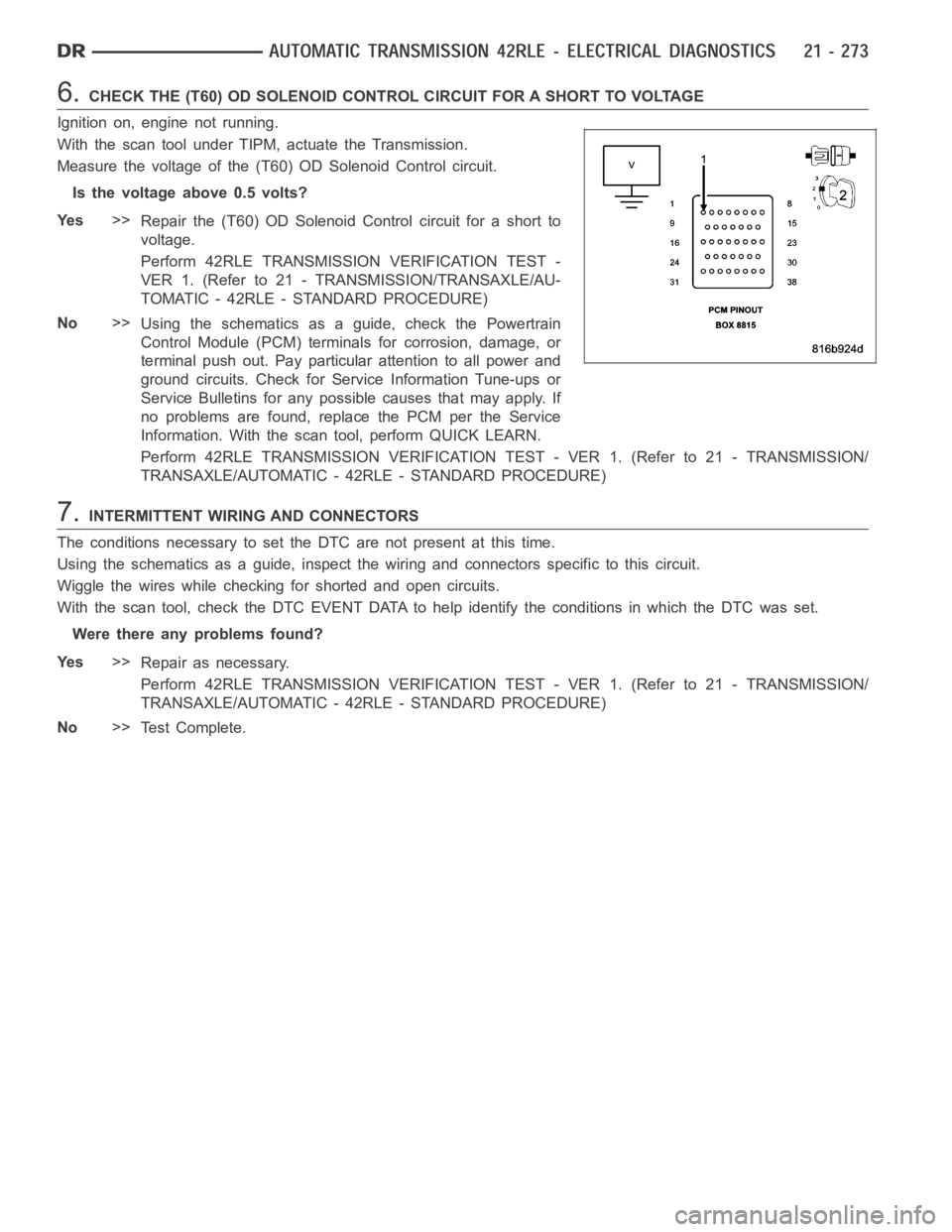

DODGE RAM SRT-10 2006 Service Repair Manual 6.CHECK THE (T60) OD SOLENOID CONTROL CIRCUIT FOR A SHORT TO VOLTAGE
Ignition on, engine not running.
With the scan tool under TIPM, actuate the Transmission.
Measure the voltage of the (T60) OD Solen

Page 2795 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P0765-UD SOLENOID CIRCUIT
For a complete wiring diagramRefer to Section 8W.

Page 2796 of 5267

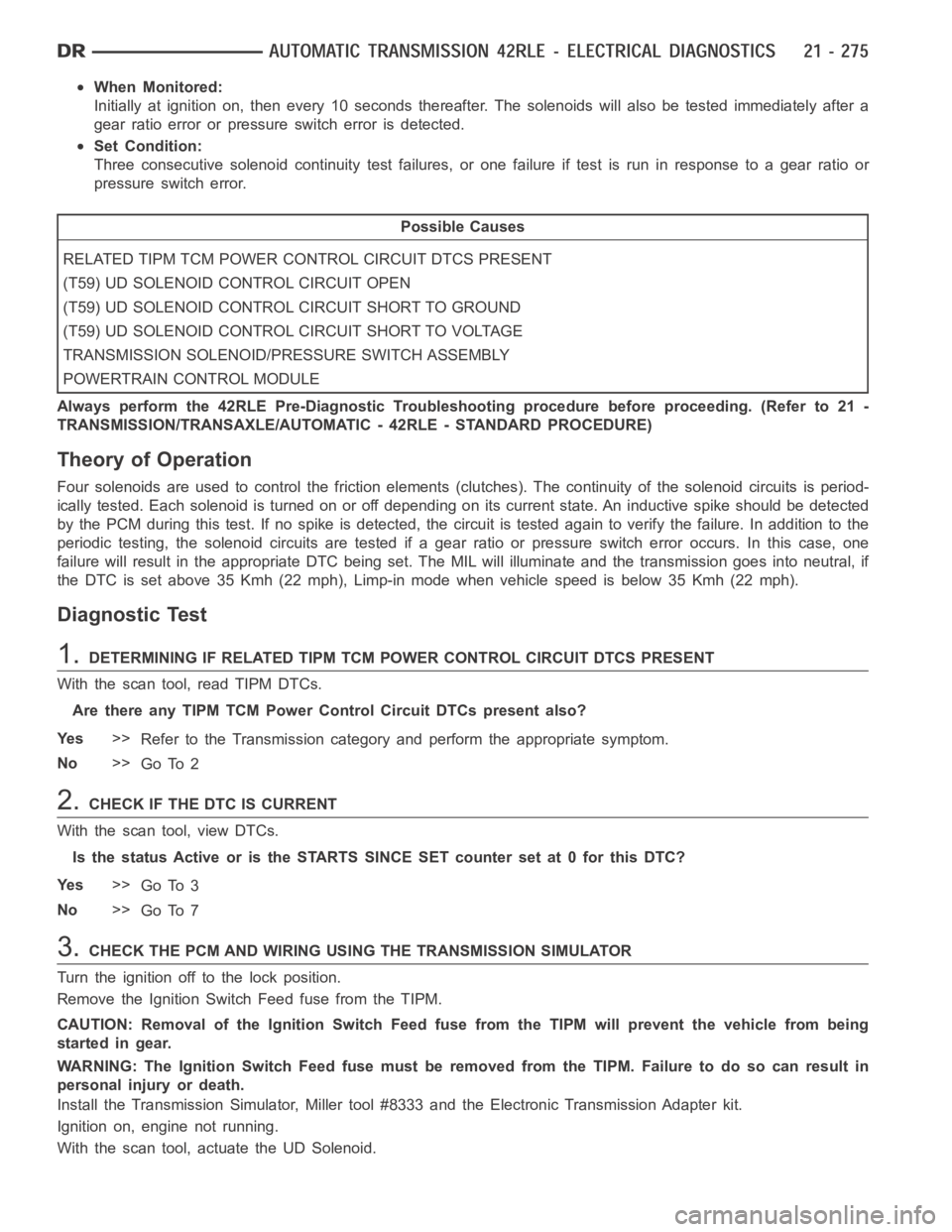

DODGE RAM SRT-10 2006 Service Repair Manual When Monitored:
Initially at ignition on, then every 10 seconds thereafter. The solenoidswill also be tested immediately after a
gear ratio error or pressure switch error is detected.
Set Condition:
T

When Monitored:
Initially at ignition on, then every 10 seconds thereafter. The solenoidswill also be tested immediately after a
gear ratio error or pressure switch error is detected.
Set Condition:
Three consecutive solenoid continuity test failures, or one failure if test is run in response to a gear ratio or
pressure switch error.
Possible Causes
RELATED TIPM TCM POWER CONTROL CIRCUIT DTCS PRESENT
(T59) UD SOLENOID CONTROL CIRCUIT OPEN
(T59) UD SOLENOID CONTROL CIRCUIT SHORT TO GROUND
(T59) UD SOLENOID CONTROL CIRCUIT SHORT TO VOLTAGE
TRANSMISSION SOLENOID/PRESSURE SWITCH ASSEMBLY
POWERTRAIN CONTROL MODULE
Always perform the 42RLE Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 21 -
TRANSMISSION/TRANSAXLE/AUTOMATIC - 42RLE - STANDARD PROCEDURE)
Theory of Operation
Four solenoids are used to control the friction elements (clutches). The continuity of the solenoid circuits is period-
ically tested. Each solenoid is turned on or off depending on its current state. An inductive spike should be detected
by the PCM during this test. If no spike is detected, the circuit is tested again to verify the failure. In addition to the
periodic testing, the solenoid circuits are tested if a gear ratio or pressure switch error occurs. In this case, one
failure will result in the appropriateDTC being set. The MIL will illuminate and the transmission goes into neutral, if
the DTC is set above 35 Kmh (22 mph), Limp-in mode when vehicle speed is below35 Kmh (22 mph).
Diagnostic Test
1.DETERMINING IF RELATED TIPM TCM POWER CONTROL CIRCUIT DTCS PRESENT
With the scan tool, read TIPM DTCs.
Are there any TIPM TCM Power Control Circuit DTCs present also?
Ye s>>
Refer to the Transmission category and perform the appropriate symptom.
No>>
Go To 2
2.CHECK IF THE DTC IS CURRENT
With the scan tool, view DTCs.
Is the status Active or is the STARTS SINCE SET counter set at 0 for this DTC?
Ye s>>
Go To 3
No>>
Go To 7
3.CHECK THE PCM AND WIRING USING THE TRANSMISSION SIMULATOR
Turn the ignition off to the lock position.
Remove the Ignition Switch Feed fuse from the TIPM.
CAUTION: Removal of the Ignition Switch Feed fuse from the TIPM will prevent the vehicle from being
startedingear.
WARNING: The Ignition Switch Feed fuse must be removed from the TIPM. Failure to do so can result in
personal injury or death.
Install the Transmission Simulator,Miller tool #8333 and the ElectronicTransmission Adapter kit.
Ignition on, engine not running.
With the scan tool, actuate the UD Solenoid.

Page 2797 of 5267

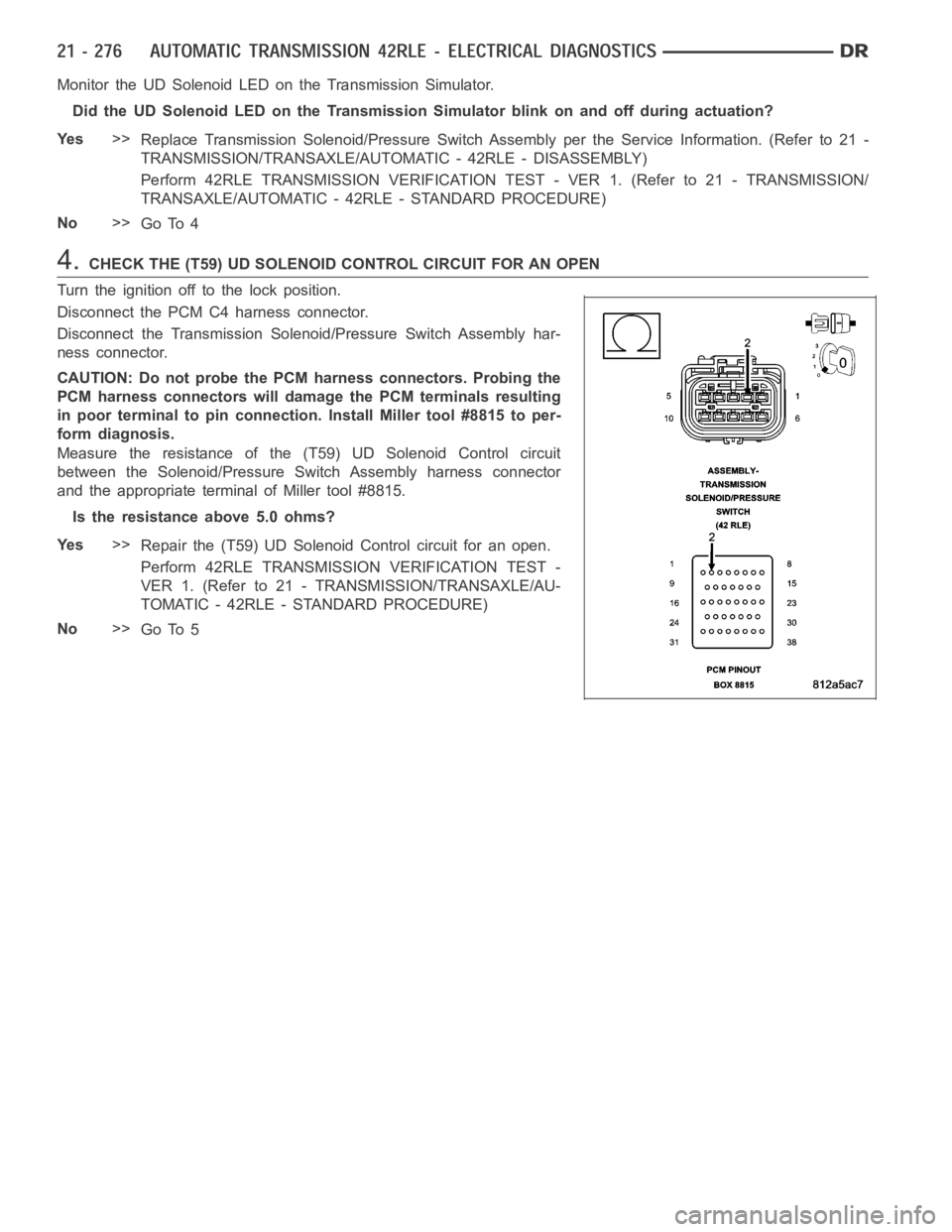

DODGE RAM SRT-10 2006 Service Repair Manual Monitor the UD Solenoid LED on the Transmission Simulator.
Did the UD Solenoid LED on the Transmission Simulator blink on and off during actuation?
Ye s>>
Replace Transmission Solenoid/Pressure Switch

Page 2798 of 5267

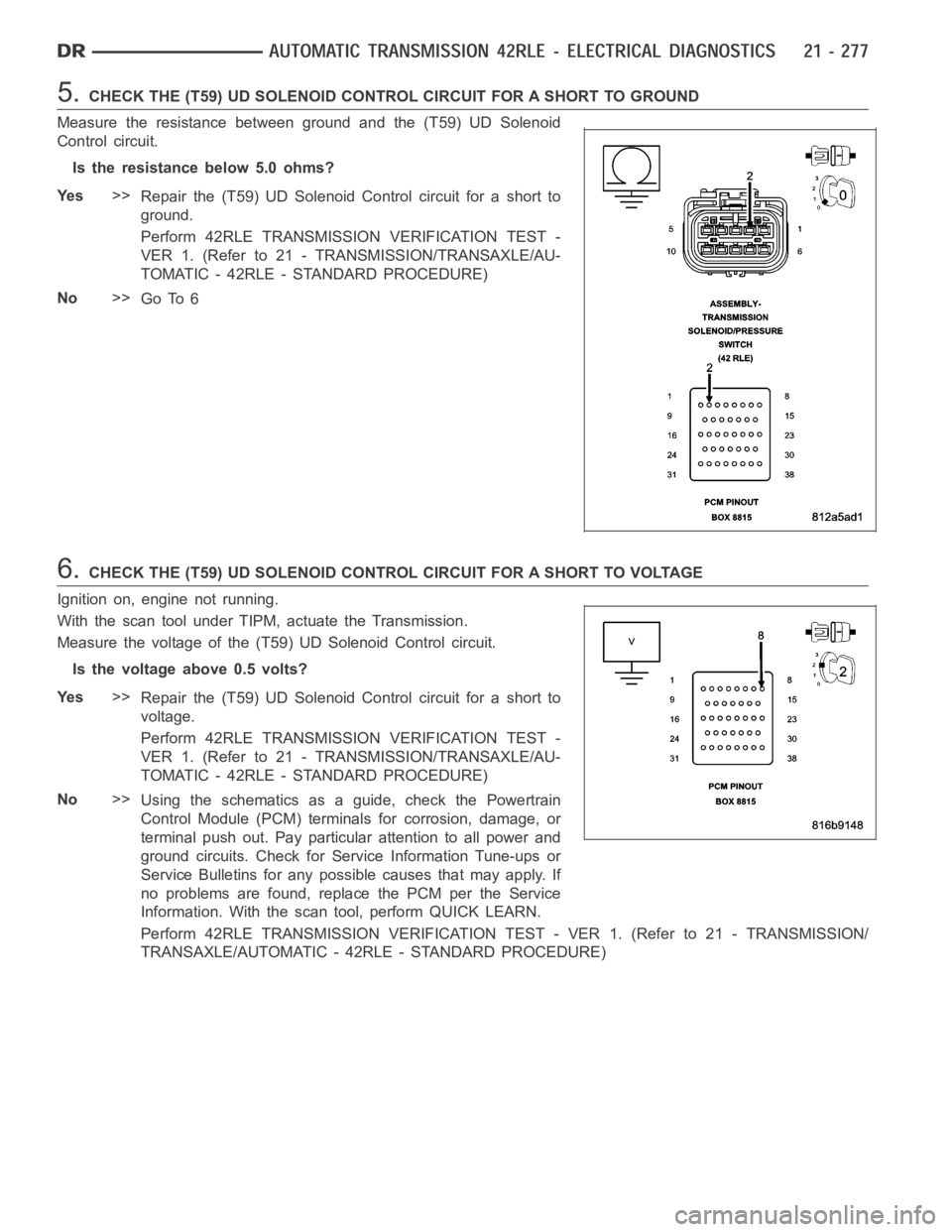

DODGE RAM SRT-10 2006 Service Repair Manual 5.CHECK THE (T59) UD SOLENOID CONTROL CIRCUIT FOR A SHORT TO GROUND
Measure the resistance between ground and the (T59) UD Solenoid
Control circuit.
Is the resistance below 5.0 ohms?
Ye s>>
Repair the

Page 2799 of 5267

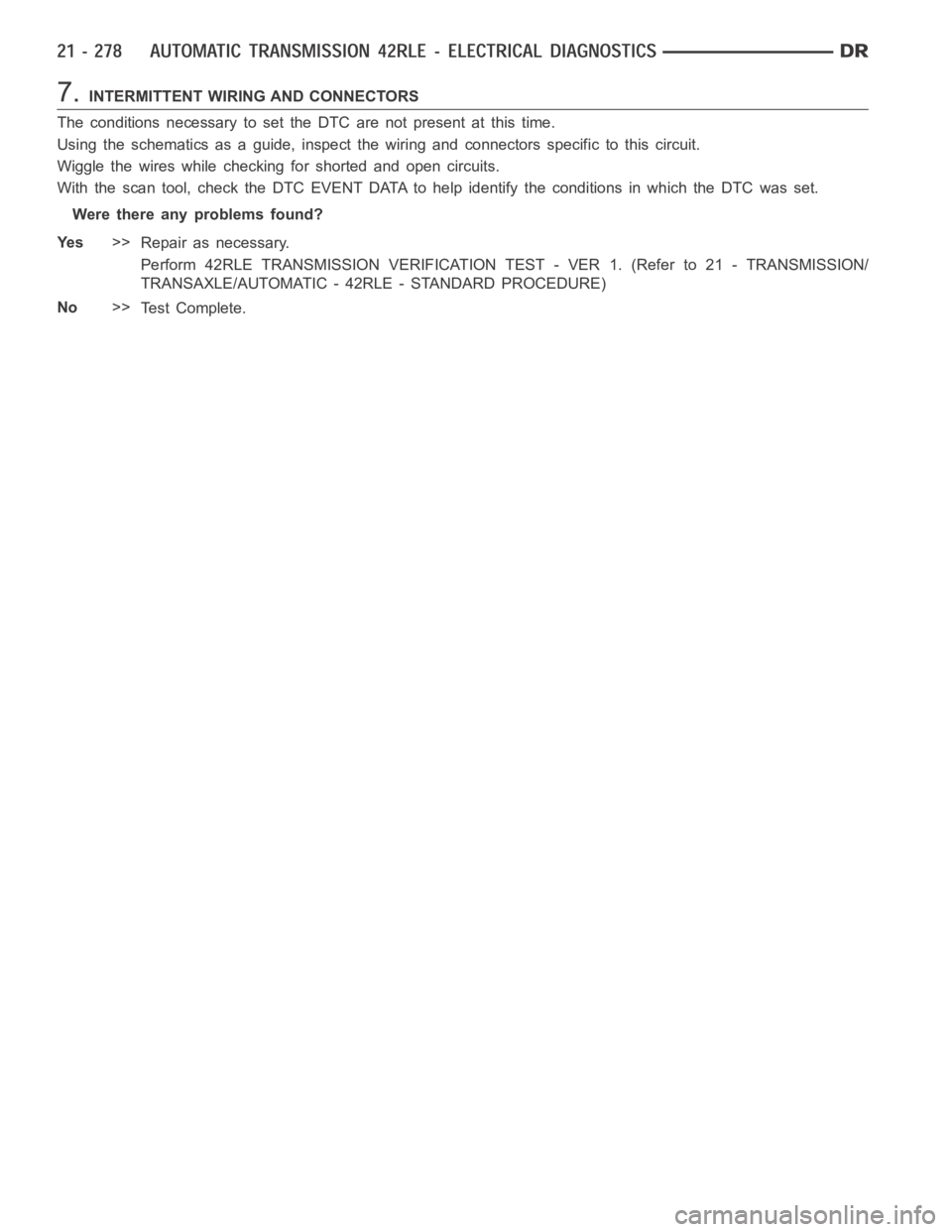

DODGE RAM SRT-10 2006 Service Repair Manual 7.INTERMITTENT WIRING AND CONNECTORS
The conditions necessary to set the DTC are not present at this time.
Using the schematics as a guide, inspect the wiring and connectors specifictothiscircuit.
Wig

Page 2800 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P0841-LR PRESSURE SWITCH RATIONALITY
For a complete wiring diagramRefer to Section 8W.
