Page 249 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P2135-THROTTLE POSITION SENSOR 1/2 CORRELATION For a complete wiring diagramRefer to Section 8W.

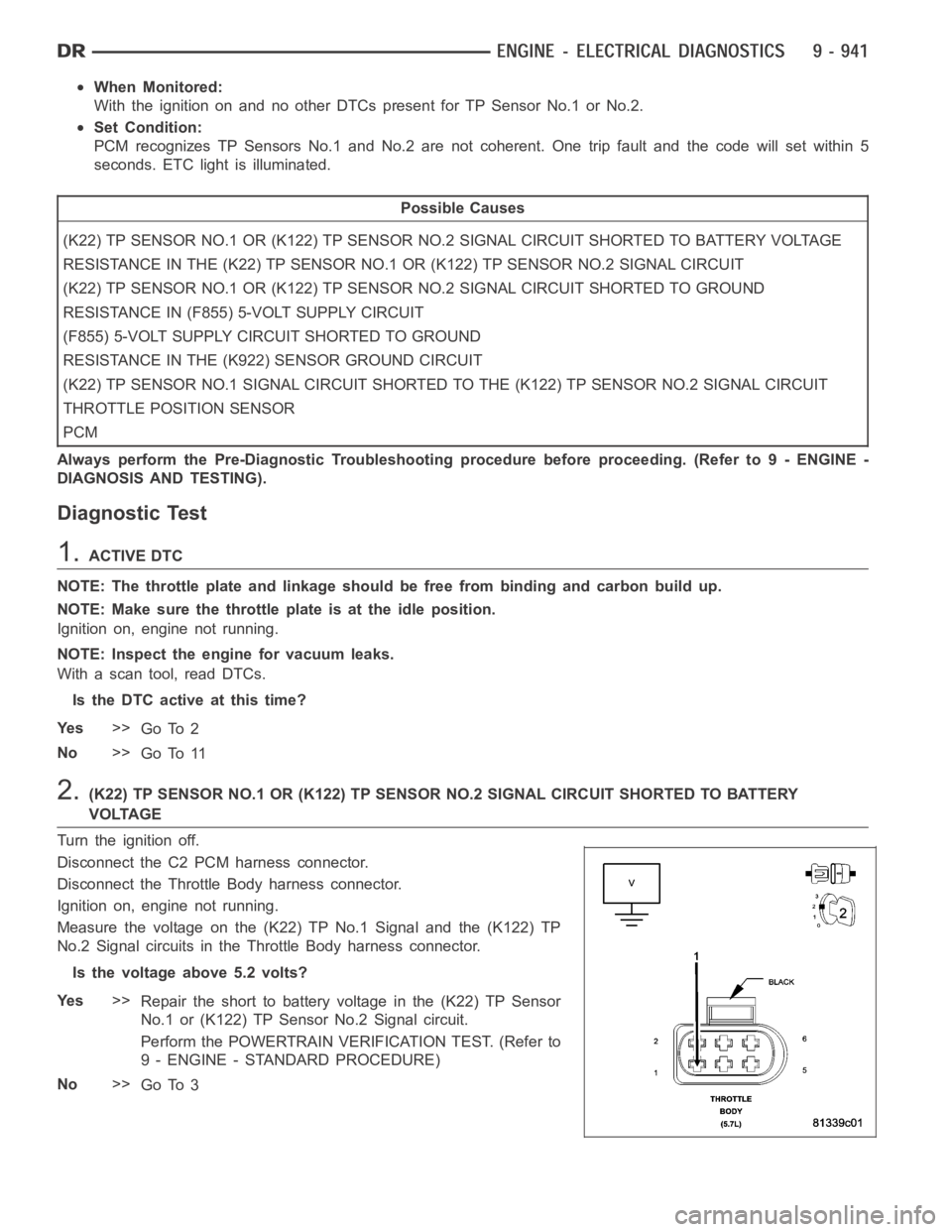

Page 250 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual When Monitored: With the ignition on and no other DTCs present for TP Sensor No.1 or No.2. Set Condition: PCM recognizes TP Sensors No.1 and No.2 are not coherent. One trip fault andthe code will set

Page 251 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 3.THROTTLE POSITION SENSOR Turn the ignition off. Connect the C2 PCM harness connector. Ignition on, engine not running. With a scan tool, monitor the TP Sensor No.1 and No.2 voltage. Connect a jumper

Page 252 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 4.EXCESSIVE RESISTANCE IN THE (K22) TP SENSOR NO.1 OR (K122) TP SENSOR NO.2 SIGNAL CIRCUIT Turn the ignition off. Disconnect the C2 PCM harness connector. CAUTION: Do not probe the PCM harness connect

Page 253 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 5.(K22) TP SENSOR NO.1 OR (K122) TP SENSOR NO.1 SIGNAL CIRCUIT SHORTED TO GROUND Measure the resistance between ground and the (K22) TP Sensor No.1 Signal circuit and the (K122) TP Sensor No.2 Signal

Page 254 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 6.EXCESSIVE RESISTANCE IN THE (F855) 5-VOLT SUPPLY CIRCUIT Measure the resistance of the (F855) 5-volt Supply circuit from the Throttle Body harness connector to the appropriate terminal of special to

Page 255 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 8.EXCESSIVE RESISTANCE IN THE (K922) SENSOR RETURN CIRCUIT CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal

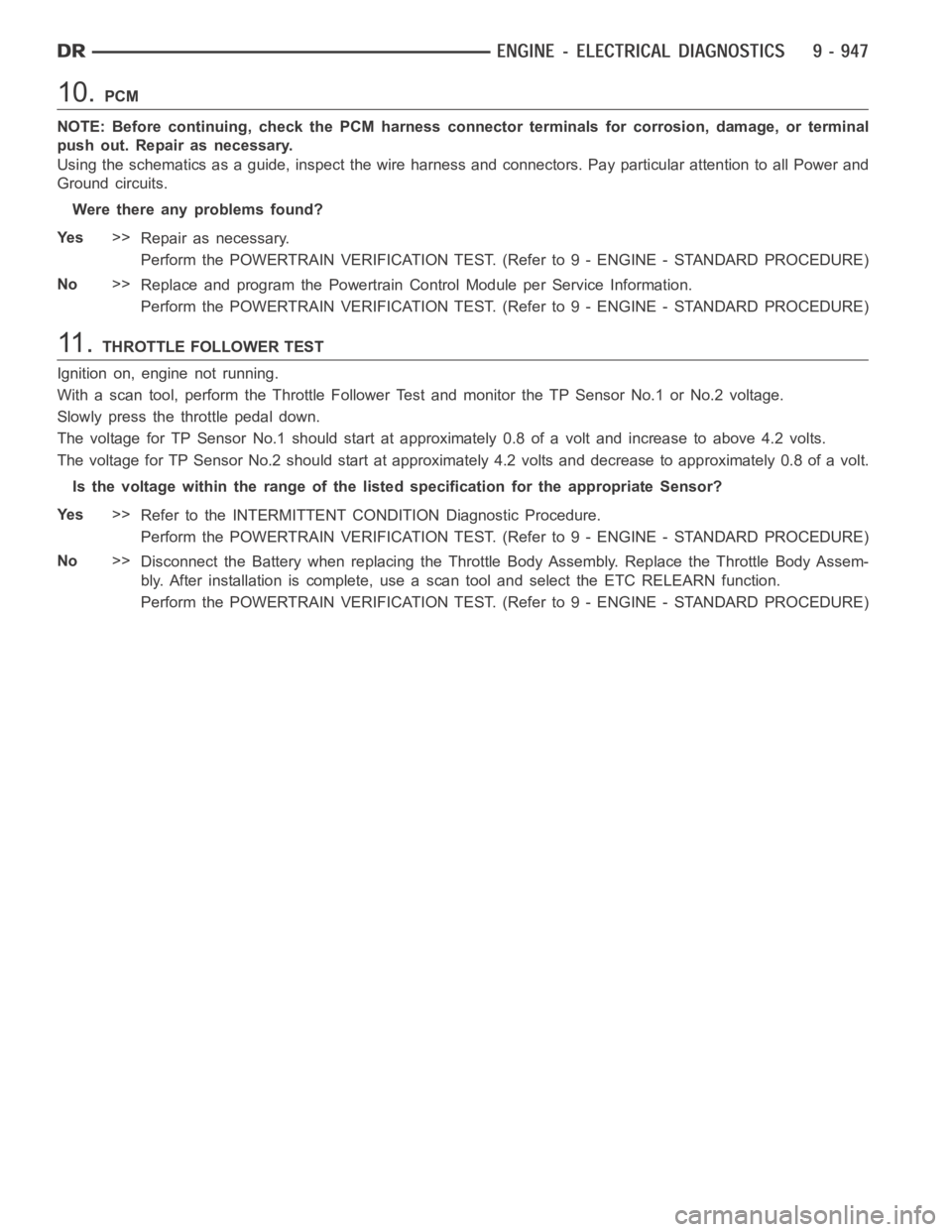

Page 256 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 10.PCM NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary. Using the schematics as a guide, inspect the wire harness an
