Page 81 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 3.(A109) FUEL PUMP CONTROL OUTPUT CIRCUIT SHORTED TO GROUND Turn the ignition off Disconnect the C10 TIPM harness connector. Disconnect the Fuel Pump Module harness connector. Measure the resistance b

Page 82 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P127D-FUEL PUMP CONTROL CIRCUIT 2 HIGH For a complete wiring diagramRefer to Section 8W.

Page 83 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual When Monitored: With the ignition on. Battery voltage greater than 10.4 volts. Set Condition: A shorted high condition in the Fuel Pump Control circuit has been detectedin the TIPM. One Trip Fault. Th

Page 84 of 5267

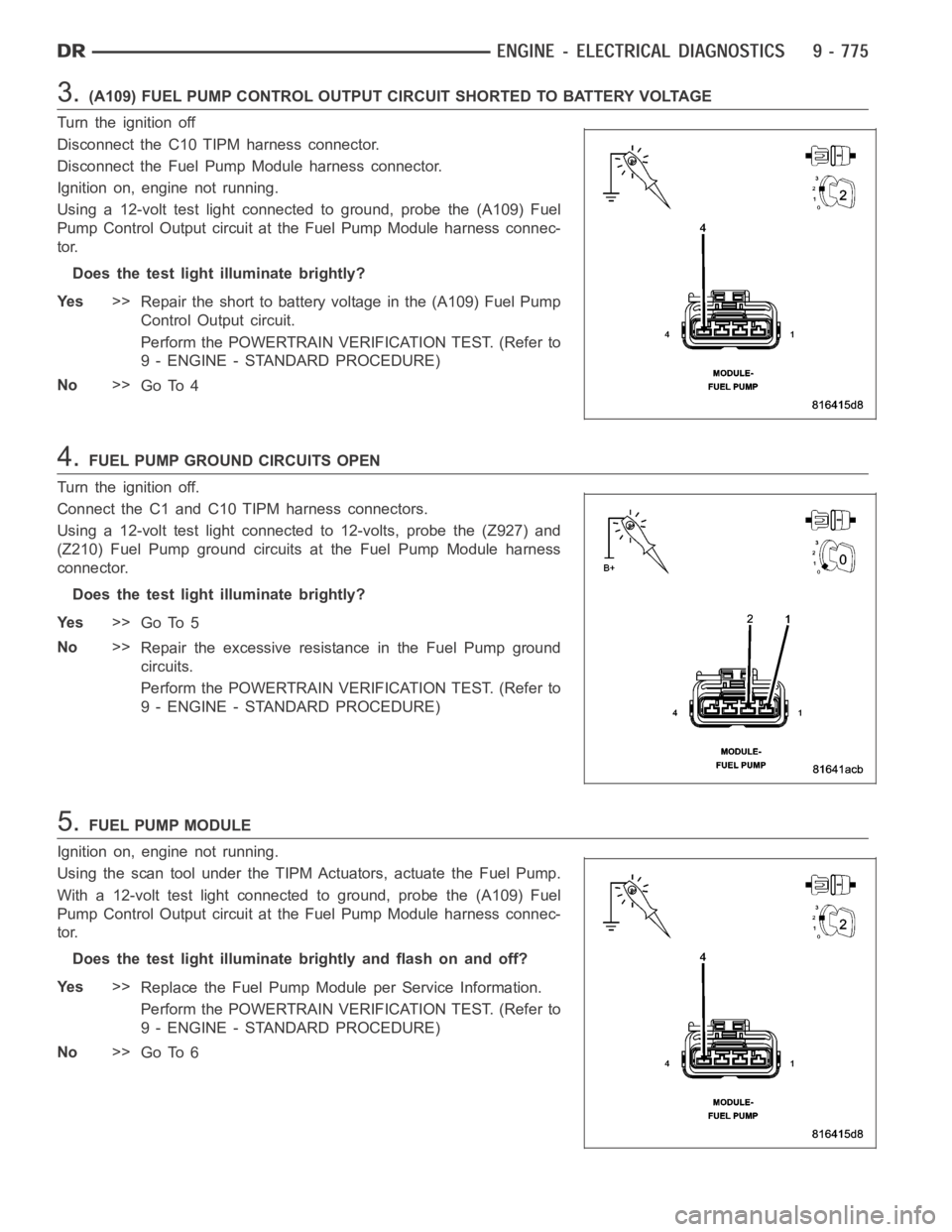

DODGE RAM SRT-10 2006 Service Repair Manual 3.(A109) FUEL PUMP CONTROL OUTPUT CIRCUIT SHORTED TO BATTERY VOLTAGE Turn the ignition off Disconnect the C10 TIPM harness connector. Disconnect the Fuel Pump Module harness connector. Ignition on, en

Page 85 of 5267

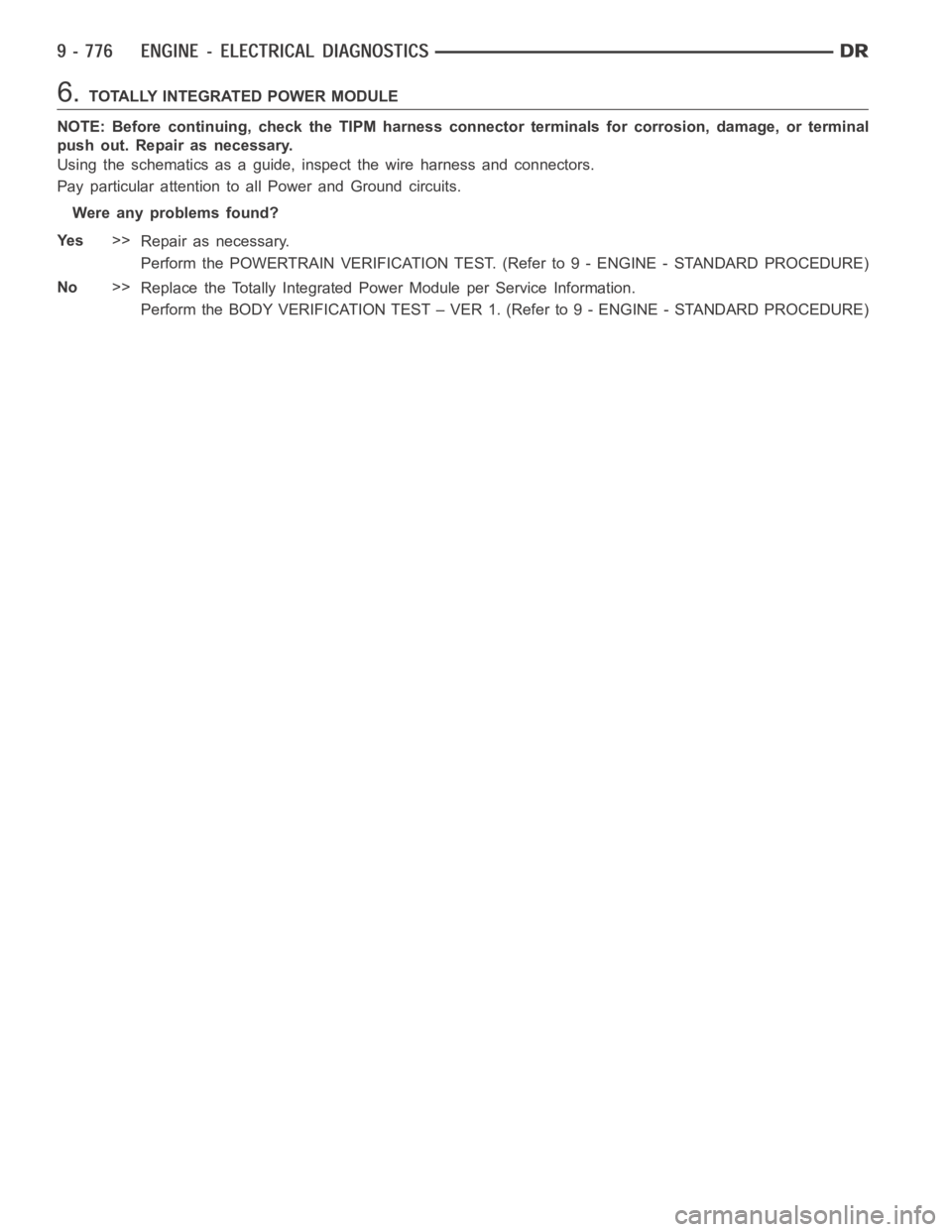

DODGE RAM SRT-10 2006 Service Repair Manual 6.TOTALLY INTEGRATED POWER MODULE NOTE: Before continuing, check the TIPM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary. Using the schematics as a guide,

Page 86 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P127E-FUEL PUMP CONTROL CIRCUIT 2 OPEN (TIPM) For a complete wiring diagramRefer to Section 8W.

Page 87 of 5267

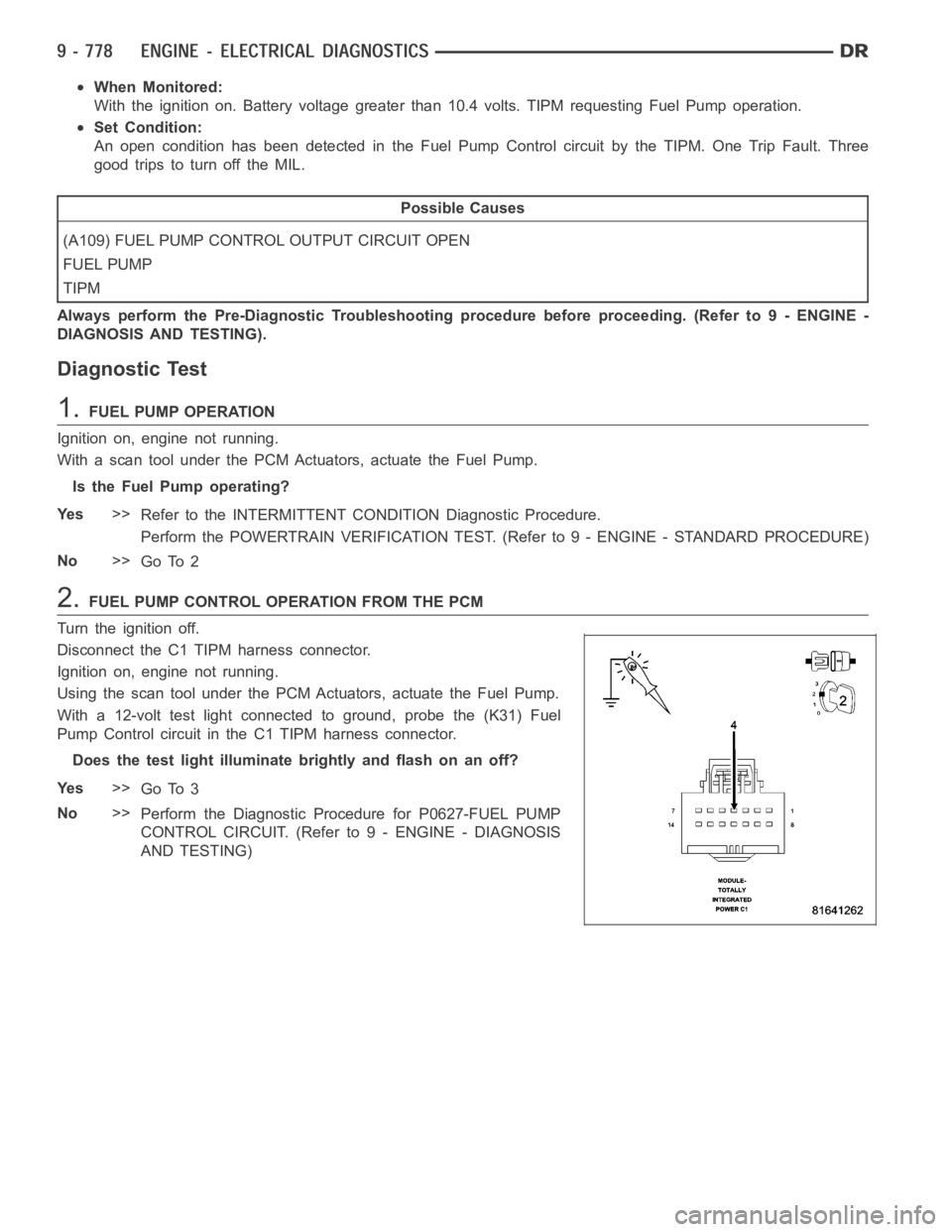

DODGE RAM SRT-10 2006 Service Repair Manual When Monitored: With the ignition on. Battery voltage greater than 10.4 volts. TIPM requesting Fuel Pump operation. Set Condition: An open condition has been detected in the Fuel Pump Control circuit

Page 88 of 5267

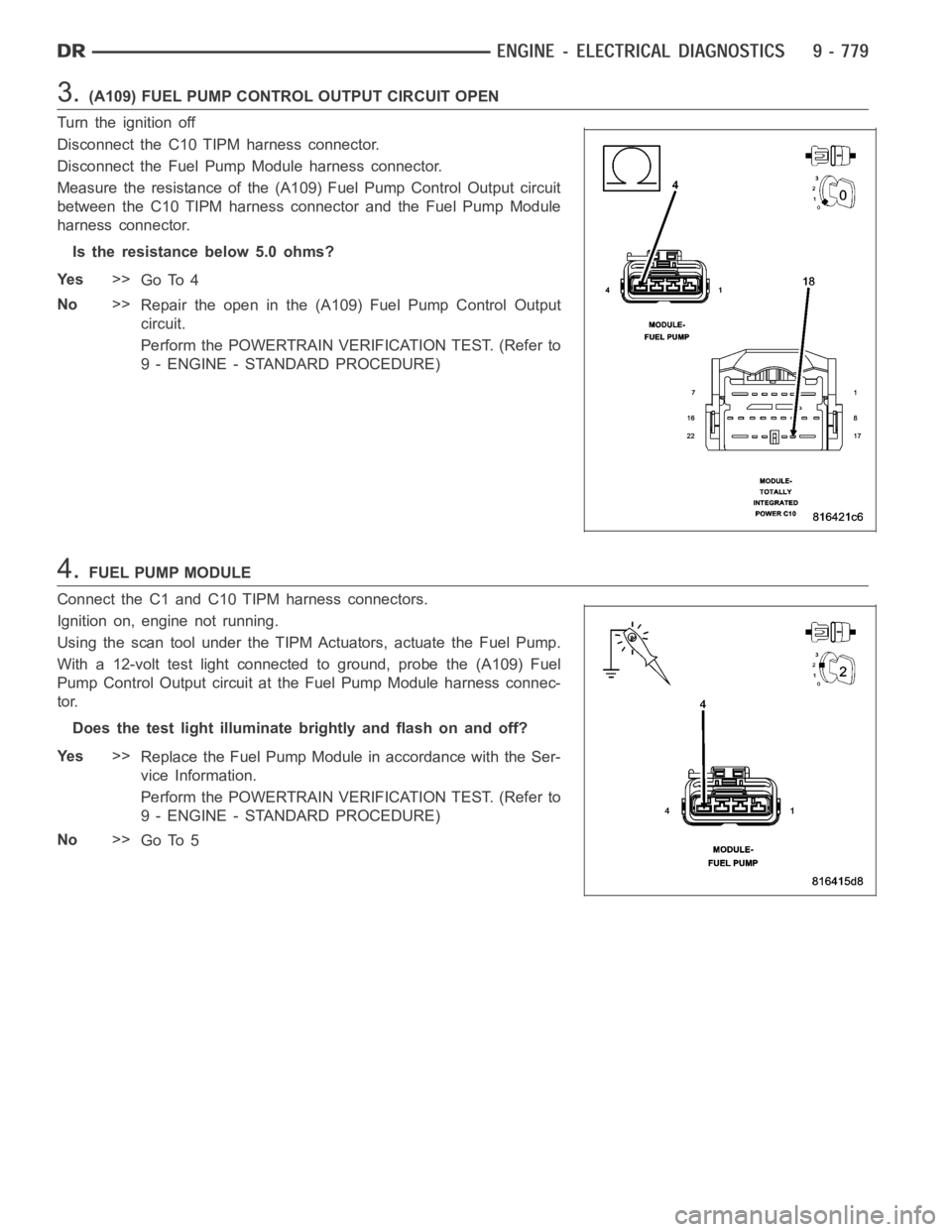

DODGE RAM SRT-10 2006 Service Repair Manual 3.(A109) FUEL PUMP CONTROL OUTPUT CIRCUIT OPEN Turn the ignition off Disconnect the C10 TIPM harness connector. Disconnect the Fuel Pump Module harness connector. Measure the resistance of the (A109)
