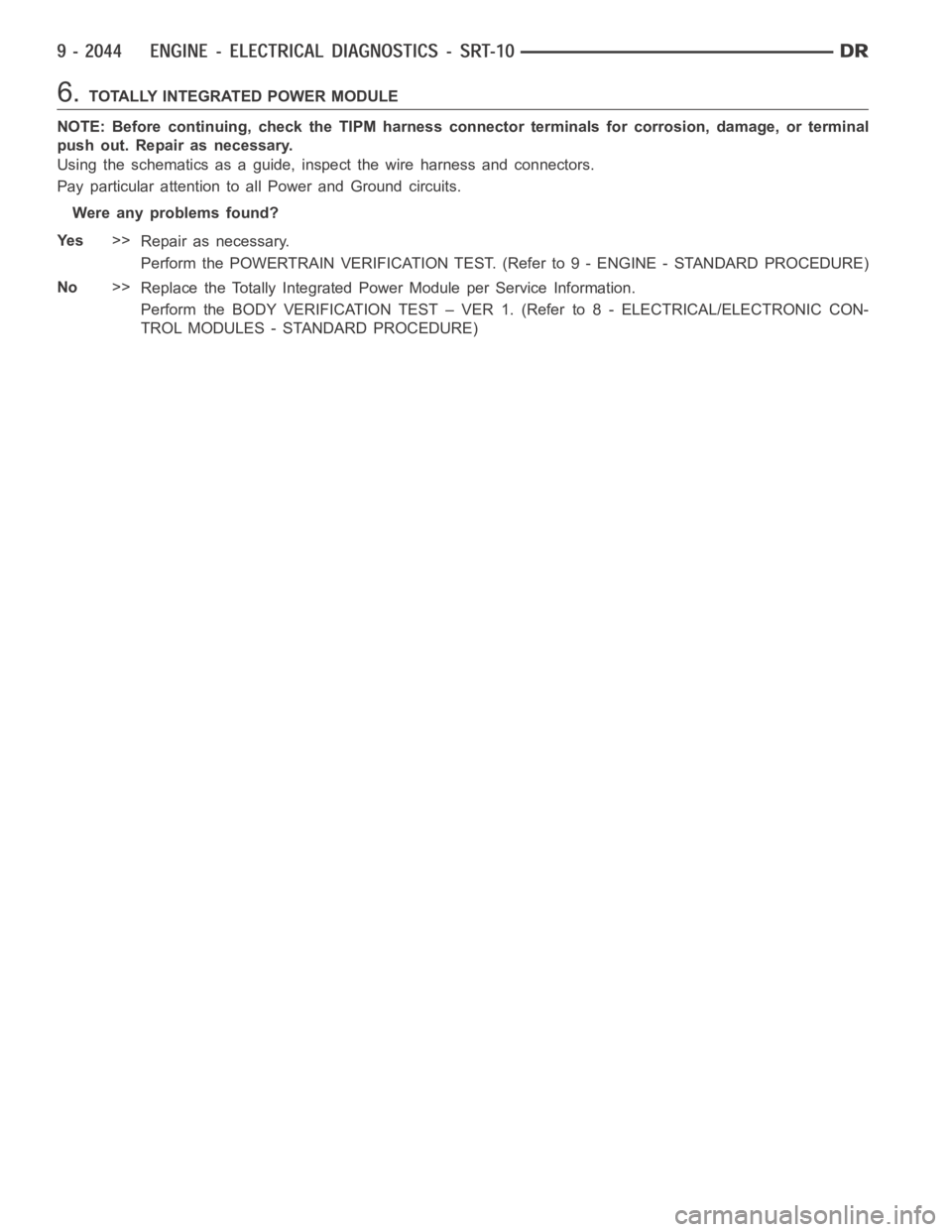

DODGE RAM SRT-10 2006 Service Repair Manual 6.TOTALLY INTEGRATED POWER MODULE NOTE: Before continuing, check the TIPM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary. Using the schematics as a guide,

Page 1354 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P1274-A/C CLUTCH CONTROL CIRCUIT 2 OPEN For a complete wiring diagramRefer to Section 8W.

Page 1355 of 5267

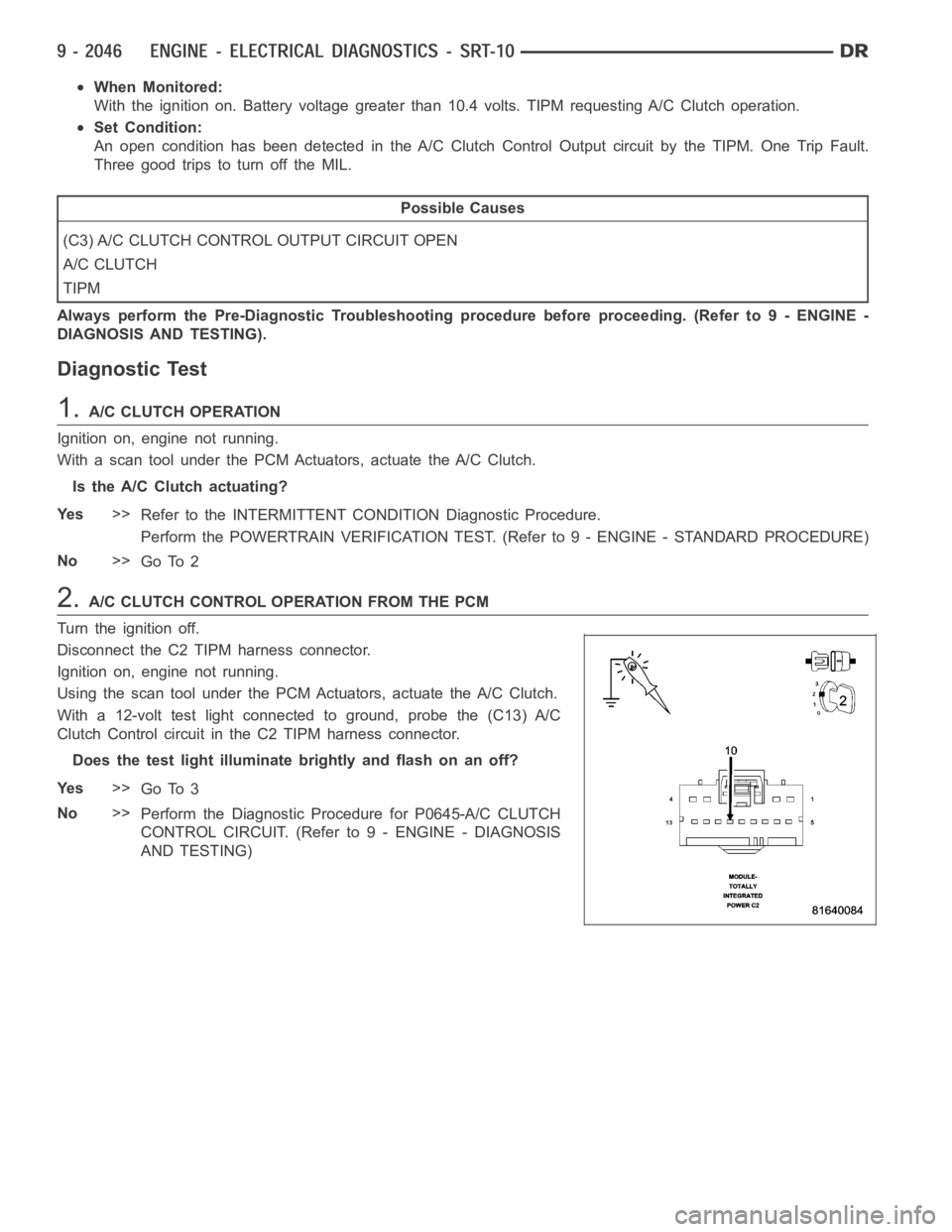

DODGE RAM SRT-10 2006 Service Repair Manual When Monitored: With the ignition on. Battery voltage greater than 10.4 volts. TIPM requesting A/C Clutch operation. Set Condition: An open condition has been detected in the A/C Clutch Control Output

Page 1356 of 5267

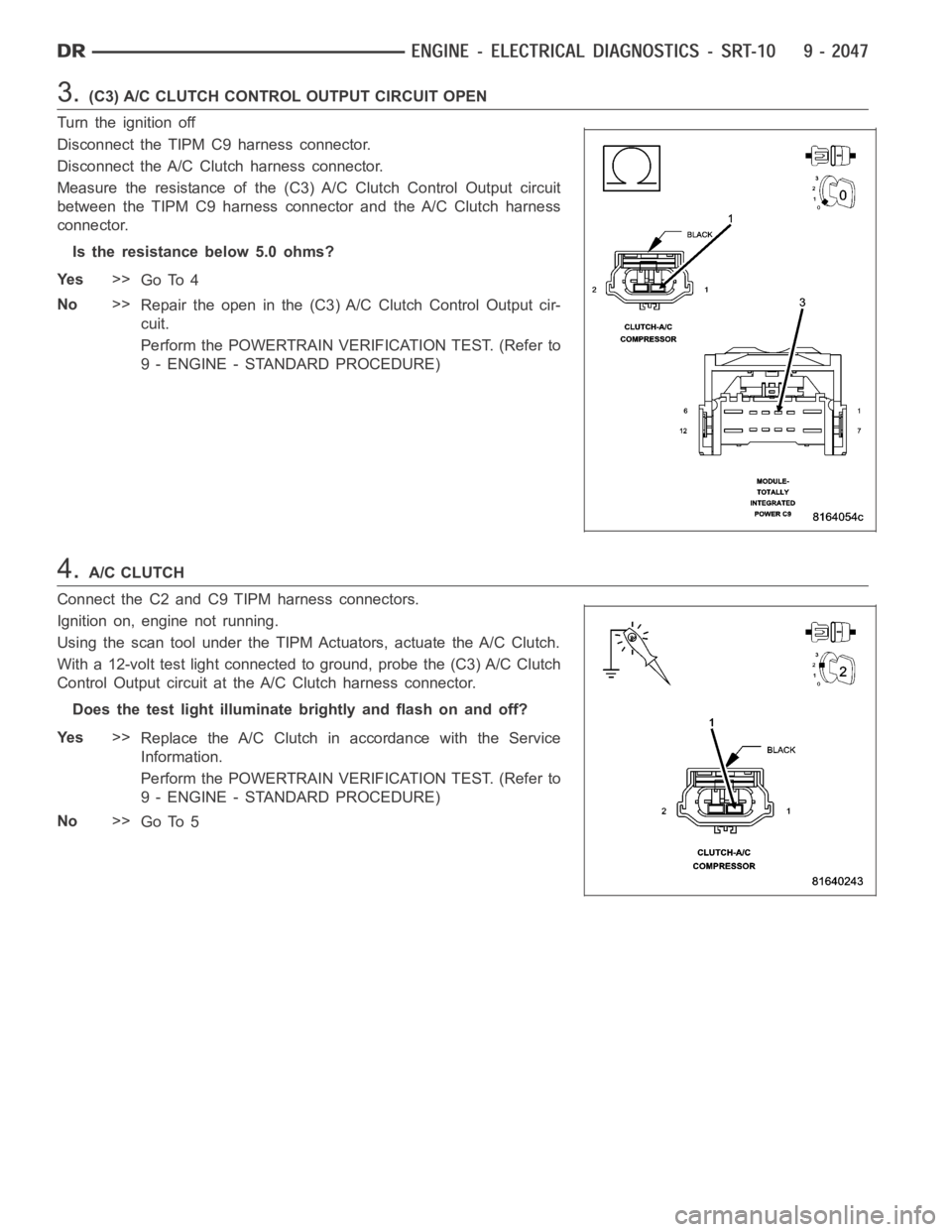

DODGE RAM SRT-10 2006 Service Repair Manual 3.(C3) A/C CLUTCH CONTROL OUTPUT CIRCUIT OPEN Turn the ignition off Disconnect the TIPM C9 harness connector. Disconnect the A/C Clutch harness connector. Measure the resistance of the (C3) A/C Clutch

Page 1357 of 5267

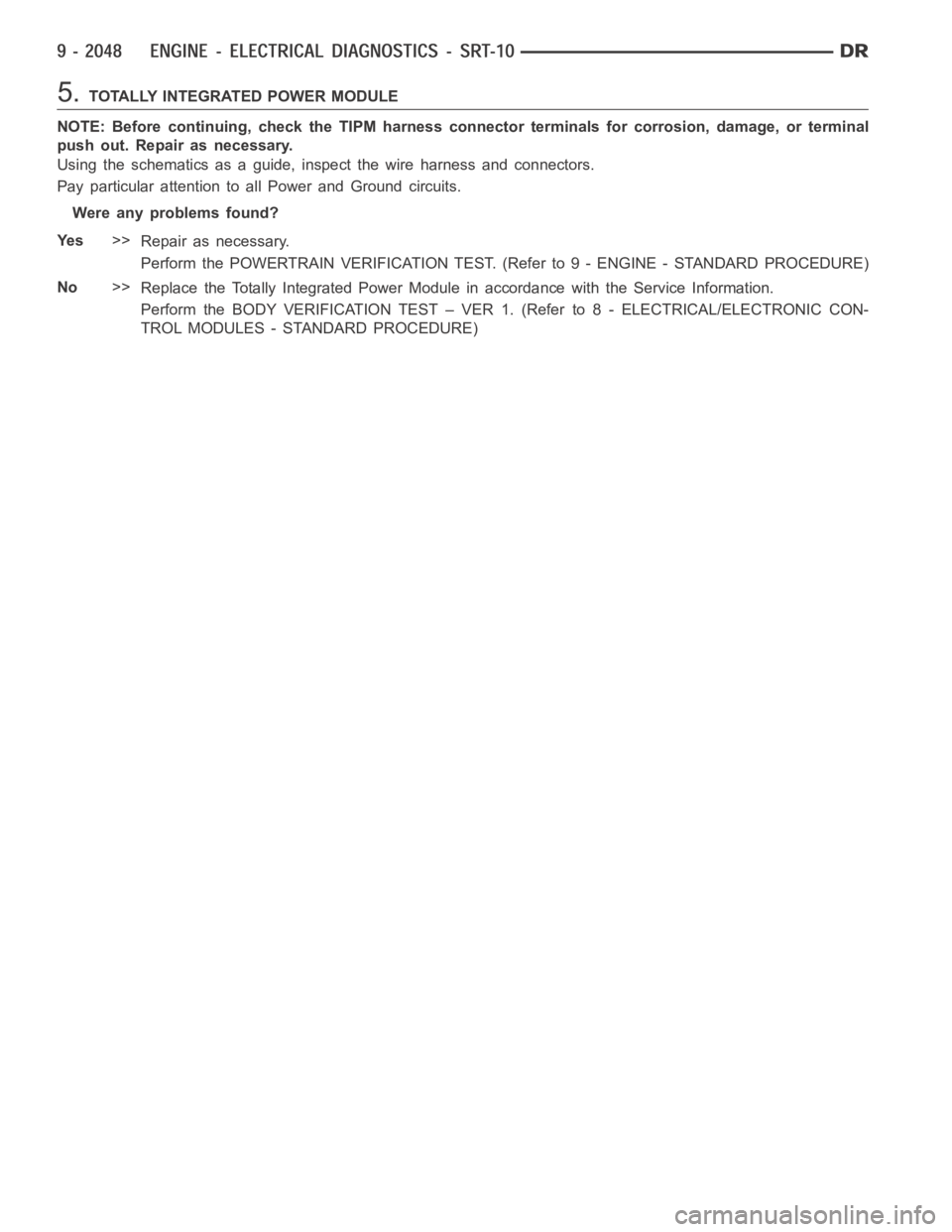

DODGE RAM SRT-10 2006 Service Repair Manual 5.TOTALLY INTEGRATED POWER MODULE NOTE: Before continuing, check the TIPM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary. Using the schematics as a guide,

Page 1358 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P1275-A/C CLUTCH CONTROL CIRCUIT 2 OVERCURRENT For a complete wiring diagramRefer to Section 8W.

Page 1359 of 5267

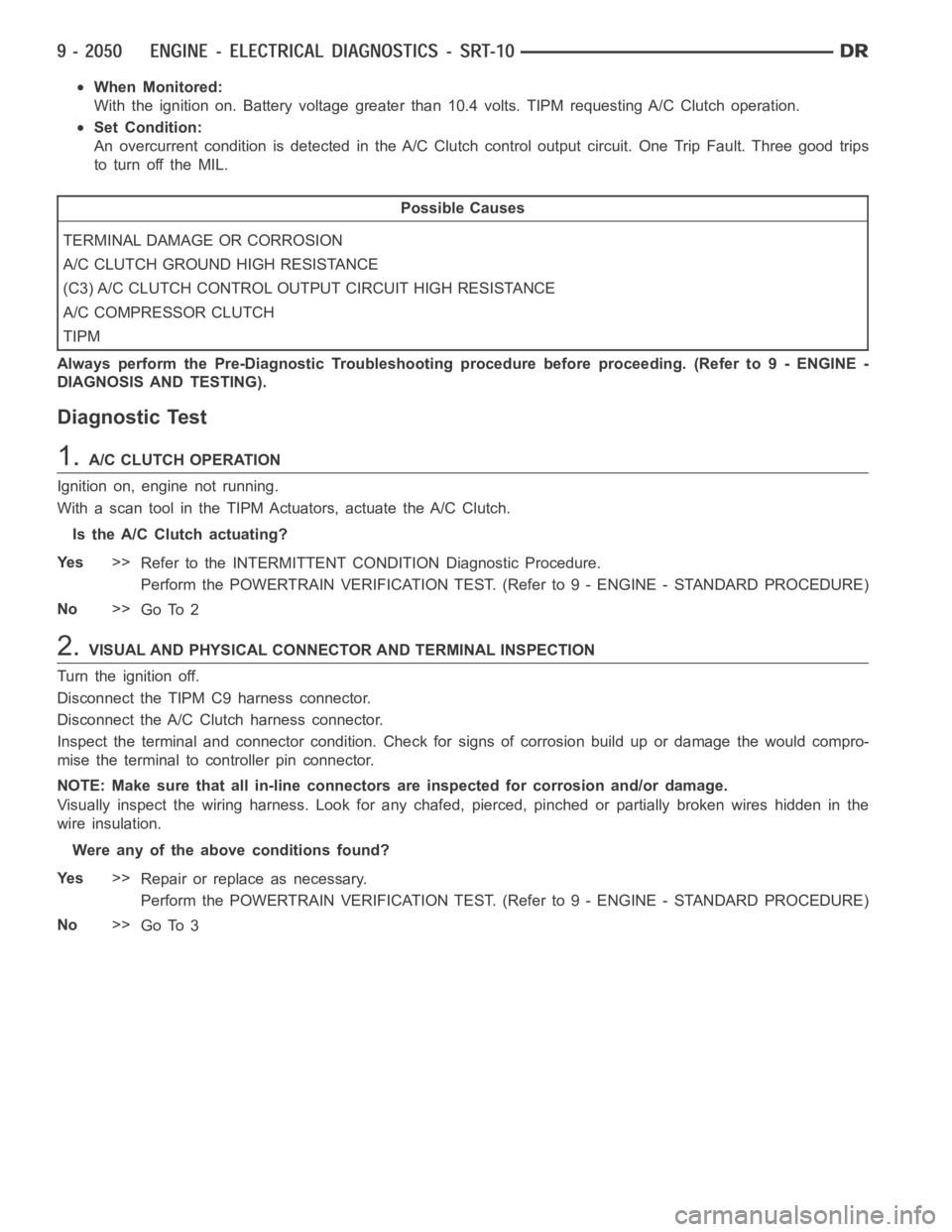

DODGE RAM SRT-10 2006 Service Repair Manual When Monitored: With the ignition on. Battery voltage greater than 10.4 volts. TIPM requesting A/C Clutch operation. Set Condition: An overcurrent condition is detected in the A/C Clutch control outpu

Page 1360 of 5267

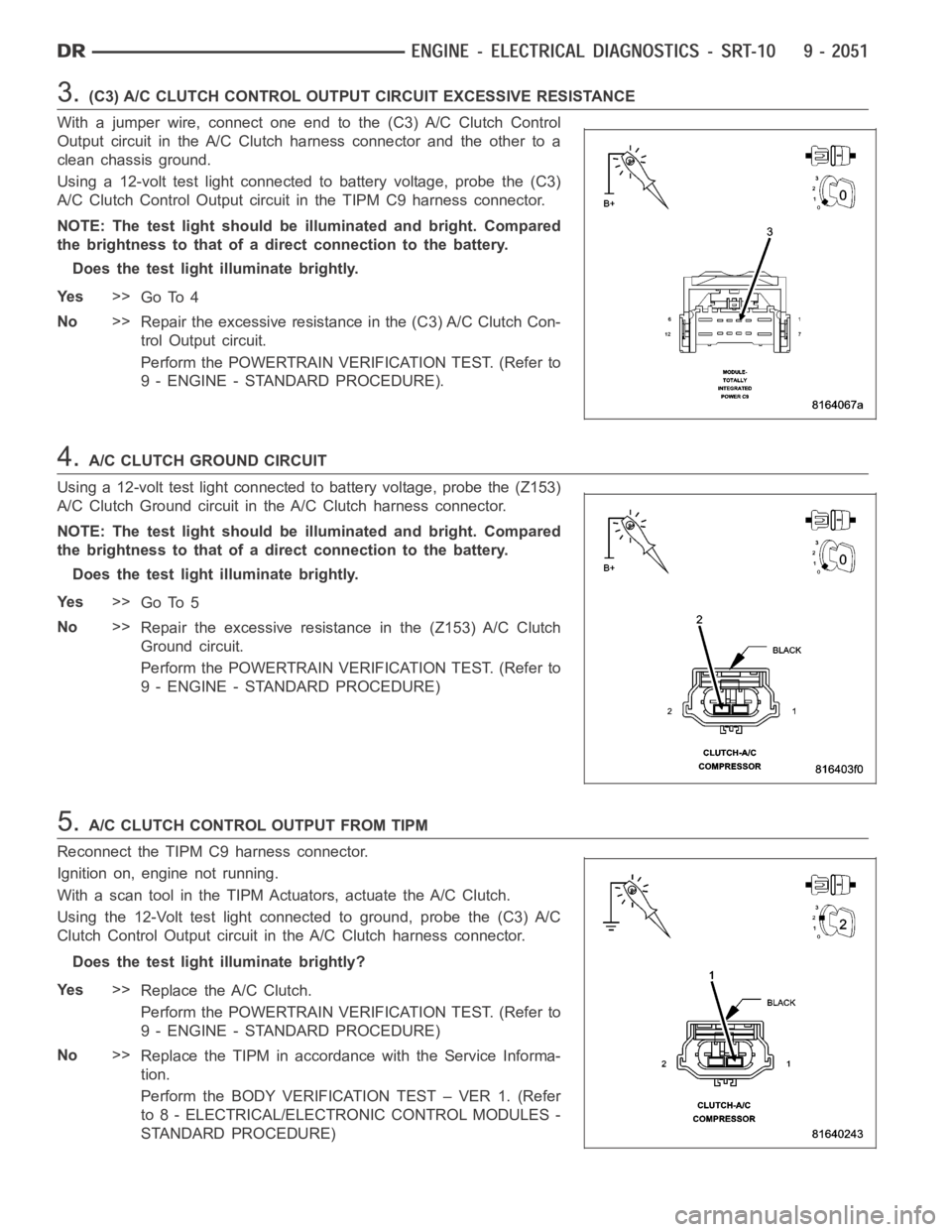

DODGE RAM SRT-10 2006 Service Repair Manual 3.(C3) A/C CLUTCH CONTROL OUTPUT CIRCUIT EXCESSIVE RESISTANCE With a jumper wire, connect one end to the (C3) A/C Clutch Control Output circuit in the A/C Clutch harness connector and the other to a c
