Page 1337 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 3.(K342) ASD CONTROL OUTPUT CIRCUIT SHORTED TO VOLTAGE Turn the ignition off Disconnect the C10 TIPM harness connector. Measure the voltage on the (K342) ASD Control Output circuit at the C10 TIPM har

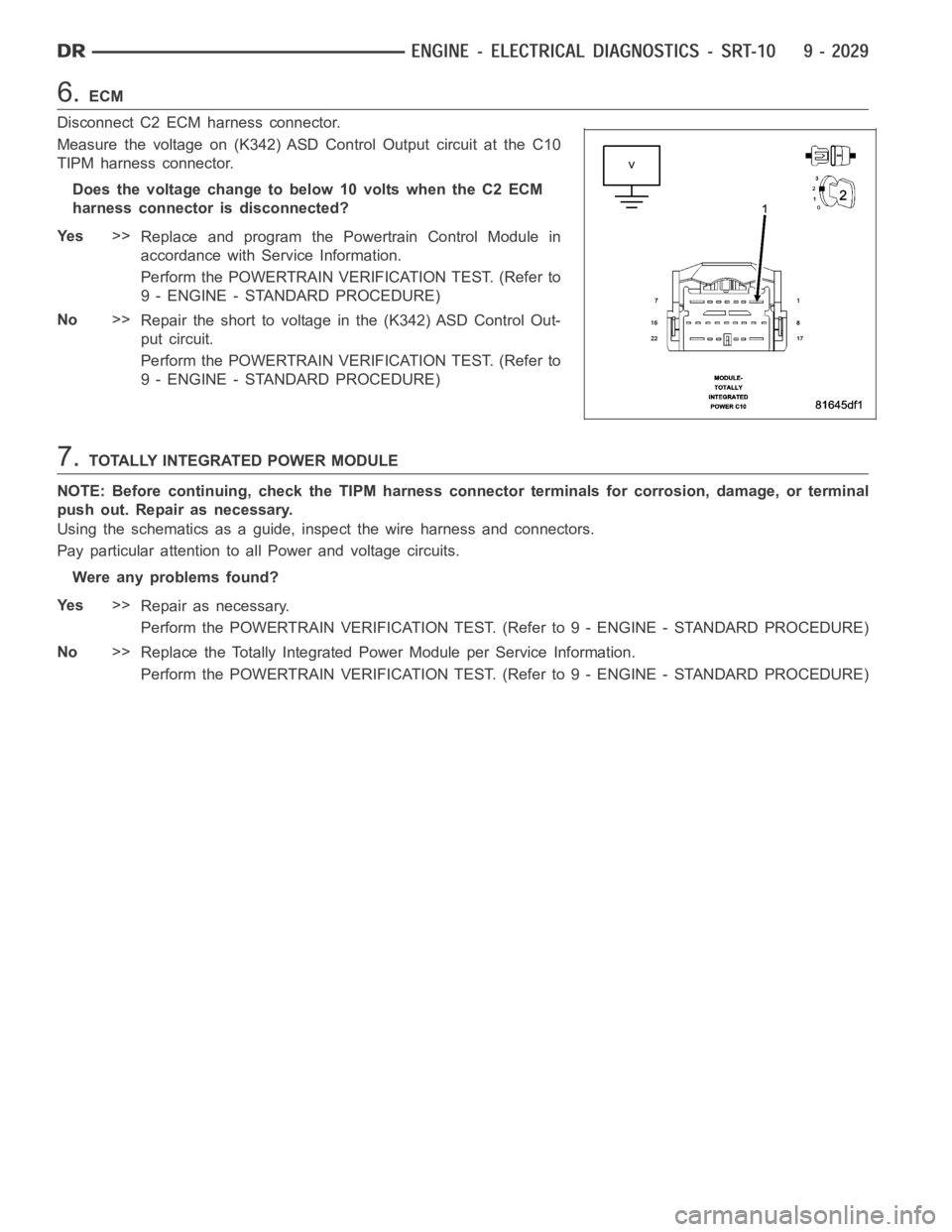

Page 1338 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 6.ECM Disconnect C2 ECM harness connector. Measure the voltage on (K342) ASD Control Output circuit at the C10 TIPM harness connector. Does the voltage change to below 10 volts when the C2 ECM harness

Page 1339 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P126D-ASD CONTROL CIRCUIT 2 OPEN For a complete wiring diagramRefer to Section 8W.

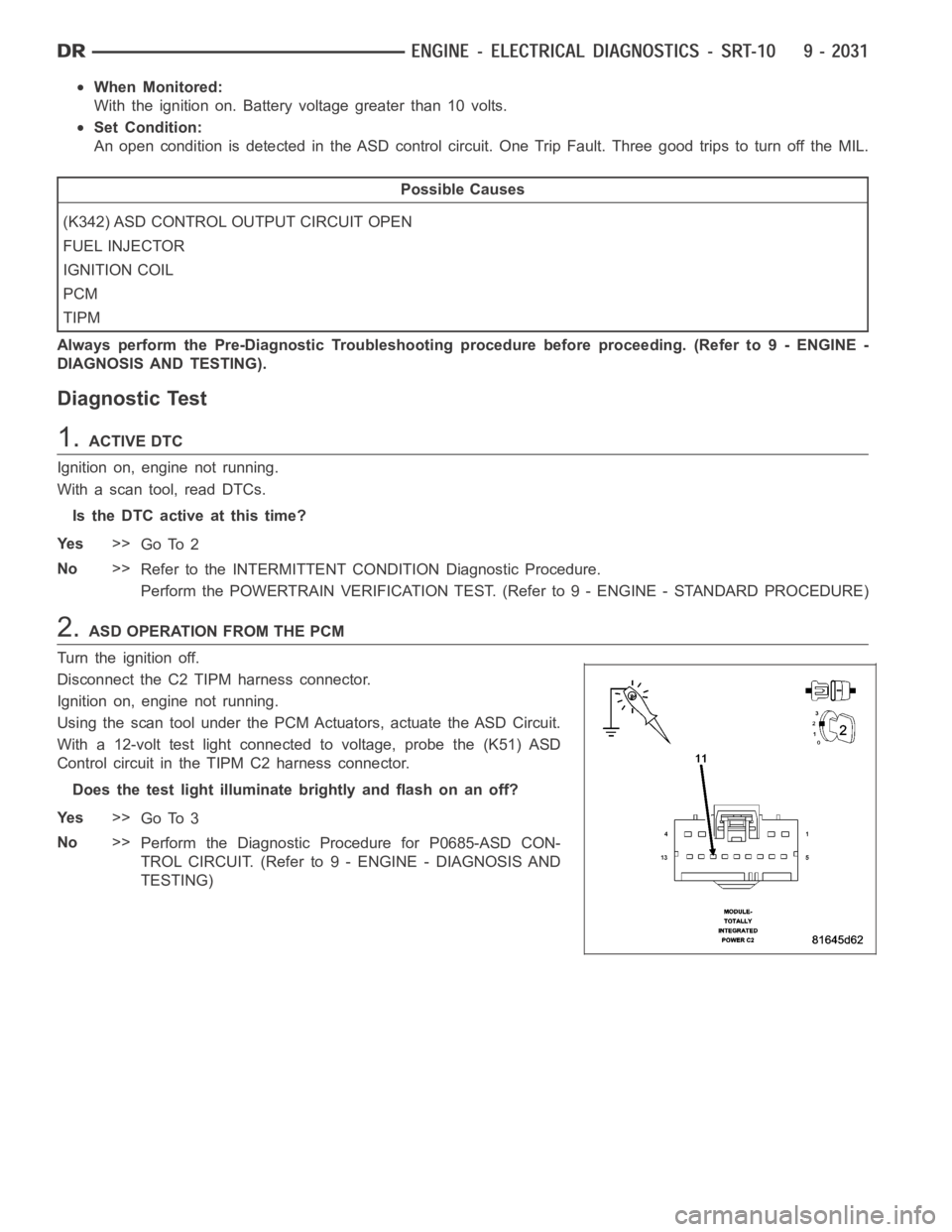

Page 1340 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual When Monitored: With the ignition on. Battery voltage greater than 10 volts. Set Condition: An open condition is detected in the ASD control circuit. One Trip Fault. Three good trips to turn off the M

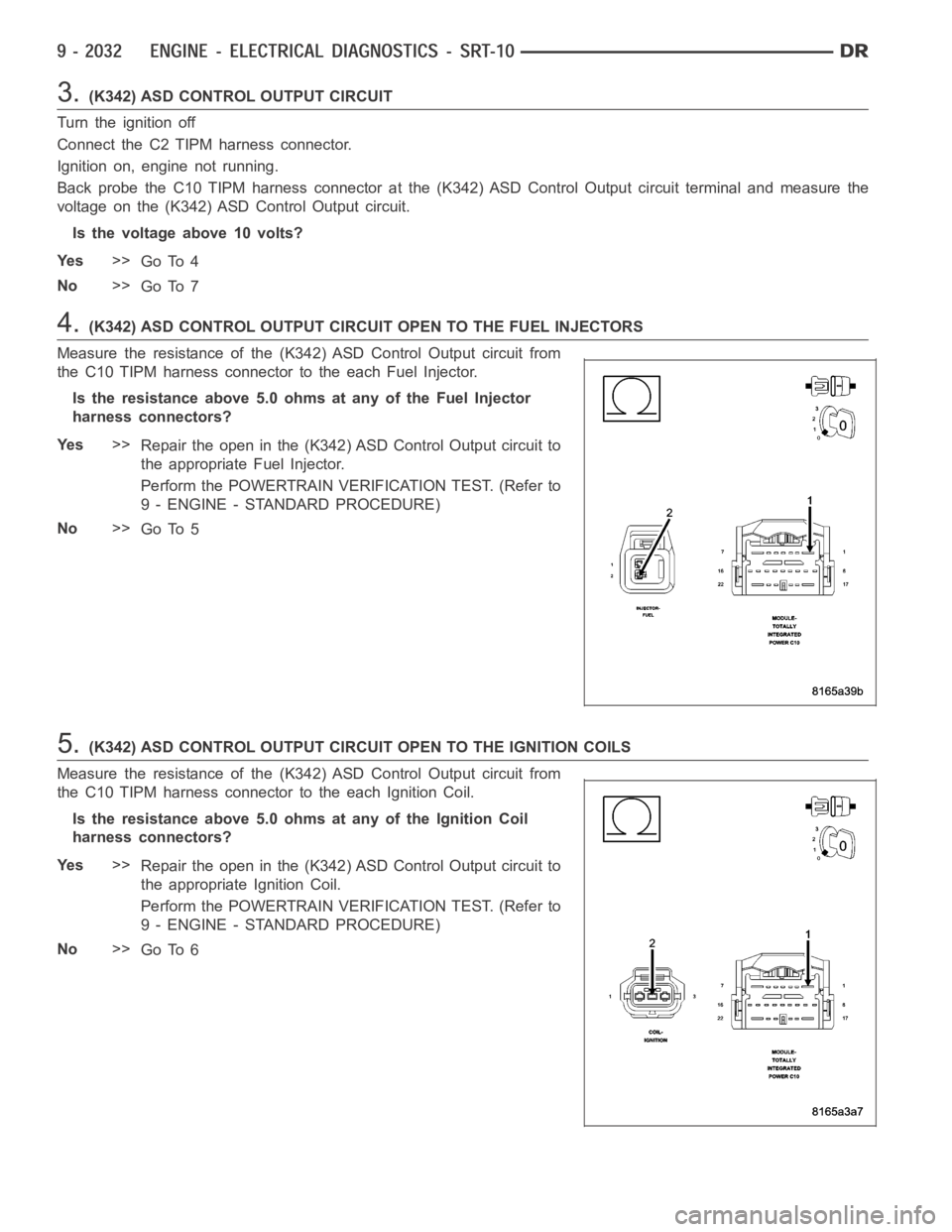

Page 1341 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 3.(K342) ASD CONTROL OUTPUT CIRCUIT Turn the ignition off Connect the C2 TIPM harness connector. Ignition on, engine not running. Back probe the C10 TIPM harness connector at the (K342) ASD Control Ou

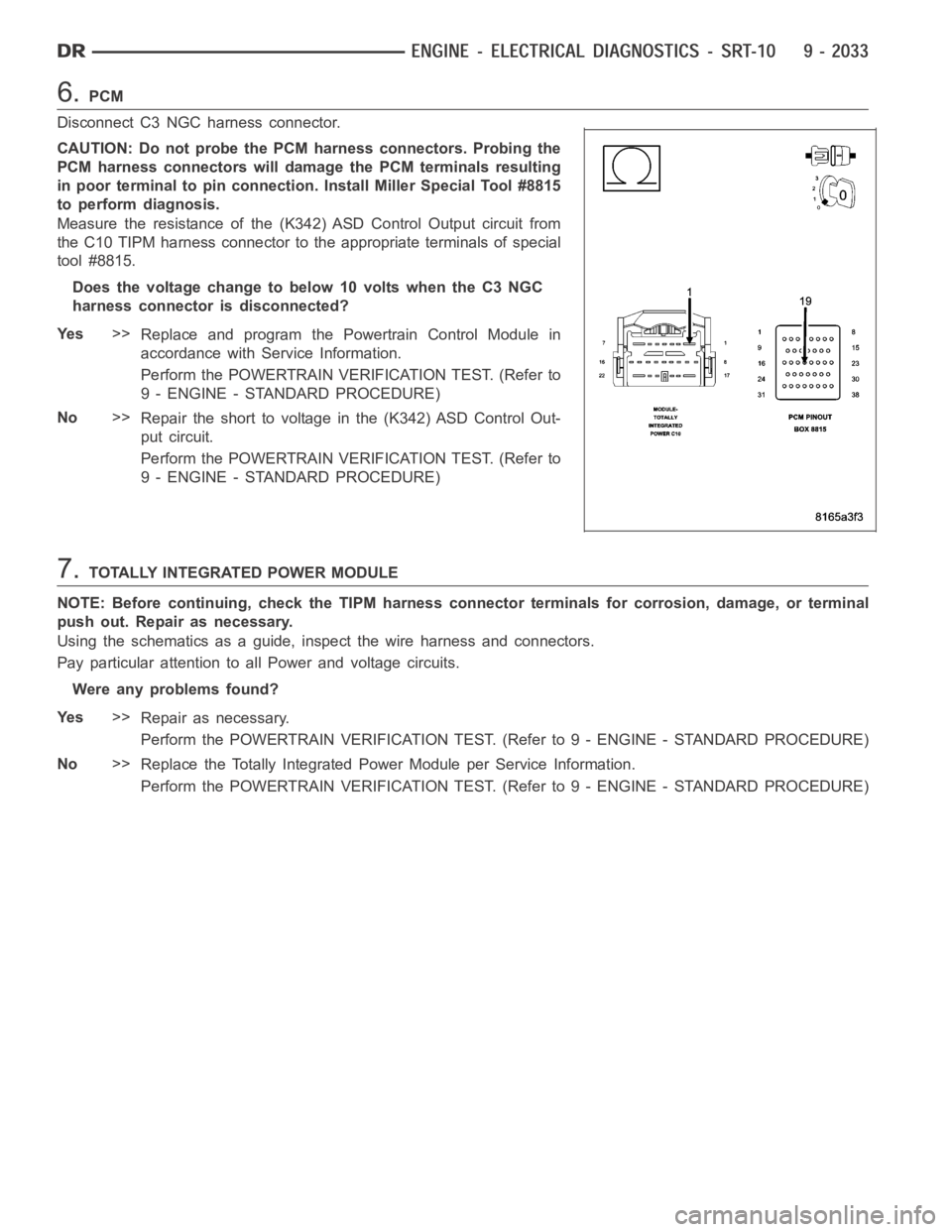

Page 1342 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 6.PCM Disconnect C3 NGC harness connector. CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connecti

Page 1343 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P126E-ASD CONTROL CIRCUIT OVERCURRENT For a complete wiring diagramRefer to Section 8W.

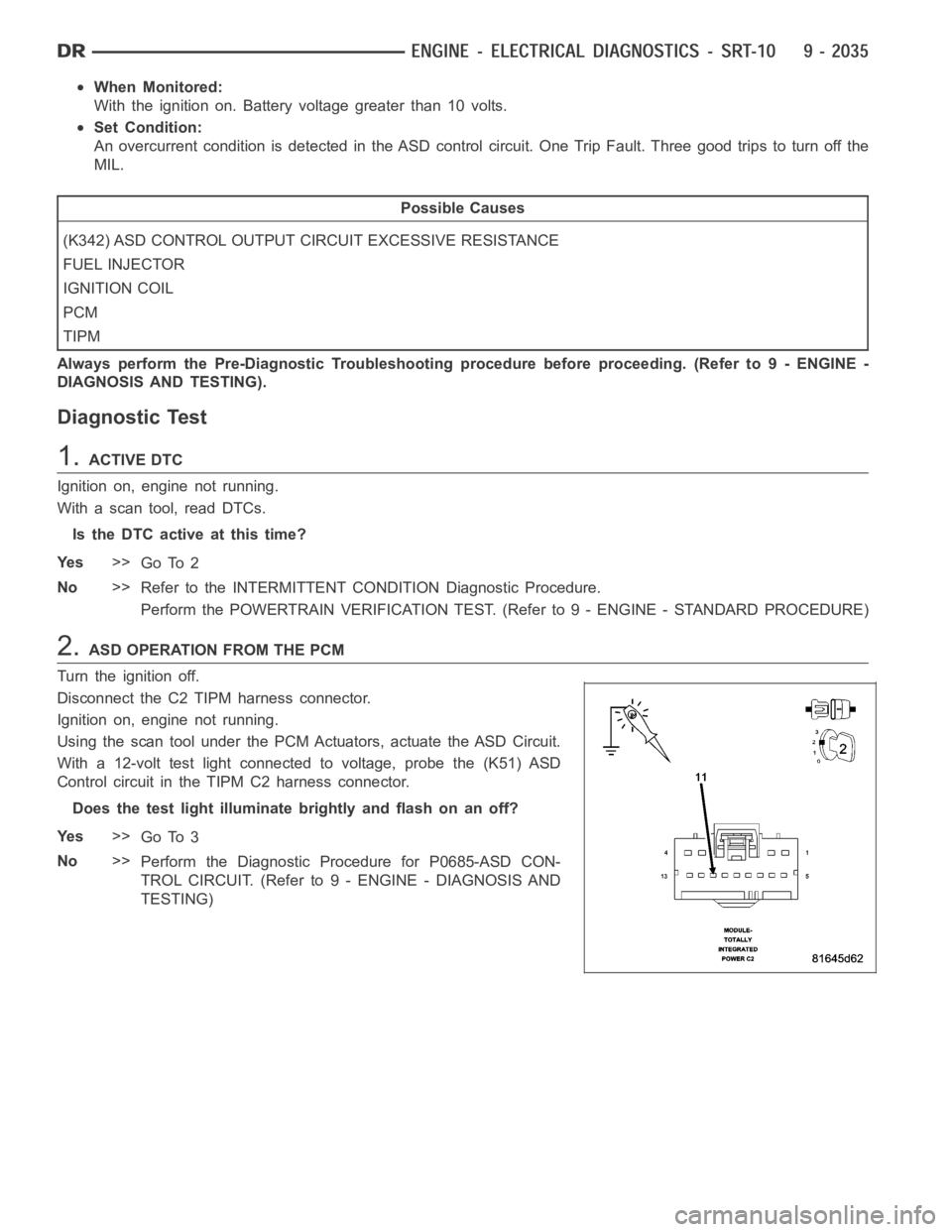

Page 1344 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual When Monitored: With the ignition on. Battery voltage greater than 10 volts. Set Condition: An overcurrent condition is detected in the ASD control circuit. One Trip Fault. Three good trips to turn of
