Page 1425 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 4.(K25) BATTERY TEMP SIGNAL CIRCUIT SHORTED TO THE (K900) SENSOR GROUND Measure the resistance between the (K25) Battery Temp Signal circuit and the (K900) Sensor ground circuit at the Battery Temp Se

Page 1426 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P1494-LEAK DETECTION PUMP SWITCH OR MECHANICAL FAULT For a complete wiring diagramRefer to Section 8W.

Page 1427 of 5267

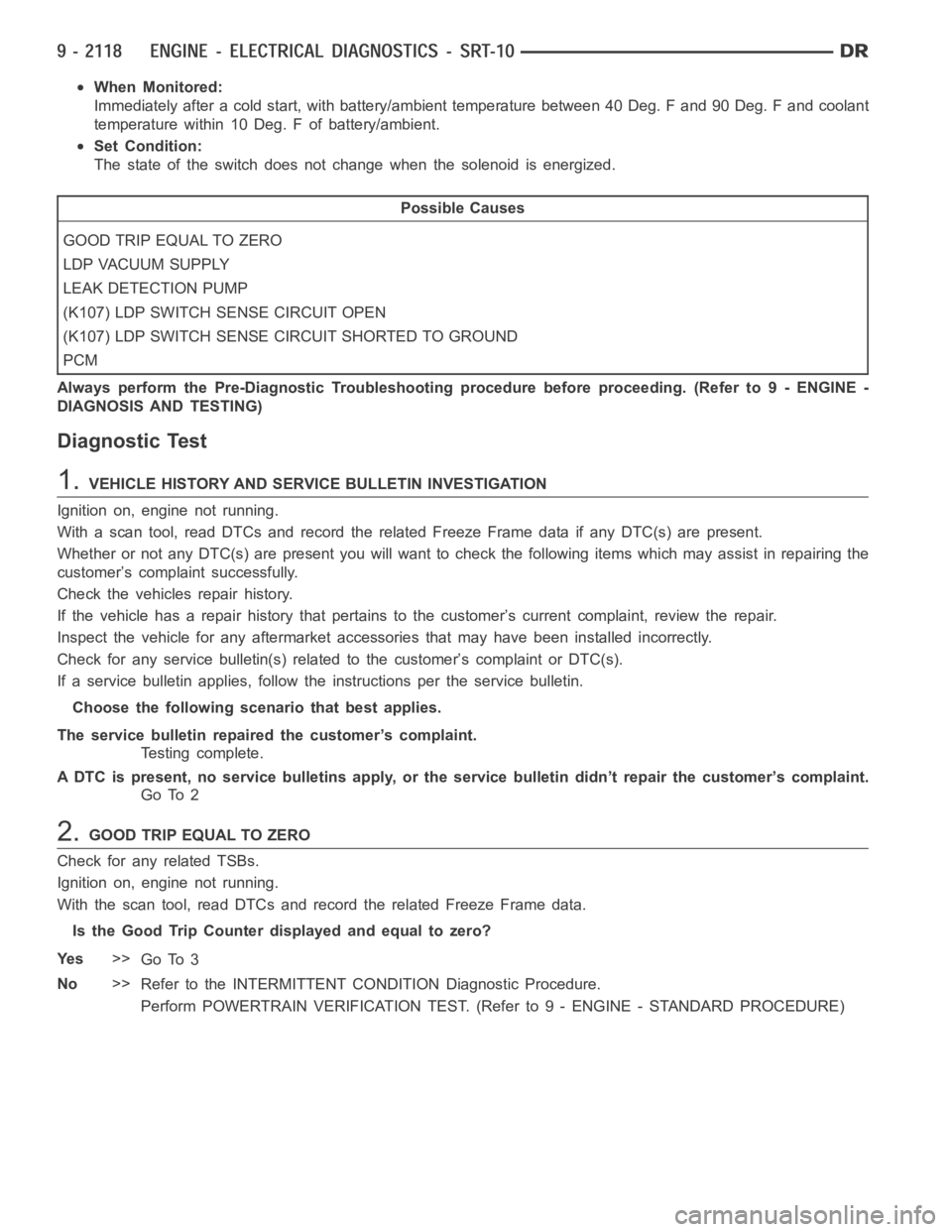

DODGE RAM SRT-10 2006 Service Repair Manual When Monitored: Immediately after a cold start, with battery/ambient temperature between 40 Deg. F and 90 Deg. F and coolant temperature within 10 Deg. F of battery/ambient. Set Condition: The state o

Page 1428 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 3.LDP VACUUM SUPPLY Turn the ignition off. Disconnect the vacuum supply hose at the Leak Detection Pump. Connect a vacuum gauge to the disconnected vacuum supply hose at the Leak Detection Pump. Start

Page 1429 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 5.(K107) LDP SWITCH SENSE CIRCUIT OPEN Turn the ignition off. Disconnect the PCM harness connectors. Measure the resistance of the (K107) LDP Switch Sense circuit from the PCM harness connector to LDP

Page 1430 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P1495-LEAK DETECTION PUMP SOLENOID CIRCUIT For a complete wiring diagramRefer to Section 8W.

Page 1431 of 5267

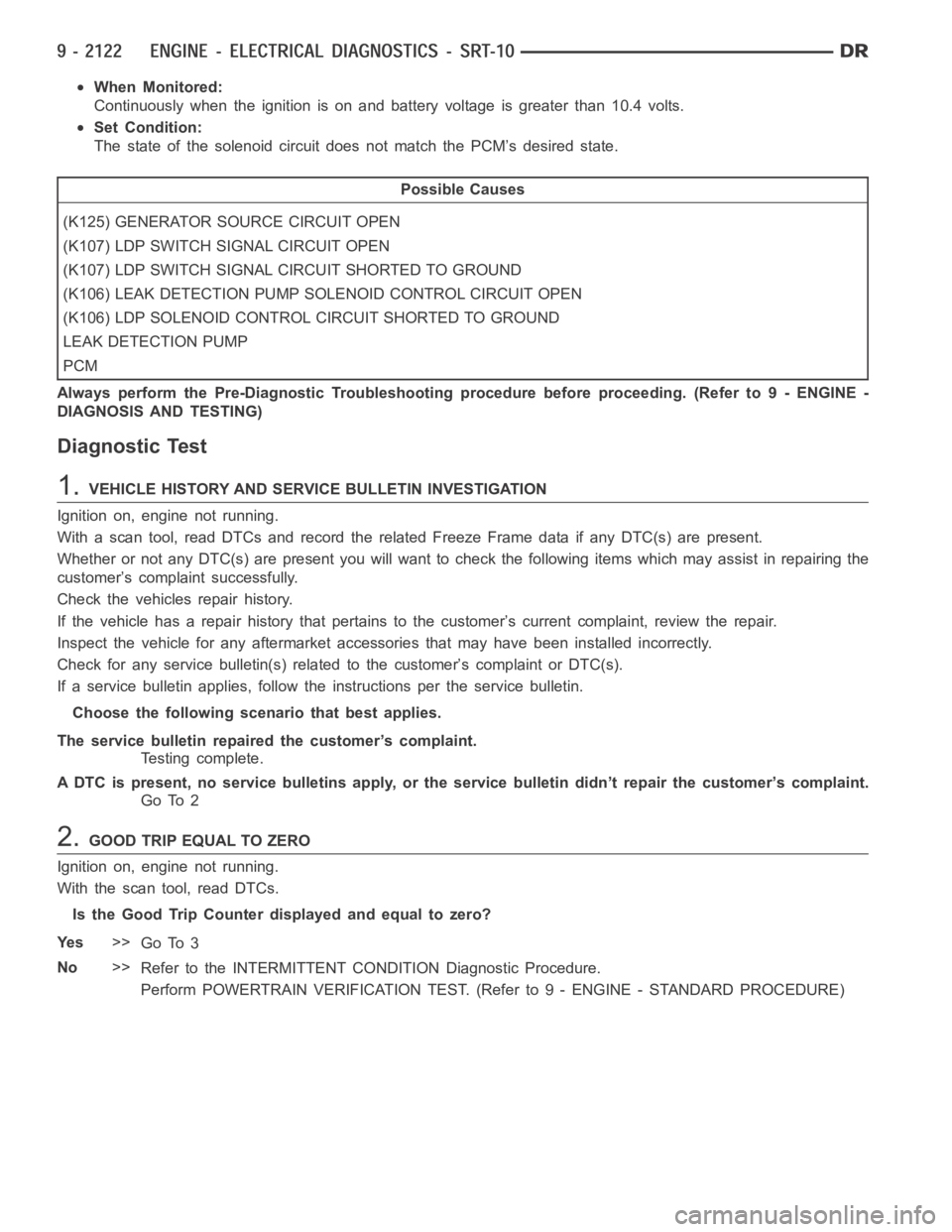

DODGE RAM SRT-10 2006 Service Repair Manual When Monitored: Continuously when the ignition is on and battery voltage is greater than 10.4 volts. Set Condition: The state of the solenoid circuit does not match the PCM’s desired state. Possible

Page 1432 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 3.(K125) GENERATOR SOURCE CIRCUIT OPEN Turn the ignition off. Disconnect the Leak Detection Pump electrical harness connector. Ignition on, engine not running. With the scan tool, actuate the Leak Det
