Page 2489 of 5267
3. Install the mounting bracket bolts (3) securing the
fluid cooler (1) to the brace (Diesel Engine).
4. Reclamp the return and supply hoses to the power
steering fluid cooler (4).
5. Refill the power steering fluid (Refer to 19 -
STEERING/PUMP - STANDARD PROCEDURE).
Page 2490 of 5267
HOSES - I.F.S.
REMOVAL
RETURN HOSE - GEAR TO COOLER
1. Drain and siphon the power steering system.
2. Raise and support the vehicle.
3. Disconnect the return hose at the cooler.
4. Disconnect the return hose (1) at the gear.
5. Remove the return hose from the routing clamp at
the fan shroud and then remove from the vehicle.
PRESSURE HOSE
1. Drain and siphon the power steering system.
2. Raise and support the vehicle.
3. Disconnect the pressure hose at the pump.
4. Disconnect the pressure hose (2) at the gear.
5. Remove the pressure hose from the vehicle.
RETURN HOSE - RESERVOIR TO COOLER
1. Drain and siphon the power steering system.
2. Disconnect the return hose at the reservoir.
3. Raise and support the vehicle.
4. Remove the return hose from the routing clamp at the fan shroud.
5. Disconnect the return hose at the cooler.
6. Remove the hose from the vehicle.
Page 2491 of 5267

INSTALLATION
RETURN HOSE - GEAR TO COOLER
1. Install the return hose to the vehicle.
2. Reconnect the return hose at the cooler.
3. Reconnect the return hose (1) at the gear. Tighten
thehoseto50Nꞏm(37ft.lbs.).
4.Reattachthehosetotheroutingclipatthefan
shroud.
5. Remove the support and lower the vehicle.
6. Refill the power steering system, (Refer to 19 -
STEERING/PUMP - STANDARD PROCEDURE).
PRESSURE HOSE
NOTE: Be sure to align the pressure hose so it
does not contact the fan shroud or the frame rail.
1. Install the pressure hose to the vehicle.
2. Reconnect the pressure hose (2) at the gear.
Tightenthehoseto32Nꞏm(23ft.lbs.).
3. Reconnect the pressure hose at the pump. Tighten
thehoseto31Nꞏm(23ft.lbs.).
4. Remove the support and lower the vehicle.
5. Refill the power steering system, (Refer to 19 -
STEERING/PUMP - STANDARD PROCEDURE).
RETURN HOSE - RESERVOIR TO COOLER
1. Install the return hose to the vehicle.
2. Reconnect the return hose at the cooler.
3. Reattach the hose to the routing clip at the fan shroud.
4. Remove the support and lower the vehicle.
5. Reconnect the return hose at the reservoir.
6. Refill the power steering system, (Refer to 19 - STEERING/PUMP - STANDARD PROCEDURE).
Page 2492 of 5267
HOSES - LINK/COIL
REMOVAL
RETURN HOSE - GEAR TO COOLER
1. Drain and siphon the power steering system.
2. Raise and support the vehicle.
3. Disconnect the return hose at the cooler.
4. Disconnect the return hose (2) at the gear.
5. Remove the return hose from the routing clamp at
the fan shroud and then remove from the vehicle.
PRESSURE HOSE
1. Drain and siphon the power steering system.
2. Raise and support the vehicle.
3. Disconnect the pressure hose at the pump.
4. Disconnect the pressure hose (2) at the gear (4).
5. Remove the pressure hose from the vehicle.
RETURN HOSE - RESERVOIR TO COOLER
1. Drain and siphon the power steering system.
2. Disconnect the return hose at the reservoir.
3. Raise and support the vehicle.
4. Remove the return hose from the routing clamp at the fan shroud.
5. Disconnect the return hose at the cooler.
6. Remove the hose from the vehicle.
Page 2493 of 5267

INSTALLATION
RETURN HOSE - GEAR TO COOLER
1. Install the return hose to the vehicle.
2. Reconnect the return hose at the cooler.
3. Reconnect the return hose (2) at the gear. Tighten
thehoseto51Nꞏm(38ft.lbs.).
4.Reattachthehosetotheroutingclipatthefan
shroud.
5. Remove the support and lower the vehicle.
6. Refill the power steering system, (Refer to 19 -
STEERING/PUMP - STANDARD PROCEDURE).
PRESSURE HOSE
NOTE: Be sure to align the pressure hose so it
does not contact the fan shroud or the frame rail.
1. Install the pressure hose to the vehicle.
2. Reconnect the pressure hose (2) at the gear (4).
Tightenthehoseto32Nꞏm(23ft.lbs.).
3. Reconnect the pressure hose at the pump. Tighten
thehoseto36Nꞏm(27ft.lbs.).
4. Remove the support and lower the vehicle.
5. Refill the power steering system, (Refer to 19 -
STEERING/PUMP - STANDARD PROCEDURE).
RETURN HOSE - RESERVOIR TO COOLER
1. Install the return hose to the vehicle.
2. Reconnect the return hose at the cooler.
3. Reattach the hose to the routing clip at the fan shroud.
4. Remove the support and lower the vehicle.
5. Reconnect the return hose at the reservoir.
6. Refill the power steering system, (Refer to 19 - STEERING/PUMP - STANDARD PROCEDURE).
Page 2494 of 5267

SWITCH-POWER STEERING PRESSURE
DESCRIPTION
A pressure sensing switch is used in the power steering system. It is mounted on the high-pressure steering hose.
This switch will only be used onHD vehicleswith the 5.7L engines. There is no pressure switch used for the 3.7L,
4.7L, 5.9LDiesel engine or the5.7L LD vehiclepump.
OPERATION
The switch is used on the 5.7L V-8 enginesHD vehicles only.
The power steering pressure switch provides an input to the Powertrain Control Module (PCM). This input is pro-
vided during periods of high steering pump load and low engine rpm; such as during parking maneuvers. The PCM
increases the idle speed through the Idle Air Control (IAC) motor. This is done to prevent the engine from stalling
under the increased load.
When steering pump pressure exceeds 3275 kPa ± 690 kPa (475 psi ± 100 psi), the Normally Closed (NC) switch
will open and the PCM will increase the engine idle speed. This will preventthe engine from stalling.
When pump pressure drops to approximately 1379 kPa (200 psi), the switch circuit will re-close and engine idle
speed will return to its previous setting.
REMOVAL - 5.7L - HD VEHICLES ONLY
The power steering pressureswitch (5) is installed in
the power steering high-pressure hose (5).
1. Disconnect electrical connector from power steer-
ing pressure switch.
2. Place a small container or shop towel beneath
switch to collect any excess fluid.
3. Remove switch. Use back-up wrench on power
steering line to prevent line bending.
INSTALLATION - 5.7L - HD VEHICLES ONLY
This switch is used only with the 5.7L V-8 enginesHD
vehicles only.
1. Install power steering switch (5) into power steering
line (5).
2. Tighten to 8–11 Nꞏm (70–100 in. lbs.) torque.
3. Connect electrical connector to switch.
4. Check power steering fluid and add as necessary.
5. Start engine and again check power steering fluid.
Add fluid if necessary.
Page 2495 of 5267

PULLEY
REMOVAL
CAUTION: Do not reuse the old power steering
pump pulley it is not intended for reuse. A new
pulley must be installed if removed.
1. Remove the power steering pump assembly (1),
(Refer to 19 - STEERING/PUMP - REMOVAL).
2. Remove the pulley (2) from the pump using (OTC
7185) power steering pulley removal tool or equiv-
alent (3).
INSTALLATION
CAUTION: Do not reuse the old power steering
pump pulley it is not intended for reuse. A new
pulley must be installed if removed.
1. Replace the pulley (2) if it’s bent, cracked, or loose.
2. Install the pulley (2) on the pump (1) using (OTC
7771) power steering pulley installation tool or
equivalent (3) making sure it is flush with the end
of the shaft. Ensure the tool and pulley remain
aligned with the pump shaft.
3. Install the power steering pump assembly, (Refer to
19 - STEERING/PUMP - INSTALLATION).
4. Run engine until warm (5 min.) and note any belt chirp. If chirp exists, move pulley outward approximately 0.5
mm (0.020 in.). If noise increases, press on 1.0 mm (0.040 in.).Be careful that pulley does not contact
mounting bolts.
Page 2496 of 5267

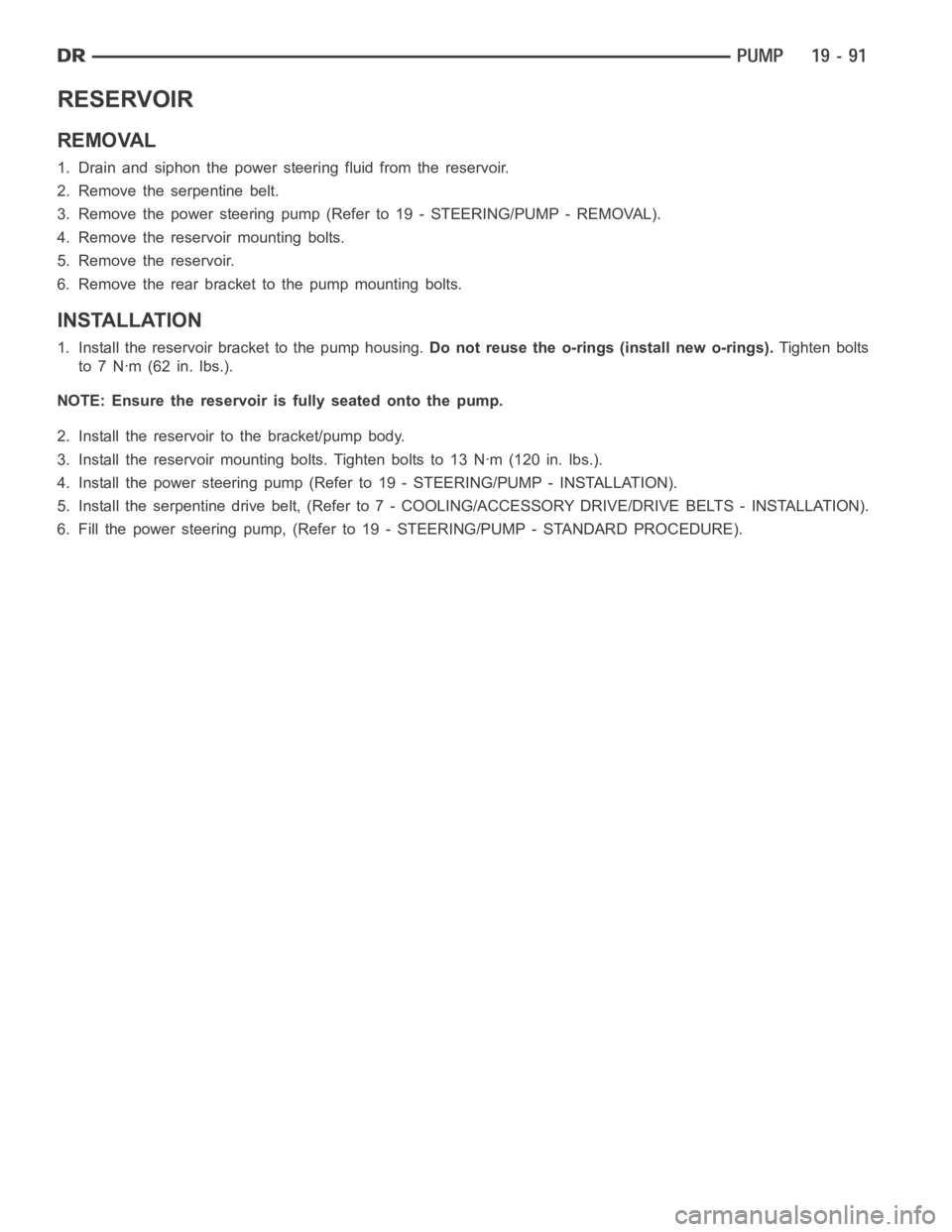

RESERVOIR
REMOVAL
1. Drain and siphon the power steering fluid from the reservoir.
2. Remove the serpentine belt.
3. Remove the power steering pump (Refer to 19 - STEERING/PUMP - REMOVAL).
4. Remove the reservoir mounting bolts.
5. Remove the reservoir.
6. Remove the rear bracket to the pump mounting bolts.
INSTALLATION
1. Install the reservoir bracket to the pump housing.Do not reuse the o-rings (install new o-rings).Tighten bolts
to7Nꞏm(62in.lbs.).
NOTE: Ensure the reservoir is fully seated onto the pump.
2. Install the reservoir to the bracket/pump body.
3. Install the reservoir mounting bolts. Tighten bolts to 13 Nꞏm (120 in. lbs.).
4. Install the power steering pump (Refer to 19 - STEERING/PUMP - INSTALLATION).
5. Install the serpentine drive belt, (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION).
6. Fill the power steering pump, (Refer to 19 - STEERING/PUMP - STANDARD PROCEDURE).
