Page 1505 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual DESCRIPTION SPECIFICATION Metric Standard Diameter 92.975 mm 3.6605 in. Weight 365.0 grams 12.87 oz Ring Groove Diameter No. 1 85.37 - 83.13 mm 3.282 - 3.273 in No. 2 82.833 - 83.033 mm 3.261 - 3.310

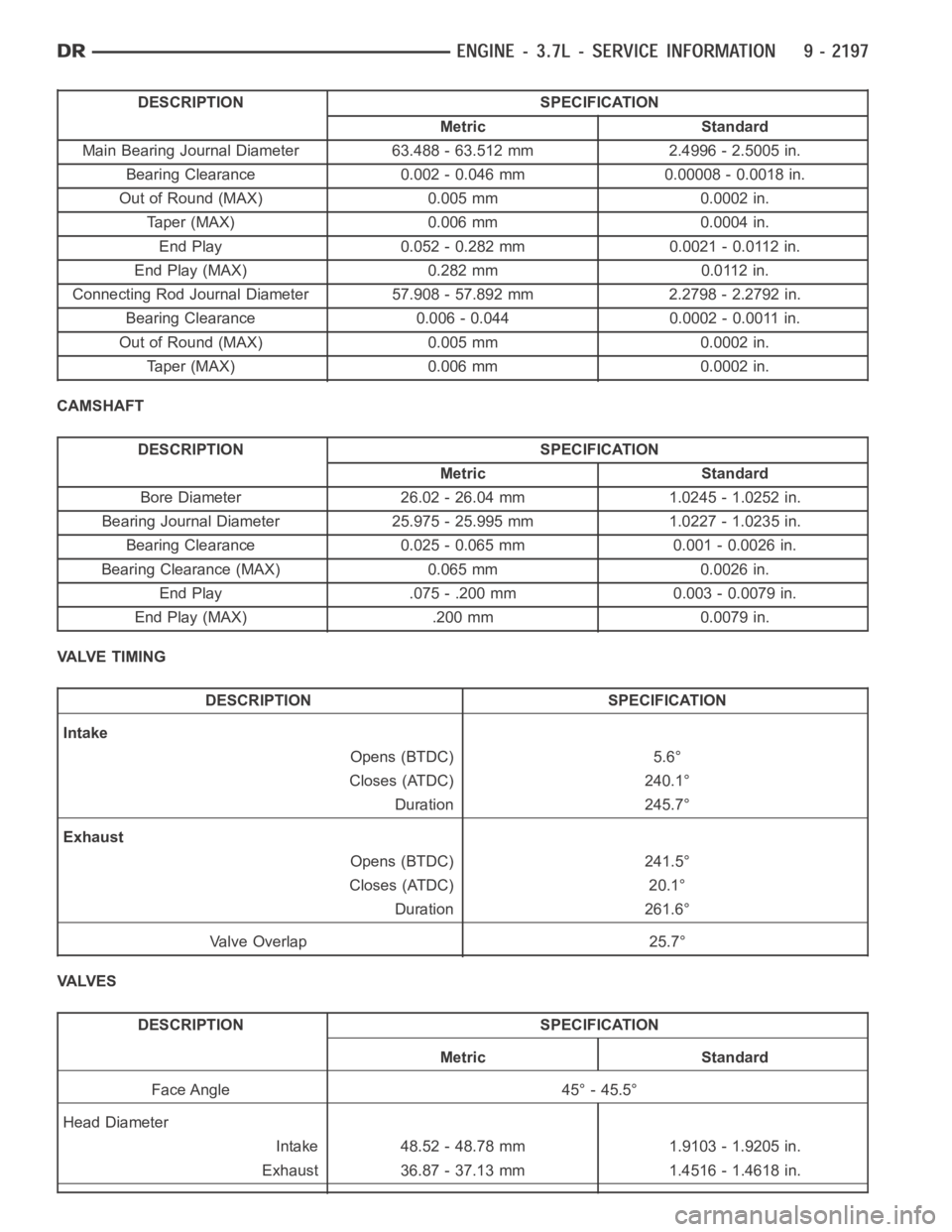

Page 1506 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual DESCRIPTION SPECIFICATION Metric Standard Main Bearing Journal Diameter 63.488 - 63.512 mm 2.4996 - 2.5005 in. Bearing Clearance 0.002 - 0.046 mm 0.00008 - 0.0018 in. Out of Round (MAX) 0.005 mm 0.000

Page 1507 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual Length (Overall) Intake 113.45 - 114.21 mm 4.4666 - 4.4965 in. Exhaust 114.92 - 115.68 mm 4.5244 - 4.5543 in. Stem Diameter Intake 6.931 - 6.957 mm 0.2729 - 0.2739 in. Exhaust 6.902 - 6.928 mm 0.2717

Page 1508 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual CYLINDER HEAD DESCRIPTION SPECIFICATION Metric Standard Gasket Thickness (Compressed) 0.7 mm (0.0276 in.) Valve Seat Angle 44.5° - 45.0° Valve Seat Runout (MAX) 0.051 mm 0.002 in. Va l v e S e a t W

Page 1509 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual DESCRIPTION Nꞏm Ft. Lbs. In. Lbs. Bolts - Cylinder Head M11 Bolts Refer To Procedure M8 Bolts Refer To Procedure Bolts - Cylinder Head Cover 12 - 105 Bolts - Exhaust Manifold 25 18 - Nuts - Exhaust

Page 1510 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual

Page 1511 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual SPECIAL TOOLS Spanner Wrench 6958 Adapter Pins 8346 Front Crankshaft Seal Remover 8511 Front Crankshaft Seal Installer 8348 Handle C-4171 Rear Crankshaft Seal Installer 8349 Rear Crankshaft Seal Remov

Page 1512 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual Crankshaft Damper Installer 8512 Puller 1026 Crankshaft Damper Removal Insert 8513 Chain Tensioner Wedge 8379 Chain Tensioner Pins 8514 VALVE SPRING COMPRESSOR 8426 ENGINE LIFTING FIXTURE 8427 CAMSHAF
