Page 553 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 6.LOW SIDE DRIVER HARNESS OPEN Measure the resistance of the Bank 2 low side driver circuit between the ECM connector and the injector harness connector. Is the resistance less than 10 Ohms? Ye s>> Te

Page 554 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P0205-INJECTOR #5 CONTROL CIRCUIT For a complete wiring diagramRefer to Section 8W.

Page 555 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual When Monitored: While the engine is running. Set Condition: When the injector current falls below a calibrated threshold. Possible Causes PASS TROUGH CONNECTORS OPEN FUEL INJECTOR INJECTOR HARNESS OPE

Page 556 of 5267

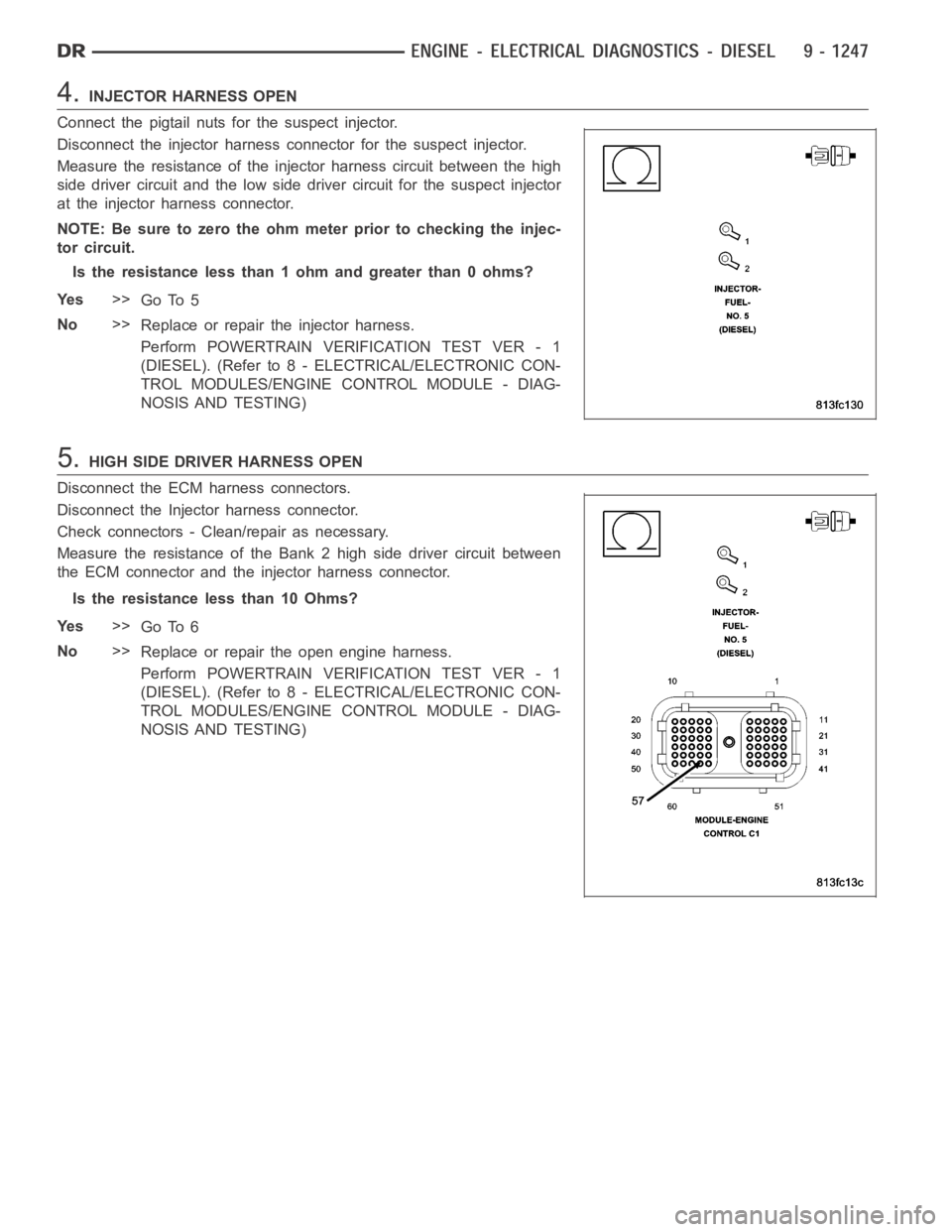

DODGE RAM SRT-10 2006 Service Repair Manual 4.INJECTOR HARNESS OPEN Connect the pigtail nuts for the suspect injector. Disconnect the injector harness connector for the suspect injector. Measure the resistance of the injector harness circuit be

Page 557 of 5267

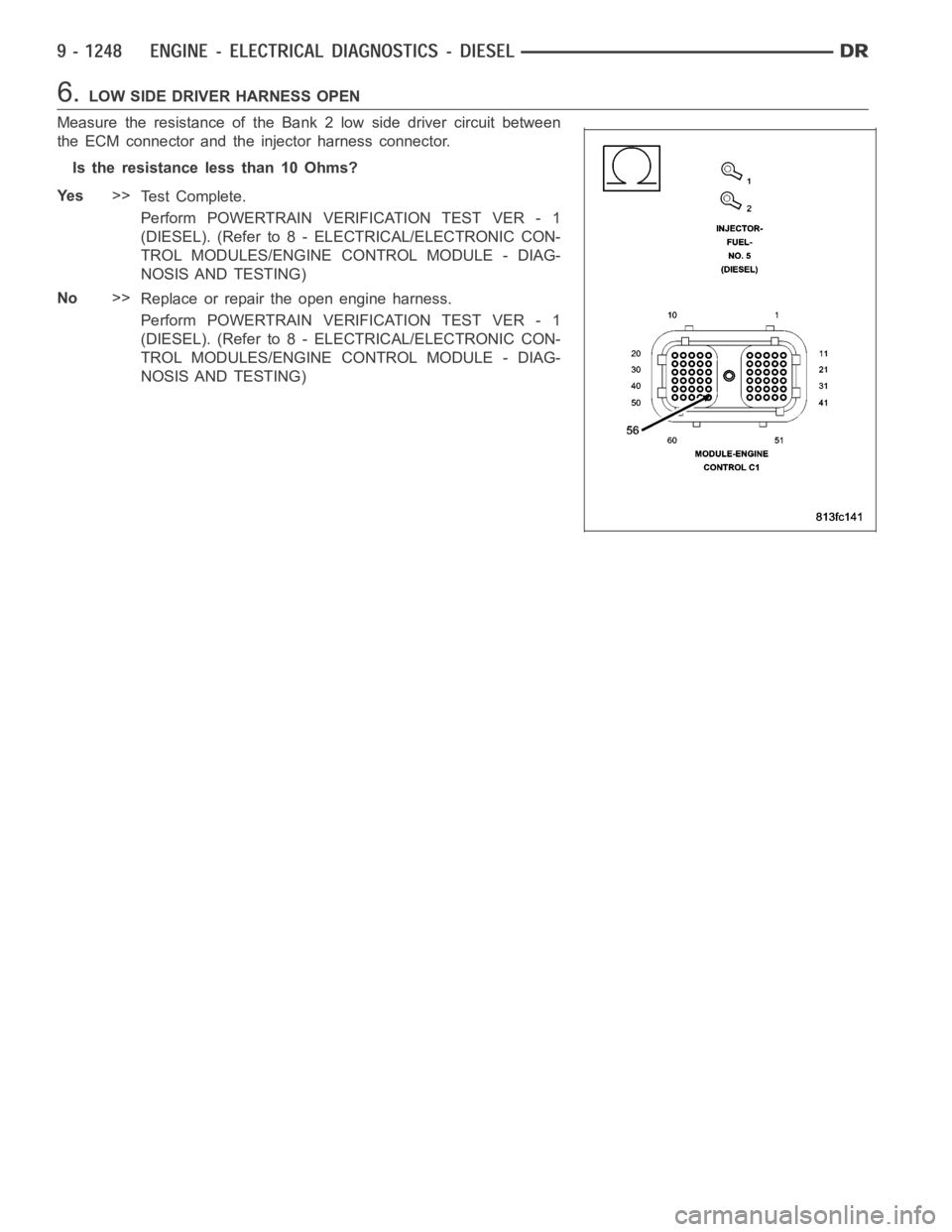

DODGE RAM SRT-10 2006 Service Repair Manual 6.LOW SIDE DRIVER HARNESS OPEN Measure the resistance of the Bank 2 low side driver circuit between the ECM connector and the injector harness connector. Is the resistance less than 10 Ohms? Ye s>> Te

Page 558 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P0206-INJECTOR #6 CONTROL CIRCUIT For a complete wiring diagramRefer to Section 8W.

Page 559 of 5267

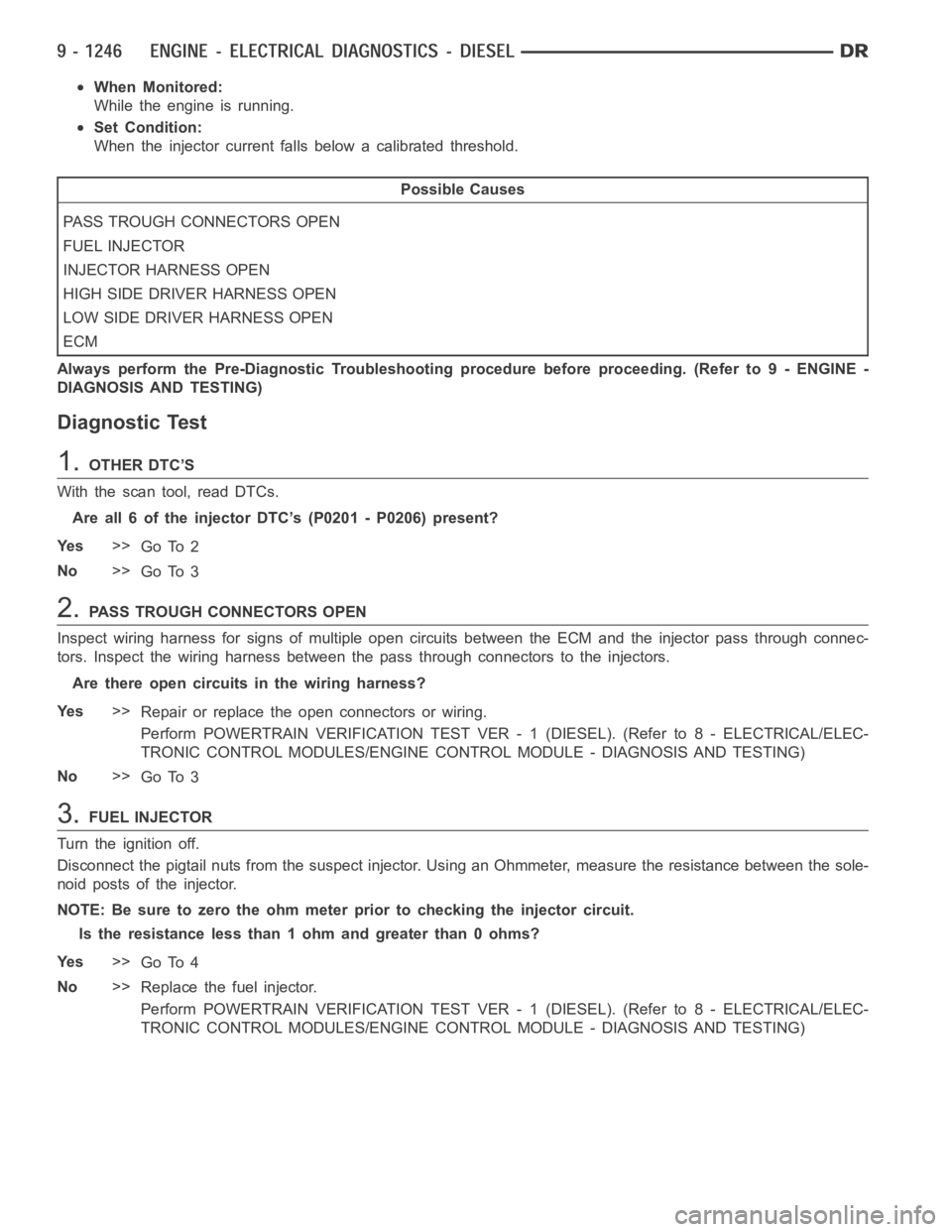

DODGE RAM SRT-10 2006 Service Repair Manual When Monitored: While the engine is running. Set Condition: When the injector current falls below a calibrated threshold. Possible Causes PASS TROUGH CONNECTORS OPEN FUEL INJECTOR INJECTOR HARNESS OPE

Page 560 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 4.INJECTOR HARNESS OPEN Connect the pigtail nuts for the suspect injector. Disconnect the injector harness connector for the suspect injector. Measure the resistance of the injector harness circuit be
