Page 113 of 5267

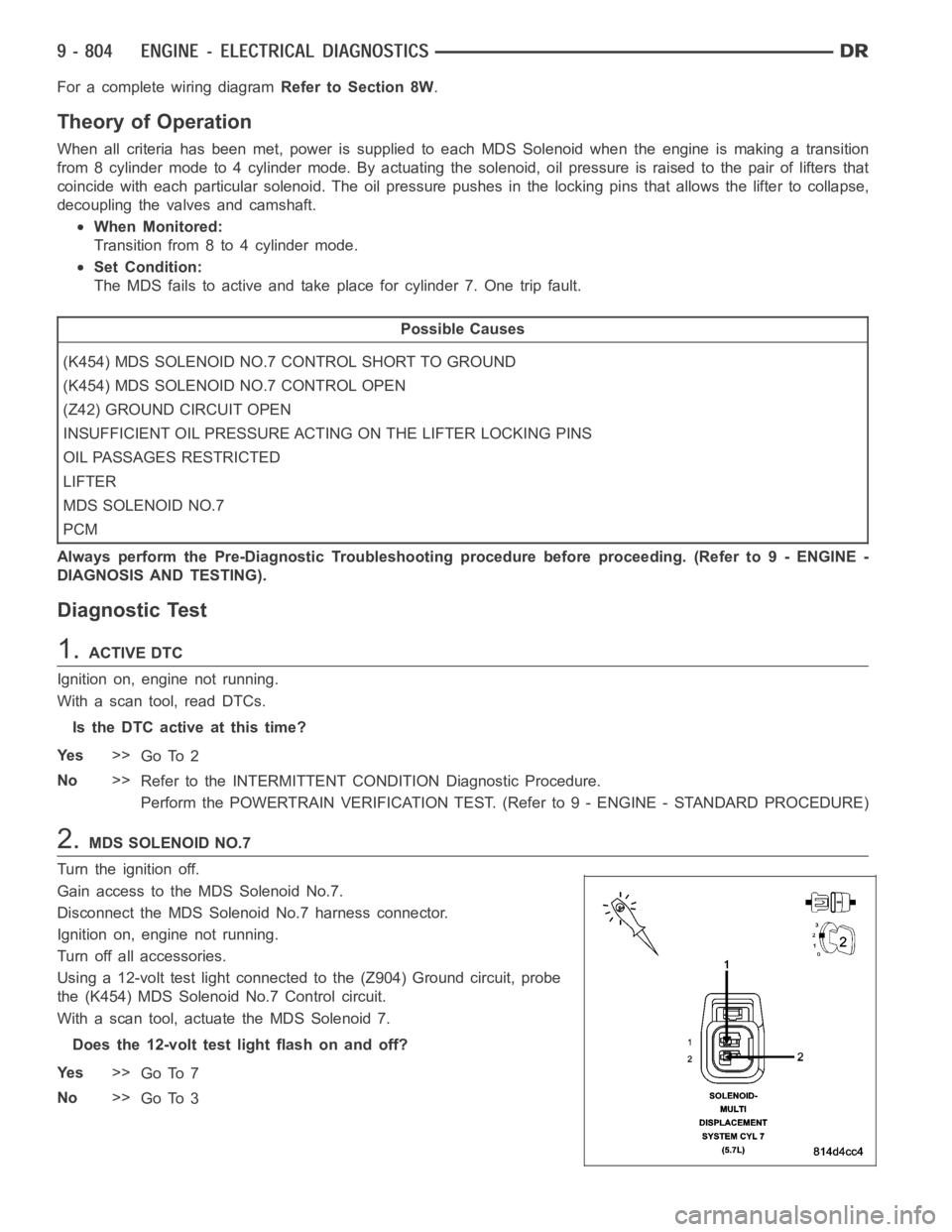

DODGE RAM SRT-10 2006 Service Repair Manual For a complete wiring diagramRefer to Section 8W. Theory of Operation When all criteria has been met, power is supplied to each MDS Solenoid when the engine is making a transition from 8 cylinder mode

Page 114 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 3.(Z42) GROUND CIRCUIT OPEN Turn the ignition off. Using a 12-volt test light connected to the 12-volts, probe the (Z42) Ground circuit in the MDS Solenoid No.7 harness connector. Does the test light

Page 115 of 5267

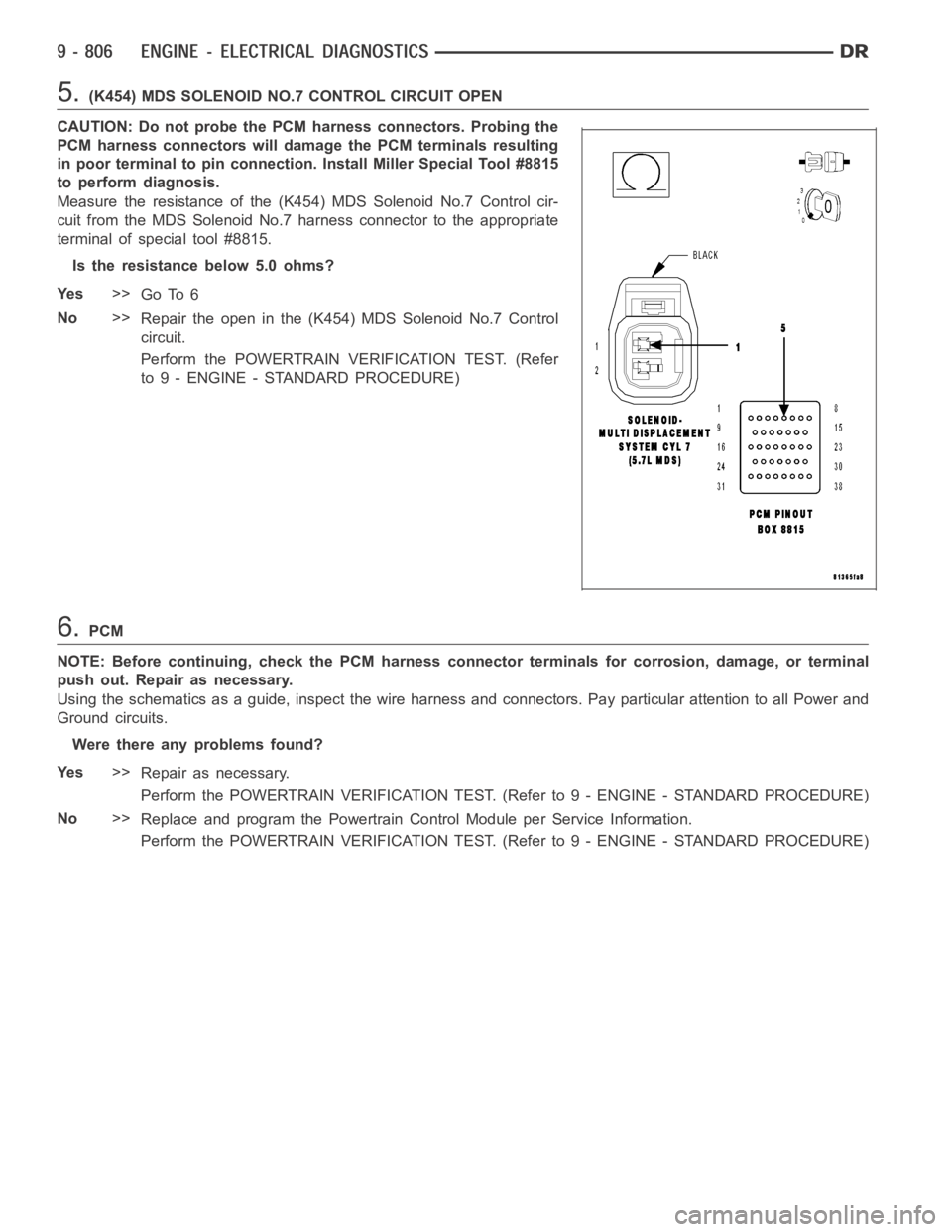

DODGE RAM SRT-10 2006 Service Repair Manual 5.(K454) MDS SOLENOID NO.7 CONTROL CIRCUIT OPEN CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin con

Page 116 of 5267

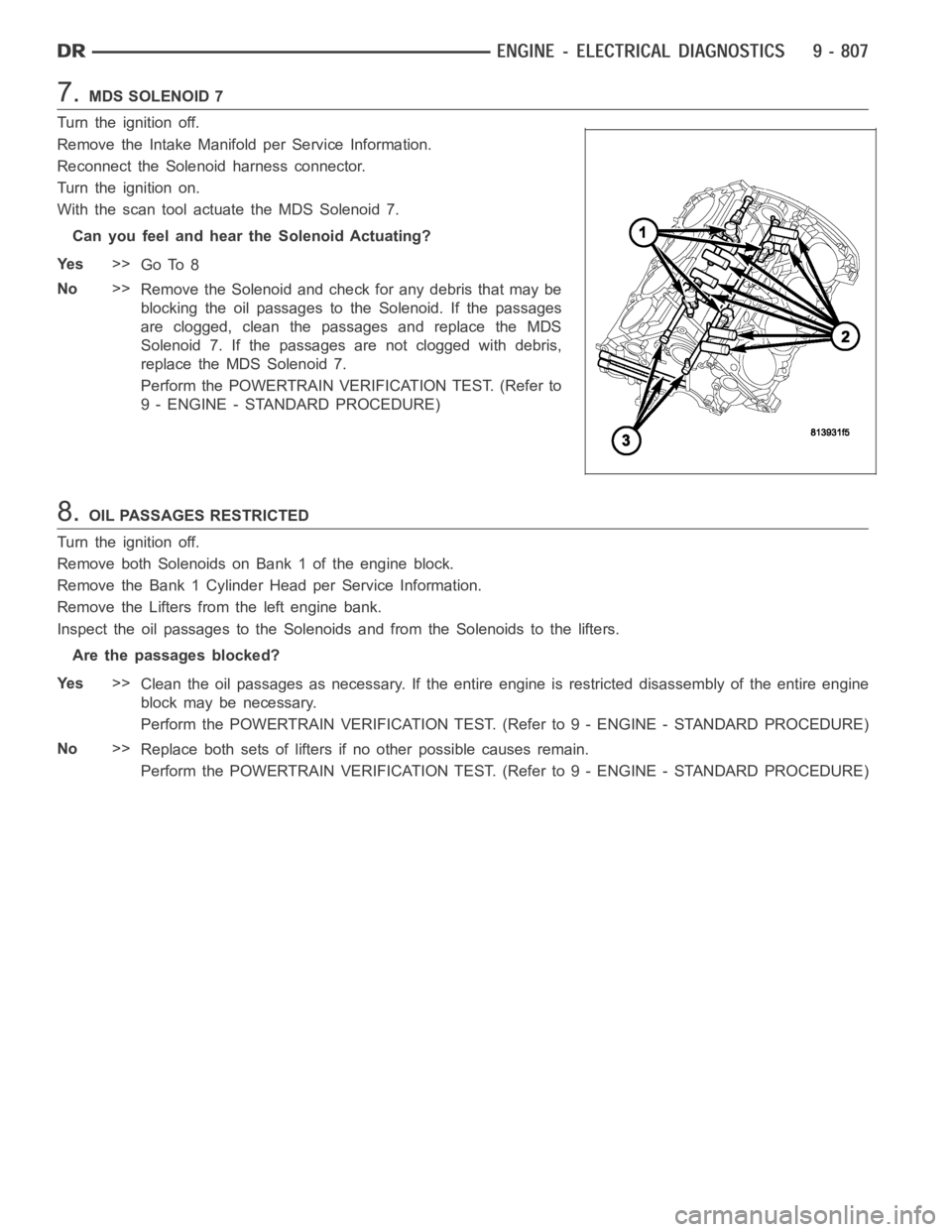

DODGE RAM SRT-10 2006 Service Repair Manual 7.MDS SOLENOID 7 Turn the ignition off. Remove the Intake Manifold per Service Information. Reconnect the Solenoid harness connector. Turn the ignition on. With the scan tool actuate the MDS Solenoid

Page 117 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P1501-VEHICLE SPEED SENSOR 1/2 CORRELATION - DRIVE WHEELS For a complete wiring diagramRefer to Section 8W.

Page 118 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual When Monitored: Ignition on and vehicle moving. Cruise is learned and customer is trying touse the Cruise. Set Condition: The PCM recognizes rear wheel speed is greater than front wheel speed. One tri

Page 119 of 5267

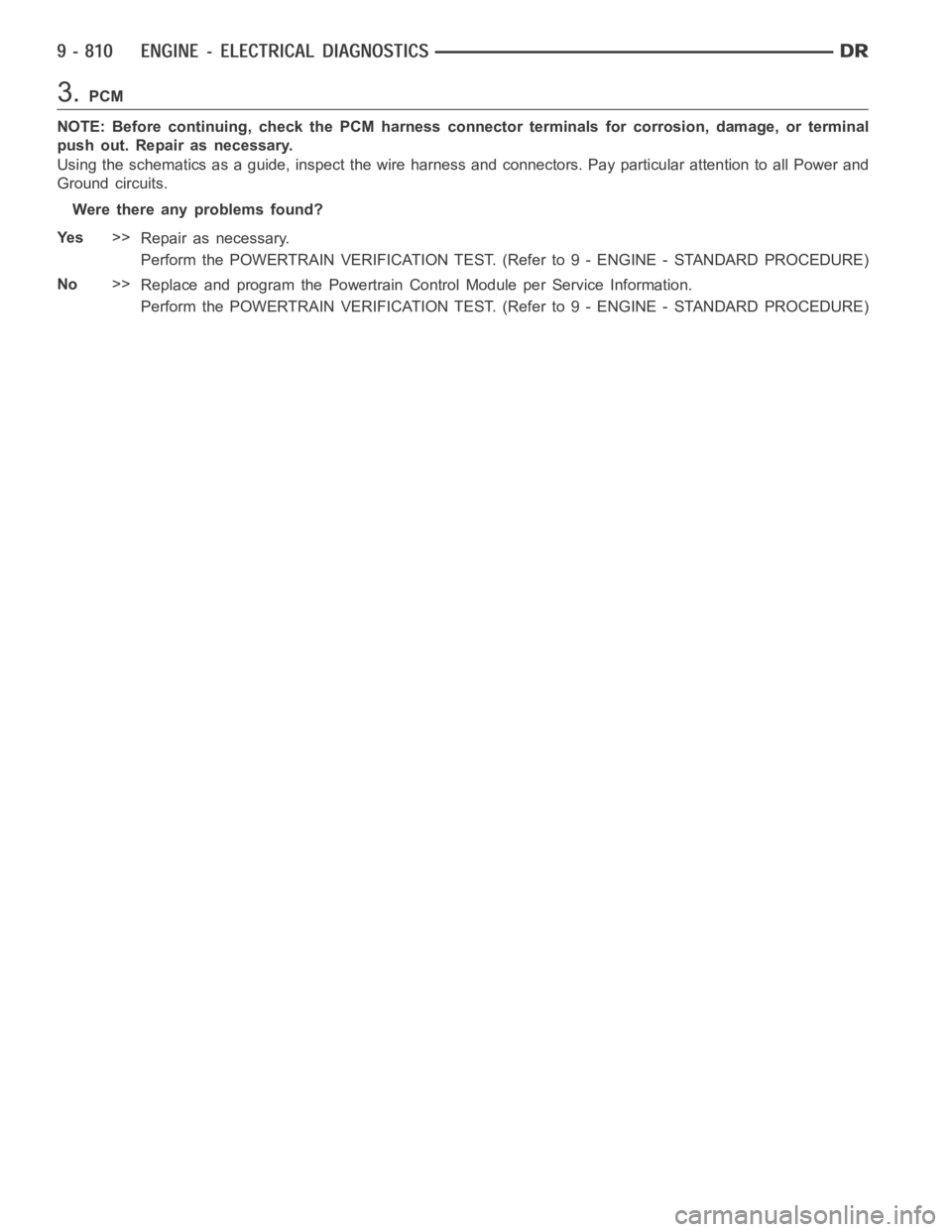

DODGE RAM SRT-10 2006 Service Repair Manual 3.PCM NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary. Using the schematics as a guide, inspect the wire harness and

Page 120 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P1502-VEHICLE SPEED SENSOR 1/2 CORRELATION - NON DRIVE WHEELS For a complete wiring diagramRefer to Section 8W.
