Page 4425 of 5267

BODY SIDE MOLDINGS
REMOVAL
NOTE: Quad Cab model shown in the illustration.
Body side moldings for Regular cab models are
similar.
1. As a guide for installation, apply a length of mask-
ing tape on the rocker panels (1), parallel to the top
edge and, to one end of the body side molding (2
and 3) being removed
CAUTION: Do not exceed 52° C (120° F) when
heating the moldings or rocker panels. Failure to
follow this caution may result in damage to the
moldings and/or the vehicle paint finish.
2. If the temperature is below 21° C (70° F), warm the
body side moldings with a heat lamp or heat gun.
NOTE: The body side moldings are attached to the
cab with adhesive tape.
3. Using a trim stick C-4755 or equivalent, carefully remove the moldings from the rocker panels, as necessary.
INSTALLATION
NOTE: Quad Cab model shown in the illustration.
Body side moldings for Regular cab models are
similar.
1. Thoroughly clean all residue from the molding
attachment areas of the rocker panels (1).
2. Wipe the attachment areas with a clean, lint-free
cloth, moistened with a 50% solution of water and
alcohol and then wipe dry the areas immediately
with a dry, lint-free cloth.
CAUTION: Do not exceed 52° C (120° F) when
heating the moldings or rocker panels. Failure to
follow this caution may result in damage to the
moldings and/or the vehicle paint finish.
NOTE: If ambient temperatures are below 21° C
(70° F), warm the body side molding and rocker
panel with a heat lamp or gun to assure proper
adhesion.
3. Remove the protective covering from the back of the body side molding (2 and 3) and position the molding onto
the rocker panel using the previously installed guide tape.
NOTE: To ensure proper molding adhesion, apply consistent and uniform pressure of approximately 40
p.s.i. over the entire surface of each body side molding.
4. Install the body side molding onto the rocker panel.
Page 4426 of 5267

CARGO BOX
REMOVAL
NOTE: Long cargo box shown in illustration. Short
cargo box similar.
1. Remove the screws (1) that secure the fuel filler (2)
to the cargo box (3).
2. Remove the fuel filler from the cargo box and posi-
tionitoutoftheway.
3. If necessary, remove the fuel filler door from the
cargo box (Refer to 23 - BODY/EXTERIOR/FUEL
FILL DOOR - REMOVAL).
4. Disconnect the tail lamp wire harness from the
underbody wire harness (Refer to 8 - ELECTRI-
CAL/CONNECTOR/GROUND/SPLICE LOCATION
- DESCRIPTION).
5. If necessary, remove the tail lamp units and wire
harness from the cargo box (Refer to 8 - ELECTRI-
CAL/LAMPS/LIGHTING - EXTERIOR/TAIL LAMP
UNIT - REMOVAL).
6. If necessary, remove the tailgate (Refer to 23 -
BODY/TAILGATE/TAILGATE - REMOVAL).
7. If necessary, remove the rear bumper (Refer to 13
- FRAME & BUMPERS/BUMPERS/REAR
BUMPER - REMOVAL).
8. Remove the bolts (3) that secure the cargo box (1)
to the frame (2) (six short box, eight long box) and
remove the cargo box.
INSTALLATION
NOTE: Long cargo box shown in illustration. Short
cargo box similar.
1. Position the cargo box (1) onto the frame (2) and
loosely install the bolts (3) (six short box, eight long
box).
2. Align the cargo box to the cab and tighten the bolts
to 108 Nꞏm (80 ft. lbs.).
3. If removed, install tail lamp units and wire harness
onto the cargo box (Refer to 8 - ELECTRICAL/
LAMPS/LIGHTING - EXTERIOR/TAIL LAMP UNIT -
INSTALLATION).
4. Connect the tail lamp wire harness to the under-
body wire harness (Refer to 8 - ELECTRICAL/
Page 4427 of 5267
CONNECTOR/GROUND/SPLICE LOCATION - DESCRIPTION).
5. If removed, install the tailgate (Refer to 23 - BODY/TAILGATE/TAILGATE- INSTALLATION).
6. If removed, install the rear bumper (Refer to 13 - FRAME & BUMPERS/BUMPERS/REAR BUMPER - INSTAL-
LATION).
7. If removed, install the fuel filler door (Refer to 23 -
BODY/EXTERIOR/FUEL FILL DOOR - INSTALLA-
TION).
8. Position the fuel filler (2) to the cargo box (3).
9. Install the screws (1) that secure the fuel filler to
the cargo box. Tighten the screws to 2.2 Nꞏm (20
in. lbs.).
Page 4428 of 5267
CARGO BOX - TIE DOWN
REMOVAL
1. Remove the two bolts (1) that secure each cargo
box tie down (2) to the cargo bed and remove the
cleats as necessary.
INSTALLATION
1. Position the cargo box tie downs (2) to the cargo
box as necessary.
2. Install the two bolts (1) that secure each cargo box
tie down to the cargo box. Tighten the bolts to 34
Nꞏm (25 ft. lbs.).

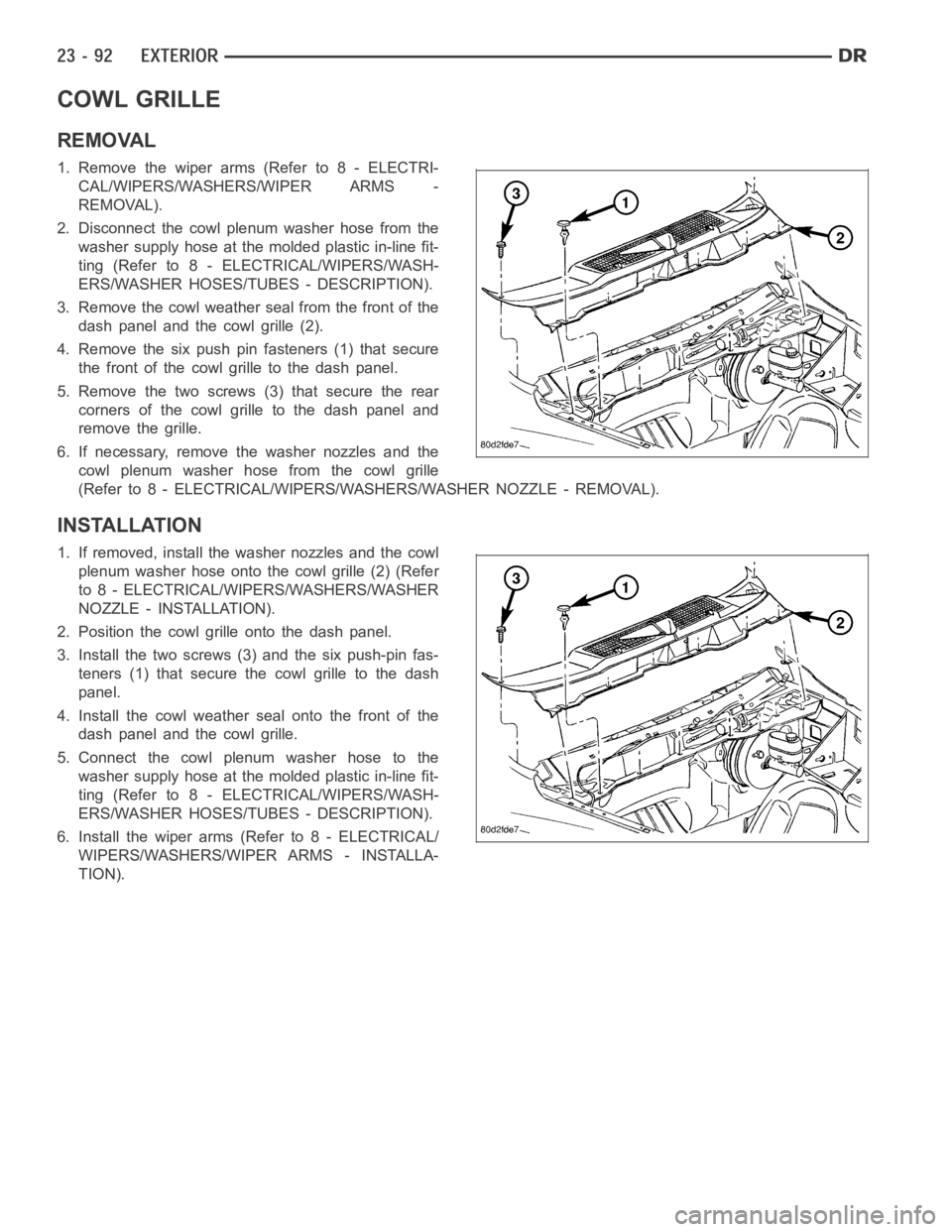

Page 4429 of 5267

COWL GRILLE
REMOVAL
1. Remove the wiper arms (Refer to 8 - ELECTRI-
CAL/WIPERS/WASHERS/WIPER ARMS -
REMOVAL).
2. Disconnect the cowl plenum washer hose from the
washer supply hose at the molded plastic in-line fit-
ting (Refer to 8 - ELECTRICAL/WIPERS/WASH-
ERS/WASHER HOSES/TUBES - DESCRIPTION).
3. Remove the cowl weather seal from the front of the
dash panel and the cowl grille (2).
4. Remove the six push pin fasteners (1) that secure
the front of the cowl grille to the dash panel.
5. Remove the two screws (3) that secure the rear
corners of the cowl grille to the dash panel and
remove the grille.
6. If necessary, remove the washer nozzles and the
cowl plenum washer hose from the cowl grille
(Refer to 8 - ELECTRICAL/WIPERS/WASHERS/WASHER NOZZLE - REMOVAL).
INSTALLATION
1. If removed, install the washer nozzles and the cowl
plenum washer hose onto the cowl grille (2) (Refer
to 8 - ELECTRICAL/WIPERS/WASHERS/WASHER
NOZZLE - INSTALLATION).
2. Position the cowl grille onto the dash panel.
3. Install the two screws (3) and the six push-pin fas-
teners (1) that secure the cowl grille to the dash
panel.
4. Install the cowl weather seal onto the front of the
dash panel and the cowl grille.
5. Connect the cowl plenum washer hose to the
washer supply hose at the molded plastic in-line fit-
ting (Refer to 8 - ELECTRICAL/WIPERS/WASH-
ERS/WASHER HOSES/TUBES - DESCRIPTION).
6. Install the wiper arms (Refer to 8 - ELECTRICAL/
WIPERS/WASHERS/WIPER ARMS - INSTALLA-
TION).
Page 4430 of 5267

EXTERIOR NAME PLATES
REMOVAL
NOTE: Mega Cab model shown in the illustration. Exterior name plates and decals for all other cab models
are similar. Exterior name plate and decal usage vary by model.
1. As a guide for installation, apply a length of masking tape on the body (1), parallel to the top edge and, to one
end of the name plate or decal (2) being removed.
CAUTION: Do not exceed 52° C (120° F) when heating name plates, decals or body panels. Failure to follow
this caution may result in damage to the name plates, decals and/or the vehicle paint finish.
2. If the temperature is below 21° C (70° F), warm the name plate or decal witha heat lamp or heat gun.
NOTE: The exterior name plates are attached to the body with adhesive tape.
3. Using a trim stick C-4755 or equivalent, carefully remove the name plateor decal from the body panel, as nec-
essary.
NAME PLATES
1 - “4X4”, “HEAVY DUTY”
2 - “RAM HEAD MEDALLION”
3 - “VIPER POWERED”
4 - “HEMI 5.7 LITER”, “CUMMINS TURBO DIESEL”
5 - “BIG HORN EDITION”, “LONE STAR EDITION”
6 - “RAM 1500”, “RAM 2500”, “RAM 3500”, “POWER WAGON
HEMI 5.7 LITER”7 - ”MEGA CAB”
8 - “TRX”, “TRX4”, “TRX4 OFF-ROAD”
9 - “STR-10”, “SLT”, “SPORT”, “LARAMIE”
10 - ”POWER WAGON”

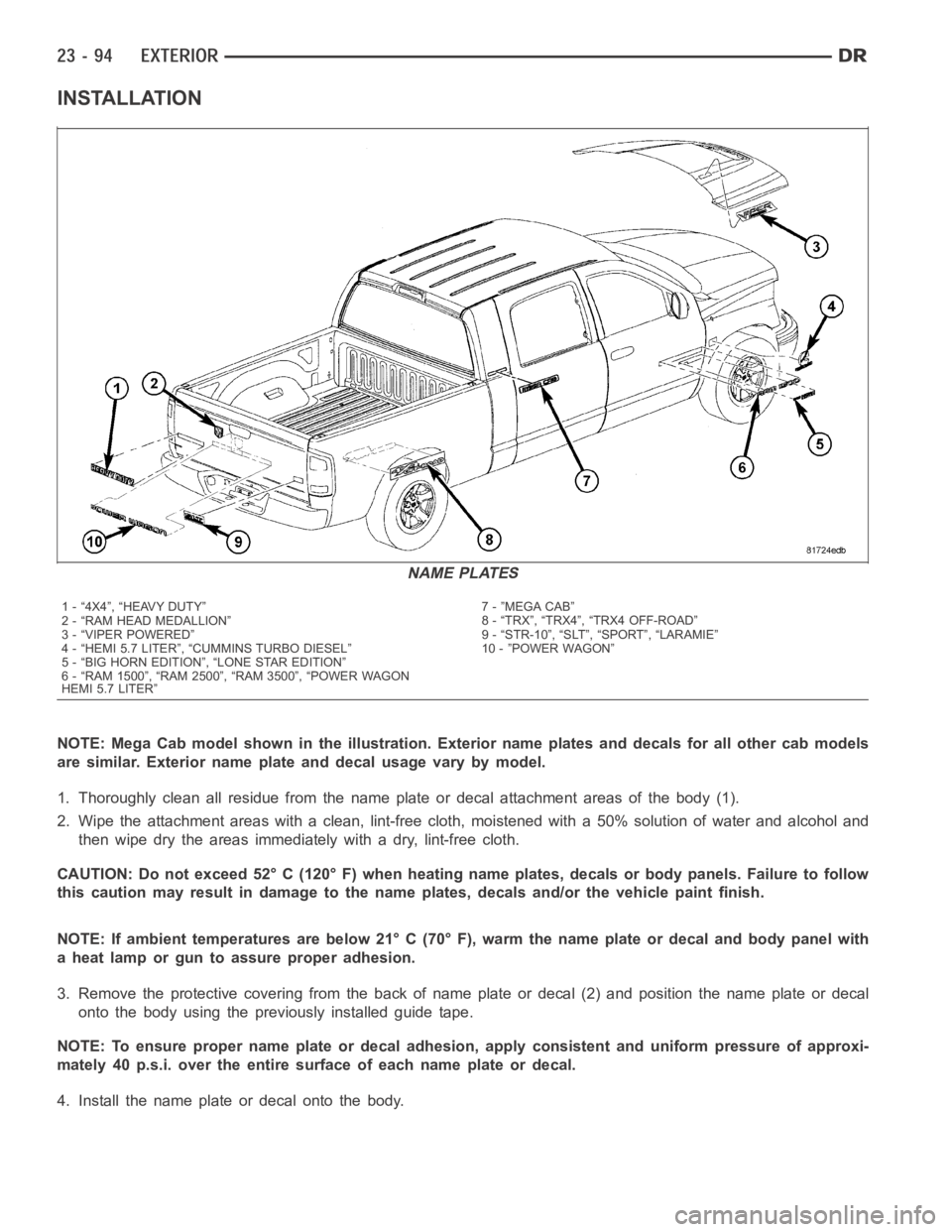

Page 4431 of 5267

INSTALLATION
NOTE: Mega Cab model shown in the illustration. Exterior name plates and decals for all other cab models
are similar. Exterior name plate and decal usage vary by model.
1. Thoroughly clean all residue from the name plate or decal attachment areas of the body (1).
2. Wipe the attachment areas with a clean, lint-free cloth, moistened witha 50% solution of water and alcohol and
then wipe dry the areas immediately with a dry, lint-free cloth.
CAUTION: Do not exceed 52° C (120° F) when heating name plates, decals or body panels. Failure to follow
this caution may result in damage to the name plates, decals and/or the vehicle paint finish.
NOTE: If ambient temperatures are below 21° C (70° F), warm the name plate ordecal and body panel with
a heat lamp or gun to assure proper adhesion.
3. Remove the protective covering from the back of name plate or decal (2) and position the name plate or decal
onto the body using the previously installed guide tape.
NOTE: To ensure proper name plate or decal adhesion, apply consistent and uniform pressure of approxi-
mately 40 p.s.i. over the entire surface of each name plate or decal.
4. Install the name plate or decal onto the body.
NAME PLATES
1 - “4X4”, “HEAVY DUTY”
2 - “RAM HEAD MEDALLION”
3 - “VIPER POWERED”
4 - “HEMI 5.7 LITER”, “CUMMINS TURBO DIESEL”
5 - “BIG HORN EDITION”, “LONE STAR EDITION”
6 - “RAM 1500”, “RAM 2500”, “RAM 3500”, “POWER WAGON
HEMI 5.7 LITER”7 - ”MEGA CAB”
8 - “TRX”, “TRX4”, “TRX4 OFF-ROAD”
9 - “STR-10”, “SLT”, “SPORT”, “LARAMIE”
10 - ”POWER WAGON”
Page 4432 of 5267

FRONT FENDER
REMOVAL
1. Remove the radio antenna (Refer to 8 - ELECTRI-
CAL/AUDIO/ANTENNA BODY & CABLE -
REMOVAL).
2. Remove the battery tray (depending on fender
beingserviced)(Referto8-ELECTRICAL/BAT-
TERY SYSTEM/TRAY - REMOVAL).
3. Remove the cowl grille (Refer to 23 - BODY/EXTE-
RIOR/COWL GRILLE - REMOVAL).
4. Remove the headlamp unit (Refer to 8 - ELECTRI-
CAL/LAMPS/LIGHTING - EXTERIOR/HEADLAMP
UNIT - REMOVAL).
5. Remove the wheelhouse splash shield (Refer to 23
- BODY/EXTERIOR/FRONT WHEELHOUSE
SPLASH SHIELD - REMOVAL).
6. Remove the bolts (1, 2, 3, 5 and 6) that secure the
front fender (7) to body.
7. Carefully remove the front fender from the body
and remove the plastic inserts (4), if required.
INSTALLATION
1. If required, install new plastic inserts (4) into the
front fender (7).
2. Position the front fender onto the body and loosely
install all fender retaining bolts.
3. Align the front fender and add shims, if required
(Refer to 23 - BODY/BODY STRUCTURE/GAP
AND FLUSH - SPECIFICATIONS).
4. Tighten the bolts (2 and 6) to 9 Nꞏm (80 in. lbs.).
5. Tighten the bolts (1, 3 and 5) to 12.5 Nꞏm (9 ft.
lbs.).
6. Install the wheelhouse splash shield (Refer to 23 -
BODY/EXTERIOR/FRONT WHEELHOUSE
SPLASH SHIELD - INSTALLATION).
7. Install the headlamp unit (Refer to 8 - ELECTRI-
CAL/LAMPS/LIGHTING - EXTERIOR/HEADLAMP
UNIT - INSTALLATION).
8. Install the cowl grille (Refer to 23 - BODY/EXTERI-
OR/COWL GRILLE - INSTALLATION).
9. Install the battery tray, if required (Refer to 8 - ELECTRICAL/BATTERY SYSTEM/TRAY - INSTALLATION).
10. Install the antenna (Refer to 8 - ELECTRICAL/AUDIO/ANTENNA BODY & CABLE - INSTALLATION).
