DODGE RAM SRT-10 2006 Service Repair Manual 3.CHECK THE (T38) GOVERNOR PRESSURESENSOR SIGNAL CIRCUIT FOR A SHORT TO GROUND
Turn the ignition off to the lock position.
Disconnect the Transmission Solenoid Assembly harness connector.
Disconnect t

Page 3618 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 5.CHECK THE TRANSMISSION SOLENOID ASSEMBLY
Reconnect the Transmission Solenoid Assembly harness connector.
Remove the Transmission Oil Pan perthe Service Information. (Refer to
21 - TRANSMISSION/TRANS

5.CHECK THE TRANSMISSION SOLENOID ASSEMBLY
Reconnect the Transmission Solenoid Assembly harness connector.
Remove the Transmission Oil Pan perthe Service Information. (Refer to
21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - 48RE/FLUID -
STANDARD PROCEDURE)
Disconnect the Governor Pressure/Transmission Temperature Sensor
connector (inside transmission).
Measure the resistance between the (T38) Governor Pressure Sensor
Signal circuit and all other circuits in the PCM C1 and C2 harness con-
nectors.
Is the resistance below 100k ohms between the (T38) Governor
Pressure Sensor Signal circuit any other circuit(s) in the PCM
C1 or C2 harness connectors?
Ye s>>
Replace the Transmission Solenoid Assembly per the Ser-
vice Information.
Perform RE TRANSMISSION VERIFICATION TEST VER -
1 (GAS). (Refer to 21 - TRANSMISSION/TRANSAXLE/AU-
TOMATIC - 48RE - STANDARD PROCEDURE)
No>>
Go To 6
6.CHECK THE GOVERNOR PRESSURE SENSOR SENSOR
Turn the ignition on.
With the scan tool, erase DTCs.
Connect a jumper wire between the (T38) Governor Pressure Sensor
Signal circuit and the (F856) 5-volt Supply circuit in the Governor Pres-
sure Sensor connector.
With the scan tool, read DTCs.
Did the DTC P0868 set?
Ye s>>
Inspect the Governor Pressure Sensor wiring for damage. If
no problems are found, replace the Governor Pressure Sen-
sor per the Service Information.
Perform RE TRANSMISSION VERIFICATION TEST VER -
1 (GAS). (Refer to 21 - TRANSMISSION/TRANSAXLE/AU-
TOMATIC - 48RE - STANDARD PROCEDURE)
No>>
Using the schematics as a guide, check the Powertrain Control Module (PCM)pins, terminals, and con-
nectors for corrosion, damage, or terminal push out. Pay particular attention to all power and ground
circuits. If no problems are found, replace and program the PCM per the Service Information. (Refer to
8 - ELECTRICAL/ELECTRONIC CONTROL MODULES/POWERTRAIN CONTROL MODULE -
REMOVAL)
Perform RE TRANSMISSION VERIFICATION TEST VER - 1 (GAS). (Refer to 21 - TRANSMISSION/
TRANSAXLE/AUTOMATIC - 48RE - STANDARD PROCEDURE)

Page 3619 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 7.INTERMITTENT WIRING AND CONNECTORS
The conditions necessary to set this DTC are not present at this time.
Use the Freeze Frame Data to help duplicate the conditions in which the DTC originally set.

Page 3620 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P1765-TRANS 12 VOLT SUPPLYRELAY CTRL CIRCUIT (GAS)
For a complete wiring diagramRefer to Section 8W

Page 3621 of 5267

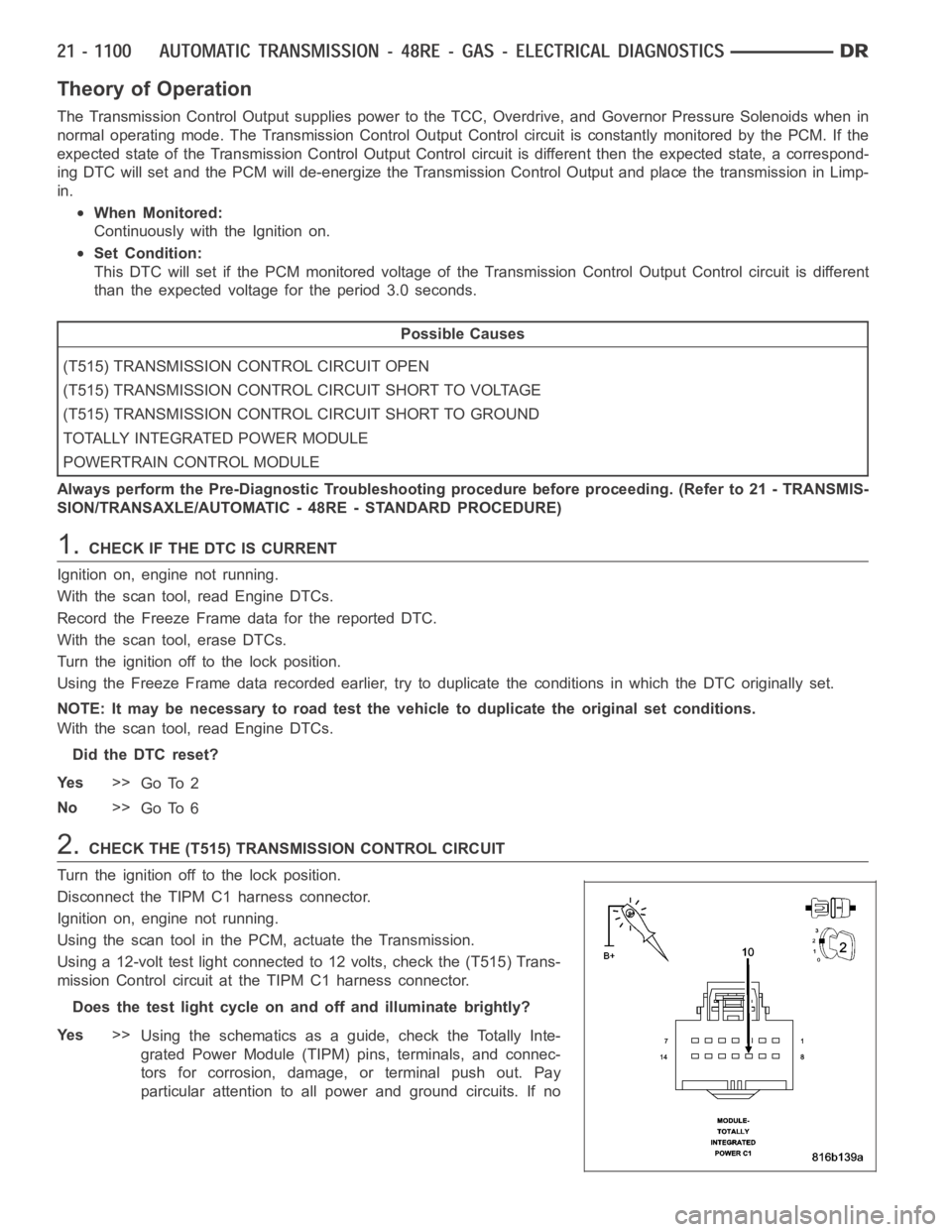

DODGE RAM SRT-10 2006 Service Repair Manual Theory of Operation
The Transmission Control Output supplies power to the TCC, Overdrive, andGovernor Pressure Solenoids when in
normal operating mode. The Transmission Control Output Control circuit

Theory of Operation
The Transmission Control Output supplies power to the TCC, Overdrive, andGovernor Pressure Solenoids when in
normal operating mode. The Transmission Control Output Control circuit is constantly monitored by the PCM. If the
expected state of the Transmission Control Output Control circuit is different then the expected state, a correspond-
ing DTC will set and the PCM will de-energize the Transmission Control Output and place the transmission in Limp-
in.
When Monitored:
Continuously with the Ignition on.
Set Condition:
This DTC will set if the PCM monitored voltage of the Transmission Control Output Control circuit is different
than the expected voltage for the period 3.0 seconds.
Possible Causes
(T515) TRANSMISSION CONTROL CIRCUIT OPEN
(T515) TRANSMISSION CONTROL CIRCUIT SHORT TO VOLTAGE
(T515) TRANSMISSION CONTROL CIRCUIT SHORT TO GROUND
TOTALLY INTEGRATED POWER MODULE
POWERTRAIN CONTROL MODULE
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 21 - TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 48RE - STANDARD PROCEDURE)
1.CHECK IF THE DTC IS CURRENT
Ignition on, engine not running.
With the scan tool, read Engine DTCs.
Record the Freeze Frame data for the reported DTC.
With the scan tool, erase DTCs.
Turn the ignition off to the lock position.
Using the Freeze Frame data recorded earlier, try to duplicate the conditions in which the DTC originally set.
NOTE: It may be necessary to road test the vehicle to duplicate the originalset conditions.
With the scan tool, read Engine DTCs.
Did the DTC reset?
Ye s>>
Go To 2
No>>
Go To 6
2.CHECK THE (T515) TRANSMISSION CONTROL CIRCUIT
Turn the ignition off to the lock position.
Disconnect the TIPM C1 harness connector.
Ignition on, engine not running.
Using the scan tool in the PCM, actuate the Transmission.
Using a 12-volt test light connected to 12 volts, check the (T515) Trans-
mission Control circuit at the TIPM C1 harness connector.
Does the test light cycle on and off and illuminate brightly?
Ye s>>
Using the schematics as a guide, check the Totally Inte-
grated Power Module (TIPM) pins, terminals, and connec-
tors for corrosion, damage, or terminal push out. Pay
particular attention to all power and ground circuits. If no

Page 3622 of 5267

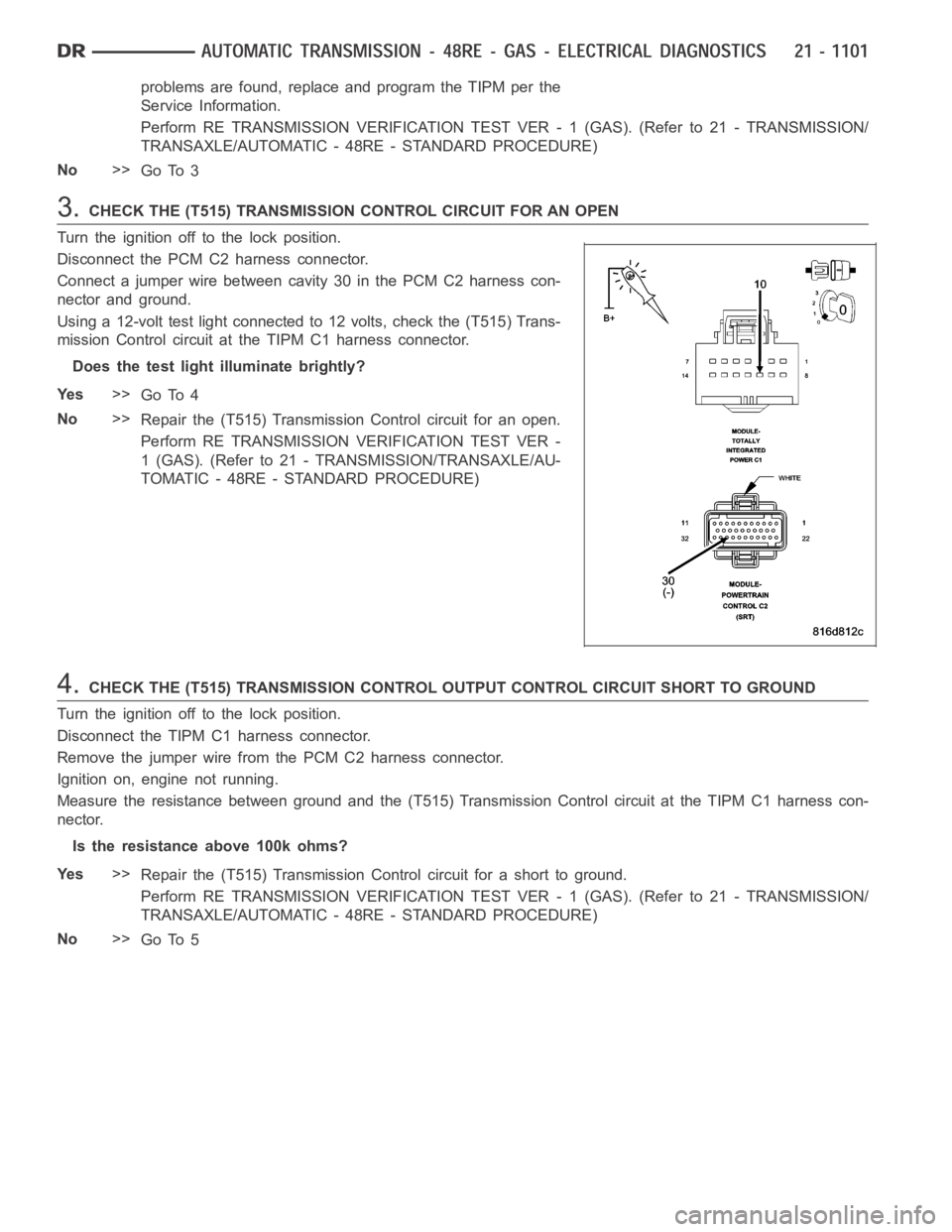

DODGE RAM SRT-10 2006 Service Repair Manual problems are found, replace and program the TIPM per the
Service Information.
Perform RE TRANSMISSION VERIFICATION TEST VER - 1 (GAS). (Refer to 21 - TRANSMISSION/
TRANSAXLE/AUTOMATIC - 48RE - STANDAR

Page 3623 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 5.CHECK THE (T515) TRANSMISSION CONTROL CIRCUIT FOR A SHORT TO VOLTAGE
Turn the ignition off to the lock position.
Disconnect the TIPM C1 harness connector.
Disconnect the PCM C2 harness connector.
Ig

5.CHECK THE (T515) TRANSMISSION CONTROL CIRCUIT FOR A SHORT TO VOLTAGE
Turn the ignition off to the lock position.
Disconnect the TIPM C1 harness connector.
Disconnect the PCM C2 harness connector.
Ignition on, engine not running.
Using a volt meter connected to ground, check the (T515) Transmission
Control circuit at the TIPM C1 harness connector.
Is the voltage above 1.0 volts?
Ye s>>
Repair the (T515) Transmission Control circuit for a short to
voltage.
Perform RE TRANSMISSION VERIFICATION TEST VER -
1 (GAS). (Refer to 21 - TRANSMISSION/TRANSAXLE/AU-
TOMATIC - 48RE - STANDARD PROCEDURE)
No>>
Using the schematics as a guide, check the Engine Control
Module (PCM) pins, terminals, and connectors for corrosion,
damage, or terminal push out. Pay particular attention to all
power and ground circuits. If no problems are found,
replace and program the PCM per the Service Information.
(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MOD-
ULES/ENGINE CONTROL MODULE - REMOVAL)
Perform RE TRANSMISSION VERIFICATION TEST VER - 1 (GAS). (Refer to 21 - TRANSMISSION/
TRANSAXLE/AUTOMATIC - 48RE - STANDARD PROCEDURE)
6.INTERMITTENT WIRING AND CONNECTORS
The conditions necessary to set this DTC are not present at this time.
Use the Freeze Frame Data to help duplicate the conditions in which the DTC originally set. Pay particular attention
to the DTC set conditions, such as, VSS, MAP, ECT, and Load
Using the schematics as a guide, visually inspect the related wiring harness. Look for any chafed, pierced, pinched,
or partially broken wires.
Visually inspect the related wiring harness connectors. Look for broken,bent, pushed out, or corroded terminals.
Wiggle the wiring and connectors while checking for any possible open or shorted circuits.
Check for any Service Information Tune-ups or Technical Service Bulletins that may apply.
Were there any problems found?
Ye s>>
Repair as necessary.
Perform RE TRANSMISSION VERIFICATION TEST VER - 1 (GAS). (Refer to 21 - TRANSMISSION/
TRANSAXLE/AUTOMATIC - 48RE - STANDARD PROCEDURE)
No>>
Te s t C o m p l e t e .
STANDARD PROCEDURE

Page 3624 of 5267

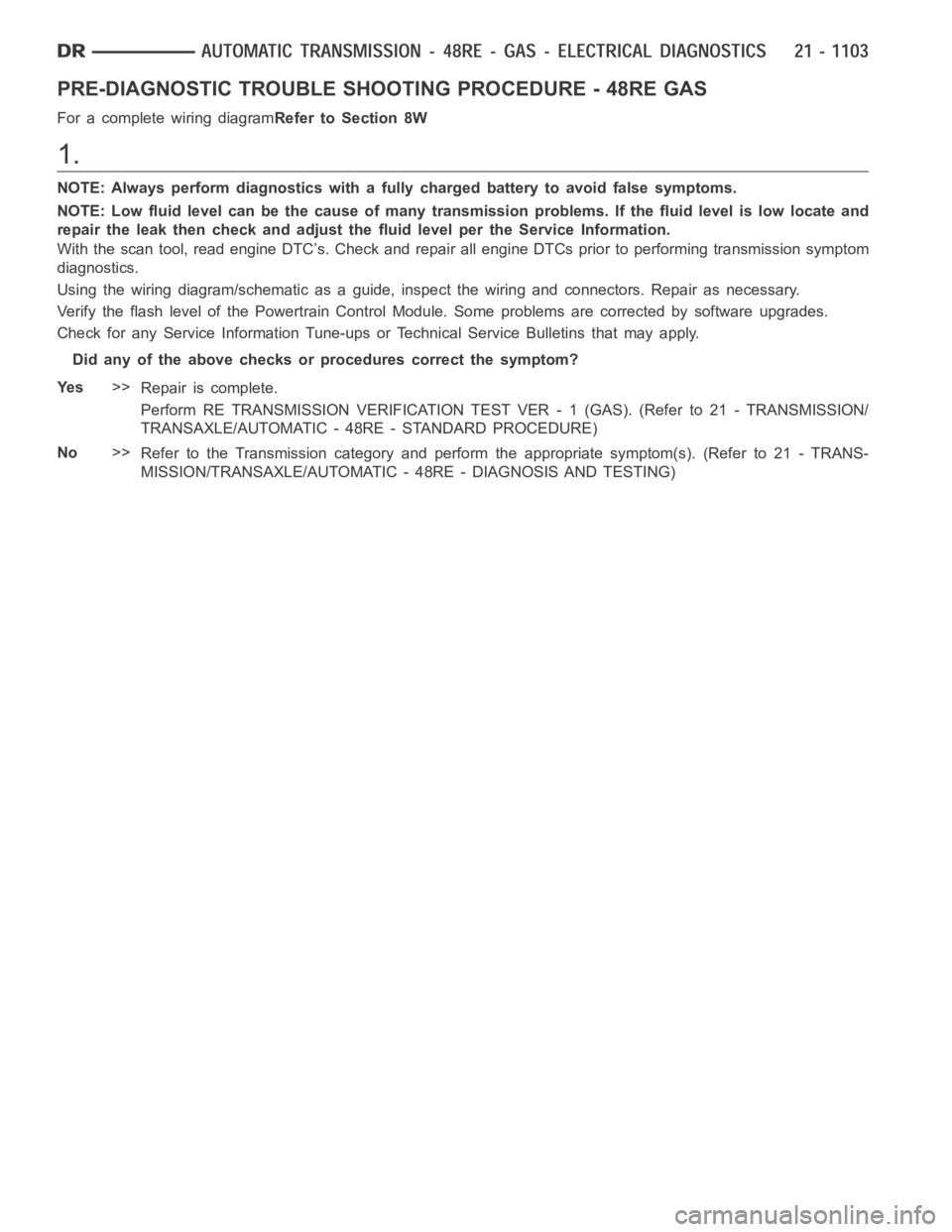

DODGE RAM SRT-10 2006 Service Repair Manual PRE-DIAGNOSTIC TROUBLE SHOOTING PROCEDURE - 48RE GAS
For a complete wiring diagramRefer to Section 8W
1.
NOTE: Always perform diagnostics with a fully charged battery to avoid false symptoms.
NOTE: Lo
