Page 4569 of 5267

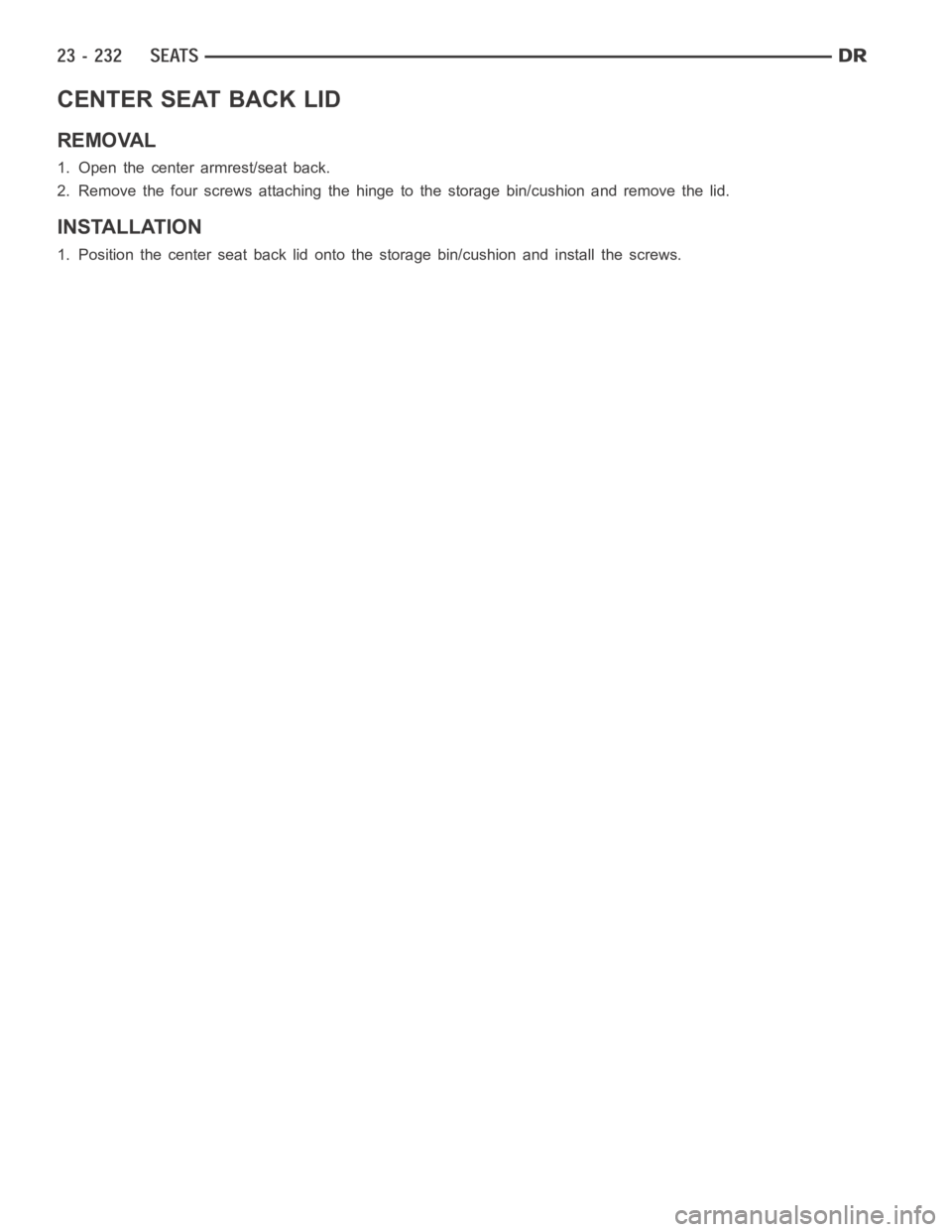

DODGE RAM SRT-10 2006 Service Repair Manual CENTER SEAT BACK LID REMOVAL 1. Open the center armrest/seat back. 2. Remove the four screws attaching the hinge to the storage bin/cushion and remove the lid. INSTALLATION 1. Position the center seat

Page 4570 of 5267

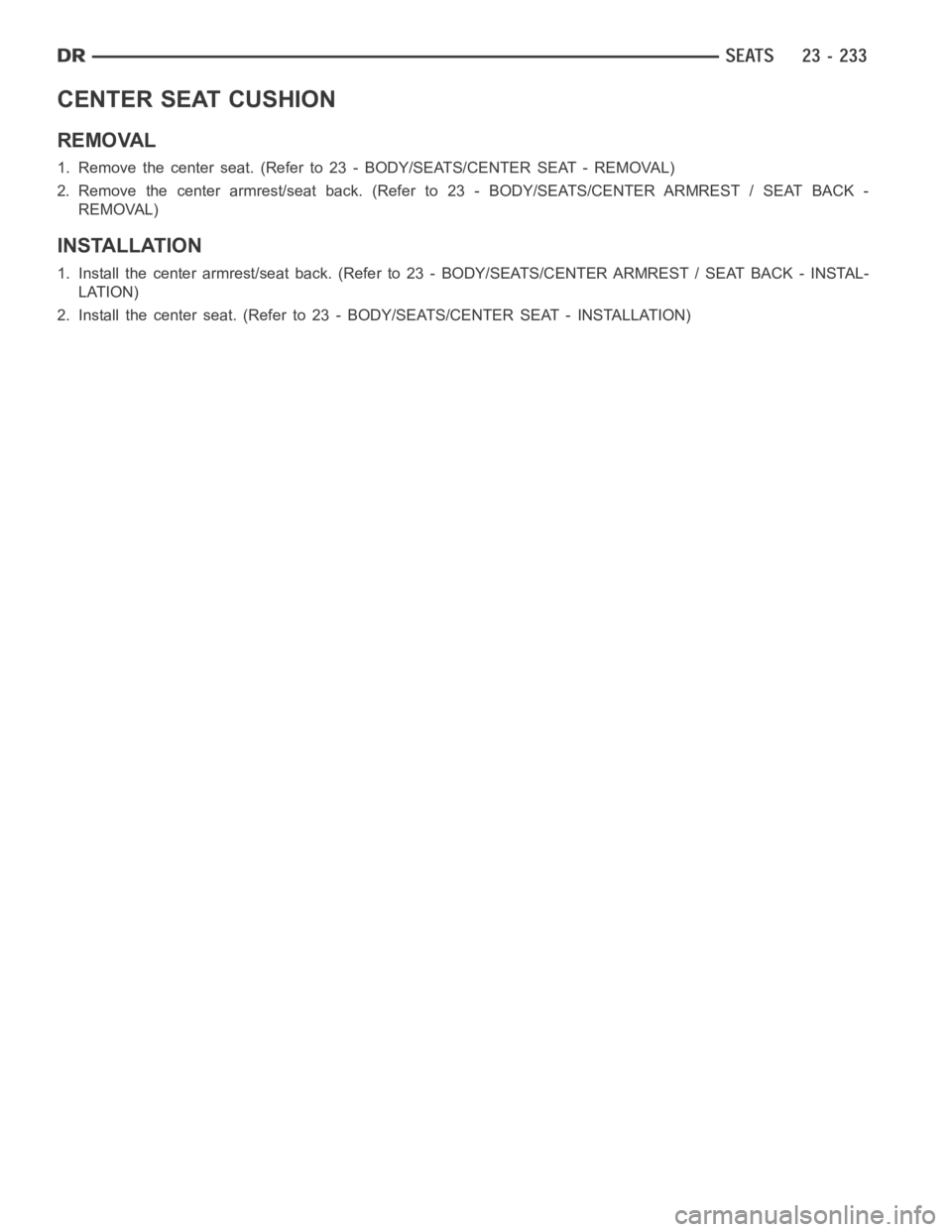

DODGE RAM SRT-10 2006 Service Repair Manual CENTER SEAT CUSHION REMOVAL 1. Remove the center seat. (Refer to 23 - BODY/SEATS/CENTER SEAT - REMOVAL) 2. Remove the center armrest/seat back. (Refer to 23 - BODY/SEATS/CENTER ARMREST / SEAT BACK - R

Page 4571 of 5267

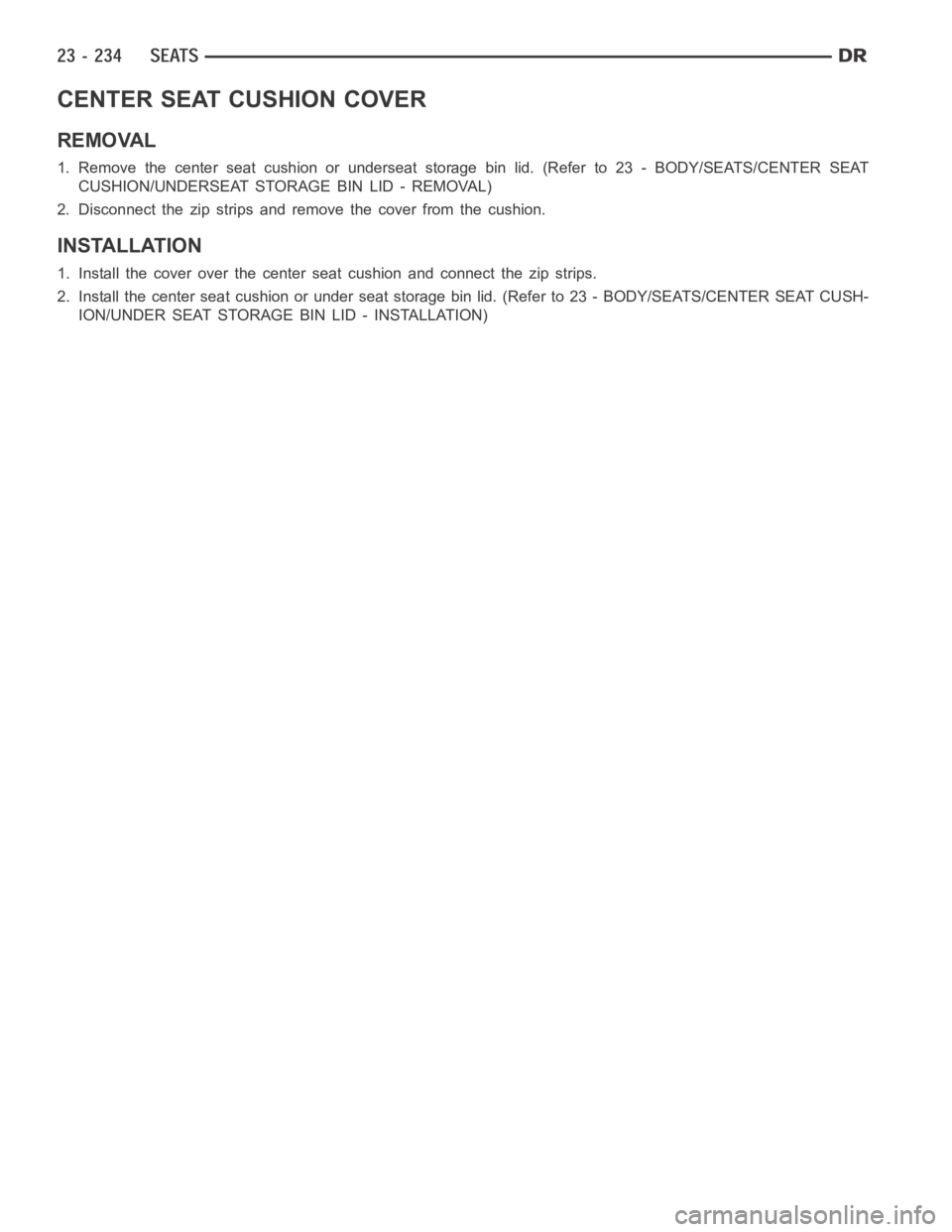

DODGE RAM SRT-10 2006 Service Repair Manual CENTER SEAT CUSHION COVER REMOVAL 1. Remove the center seat cushion or underseat storage bin lid. (Refer to 23- BODY/SEATS/CENTER SEAT CUSHION/UNDERSEAT STORAGE BIN LID - REMOVAL) 2. Disconnect the zi

Page 4572 of 5267

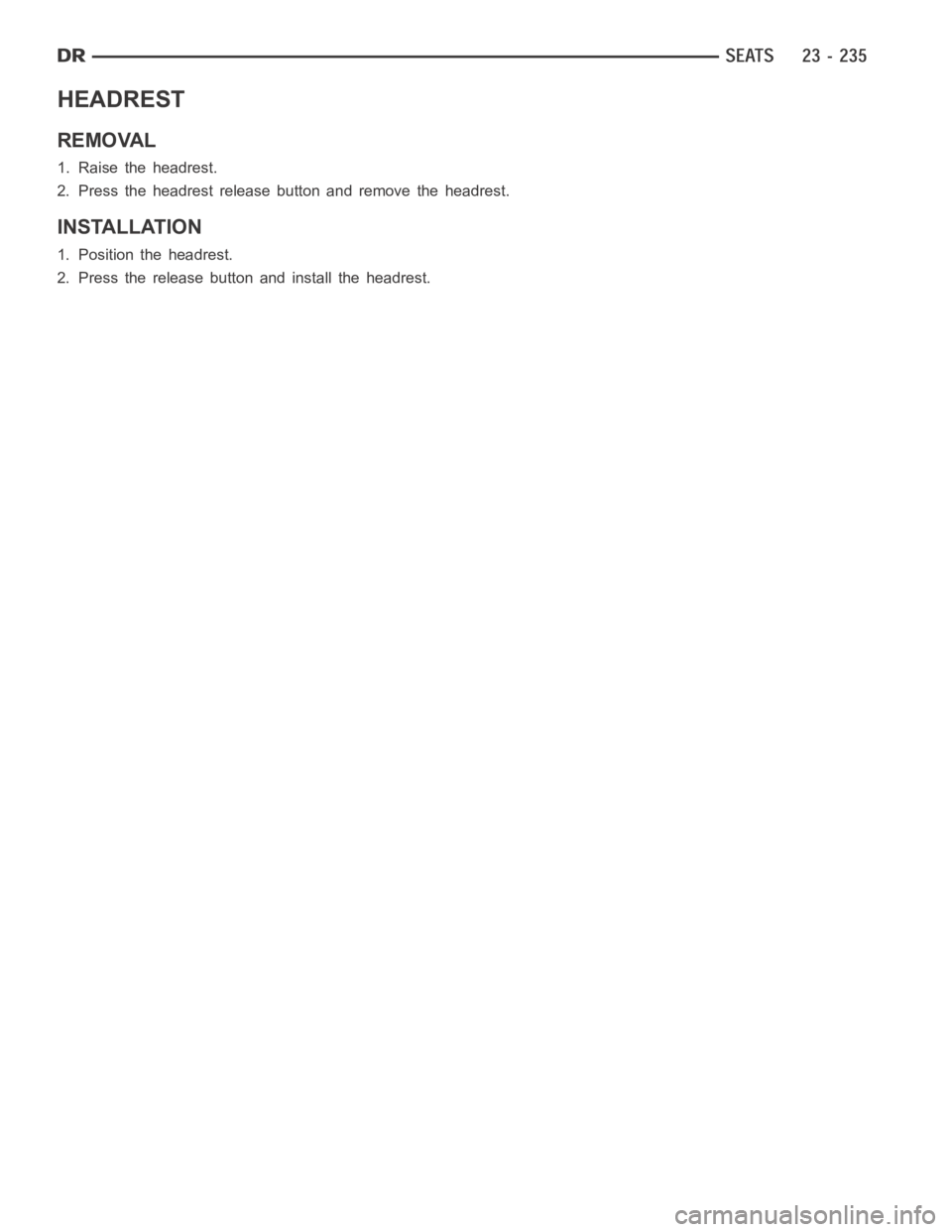

DODGE RAM SRT-10 2006 Service Repair Manual HEADREST REMOVAL 1. Raise the headrest. 2. Press the headrest release button and remove the headrest. INSTALLATION 1. Position the headrest. 2. Press the release button and install the headrest.

Page 4573 of 5267

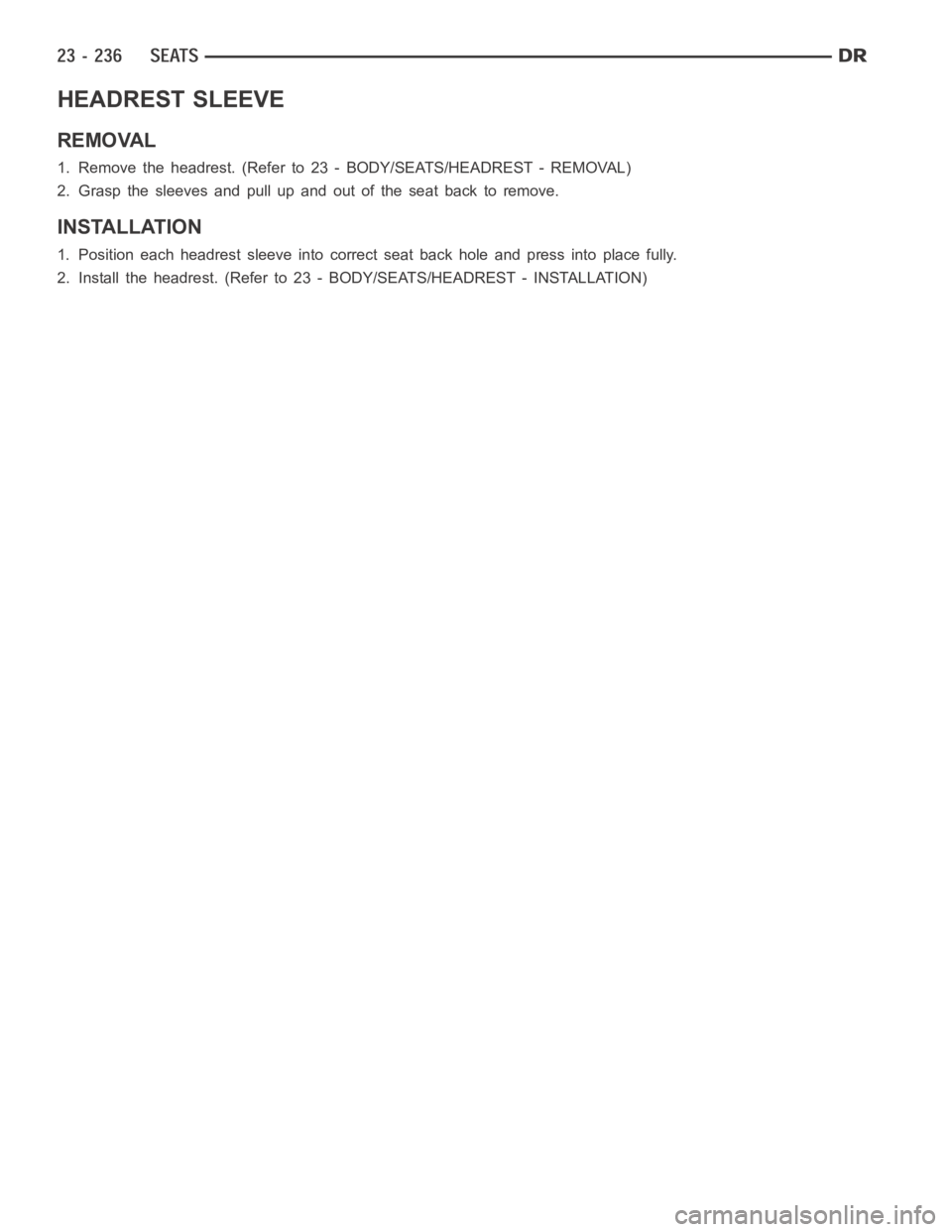

DODGE RAM SRT-10 2006 Service Repair Manual HEADREST SLEEVE REMOVAL 1. Remove the headrest. (Refer to 23 - BODY/SEATS/HEADREST - REMOVAL) 2. Grasp the sleeves and pull up and out of the seat back to remove. INSTALLATION 1. Position each headres

Page 4574 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual SEAT - FRONT REMOVAL 1. Before proceeding with the following repair proce- dure, review all warnings and cautions. (Refer to 23 - BODY/SEATS - WARNING) NOTE: Do not reuse the seat fasteners, always re

Page 4575 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 5. Fold the seat backs forward and roll the seat assembly back in the vehicle. 6. Remove and discard the nuts (2 and 4) on either the driver or passenger side. 7. Separate the seat assembly by removin

Page 4576 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 4. Install the nuts (2 and 4) attaching the center seat section to the other seat, and tighten to 25 Nꞏm (18 ft. lbs.). 5. Connect the electrical connectors (1). 6. Roll the seat assembly forward an
