2.CHECK THE TTVA POSITIONS WITH THE AUTO ZERO FEATURE
NOTE: Each time the ignition is cycled to the on position, the ECM commands aTTVA internal calibration
procedure (autozero) to determine the zero position.
With the scan tool, monitor the TTVA position during the autozero test.
Ignition on, engine not running.
After the autozero test is completed, record the position percentage value.
Press and hold the accelerator pedal to full throttle after completion of the autozero test and record.
Subtract the TTVA full throttle value from the value recorded after the autozero test.
Is the difference between the two values greater than or equal to 48 degrees?
Ye s>>
Go To 16
No>>
Go To 3
3.CHECK TTVA FOR SIGNS OF DAMAGE
Turn the ignition off to the lock position.
Visually inspect the TTVA shaft for any signs of external damage or improperly mounted.
NOTE: It is not necessary to remove the TTVA to perform this procedure.
Is the TTVA damaged or improperly mounted?
Ye s>>
Repair as necessary.
Perform RE TRANSMISSION VERIFICATION TEST VER - 1 (DIESEL). (Refer to 21 - TRANSMISSION/
TRANSAXLE/AUTOMATIC - 48RE - STANDARD PROCEDURE)
No>>
Go To 4
4.CHECK THE TTVA POSITIONS WITH THE TTVA REMOVED
Turn the ignition off to the lock position.
Remove the TTVA from the transmission per the Service Information. (Referto 21 - TRANSMISSION/TRANSAXLE/
AUTOMATIC - 48RE/THROTTLE VALVE ACTUATOR - REMOVAL)
NOTE: Check connectors - Clean/repair as necessary.
NOTE: Each time the ignition is cycled to the on position, the ECM commands aTTVA internal calibration
procedure (autozero) to determine the zero position.
Properly support the TTVA and reconnect the TTVA wiring harness.
With the scan tool, monitor the TTVA position during the autozero test.
Ignition on, engine not running.
After the autozero test is completed, record the position percentage value.
After recording the position percentage value, press and hold the accelerator pedal to full throttle and note position
percentage value.
Subtract the TTVA full throttle value from the value recorded after the autozero test.
Is the difference between the two values greater than or equal to 48 degrees?
Ye s>>
Repair internal transmission as necessary. Refer to the Service Information for proper repair procedures
for components related to the Transmission Throttle Valve.
Perform RE TRANSMISSION VERIFICATION TEST VER - 1 (DIESEL). (Refer to 21 - TRANSMISSION/
TRANSAXLE/AUTOMATIC - 48RE - STANDARD PROCEDURE)
No>>
Go To 5
Page 3738 of 5267

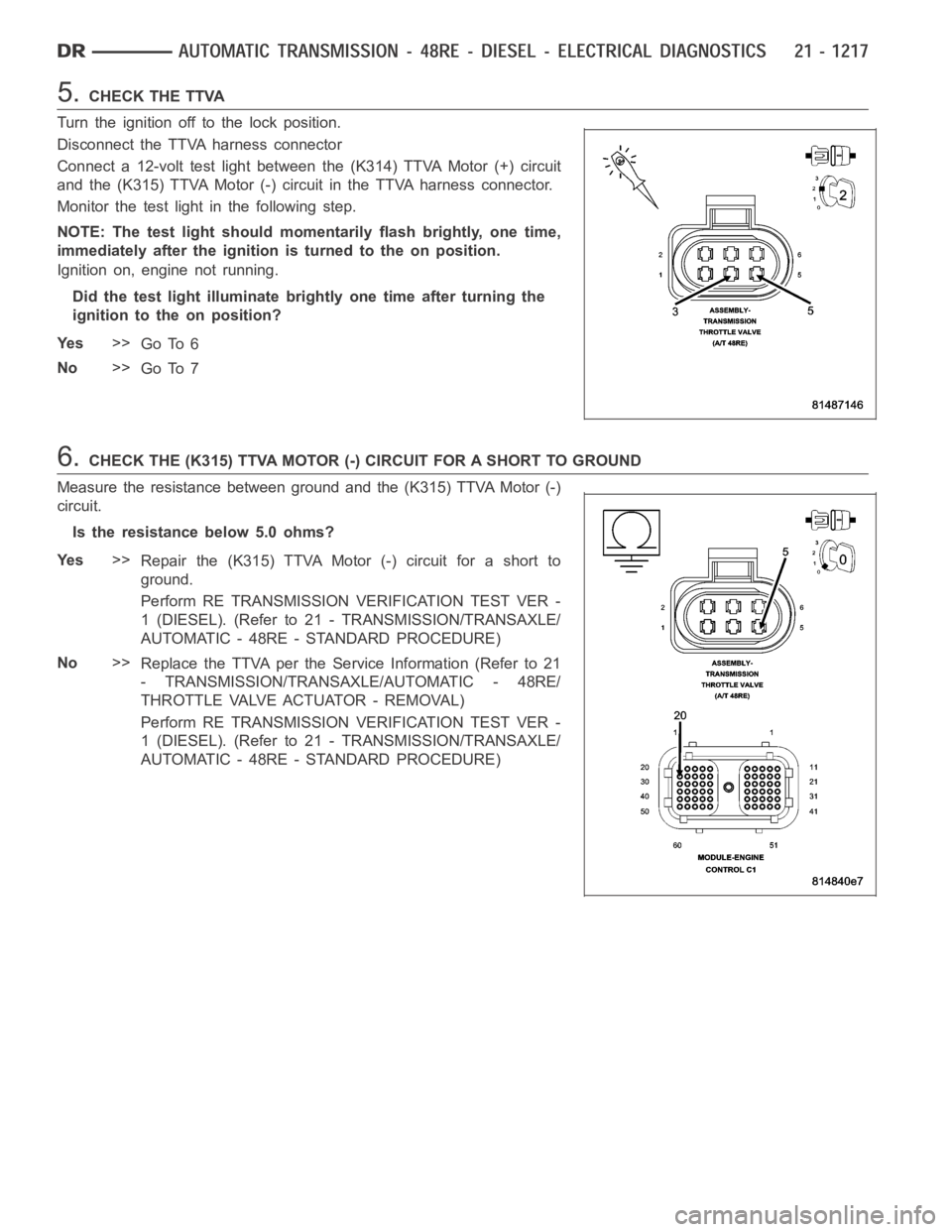

5.CHECK THE TTVA
Turn the ignition off to the lock position.
Disconnect the TTVA harness connector
Connect a 12-volt test light between the (K314) TTVA Motor (+) circuit
and the (K315) TTVA Motor (-) circuit in the TTVA harness connector.
Monitor the test light in the following step.
NOTE: The test light should momentarily flash brightly, one time,
immediately after the ignition is turned to the on position.
Ignition on, engine not running.
Did the test light illuminate brightly one time after turning the
ignition to the on position?
Ye s>>
Go To 6
No>>
Go To 7
6.CHECK THE (K315) TTVA MOTOR (-) CIRCUIT FOR A SHORT TO GROUND
Measure the resistance between ground and the (K315) TTVA Motor (-)
circuit.
Is the resistance below 5.0 ohms?
Ye s>>
Repair the (K315) TTVA Motor (-) circuit for a short to
ground.
Perform RE TRANSMISSION VERIFICATION TEST VER -
1 (DIESEL). (Refer to 21 - TRANSMISSION/TRANSAXLE/
AUTOMATIC - 48RE - STANDARD PROCEDURE)
No>>
Replace the TTVA per the Service Information (Refer to 21
- TRANSMISSION/TRANSAXLE/AUTOMATIC - 48RE/
THROTTLE VALVE ACTUATOR - REMOVAL)
Perform RE TRANSMISSION VERIFICATION TEST VER -
1 (DIESEL). (Refer to 21 - TRANSMISSION/TRANSAXLE/
AUTOMATIC - 48RE - STANDARD PROCEDURE)
Page 3739 of 5267

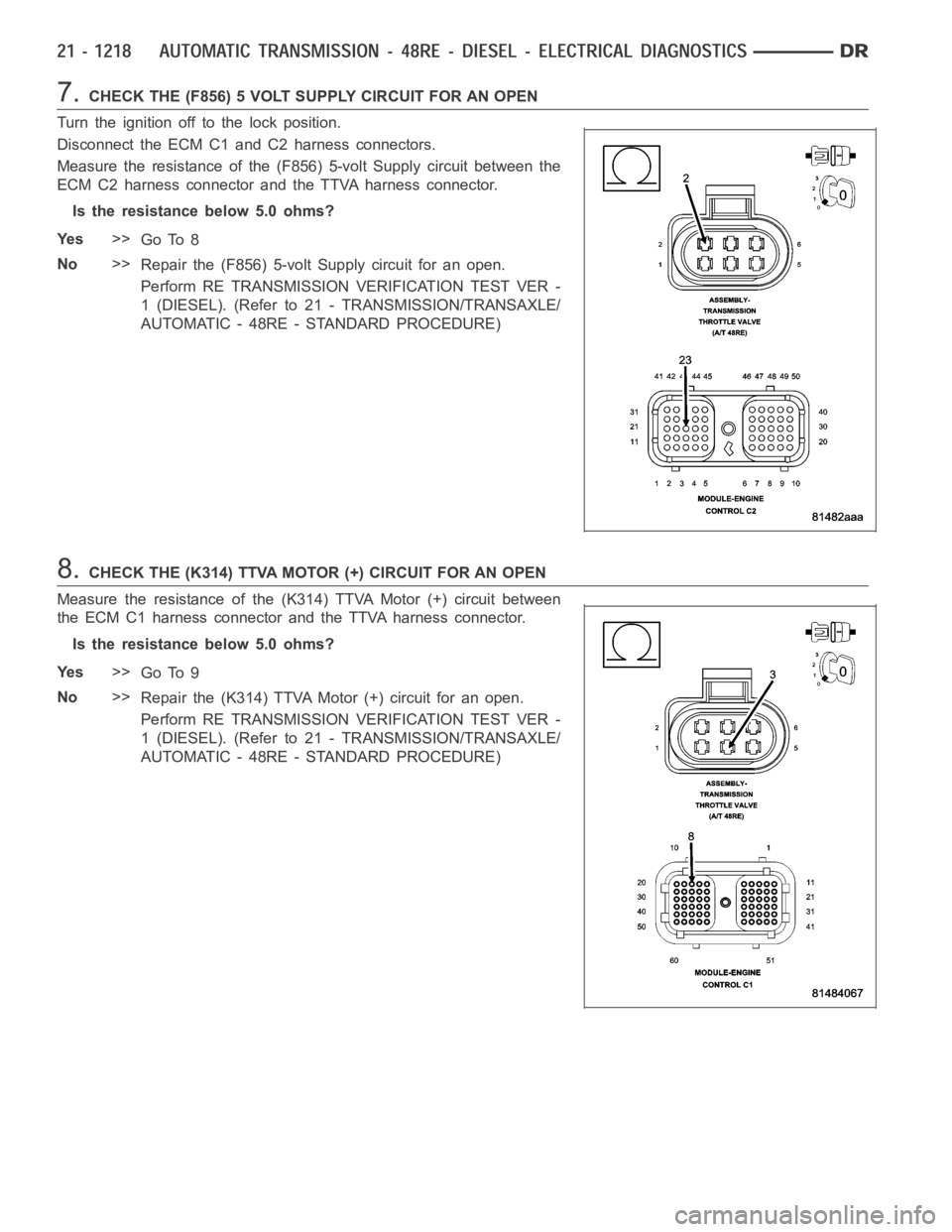

7.CHECK THE (F856) 5 VOLT SUPPLY CIRCUIT FOR AN OPEN
Turn the ignition off to the lock position.
Disconnect the ECM C1 and C2 harness connectors.
Measure the resistance of the (F856) 5-volt Supply circuit between the
ECM C2 harness connector and the TTVA harness connector.
Is the resistance below 5.0 ohms?
Ye s>>
Go To 8
No>>
Repair the (F856) 5-volt Supply circuit for an open.
Perform RE TRANSMISSION VERIFICATION TEST VER -
1 (DIESEL). (Refer to 21 - TRANSMISSION/TRANSAXLE/
AUTOMATIC - 48RE - STANDARD PROCEDURE)
8.CHECK THE (K314) TTVA MOTOR (+) CIRCUIT FOR AN OPEN
Measure the resistance of the (K314) TTVA Motor (+) circuit between
the ECM C1 harness connector and the TTVA harness connector.
Is the resistance below 5.0 ohms?
Ye s>>
Go To 9
No>>
Repair the (K314) TTVA Motor (+) circuit for an open.
Perform RE TRANSMISSION VERIFICATION TEST VER -
1 (DIESEL). (Refer to 21 - TRANSMISSION/TRANSAXLE/
AUTOMATIC - 48RE - STANDARD PROCEDURE)
Page 3740 of 5267

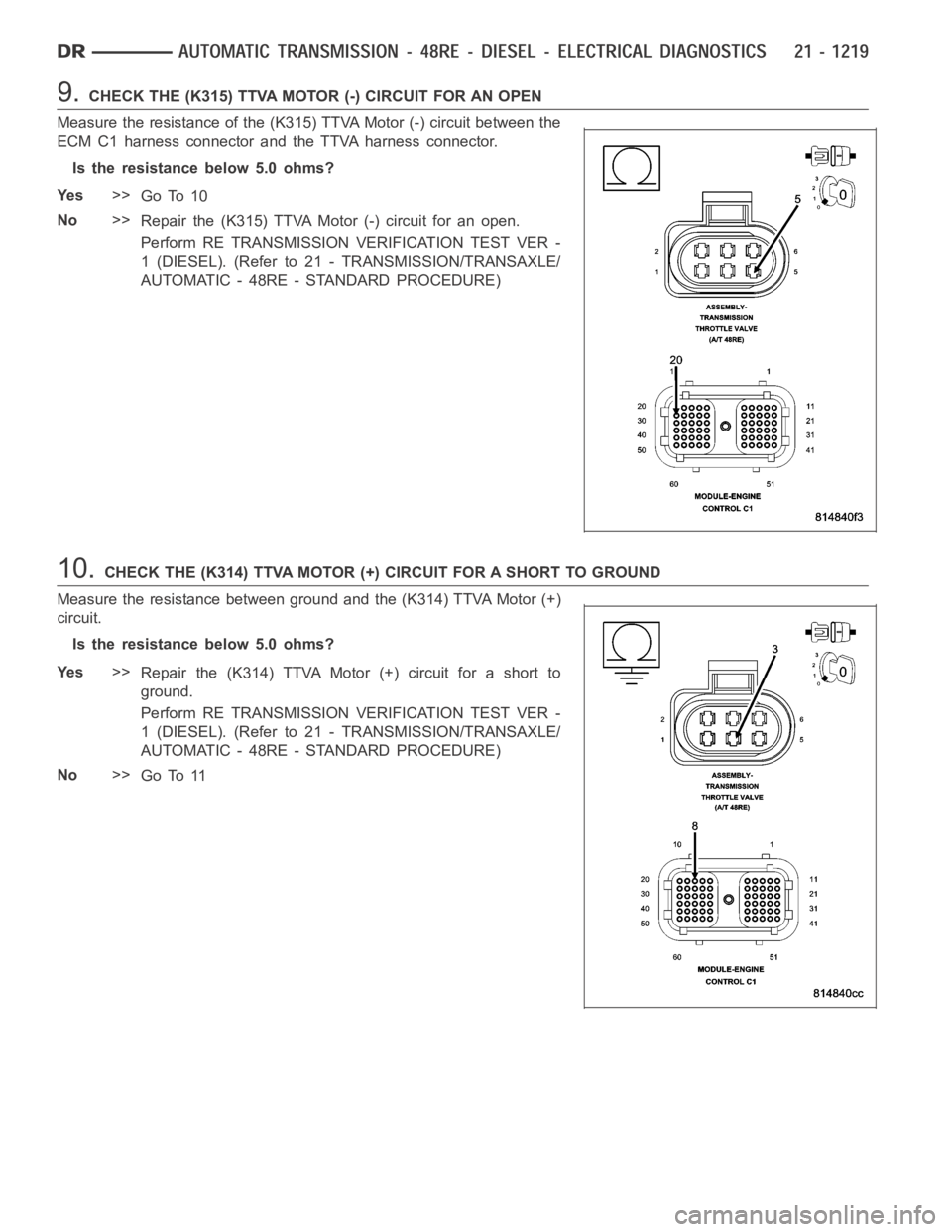

9.CHECK THE (K315) TTVA MOTOR (-) CIRCUIT FOR AN OPEN
Measure the resistance of the (K315) TTVA Motor (-) circuit between the
ECM C1 harness connector and the TTVA harness connector.
Is the resistance below 5.0 ohms?
Ye s>>
Go To 10
No>>
Repair the (K315) TTVA Motor (-) circuit for an open.
Perform RE TRANSMISSION VERIFICATION TEST VER -
1 (DIESEL). (Refer to 21 - TRANSMISSION/TRANSAXLE/
AUTOMATIC - 48RE - STANDARD PROCEDURE)
10.CHECK THE (K314) TTVA MOTOR (+) CIRCUIT FOR A SHORT TO GROUND
Measure the resistance between ground and the (K314) TTVA Motor (+)
circuit.
Is the resistance below 5.0 ohms?
Ye s>>
Repair the (K314) TTVA Motor (+) circuit for a short to
ground.
Perform RE TRANSMISSION VERIFICATION TEST VER -
1 (DIESEL). (Refer to 21 - TRANSMISSION/TRANSAXLE/
AUTOMATIC - 48RE - STANDARD PROCEDURE)
No>>
Go To 11
Page 3741 of 5267

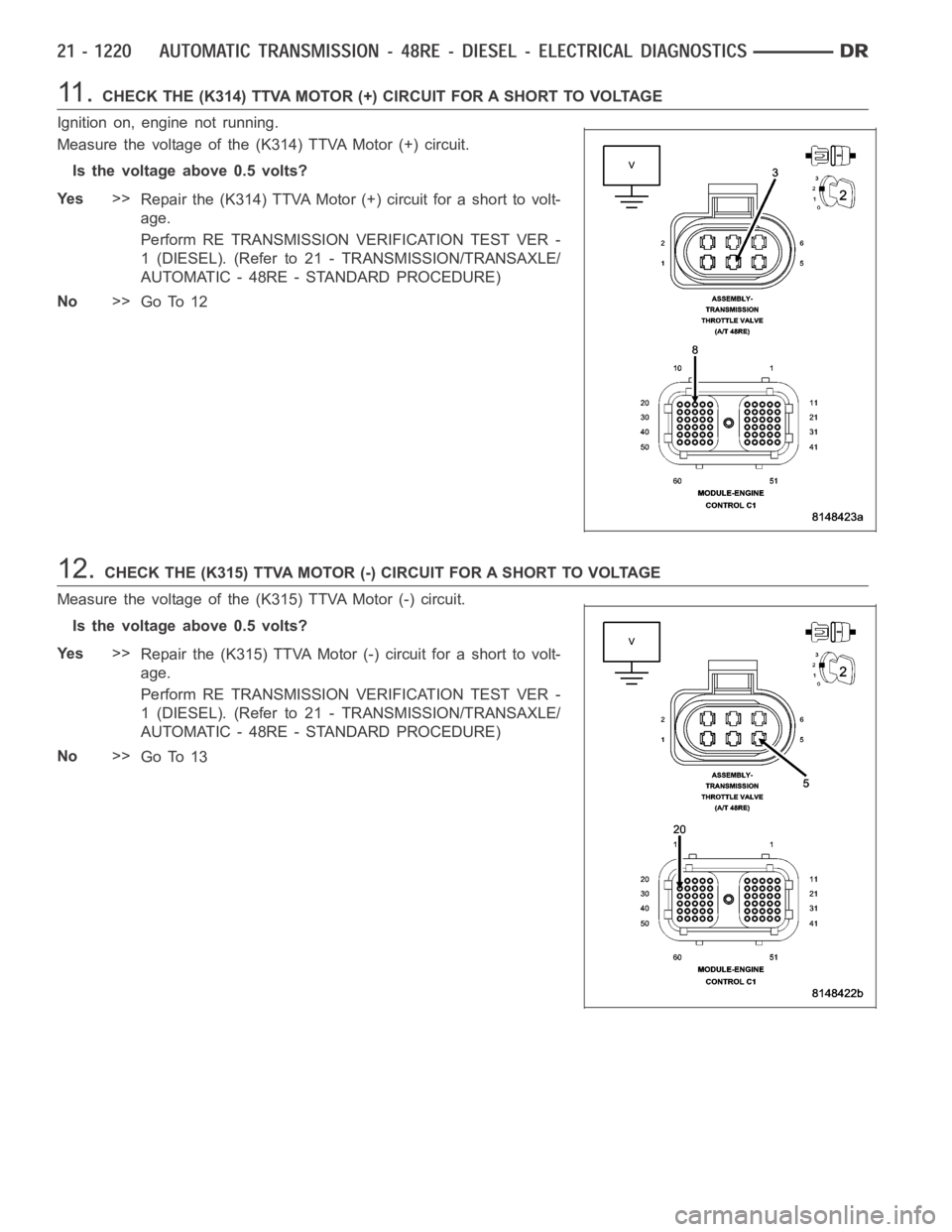

11 .CHECK THE (K314) TTVA MOTOR (+) CIRCUIT FOR A SHORT TO VOLTAGE
Ignition on, engine not running.
Measure the voltage of the (K314) TTVA Motor (+) circuit.
Is the voltage above 0.5 volts?
Ye s>>
Repair the (K314) TTVA Motor (+) circuit for a short to volt-
age.
Perform RE TRANSMISSION VERIFICATION TEST VER -
1 (DIESEL). (Refer to 21 - TRANSMISSION/TRANSAXLE/
AUTOMATIC - 48RE - STANDARD PROCEDURE)
No>>
Go To 12
12.CHECK THE (K315) TTVA MOTOR (-) CIRCUIT FOR A SHORT TO VOLTAGE
Measure the voltage of the (K315) TTVA Motor (-) circuit.
Is the voltage above 0.5 volts?
Ye s>>
Repair the (K315) TTVA Motor (-) circuit for a short to volt-
age.
Perform RE TRANSMISSION VERIFICATION TEST VER -
1 (DIESEL). (Refer to 21 - TRANSMISSION/TRANSAXLE/
AUTOMATIC - 48RE - STANDARD PROCEDURE)
No>>
Go To 13
Page 3742 of 5267

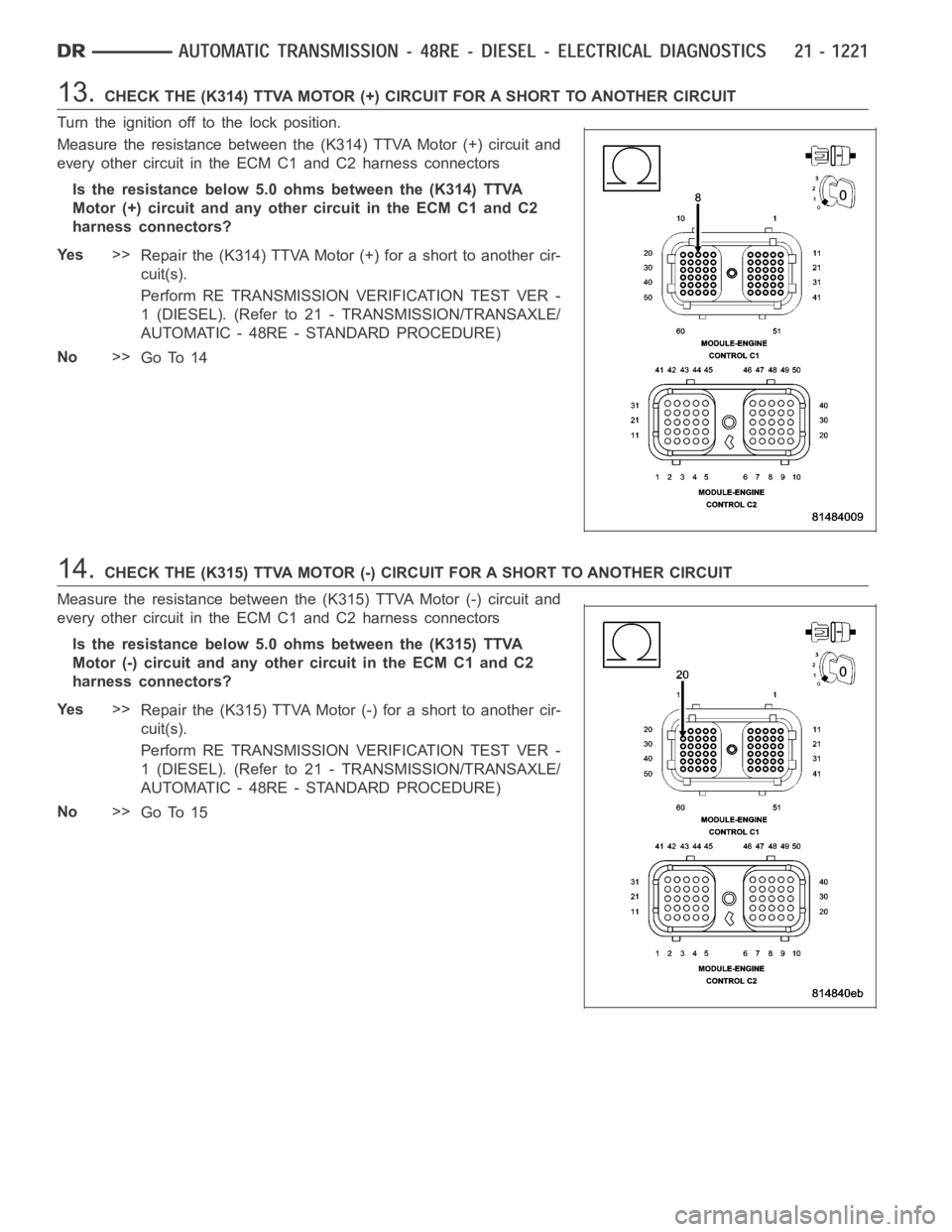

13.CHECK THE (K314) TTVA MOTOR (+) CIRCUIT FOR A SHORT TO ANOTHER CIRCUIT
Turn the ignition off to the lock position.
Measure the resistance between the (K314) TTVA Motor (+) circuit and
every other circuit in the ECM C1 and C2 harness connectors
Is the resistance below 5.0 ohms between the (K314) TTVA
Motor (+) circuit and any other circuit in the ECM C1 and C2
harness connectors?
Ye s>>
Repair the (K314) TTVA Motor (+) for a short to another cir-
cuit(s).
Perform RE TRANSMISSION VERIFICATION TEST VER -
1 (DIESEL). (Refer to 21 - TRANSMISSION/TRANSAXLE/
AUTOMATIC - 48RE - STANDARD PROCEDURE)
No>>
Go To 14
14.CHECK THE (K315) TTVA MOTOR (-) CIRCUIT FOR A SHORT TO ANOTHER CIRCUIT
Measure the resistance between the (K315) TTVA Motor (-) circuit and
every other circuit in the ECM C1 and C2 harness connectors
Is the resistance below 5.0 ohms between the (K315) TTVA
Motor (-) circuit and any other circuit in the ECM C1 and C2
harness connectors?
Ye s>>
Repair the (K315) TTVA Motor (-) for a short to another cir-
cuit(s).
Perform RE TRANSMISSION VERIFICATION TEST VER -
1 (DIESEL). (Refer to 21 - TRANSMISSION/TRANSAXLE/
AUTOMATIC - 48RE - STANDARD PROCEDURE)
No>>
Go To 15
Page 3743 of 5267

15.CHECK THE ECM OPERATION
Turn the ignition off to the lock position.
Reconnect all previously disconnected connectors.
Turntheignitiononfortheperiodof30secondstoallowtheECMto
reset.
Turn the ignition off to the lock position.
Disconnect the TTVA harness connector
Connect a 12-volt test light between the (K314) TTVA Motor (+) circuit
and the (K315) TTVA Motor (-) circuit in the TTVA harness connector.
Monitor the test light in the following step.
NOTE: The test light should momentarily flash brightly, one time,
immediately after the ignition is turned to the on position.
Ignition on, engine not running.
Did the test light illuminate brightly one time after turning the
ignition to the on position?
Ye s>>
Go To 16
No>>
Using the schematics as a guide, check the Engine Control Module (ECM) pins, terminals, and connec-
tors for corrosion, damage, or terminal push out. Pay particular attentiontoallpowerandgroundcir-
cuits. If no problems are found, replace and program the ECM per the ServiceInformation. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES/ENGINE CONTROL MODULE - REMOVAL)
Perform RE TRANSMISSION VERIFICATION TEST VER - 1 (DIESEL). (Refer to 21 - TRANSMISSION/
TRANSAXLE/AUTOMATIC - 48RE - STANDARD PROCEDURE)
16.INTERMITTENT WIRING AND CONNECTORS
The conditions necessary to set this DTC are not present at this time.
Use the Freeze Frame Data to help duplicate the conditions in which the DTC originally set. Pay particular attention
to the DTC set conditions, such as, VSS, MAP, ECT, and Load
Using the schematics as a guide, visually inspect the related wiring harness. Look for any chafed, pierced, pinched,
or partially broken wires.
Visually inspect the related wiring harness connectors. Look for broken,bent, pushed out, or corroded terminals.
Wiggle the wiring and connectors while checking for any possible open or shorted circuits.
Check for any Service Information Tune-ups or Technical Service Bulletins that may apply.
Were there any problems found?
Ye s>>
Repair as necessary.
Perform RE TRANSMISSION VERIFICATION TEST VER - 1 (DIESEL). (Refer to 21 - TRANSMISSION/
TRANSAXLE/AUTOMATIC - 48RE - STANDARD PROCEDURE)
No>>
Te s t C o m p l e t e .
Page 3744 of 5267
P1755-TRANSMISSION THROTTLE VALVE CONTROL CIRCUIT
For a complete wiring diagramRefer to Section 8W
