Page 1097 of 5267

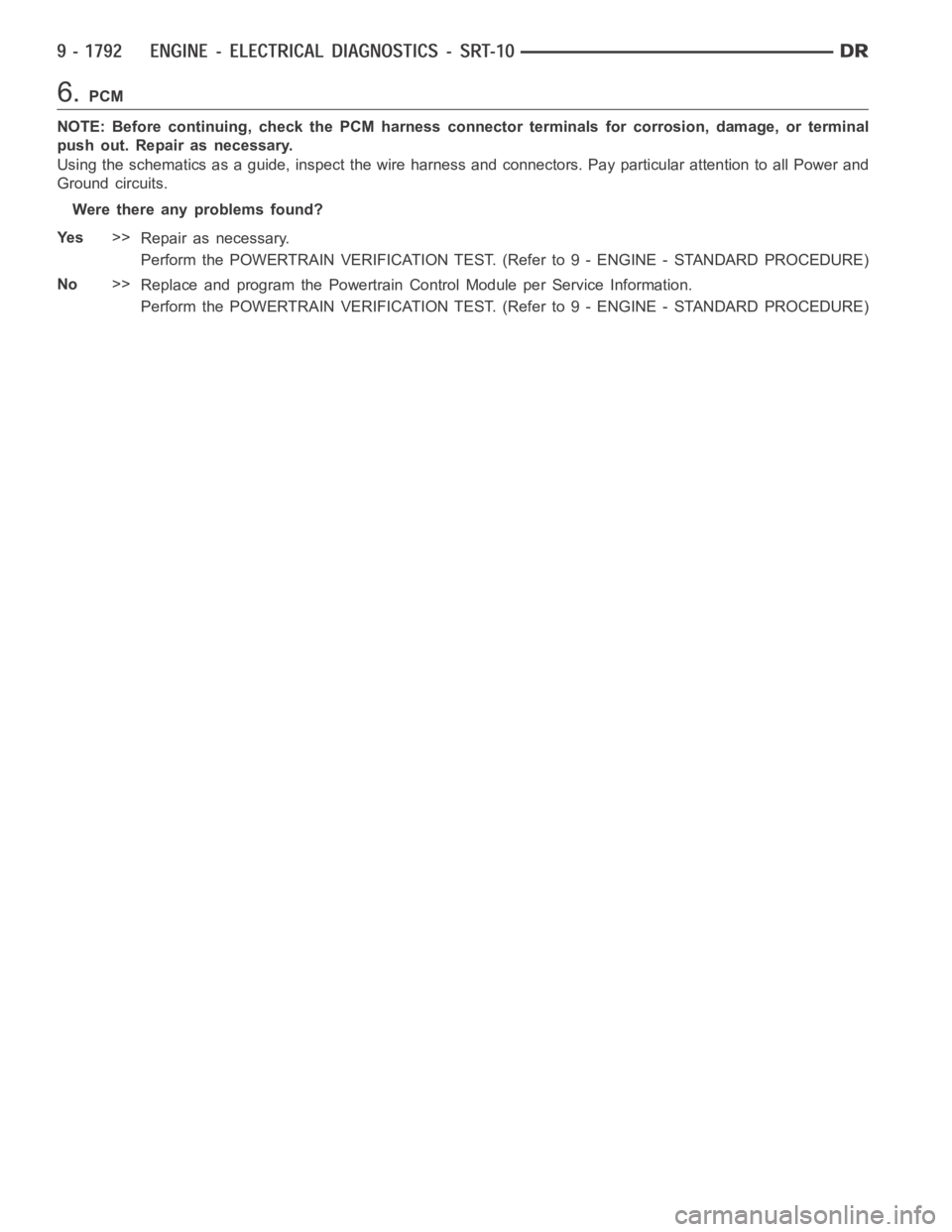

DODGE RAM SRT-10 2006 Service Repair Manual 6.PCM NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary. Using the schematics as a guide, inspect the wire harness and

Page 1098 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P0204-FUEL INJECTOR 4 CIRCUIT For a complete wiring diagramRefer to Section 8W.

Page 1099 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual When Monitored: With battery voltage greater than 10.4 volts, the auto shutdown relay energized, injector pulse width less than 10ms, and engine speed less than 3000 rpm. Set Condition: This trouble c

Page 1100 of 5267

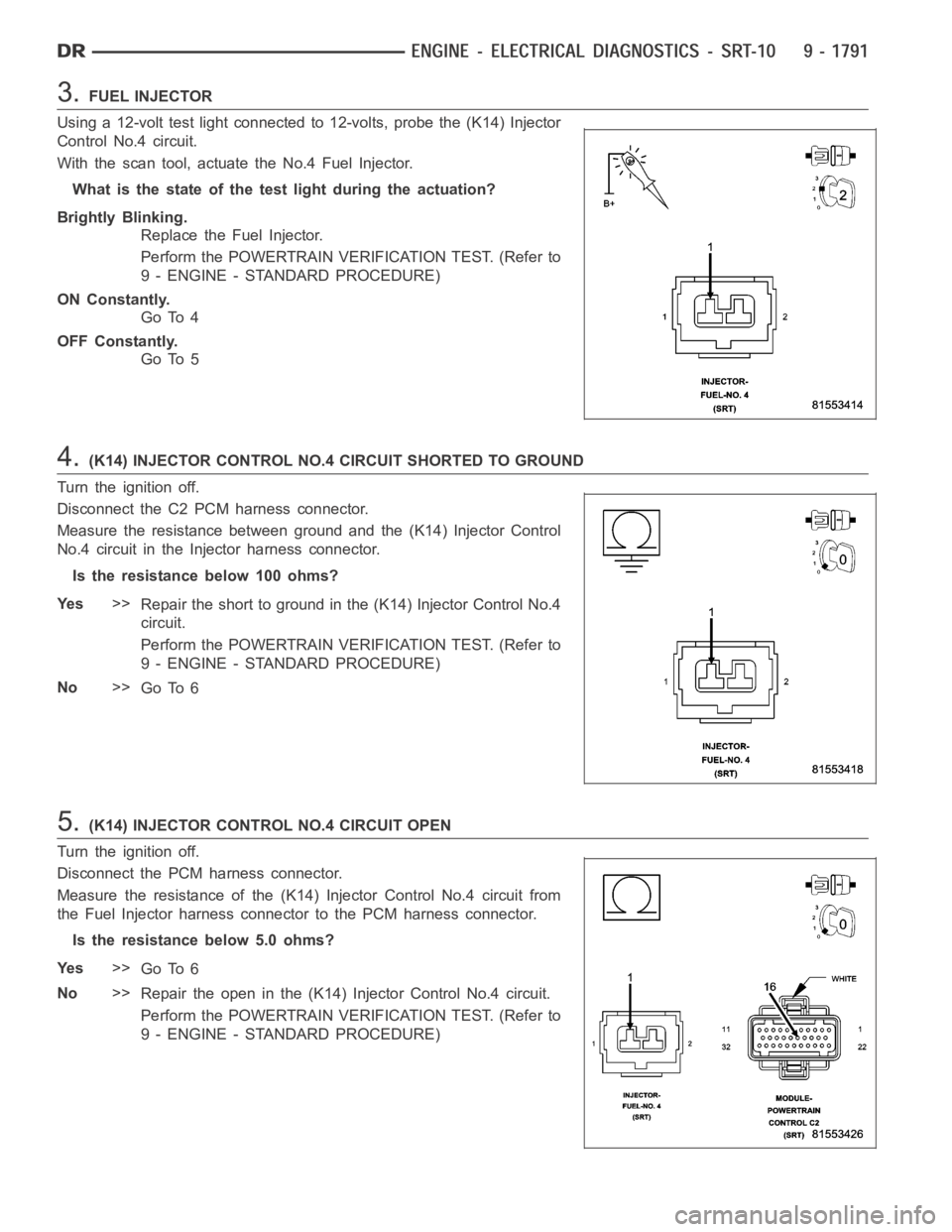

DODGE RAM SRT-10 2006 Service Repair Manual 3.FUEL INJECTOR Using a 12-volt test light connected to 12-volts, probe the (K14) Injector Control No.4 circuit. With the scan tool, actuate the No.4 Fuel Injector. What is the state of the test light

Page 1101 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 6.PCM NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary. Using the schematics as a guide, inspect the wire harness and

Page 1102 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P0205-FUEL INJECTOR 5 CIRCUIT For a complete wiring diagramRefer to Section 8W.

Page 1103 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual When Monitored: With battery voltage greater than 10.4 volts, the auto shutdown relay energized, injector pulse width less than 10ms, and engine speed less than 3000 rpm. Set Condition: This trouble c

Page 1104 of 5267

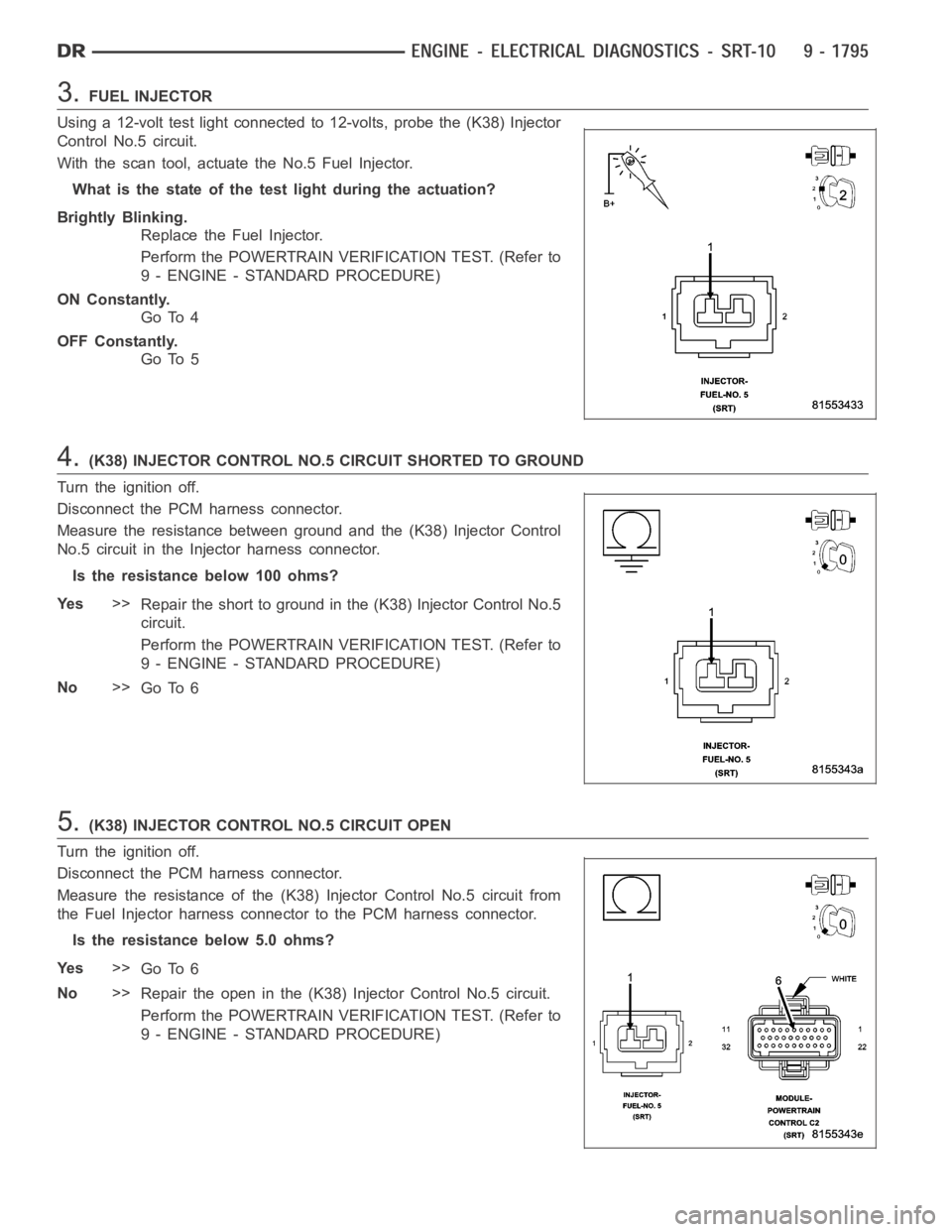

DODGE RAM SRT-10 2006 Service Repair Manual 3.FUEL INJECTOR Using a 12-volt test light connected to 12-volts, probe the (K38) Injector Control No.5 circuit. With the scan tool, actuate the No.5 Fuel Injector. What is the state of the test light
