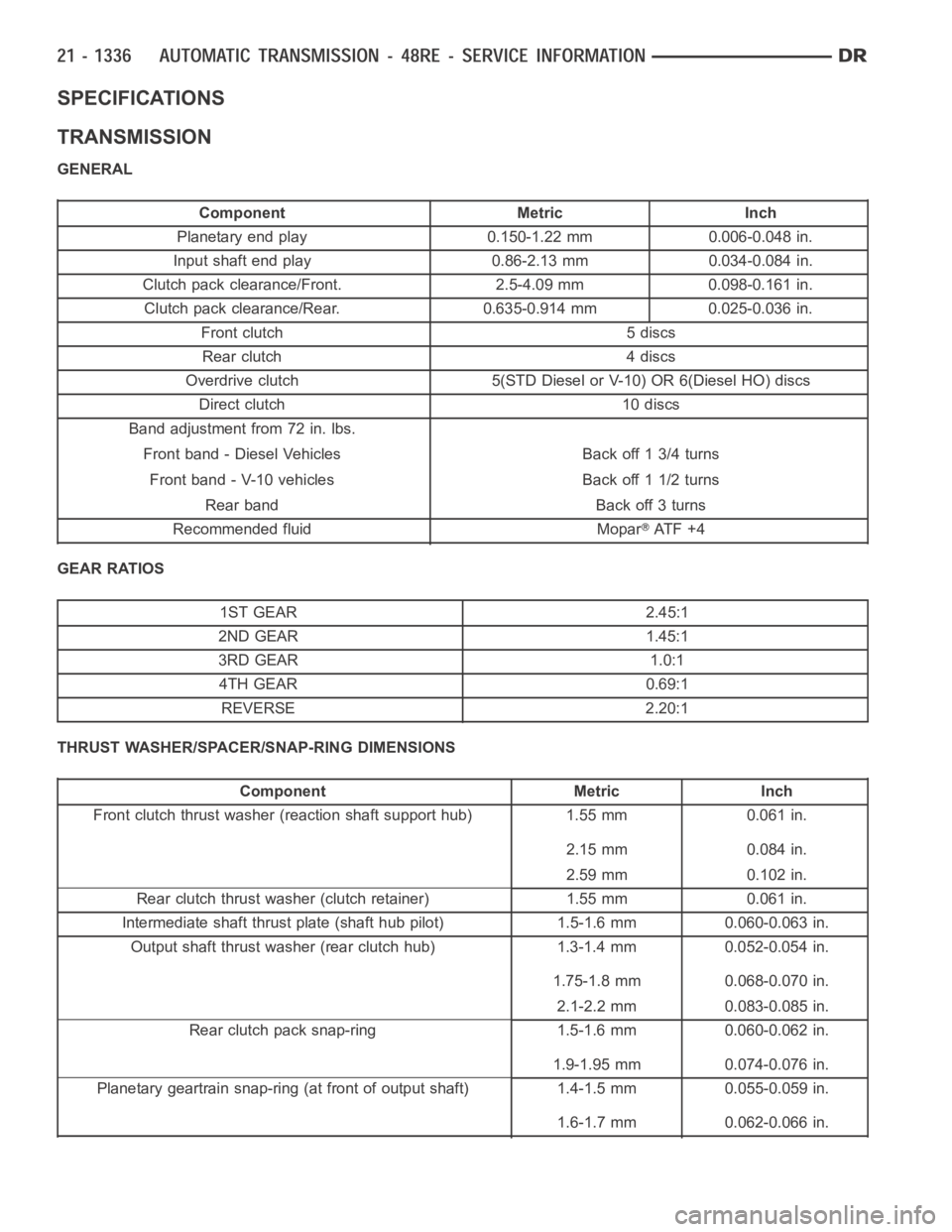

SPECIFICATIONS
TRANSMISSION
GENERAL
Component Metric Inch
Planetary end play 0.150-1.22 mm 0.006-0.048 in.
Input shaft end play 0.86-2.13 mm 0.034-0.084 in.
Clutch pack clearance/Front. 2.5-4.09 mm 0.098-0.161 in.
Clutch pack clearance/Rear. 0.635-0.914 mm 0.025-0.036 in.
Front clutch 5 discs
Rear clutch 4 discs
Overdrive clutch 5(STD Diesel or V-10) OR 6(Diesel HO) discs
Direct clutch 10 discs
Band adjustment from 72 in. lbs.
Front band - Diesel Vehicles Back off 1 3/4 turns
Front band - V-10 vehicles Back off 1 1/2 turns
Rear band Back off 3 turns
Recommended fluid Mopar
AT F + 4
GEAR RATIOS
1ST GEAR 2.45:1
2ND GEAR 1.45:1
3RD GEAR 1.0:1
4TH GEAR 0.69:1
REVERSE 2.20:1
THRUST WASHER/SPACER/SNAP-RING DIMENSIONS
Component Metric Inch
Front clutch thrust washer (reaction shaft support hub) 1.55 mm 0.061 in.
2.15 mm 0.084 in.
2.59 mm 0.102 in.
Rear clutch thrust washer (clutch retainer) 1.55 mm 0.061 in.
Intermediate shaft thrust plate (shaft hub pilot) 1.5-1.6 mm 0.060-0.063in.
Output shaft thrust washer (rear clutch hub) 1.3-1.4 mm 0.052-0.054 in.
1.75-1.8 mm 0.068-0.070 in.
2.1-2.2 mm 0.083-0.085 in.
Rear clutch pack snap-ring 1.5-1.6 mm 0.060-0.062 in.
1.9-1.95 mm 0.074-0.076 in.
Planetary geartrain snap-ring (at front of output shaft) 1.4-1.5 mm 0.055-0.059 in.
1.6-1.7 mm 0.062-0.066 in.
Page 3858 of 5267

Component Metric Inch
Overdrive piston thrust plate Thrust plate and
spacer are select fit.
Refer to size charts
and selection
procedures in
Overdrive Unit D&A
procedures Intermediateshaft spacer
PRESSURE TEST
Overdrive clutch Fourth gear only Pressure should be 524-565 kPa (76-82 psi) with
closed throttle and increase to 965 kPa (140 psi) at 1/2
to 3/4 throttle.
Line pressure (at
accumulator)Closed throttle 372-414 kPa (54-60 psi).
Front servo Third or Fourth gear only No more than 21 kPa (3 psi) lower than line pressure.
Rearservo 1range Nomorethan21kPa(3psi)lowerthanlinepressure.
R range 1103 kPa (160 psi) at idle, builds to 1862 kPa (270 psi)
at 1600 rpm.
Governor D range closed throttle Pressure should respond smoothly to changes in mph
andreturnto0-7kPa(0-1.5psi)whenstoppedwith
transmission in D, 1, 2. Pressure above 7 kPa (1.5 psi)
at stand still will prevent transmission from
downshifting.
TORQUE SPECIFICATIONS
DESCRIPTION Nꞏm Ft. Lbs. In. Lbs.
Fitting, cooler line at trans 18 13 -
Bolt, torque convertor 47 35 -
Bolt, clevis bracket to
crossmember47 35 -
Bolt, clevis bracket to rear
support68 50 -
Bolt, driveplate to
crankshaft75 55 -
Bolt, Transmission Throttle
Va l v e A c t u a t o r8.5 - 75
Plug, front band reaction 17 13 -
Locknut, front band adj. 34 25 -
Bolt, fluid pan 13.6 - 120
Screws, fluid filter 4 - 35
Bolt, oil pump 20 15 -
Bolt, overrunning clutch
cam17 13 -
Bolt, O/D to trans. 34 25 -
Bolt, O/D piston retainer 17 13 -
Plug, pressure test port 14 10 -
Bolt, reaction shaft support 20 15 -
Page 3859 of 5267
DESCRIPTION Nꞏm Ft. Lbs. In. Lbs.
Locknut, rear band 41 30 -
Bolt, valve body to case 12 - 100
Sensor, trans speed 27 20 -
Screw, solenoid wiring
connector4-35
Screw, solenoid to transfer
plate4-35
Bracket, transmission
range sensor mounting34 25 -
Screw, transmision range
sensor to mounting
bracket5-45
Page 3860 of 5267
SPECIAL TOOLS
RE TRANSMISSION
Pilot Studs C-3288-B
Oil Pressure Gauge - C-3292
Pressure Gauge - C-3293SP
Dial Indicator C-3339
Valve Spring Compressor C-3422-B
Adapter, Band Adjuster - C-3705
Puller/Slide Hammer, C-3752
Gauge, Throttle Setting - C-3763
Installer C-3860-A
Spring Compressor - C-3863-A
Page 3861 of 5267
Handle C-4171
Dial Caliper - C-4962
Spring Compressor and Alignment Shaft - 6227
Gauge Bar - 6311
Gauge - 6312
Retainer - 6583
Installer - 8114
Socket, TRS Mounting Bracket - 8581
Installer, Seal - 9037
Page 3862 of 5267
ACCUMULATOR
DESCRIPTION
The accumulator (1) is a hydraulic device that has the
sole purpose of cushioning the application of a band
or clutch. The accumulator consists of a dual-land pis-
ton (1) and a spring (2) located in a bore in the trans-
mission case.
Diesel version shown.
The 3-4 (1) accumulator is located in a housing (2)
attached to the side of the valve body.
Page 3863 of 5267

OPERATION
Both the accumulator and the 3-4 accumulator func-
tion the same. Line pressure (1) is directed to the
small end of the piston when the transmission is
placed into a DRIVE position, bottoming it against the
accumulator plate.
Diesel version shown.
When the 1-2 upshift occurs, line pressure (2) is
directed to the large end of the piston and then to the
kickdown servo. As the line pressure reaches the
accumulator, the combination of spring pressure and
line pressure forces the piston away from the accumu-
lator plate. This causes a balanced pressure situation,
which results in a cushioned band application. After
the kickdown servo has become immovable, line pres-
sure will finish pushing the accumulator up into its
bore (1). When the large end of the accumulator pis-
ton is seated in its bore, the band or clutch is fully
applied.
NOTE: The accumulator is shown in the inverted
position for illustrative purposes.
INSPECTION
Inspect the accumulator piston and seal rings. Replace the seal rings if worn or cut. Replace the piston if chipped
or cracked.
Check condition of the accumulator inner and outer springs. Replace the springs if the coils are cracked, distorted
or collapsed.
Page 3864 of 5267

BANDS
DESCRIPTION
KICKDOWN (FRONT) BAND
The kickdown, or “front”, band (1) holds the common
sun gear of the planetary gear sets. The front (kick-
down) band is made of steel, and faced on its inner
circumference with a friction-type lining. One end of
the band is anchored to the transmission case, and
the other is acted on with a pushing force by a servo
piston. The front band is a single-wrap design (the
band does not completely encompass/wrap the drum
that it holds).
LOW/REVERSE (REAR) BAND
The low/reverse band, or “rear”, band (4) is similar in
appearance and operation to the front band. The rear
band is slightly different in that it does not use a link
bar, but is acted directly on by the apply lever. This is
referred to as a double-wrap band design (the drum is
completely encompassed/wrapped by the band). The
double-wrap band provides a greater holding power in
comparison to the single-wrap design.
OPERATION
KICKDOWN (FRONT) BAND
The kickdown band holds the common sun gear of the planetary gear sets by applying and holding the front clutch
retainer, which is splined to the sungear driving shell, and in turn splineddirectlytothesungear.Theapplication
of the band by the servo is typically done by an apply lever and link bar.
LOW/REVERSE (REAR) BAND
The rear band holds the rear planet carrier stationary by being mounted around and applied to the low/reverse
drum.
