5. On Regular cab models, position the rear cab trim
panel (1) onto the rear cab back panel (2) and
install the utility hook (3) or the storage bin latch
(4) (depending on application).
6. On Regular cab models, install the lower B-pillar
trim panels (Refer to 23 - BODY/INTERIOR/B-PIL-
LAR LOWER TRIM - INSTALLATION).
7. If equipped, position the rear storage compartment
(2) onto the rear cab trim panel (4) and install the
threebolts(1).Tightentheboltsto6Nꞏm(55in.
lbs.).
Page 4546 of 5267
REAR DOOR SILL TRIM COVER
REMOVAL
1. Using a trim stick C-4755 or equivalent, disengage
the retaining tabs of the sill trim panel (1) from the
retainer clips in the rear door sill (2) and remove
the trim panel.
INSTALLATION
1. Position the sill trim panel (1) onto the rear door sill
(2).
2. Engage the retaining tabs that secure the sill trim
panel to the rear door sill.
Page 4547 of 5267

REAR VIEW MIRROR
REMOVAL
1. If equipped, disconnect the wire harness connector
(1) from the rear view mirror (3).
2. Loosen the set screw (2) that secures the rear view
mirror to the mounting bracket (4).
3. Slide the base of the rear view mirror upward and
remove the mirror from the mounting bracket.
4. If required, remove the mirror mounting bracket
from the windshield (5).
INSTALLATION
INSTALLATION
1. If required, install the mounting bracket (4) to the
windshield (5) (Refer to 23 - BODY/INTERIOR/
REAR VIEW MIRROR - REAR VIEW MIRROR
MOUNTING BRACKET - INSTALLATION).
2. Position the base of the rear view mirror (3) onto
the mounting bracket and slide the mirror down-
ward until it is fully engaged on the mounting
bracket.
3. Tighten the set screw (2) that secures the rear view
mirrortothemountingbracketto1Nꞏm(15in.
lbs.).
4. If equipped, connect the wire harness connector (1)
to the rear view mirror.
REAR VIEW MIRROR MOUNTING BRACKET
1.Markthepositionforthemirrormountingbracket
(4) on the outside of the windshield glass (5) with a
wax pencil.
2. Clean the bracket contact area on the glass. Use a
mild powdered cleanser on a cloth saturated with
isopropyl (rubbing) alcohol. Finally, clean the glass
with a paper towel dampened with alcohol.
3. Sand the surface on the mounting bracket with a
fine grit sandpaper. Wipe the mounting bracket sur-
face clean with a paper towel.
4. Apply accelerator to the surface on the mounting
bracket according to the following instructions:
a. Crush the vial to saturate the felt applicator.
b. Remove the paper sleeve.
c. Apply accelerator to the contact surface on the mounting bracket.
Page 4548 of 5267

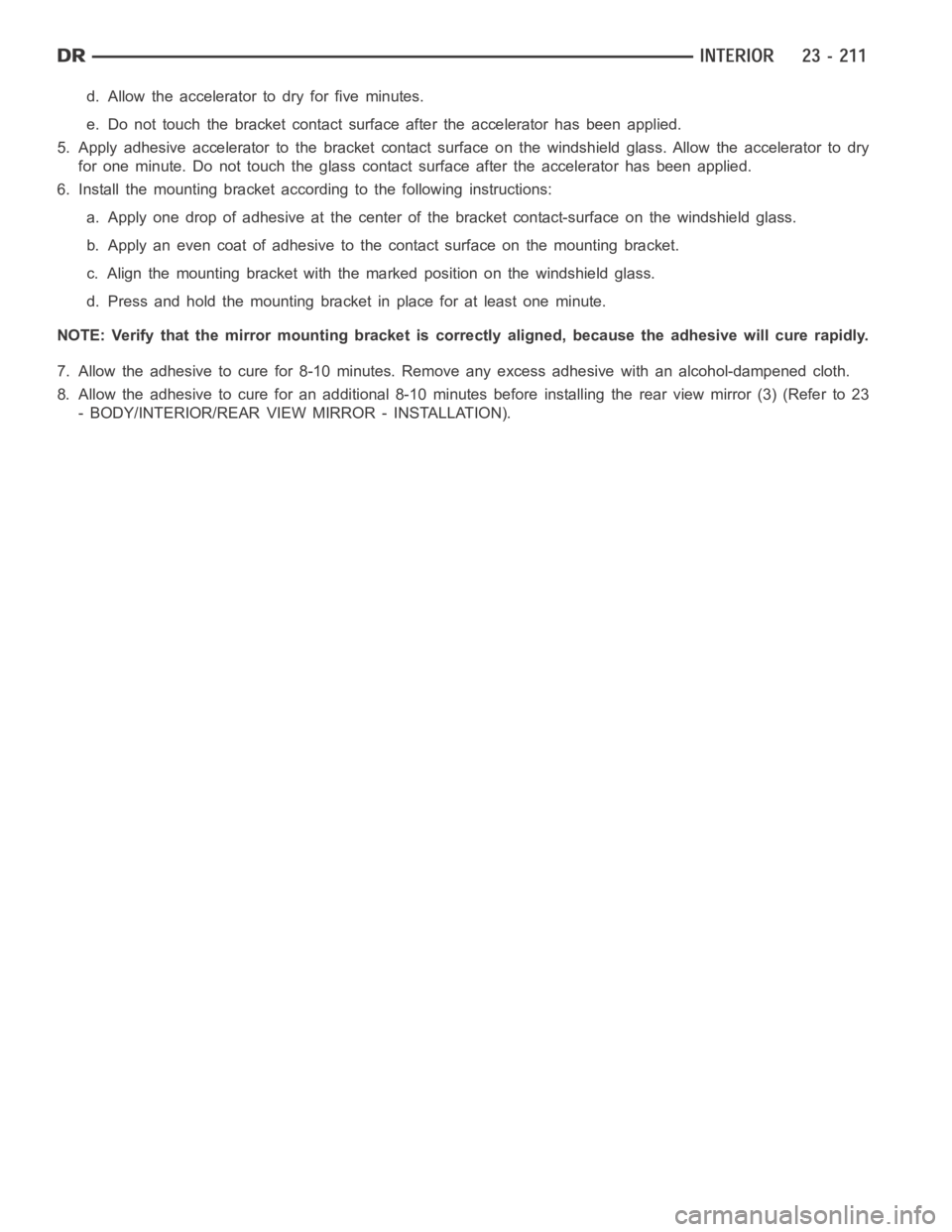

d. Allow the accelerator to dry for five minutes.
e. Do not touch the bracket contact surface after the accelerator has been applied.
5. Apply adhesive accelerator to the bracket contact surface on the windshield glass. Allow the accelerator to dry
for one minute. Do not touch the glass contact surface after the accelerator has been applied.
6. Install the mounting bracket according to the following instructions:
a. Apply one drop of adhesive at the center of the bracket contact-surface on the windshield glass.
b. Apply an even coat of adhesive to the contact surface on the mounting bracket.
c. Align the mounting bracket with the marked position on the windshield glass.
d. Press and hold the mounting bracket in place for at least one minute.
NOTE: Verify that the mirror mounting bracket is correctly aligned, because the adhesive will cure rapidly.
7. Allow the adhesive to cure for 8-10 minutes. Remove any excess adhesive with an alcohol-dampened cloth.
8. Allow the adhesive to cure for an additional 8-10 minutes before installing the rear view mirror (3) (Refer to 23
- BODY/INTERIOR/REAR VIEW MIRROR - INSTALLATION).
Page 4549 of 5267
SUN VISOR
REMOVAL
1. Remove the three screws (1) that secure each sun
visor (2) to the roof panel and remove the visor
from the headliner (3).
2. If equipped, disconnect the wire harness connector
for the illuminated vanity mirror (4).
INSTALLATION
1. If equipped, connect the wire harness connector for
the illuminated vanity mirror (4).
2. Position the sun visor (2) onto the headliner (3).
3. Install the three screws (1) that secure each sun
visor to the roof panel. Tighten the screws to 2.2
Nꞏm (20 in. lbs.).
Page 4550 of 5267
SUN VISOR SUPPORT
REMOVAL
1. Using a trim stick C-4755 or equivalent, disengage
the release clip (3) as shown and remove the sun
visor support (1) from the headliner (2)
INSTALLATION
1. Position the sun visor support (1) through the
headliner (2) and fully seat the base of the support
to the roof panel.
2. Engage the release clip (3).
Page 4551 of 5267
BODY VENT
REMOVAL
1. Remove the rear cab trim panel (Refer to 23 -
BODY/INTERIOR/REAR CAB BACK PANEL TRIM
- REMOVAL)
2. Disengage the retaining tabs (1) that secure the
body vent (3) to the cab back panel (2).
3. Remove the vent through the opening in the cab
back panel.
INSTALLATION
1. Position the body vent (3) into the opening of the
cab back panel (2).
2. Install the body vent into the cab back panel and
fully engage the retaining tabs (1).
3. Install the rear cab trim panel (Refer to 23 - BODY/
INTERIOR/REAR CAB BACK PANEL TRIM -
INSTALLATION).
Page 4552 of 5267
page page

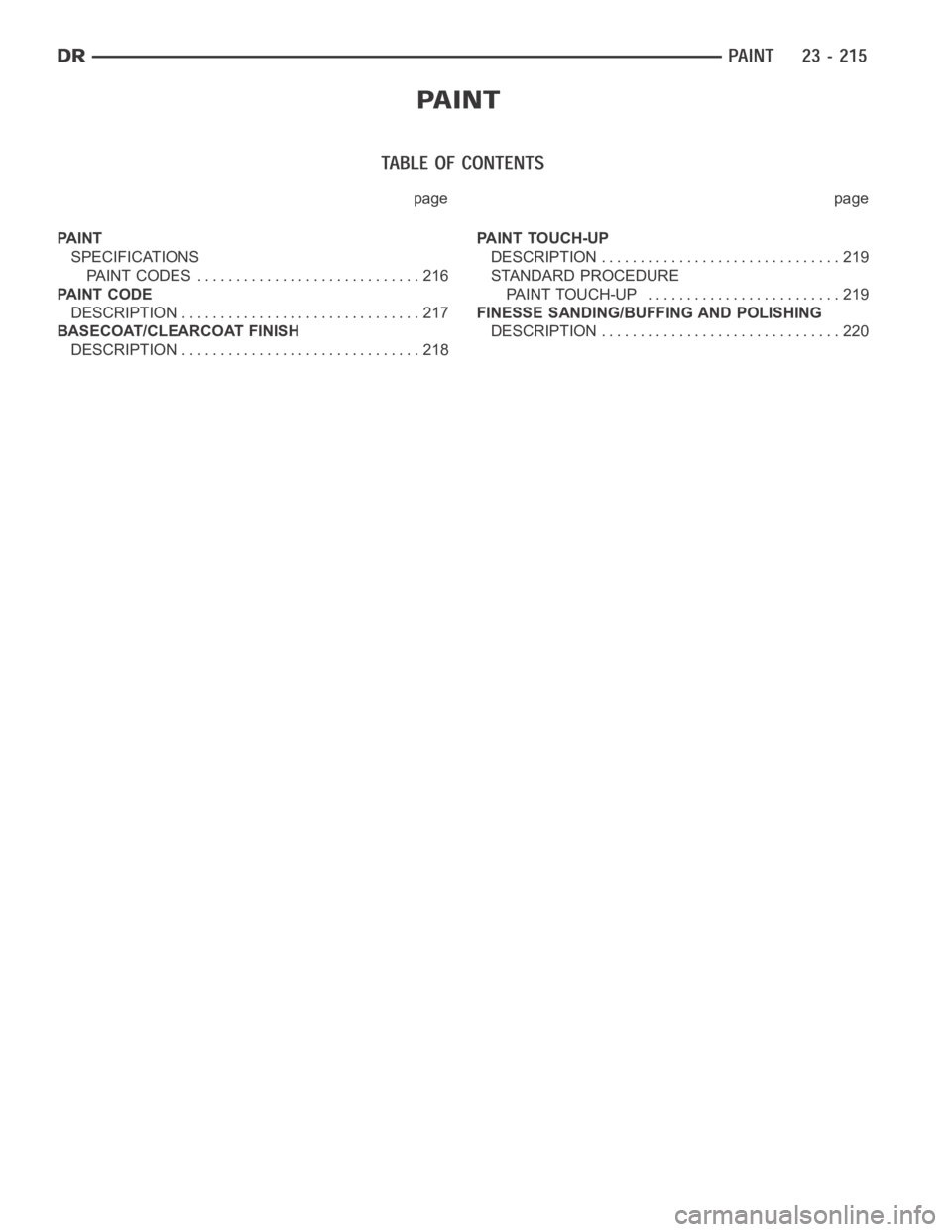

PA I N T
SPECIFICATIONS
PAINT CODES ............................. 216
PA I N T C O D E
DESCRIPTION ............................... 217
BASECOAT/CLEARCOAT FINISH
DESCRIPTION ............................... 218PAINT TOUCH-UP
DESCRIPTION ............................... 219
STANDARD PROCEDURE
PAINT TOUCH-UP ......................... 219
FINESSE SANDING/BUFFING AND POLISHING
DESCRIPTION ............................... 220
