DODGE RAM SRT-10 2006 Service Repair Manual 10.CHECK THE UD HYDRAULIC CLUTCH CIRCUIT
Remove Transmission Oil Pan and check for excessive debris.
Remove the Valve Body and air check the UD hydraulic clutch circuit (in the case) per the Service I

10.CHECK THE UD HYDRAULIC CLUTCH CIRCUIT
Remove Transmission Oil Pan and check for excessive debris.
Remove the Valve Body and air check the UD hydraulic clutch circuit (in the case) per the Service Information.
NOTE: The UD clutch passage contains a small bleed orifice, a small amount of air leakage is normal.
Were there any problems found, excessive debris and/or excessive air leakage in the UD hydraulic
clutch circuit?
Ye s>>
Repair as necessary. Check the UD clutch piston seals, reaction shaft support seal rings and dribbler
assemblies, and the flatness of the pump valve body and pump housing faces.Check main regulator
valve for sticking in the bore.
Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21- TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)
No>>
Go To 11
11 .CHECK UD ACCUMULATOR PISTON
Check the UD bleed orifice, accumulator piston, and accumulator piston seal in the main valve body.
Were there any problems found?
Ye s>>
Repair as necessary. Refer to the Service Information for proper repair procedures.
No>>
Replace Transmission Solenoid/TRS Assembly per the Service Information. (Refer to 21 - TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE/TRANS SOLENOID/TRS ASSY - REMOVAL)
Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21- TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)
12.CHECK FOR EXCESSIVE DEBRIS
Remove the Transmission Oil Pan and check for excessive debris.
Remove the valve body and check if the accumulator cover is intact.
Air check the OD hydraulic clutch circuit (in the case) per the Service Information.
NOTE: The OD clutch passage contains a small bleed orifice which connects totheReverseclutchhydrau-
lic circuit, a small amount of air leakage into the Reverse clutch passage is normal.
Were there any problems found, excessive debris, and/or excessive air leakage in the OD hydraulic
clutch circuit?
Ye s>>
Repair as necessary. Refer to the Service Information for proper repair procedures. Note: Check the
bleed orifice in the OD/Reverse clutch piston.
Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21- TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)
No>>
Go To 13
13.CHECK THE OD ACCUMULATOR
Check the OD Accumulator piston for cracks or a cut seal.
Check for a cut or missing #6 check ball.
Check the Solenoid Switch Valve and its plugs for sticking in its bore or excessive wear.
Were there any problems found?
Ye s>>
Repair as necessary. Refer to the Service Information for proper repair procedures.
Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21- TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)
No>>
Go To 14

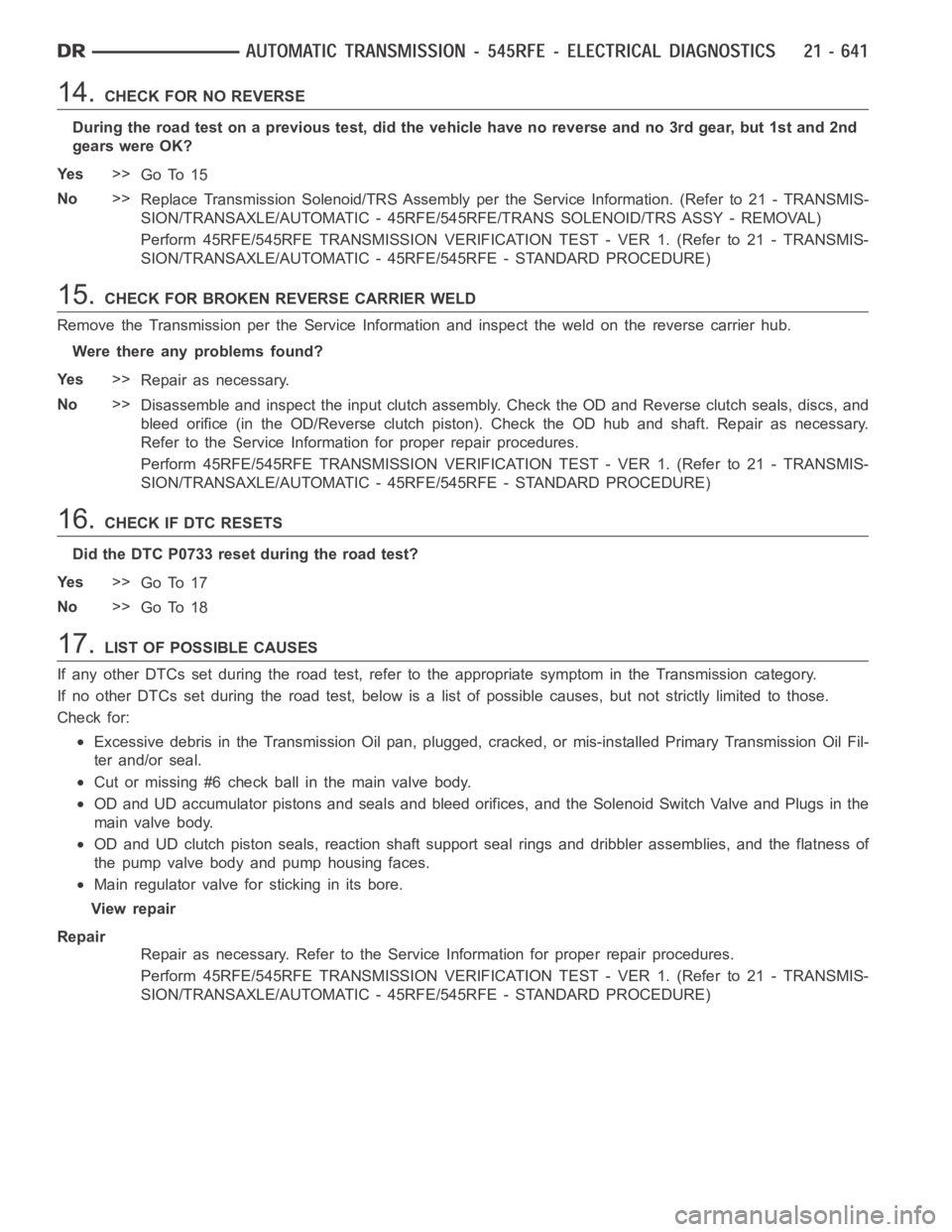

Page 3162 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 14.CHECK FOR NO REVERSE
During the road test on a previous test, did the vehicle have no reverse and no 3rd gear, but 1st and 2nd
gears were OK?
Ye s>>
Go To 15
No>>
Replace Transmission Solenoid/TRS

14.CHECK FOR NO REVERSE
During the road test on a previous test, did the vehicle have no reverse and no 3rd gear, but 1st and 2nd
gears were OK?
Ye s>>
Go To 15
No>>
Replace Transmission Solenoid/TRS Assembly per the Service Information. (Refer to 21 - TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE/TRANS SOLENOID/TRS ASSY - REMOVAL)
Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21- TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)
15.CHECK FOR BROKEN REVERSE CARRIER WELD
Remove the Transmission per the Service Information and inspect the weld on the reverse carrier hub.
Were there any problems found?
Ye s>>
Repair as necessary.
No>>
Disassemble and inspect the input clutch assembly. Check the OD and Reverse clutch seals, discs, and
bleed orifice (in the OD/Reverse clutch piston). Check the OD hub and shaft. Repair as necessary.
Refer to the Service Information for proper repair procedures.
Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21- TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)
16.CHECK IF DTC RESETS
Did the DTC P0733 reset during the road test?
Ye s>>
Go To 17
No>>
Go To 18
17.LIST OF POSSIBLE CAUSES
If any other DTCs set during the road test, refer to the appropriate symptomin the Transmission category.
If no other DTCs set during the road test, below is a list of possible causes,but not strictly limited to those.
Check for:
Excessive debris in the Transmission Oil pan, plugged, cracked, or mis-installed Primary Transmission Oil Fil-
ter and/or seal.
Cut or missing #6 check ball in the main valve body.
OD and UD accumulator pistons and seals and bleed orifices, and the SolenoidSwitchValveandPlugsinthe
main valve body.
OD and UD clutch piston seals, reaction shaft support seal rings and dribbler assemblies, and the flatness of
the pump valve body and pump housing faces.
Main regulator valve for sticking in its bore.
View repair
Repair
Repair as necessary. Refer to the Service Information for proper repair procedures.
Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21- TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)

Page 3163 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 18.CHECK FOR INTERMITTENT OPERATION
The conditions to set this DTC are not currently present.
With the scan tool, check the DTC EVENT DATA to help identify the conditionsin which the DTC was set.
If t

18.CHECK FOR INTERMITTENT OPERATION
The conditions to set this DTC are not currently present.
With the scan tool, check the DTC EVENT DATA to help identify the conditionsin which the DTC was set.
If the DTC Event Data shows fault P0733 was set in the Park, Reverse, or Neutral, replace the Powertrain
Control Module.
If the DTC Event Data shows fault P0733 set with input RPM = zero, check the input speed sensor and related
wiring.
If the DTC Event Data shows fault P0733 set with line pressure significantly below desired line pressure, check
for the cause of low line pressure (i.e., oil level, misinstalled or damaged primary filter or filter seal, sticking
main regulator valve in pump, etc.).
If the DTC Event Data shows fault P0733 set with the OD or UD pressure switch open (but line pressure
matches Desired Line Pressure), air check the OD and UD hydraulic clutch circuits for leakage per the Service
Information. If the OD and UD hydraulic clutch circuits are OK, replace theTransmission Solenoid/TRS assem-
bly.
Check the gearshift linkage adjustment.
Intermittent Gear Ratio DTCs can be set by problems in the Input and Output Speed Sensor circuits and/or Speed
Sensor Ground circuit.
Remove the Ignition Switch Feed fuse from the TIPM.
CAUTION: Removal of the Ignition Switch Feed fuse from the TIPM will prevent the vehicle from being
startedingear.
WARNING: The Ignition Switch Feed fuse must be removed from the TIPM. Failure to do so can result in
personal injury or death.
Install the Transmission Simulator, Miller tool #8333.
Wiggle wiring and connectors while checking for intermittent operation with the Transmission Simulator.
Gear ratio DTCs can also be set under extreme temperature conditions.
Verify if the problem is only experienced under extreme hot or cold conditions.
Were there any problems found.
Ye s>>
Repair as necessary.
Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21- TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)
No>>
Te s t C o m p l e t e .

Page 3164 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P0734-GEAR RATIO ERROR IN 4TH
For a complete wiring diagramRefer to Section 8W
When Monitored:
Continuously with the ignition on, engine running, with the transmissionin gear.
Set Condition:
If the ra

P0734-GEAR RATIO ERROR IN 4TH
For a complete wiring diagramRefer to Section 8W
When Monitored:
Continuously with the ignition on, engine running, with the transmissionin gear.
Set Condition:
If the ratio of the Input RPM to the Output RPM does not match the current gearratio. This DTC can take up
to five minutes of problem identification before illuminating the MIL.
Possible Causes
LOW FLUID LEVEL
INPUT SPEED SENSOR OR WIRING
VALVE BODY ACCUMULATOR COVER FAILED
CUT OD OR 4C ACCUMULATOR SEAL
CRACKED OD OR 4C ACCUMULATOR PISTON
BROKEN OR MISSING OD BLEED ORIFICE IN MAIN VALVE BODY
CUT 4C TOWER SEAL
TRANSMISSION SOLENOID/TRS ASSEMBLY
CUT OR MISSING #5 OR #6 CHECK BALL
WORN SOLENOID SWITCH VALVE OR PLUGS
CUT OD OR 4C PISTON SEAL
STUCK MAIN REGULATOR VALVE
BURNED OD OR 4C CLUTCH
BROKEN OR MISSING 4C BLEED ORIFICE IN 2C/4C RETAINER
BROKEN REACTION SHAFT SUPPORT SEAL RING
POOR MACHINING ON PUMP VALVE BODY FACE
LOOSE / MISSING DRIBBLER ORIFICE ASSEMBLY IN REACTION SHAFT SUPPORT
CRACKED / LOOSE / MISSING OD/REVERSE PISTON BLEED ORIFICE
BROKEN REVERSE CARRIER HUB WELD
BROKEN REVERSE SUN GEAR WELD TO REACTION CARRIER
Always perform the 45RFE/545RFE Pre-Diagnostic Troubleshooting Procedure before proceeding. (Refer to
21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)
Theory of Operation
The transmission system uses two speed sensors, one to measure input RPM and one to measure output RPM.
These inputs are essential for proper transmission operation. Therefore, the integrity of this data is verified through
the following checks:
1) Once in a particular gear, if the gear ratio varies from the correct gear ratio, the corresponding in-gear trouble
code is set (DTCs P0731–36).
2) An excessive change in input or output speeds indicating signal intermittent may result in the DTCs P0715 and/or
P0720 being set.
3) If the common speed sensor ground circuit is lost, both sensor inputs will read the pulses from the input speed
sensor when at a stop in neutral. Since the input speed sensor reads 60 teethfrom the input clutch hub and the
output speed sensor reads 30 teeth from the park gear, the result is an apparent speed ratio of 1:2 and may cause
the DTC P1794 to set.

Page 3165 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual Diagnostic Test
1.CHECKFORRELATEDDTCS
With the scan tool, check for other transmission DTCs
If any of these DTCs are present, perform their respective tests first.
Are there any Transmission; solenoid

Page 3166 of 5267

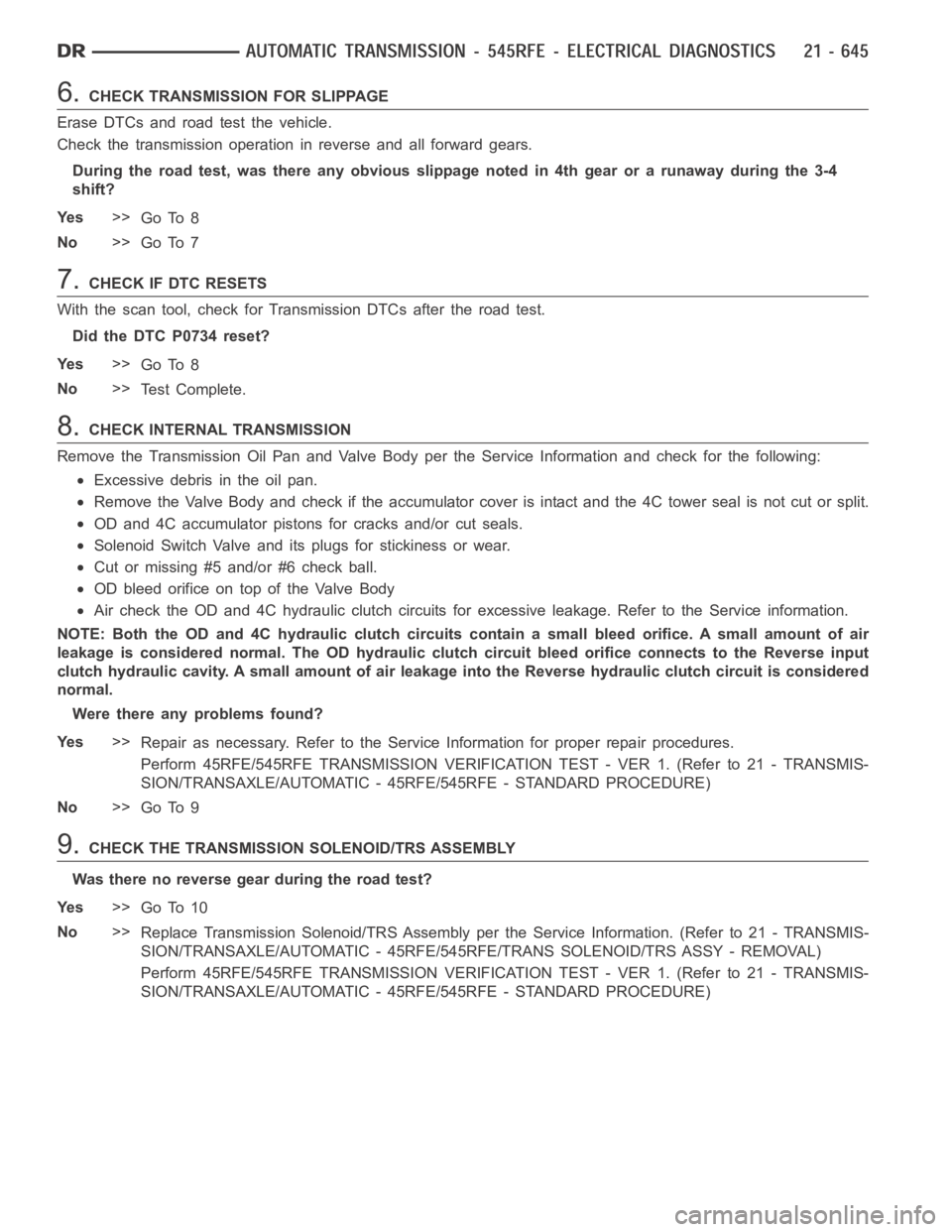

DODGE RAM SRT-10 2006 Service Repair Manual 6.CHECK TRANSMISSION FOR SLIPPAGE
Erase DTCs and road test the vehicle.
Check the transmission operation in reverse and all forward gears.
During the road test, was there any obvious slippage noted in

6.CHECK TRANSMISSION FOR SLIPPAGE
Erase DTCs and road test the vehicle.
Check the transmission operation in reverse and all forward gears.
During the road test, was there any obvious slippage noted in 4th gear or a runaway during the 3-4
shift?
Ye s>>
Go To 8
No>>
Go To 7
7.CHECK IF DTC RESETS
With the scan tool, check for Transmission DTCs after the road test.
Did the DTC P0734 reset?
Ye s>>
Go To 8
No>>
Te s t C o m p l e t e .
8.CHECK INTERNAL TRANSMISSION
Remove the Transmission Oil Pan and Valve Body per the Service Informationand check for the following:
Excessive debris in the oil pan.
Remove the Valve Body and check if the accumulator cover is intact and the 4Ctower seal is not cut or split.
OD and 4C accumulator pistons for cracks and/or cut seals.
Solenoid Switch Valve and its plugs for stickiness or wear.
Cut or missing #5 and/or #6 check ball.
OD bleed orifice on top of the Valve Body
Air check the OD and 4C hydraulic clutch circuits for excessive leakage. Refer to the Service information.
NOTE: Both the OD and 4C hydraulic clutch circuits contain a small bleed orifice. A small amount of air
leakage is considered normal. The OD hydraulic clutch circuit bleed orifice connects to the Reverse input
clutch hydraulic cavity. A small amount of air leakage into the Reverse hydraulic clutch circuit is considered
normal.
Were there any problems found?
Ye s>>
Repair as necessary. Refer to the Service Information for proper repair procedures.
Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21- TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)
No>>
Go To 9
9.CHECK THE TRANSMISSION SOLENOID/TRS ASSEMBLY
Was there no reverse gear during the road test?
Ye s>>
Go To 10
No>>
Replace Transmission Solenoid/TRS Assembly per the Service Information. (Refer to 21 - TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE/TRANS SOLENOID/TRS ASSY - REMOVAL)
Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21- TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)

Page 3167 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 10.CHECK ROAD TEST RESULTS
During the road test, was there no 2nd gear and no 4th gear, but 3rd gear (limp-in) was OK?
Ye s>>
Go To 11
No>>
Go To 12
11 .CHECK FOR BROKEN REVERSE SUN GEAR WELD
Working

10.CHECK ROAD TEST RESULTS
During the road test, was there no 2nd gear and no 4th gear, but 3rd gear (limp-in) was OK?
Ye s>>
Go To 11
No>>
Go To 12
11 .CHECK FOR BROKEN REVERSE SUN GEAR WELD
Working through the windows in the bottom of the case, check for a broken Reverse Sun gear weld to the reaction
carrier as follows:
1) Hold the Transmission Output Shaft by holding the Transmission Manual Lever in the park position.
2) Rotate the Input Annulus gear and drive shell (the drum that encloses thetwo rearmost carriers).
3) Check to see if the reaction carrier (the front most carrier, whose outershell is splined to the 2C clutch) is rotat-
ing faster than the drive shell is being turned.
Is the reaction carrier turning faster than the drive shell?
Ye s>>
Replace Transmission Solenoid/TRS Assembly per the Service Information. (Refer to 21 - TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE/TRANS SOLENOID/TRS ASSY - REMOVAL)
Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21- TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)
No>>
Replace the reaction carrier per the Service Information.
Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21- TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)
12.CHECK FOR NO REVERSE
Remove the Transmission per the Service Information and inspect the weld on the reverse carrier hub.
Were there any problems found?
Ye s>>
Repair as necessary. Refer to the Service Information for proper repair procedures.
Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21- TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)
No>>
Disassemble and inspect the input clutch assembly. Check the OD and Reverse clutch seals, discs, and
bleed orifice (in the OD/Reverse clutch piston). Check the OD hub and shaft. Repair as necessary.
Refer to the Service Information for proper repair procedures.
Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21- TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)

Page 3168 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P0735-GEAR RATIO ERROR IN 5TH
For a complete wiring diagramRefer to Section 8W
When Monitored:
Continuously with the ignition on, engine running, with the transmissionin gear.
Set Condition:
If the ra

P0735-GEAR RATIO ERROR IN 5TH
For a complete wiring diagramRefer to Section 8W
When Monitored:
Continuously with the ignition on, engine running, with the transmissionin gear.
Set Condition:
If the ratio of the Input RPM to the Output RPM does not match the current gearratio. This DTC can take up
to five minutes of problem identification before illuminating the MIL.
Possible Causes
LOW FLUID LEVEL
INPUT SPEED SENSOR OR WIRING
VALVE BODY ACCUMULATOR COVER FAILED
CUT OD OR 2C ACCUMULATOR SEAL
CRACKED OD OR 2C ACCUMULATOR PISTON
BROKEN OR MISSING OD BLEED ORIFICE IN MAIN VALVE BODY
CUT 2C TOWER SEAL
TRANSMISSION SOLENOID/TRS ASSEMBLY
CUT OR MISSING #5, #6, OR #7 CHECK BALL
WORN SOLENOID SWITCH VALVE OR PLUGS
CUT OD OR 2C PISTON SEAL
STUCK MAIN REGULATOR VALVE
BURNED OD OR 2C CLUTCH
BROKEN OR MISSING 2C BLEED ORIFICE IN 2C/4C RETAINER
BROKEN REACTION SHAFT SUPPORT SEAL RING
POOR MACHINING ON PUMP VALVE BODY FACE
LOOSE / MISSING DRIBBLER ORIFICE ASSEMBLY IN REACTION SHAFT SUPPORT
CRACKED / LOOSE / MISSING OD/REVERSE PISTON BLEED ORIFICE
BROKEN REVERSE CARRIER HUB WELD
BROKEN REVERSE SUN GEAR WELD TO REACTION CARRIER
Always perform the 45RFE/545RFE Pre-Diagnostic Troubleshooting Procedure before proceeding. (Refer to
21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)
Theory of Operation
The transmission system uses two speed sensors, one to measure input RPM and one to measure output RPM.
These inputs are essential for proper transmission operation. Therefore, the integrity of this data is verified through
the following checks:
1) Once in a particular gear, if the gear ratio varies from the correct gear ratio, the corresponding in-gear trouble
code is set (DTCs P0731-36).
2) An excessive change in input or output speeds indicating signal intermittent may result in the DTCs P0715 and/or
P0720 being set.
3) If the common speed sensor ground circuit is lost, both sensor inputs will read the pulses from the input speed
sensor when at a stop in neutral. Since the input speed sensor reads 60 teethfrom the input clutch hub and the
output speed sensor reads 30 teeth from the park gear, the result is an apparent speed ratio of 1:2 and may cause
the DTC P1794 to set.

Load next 8 pages

Page: < prev 1-10 ... 3129-3136 3137-3144 3145-3152 3153-3160 3161-3168 3169-3176 3177-3184 3185-3192 3193-3200 ... 5272 next >

length power steering headlamp alternator belt mirror controls fuse
