Page 2969 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 63. On 4X2 transmissions, perform the following, if necessary: a. Install the extension shaft bearing (2) onto the extension shaft. b. Install the extension shaft bearing retaining ring (3) onto the e

Page 2970 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual d. Install the extension shaft bearing snap ring (3) into the extension housing. e. Verify that the extension shaft snap ring (3) is fully engaged in the snap ring groove. 64. Inspect the lube tube gr

Page 2971 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 65. Install the 4X4 stub shaft onto the transmission output shaft. 66. Place a bead of Mopar ATF RTV on the rear sur- face of the transmission case for the adapter/ex- tension housing. 67. Install the

Page 2972 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 69. Install the bolts that hold the adapter or extension housing onto the transmission case. Be sure to install any stud bolts to their original locations. Tighten the bolts to 54 Nꞏm (40 ft.lbs.).

Page 2973 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 12. Carefully work transmission forward and over engine block dowels until converter hub is seated in crankshaft. Verify that no wires, or the transmission vent hose, have become trapped between the e

Page 2974 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 22. Connect wires to the solenoid/pressure switch assembly (1). CAUTION: It is essential that correct length bolts be used to attach the converter to the driveplate. Bolts that are too long will damag

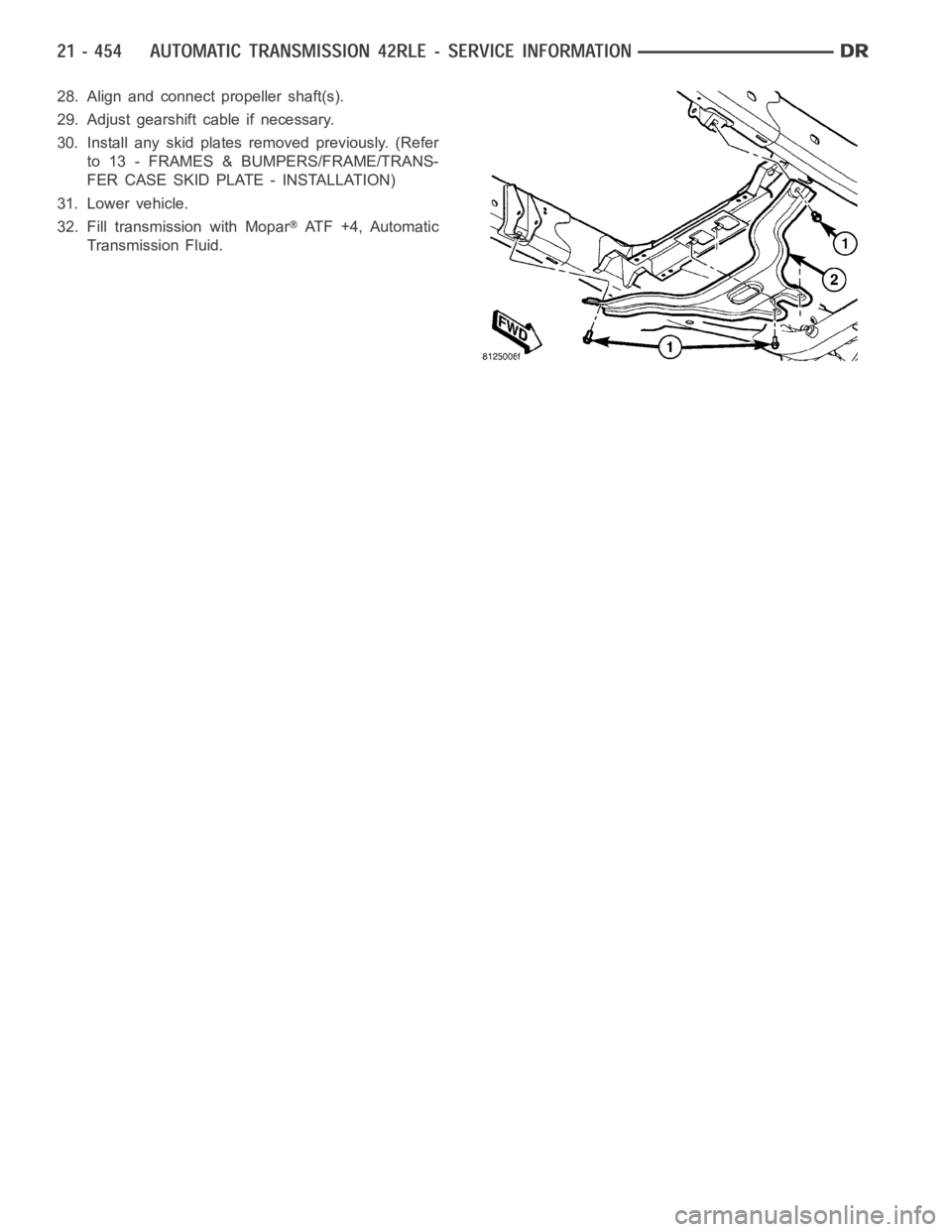

Page 2975 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 28. Align and connect propeller shaft(s). 29. Adjust gearshift cable if necessary. 30. Install any skid plates removed previously. (Refer to 13 - FRAMES & BUMPERS/FRAME/TRANS- FER CASE SKID PLATE - IN

Page 2976 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual SCHEMATICS AND DIAGRAMS 42RLE - WITHOUT VARIABLE LINE PRESSURE
