Page 4457 of 5267
SPOILER - SRT-10
REMOVAL
WITHOUT CARGO BOX COVER
1. Remove the two bolts (2) that secure the spoiler to
the rear of the cargo box.
2. Slide the spoiler rearward to disengage the two
studs (1) and remove the spoiler.
3. If required, remove the two nuts that secure the
two studs to the rear of the cargo box and remove
the studs.
WITH CARGO BOX COVER
1. Remove the five nuts (1) that secure the spoiler (2)
to the cargo box cover (3).
2. Remove the spoiler from the cargo box cover
.
Page 4458 of 5267
INSTALLATION
WITHOUT CARGO BOX COVER
1. If removed, position the two studs (1) onto the rear
of the cargo box and install the retaining nuts.
Tightenthenutsto9Nꞏm(80in.lbs.).
2. Position the spoiler over the two studs and slide
the spoiler forward until the studs fully engage.
3. Install the two bolts (2) that secure the spoiler to
the rear of the cargo box. Tighten the bolts to 6
Nꞏm (50 in. lbs.).
WITH CARGO BOX COVER
1. Position the spoiler (2) onto the rear of the cargo
box cover (3).
2. Install the five nuts (1) that secure the spoiler to
the cargo box cover. Tighten the nuts to 9 Nꞏm (80
in. lbs.).
Page 4459 of 5267
FLARE MOLDING-FRONT WHEEL OPENING
REMOVAL
1. Remove the push-pin (1) and six screws (2).
2. Remove the flare (1).
Page 4460 of 5267
INSTALLATION
1. Position the flare (1) to fender aligning attachment
holes with holes in fender flange.
2. Install the push-pin (1) first for correct flare posi-
tioning. Install the six screws (2) in sequence start-
ing from the center and proceeding outward. For a
correct fit, hold the flare tight against the fender as
the screws are tightened.
Page 4461 of 5267
FLARE MOLDING-REAR WHEEL OPENING
REMOVAL
1. Remove the push-pin (1) and six screws (2).
2. Remove the flare (1).
Page 4462 of 5267
INSTALLATION
1. Position the flare (1) to fender aligning attachment
holes with holes in fender flange.
2. Install the push-pin (1) first for correct flare posi-
tioning. Install the six screws (2) in sequence start-
ing from the center and proceeding outward. For a
correct fit, hold the flare tight against the fender as
the screws are tightened.
Page 4463 of 5267

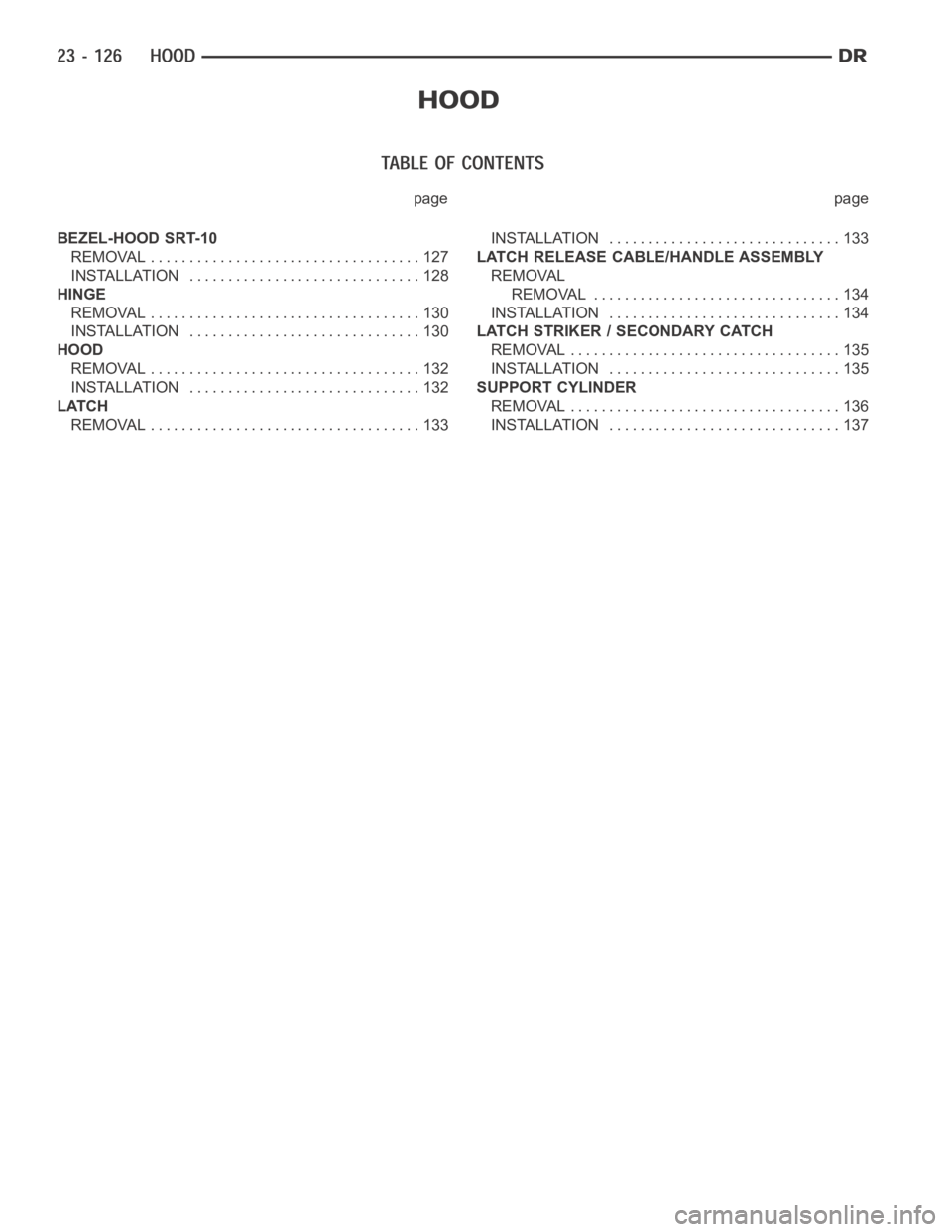

page page
BEZEL-HOOD SRT-10
REMOVAL ................................... 127
INSTALLATION .............................. 128
HINGE
REMOVAL ................................... 130
INSTALLATION .............................. 130
HOOD
REMOVAL ................................... 132
INSTALLATION .............................. 132
LATCH
REMOVAL ................................... 133INSTALLATION .............................. 133
LATCH RELEASE CABLE/HANDLE ASSEMBLY
REMOVAL
REMOVAL ................................ 134
INSTALLATION .............................. 134
LATCH STRIKER / SECONDARY CATCH
REMOVAL ................................... 135
INSTALLATION .............................. 135
SUPPORT CYLINDER
REMOVAL ................................... 136
INSTALLATION .............................. 137
Page 4464 of 5267
BEZEL-HOOD SRT-10
REMOVAL
NOTE: If the hood scoop bezel is removed for any
reason, it should be replaced.
1. Remove the four nuts that secure the hood scoop
bezel to the hood.
2. Using a trim stick C-4755 or equivalent, disengage
the upper retaining clips (2) for the hood scoop
bezel (3) from the hood scoop (1).
