Page 1401 of 5267
7.(K1) MAP SENSOR SIGNAL CIRCUIT SHORTED TO (K900) SENSOR GROUND CIRCUIT
Measure the resistance between the (K1) MAP Sensor Signal circuit
and the (K900) Sensor ground circuit at the MAP Sensor harness con-
nector.
Istheresistancebelow100ohms?
Ye s>>
Repair the short between the (K900) Sensor ground and the
(K1) MAP Sensor Signal circuit.
Perform POWERTRAIN VERIFICATION TEST VER - 5.
No>>
Go To 10
8.(F855) 5-VOLT SUPPLY CIRCUIT OPEN
Turn the ignition off.
Disconnect the PCM harness connectors.
Measure the resistance of the (F855) 5-volt Supply circuit from the MAP
Sensor harness connector to the PCM harness connector.
Is the resistance below 5.0 ohms?
Ye s>>
Go To 9
No>>
Repair the open in the (F855) 5-volt Supply circuit.
Perform POWERTRAIN VERIFICATION TEST. (Refer to 9 -
ENGINE - STANDARD PROCEDURE)
Page 1402 of 5267
9.(F855) 5-VOLT SUPPLY CIRCUIT SHORTED TO GROUND
Measure the resistance between ground and the (F855) 5-volt Supply
circuit at the MAP Sensor harness connector.
Istheresistancebelow100ohms?
Ye s>>
Repair the short to ground in the (F855) 5-volt Supply cir-
cuit.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)
No>>
Go To 10
10.PCM
NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal
push out. Repair as necessary.
Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and
Ground circuits.
If there are no possible causes remaining, view repair.
Repair
Replace and program the Powertrain Control Module per Service Information.
Perform POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
Page 1403 of 5267
P1388-AUTO SHUTDOWN RELAY CONTROL CIRCUIT
For a complete wiring diagramRefer to Section 8W.
Page 1404 of 5267

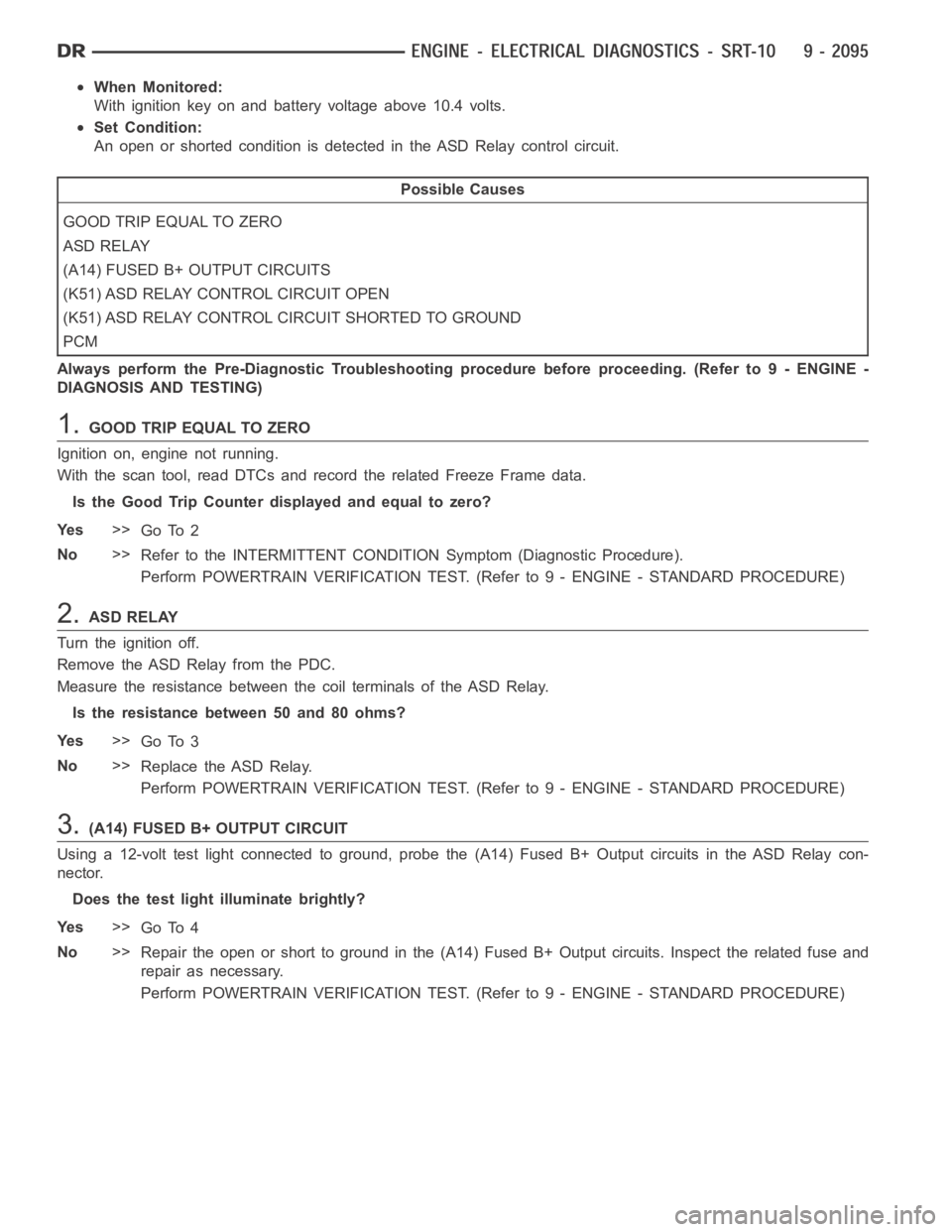

When Monitored:
With ignition key on and battery voltage above 10.4 volts.
Set Condition:
An open or shorted condition is detected in the ASD Relay control circuit.
Possible Causes
GOOD TRIP EQUAL TO ZERO
ASD RELAY
(A14) FUSED B+ OUTPUT CIRCUITS
(K51) ASD RELAY CONTROL CIRCUIT OPEN
(K51) ASD RELAY CONTROL CIRCUIT SHORTED TO GROUND
PCM
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
1.GOOD TRIP EQUAL TO ZERO
Ignition on, engine not running.
With the scan tool, read DTCs and record the related Freeze Frame data.
Is the Good Trip Counter displayed and equal to zero?
Ye s>>
Go To 2
No>>
Refer to the INTERMITTENT CONDITIONSymptom (Diagnostic Procedure).
Perform POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
2.ASD RELAY
Turn the ignition off.
Remove the ASD Relay from the PDC.
Measure the resistance between the coil terminals of the ASD Relay.
Is the resistance between 50 and 80 ohms?
Ye s>>
Go To 3
No>>
Replace the ASD Relay.
Perform POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
3.(A14) FUSED B+ OUTPUT CIRCUIT
Using a 12-volt test light connected to ground, probe the (A14) Fused B+ Output circuits in the ASD Relay con-
nector.
Does the test light illuminate brightly?
Ye s>>
Go To 4
No>>
Repair the open or short to ground in the (A14) Fused B+ Output circuits. Inspect the related fuse and
repair as necessary.
Perform POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
Page 1405 of 5267

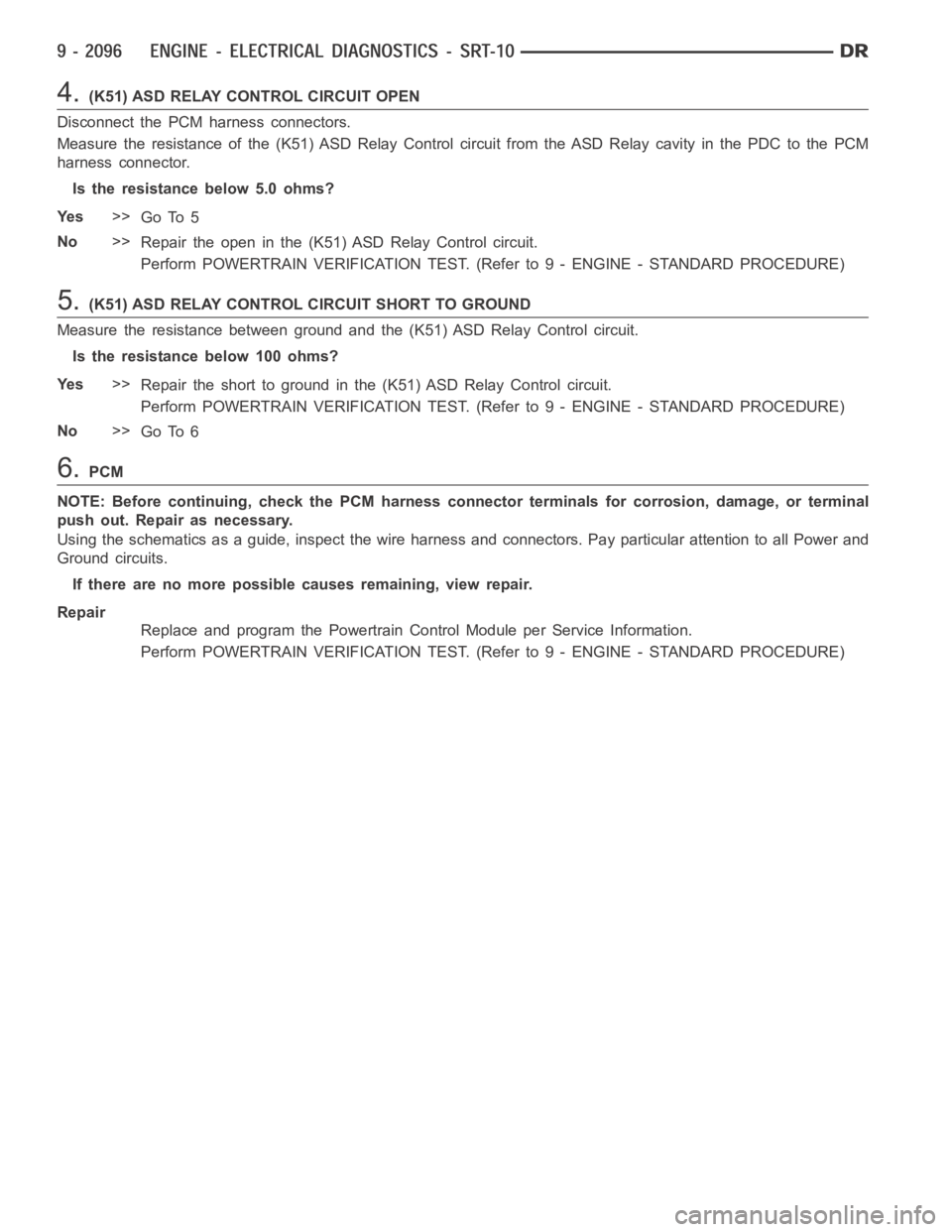

4.(K51) ASD RELAY CONTROL CIRCUIT OPEN
Disconnect the PCM harness connectors.
Measure the resistance of the (K51) ASD Relay Control circuit from the ASD Relay cavity in the PDC to the PCM
harness connector.
Is the resistance below 5.0 ohms?
Ye s>>
Go To 5
No>>
Repair the open in the (K51) ASD Relay Control circuit.
Perform POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
5.(K51) ASD RELAY CONTROL CIRCUIT SHORT TO GROUND
Measure the resistance between ground and the (K51) ASD Relay Control circuit.
Istheresistancebelow100ohms?
Ye s>>
Repair the short to ground in the (K51) ASD Relay Control circuit.
Perform POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
No>>
Go To 6
6.PCM
NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal
push out. Repair as necessary.
Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and
Ground circuits.
If there are no more possible causes remaining, view repair.
Repair
Replace and program the Powertrain Control Module per Service Information.
Perform POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
Page 1406 of 5267
P1389-NO ASD RELAY OUTPUT VOLTAGE AT PCM
For a complete wiring diagramRefer to Section 8W.
Page 1407 of 5267

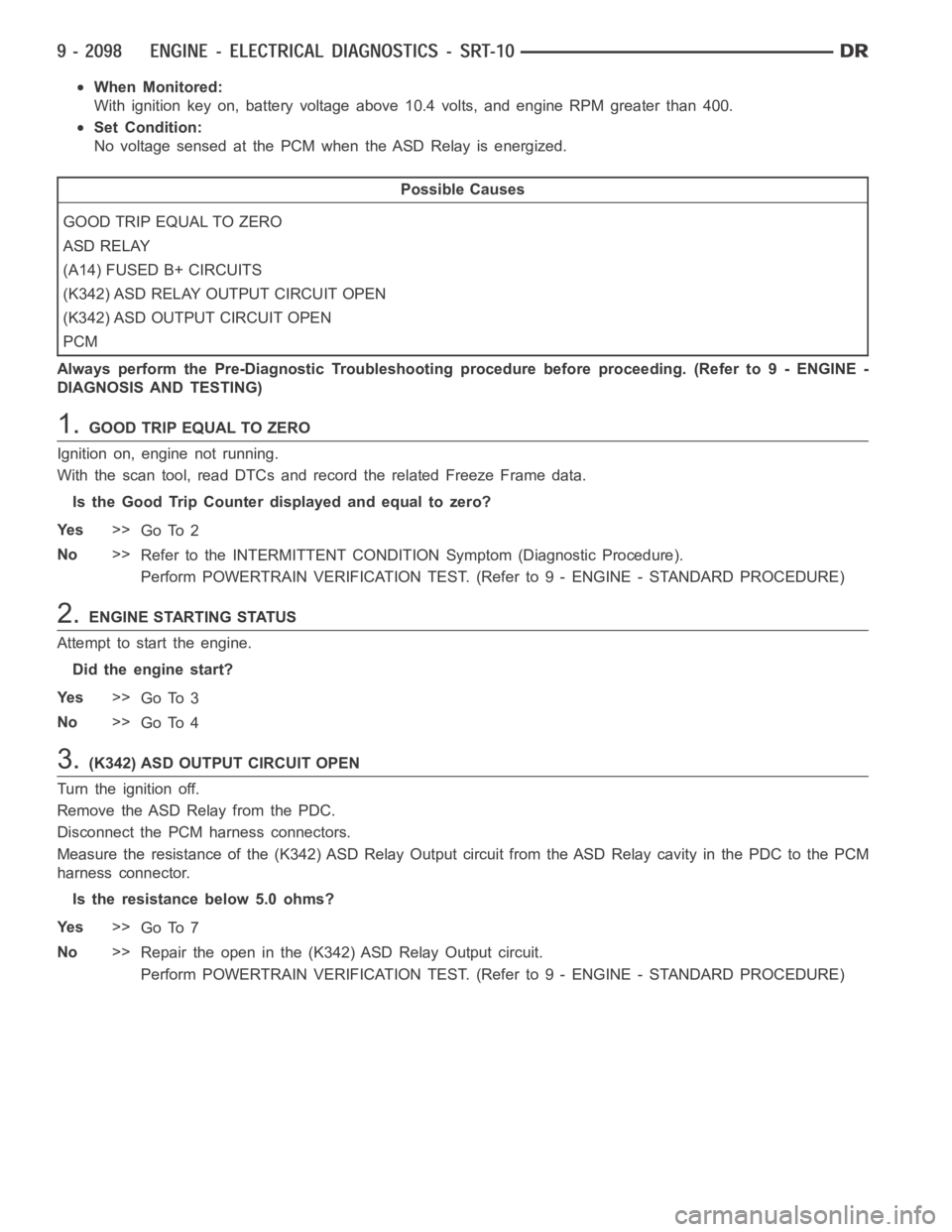

When Monitored:
With ignition key on, battery voltage above 10.4 volts, and engine RPM greater than 400.
Set Condition:
No voltage sensed at the PCM when the ASD Relay is energized.
Possible Causes
GOOD TRIP EQUAL TO ZERO
ASD RELAY
(A14) FUSED B+ CIRCUITS
(K342) ASD RELAY OUTPUT CIRCUIT OPEN
(K342) ASD OUTPUT CIRCUIT OPEN
PCM
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)
1.GOOD TRIP EQUAL TO ZERO
Ignition on, engine not running.
With the scan tool, read DTCs and record the related Freeze Frame data.
Is the Good Trip Counter displayed and equal to zero?
Ye s>>
Go To 2
No>>
Refer to the INTERMITTENT CONDITIONSymptom (Diagnostic Procedure).
Perform POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
2.ENGINE STARTING STATUS
Attempt to start the engine.
Did the engine start?
Ye s>>
Go To 3
No>>
Go To 4
3.(K342) ASD OUTPUT CIRCUIT OPEN
Turn the ignition off.
Remove the ASD Relay from the PDC.
Disconnect the PCM harness connectors.
Measure the resistance of the (K342) ASD Relay Output circuit from the ASD Relay cavity in the PDC to the PCM
harness connector.
Is the resistance below 5.0 ohms?
Ye s>>
Go To 7
No>>
Repair the open in the (K342)ASD Relay Output circuit.
Perform POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
Page 1408 of 5267

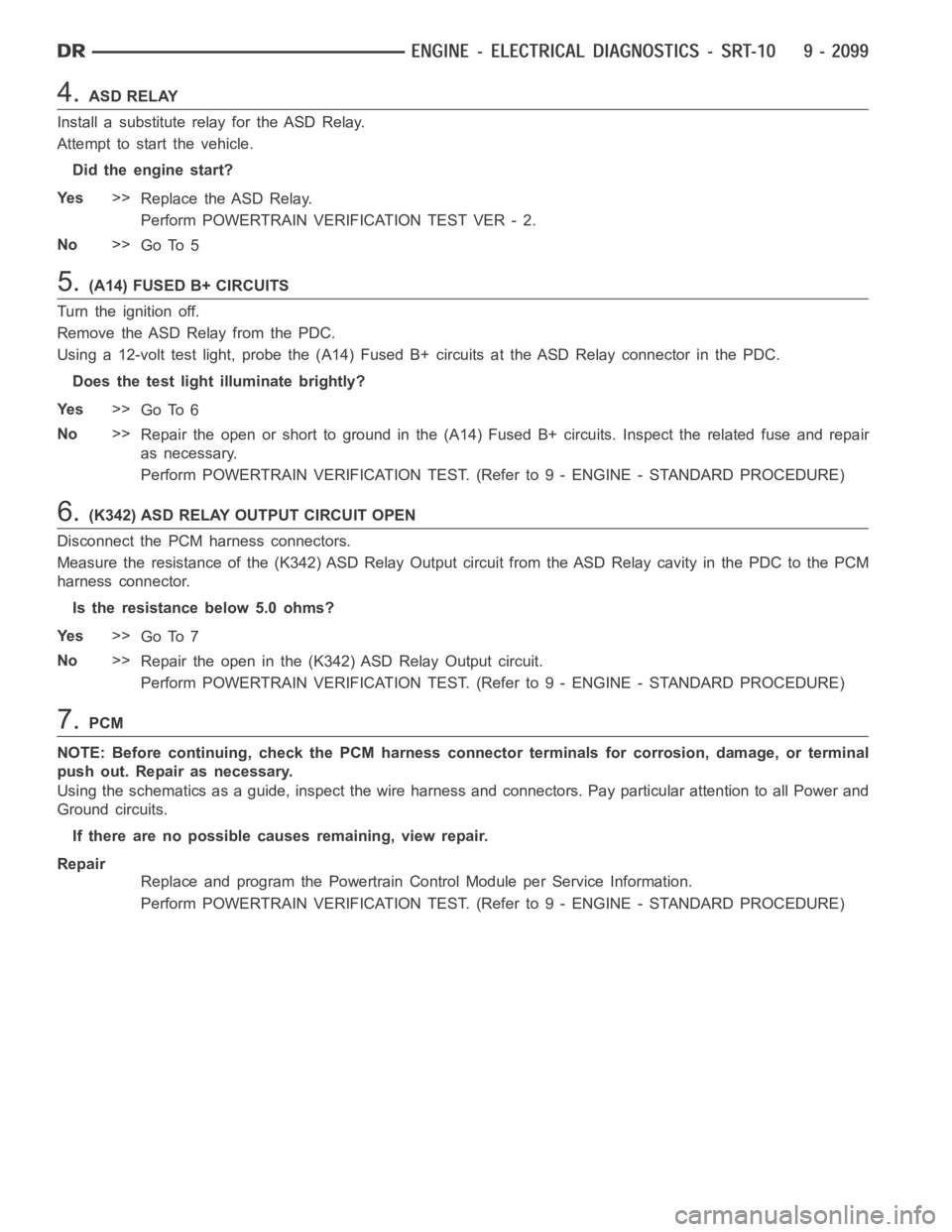

4.ASD RELAY
Install a substitute relay for the ASD Relay.
Attempt to startthe vehicle.
Did the engine start?
Ye s>>
Replace the ASD Relay.
Perform POWERTRAIN VERIFICATION TEST VER - 2.
No>>
Go To 5
5.(A14) FUSED B+ CIRCUITS
Turn the ignition off.
Remove the ASD Relay from the PDC.
Using a 12-volt test light, probe the (A14) Fused B+ circuits at the ASD Relay connector in the PDC.
Does the test light illuminate brightly?
Ye s>>
Go To 6
No>>
Repair the open or short to ground in the (A14) Fused B+ circuits. Inspect the related fuse and repair
as necessary.
Perform POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
6.(K342) ASD RELAY OUTPUT CIRCUIT OPEN
Disconnect the PCM harness connectors.
Measure the resistance of the (K342) ASD Relay Output circuit from the ASD Relay cavity in the PDC to the PCM
harness connector.
Is the resistance below 5.0 ohms?
Ye s>>
Go To 7
No>>
Repair the open in the (K342)ASD Relay Output circuit.
Perform POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
7.PCM
NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal
push out. Repair as necessary.
Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and
Ground circuits.
If there are no possible causes remaining, view repair.
Repair
Replace and program the Powertrain Control Module per Service Information.
Perform POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
