DODGE RAM SRT-10 2006 Service Repair Manual CLADDING-BODY SIDE - BOX - SRT-10
REMOVAL
1. As a guide for installation, apply a length of mask-
ing tape on the cargo box (2), parallel to the top
edge of the body side cladding (1)
.
2. Remove the

Page 4450 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual INSTALLATION
1. Using 3M™ General Purpose Adhesive Cleaner or
equivalent, remove any adhesive tape residue from
the cargo box.
NOTE: Install new cladding within 20 minutes of
body panel cleaning.
2.

Page 4451 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 5. Install the three screws that secure the body side
cladding to the rear of the cargo box in the
sequence shown. Tighten the screws to 5 Nꞏm (44
in. lbs.).

Page 4452 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual CLADDING-BODY SIDE - CAB - SRT-10
REMOVAL
1. As a guide for installation, apply a length of mask-
ingtapeonthecab(2),paralleltothetopedgeof
the body side cladding (1).
CAUTION: Do not exceed 52° C (1

Page 4453 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual CAUTION: Do not exceed 52° C (120° F) when
heating the cladding or body panels. Failure to fol-
low this caution may result in damage to the clad-
ding and/or the vehicle paint finish.
NOTE: If ambi

Page 4454 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual CLADDING-BODY SIDE - DOOR - SRT-10
REMOVAL
1. As a guide for installation, apply a length of mask-
ing tape on the door (2), parallel to the top edge of
the body side cladding (1).
CAUTION: Do not exc

Page 4455 of 5267

Page 4456 of 5267

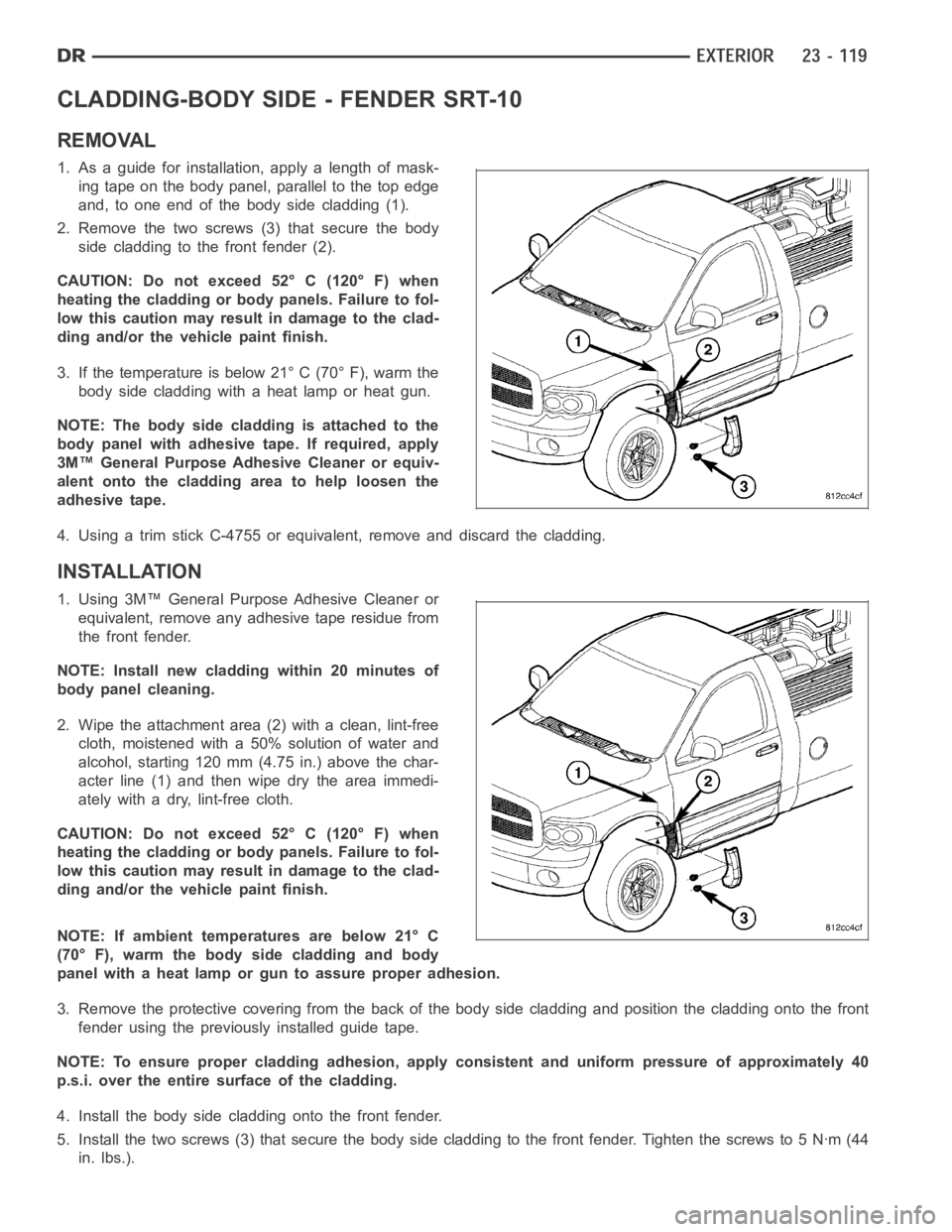

DODGE RAM SRT-10 2006 Service Repair Manual CLADDING-BODY SIDE - FENDER SRT-10
REMOVAL
1. As a guide for installation, apply a length of mask-
ing tape on the body panel, parallel to the top edge
and, to one end of the body side cladding (1).
2

CLADDING-BODY SIDE - FENDER SRT-10
REMOVAL
1. As a guide for installation, apply a length of mask-
ing tape on the body panel, parallel to the top edge
and, to one end of the body side cladding (1).
2. Remove the two screws (3) that secure the body
side cladding to the front fender (2).
CAUTION: Do not exceed 52° C (120° F) when
heating the cladding or body panels. Failure to fol-
low this caution may result in damage to the clad-
ding and/or the vehicle paint finish.
3. If the temperature is below 21° C (70° F), warm the
body side cladding with a heat lamp or heat gun.
NOTE: The body side cladding is attached to the
body panel with adhesive tape. If required, apply
3M™ General Purpose Adhesive Cleaner or equiv-
alent onto the cladding area to help loosen the
adhesive tape.
4. Using a trim stick C-4755 or equivalent, remove and discard the cladding.
INSTALLATION
1. Using 3M™ General Purpose Adhesive Cleaner or
equivalent, remove any adhesive tape residue from
the front fender.
NOTE: Install new cladding within 20 minutes of
body panel cleaning.
2. Wipe the attachment area (2) with a clean, lint-free
cloth, moistened with a 50% solution of water and
alcohol, starting 120 mm (4.75 in.) above the char-
acterline(1)andthenwipedrytheareaimmedi-
ately with a dry, lint-free cloth.
CAUTION: Do not exceed 52° C (120° F) when
heating the cladding or body panels. Failure to fol-
low this caution may result in damage to the clad-
ding and/or the vehicle paint finish.
NOTE: If ambient temperatures are below 21° C
(70° F), warm the body side cladding and body
panel with a heat lamp or gun to assure proper adhesion.
3. Remove the protective covering from the back of the body side cladding and position the cladding onto the front
fender using the previously installed guide tape.
NOTE: To ensure proper cladding adhesion, apply consistent and uniform pressure of approximately 40
p.s.i. over the entire surface of the cladding.
4. Install the body side cladding onto the front fender.
5. Install the two screws (3) that secure the body side cladding to the frontfender. Tighten the screws to 5 Nꞏm (44
in. lbs.).
