2006 DODGE RAM SRT-10 Service Repair Manual

driver seat adjustmenttrunk releasedisplaydifferentialremote controlCD player
Popular search:
adding oilfuel pressurewheel alignmenttiresengine coolantoil temperatureopen gas tank
Previous
Next
Load previous 8 pages

Page 369 of 5267

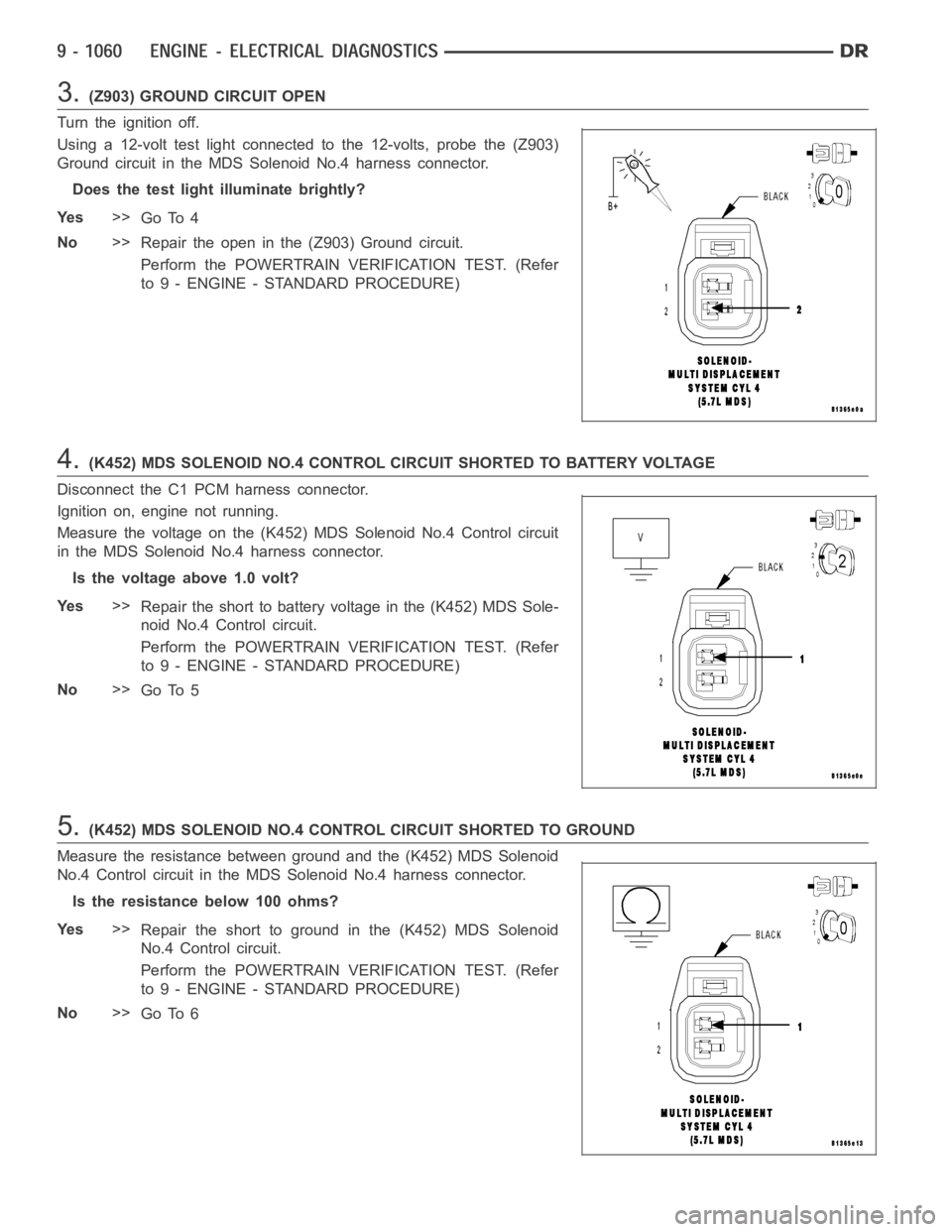

DODGE RAM SRT-10 2006 Service Repair Manual 3.(Z903) GROUND CIRCUIT OPEN Turn the ignition off. Using a 12-volt test light connected to the 12-volts, probe the (Z903) Ground circuit in the MDS Solenoid No.4 harness connector. Does the test ligh

Page 370 of 5267

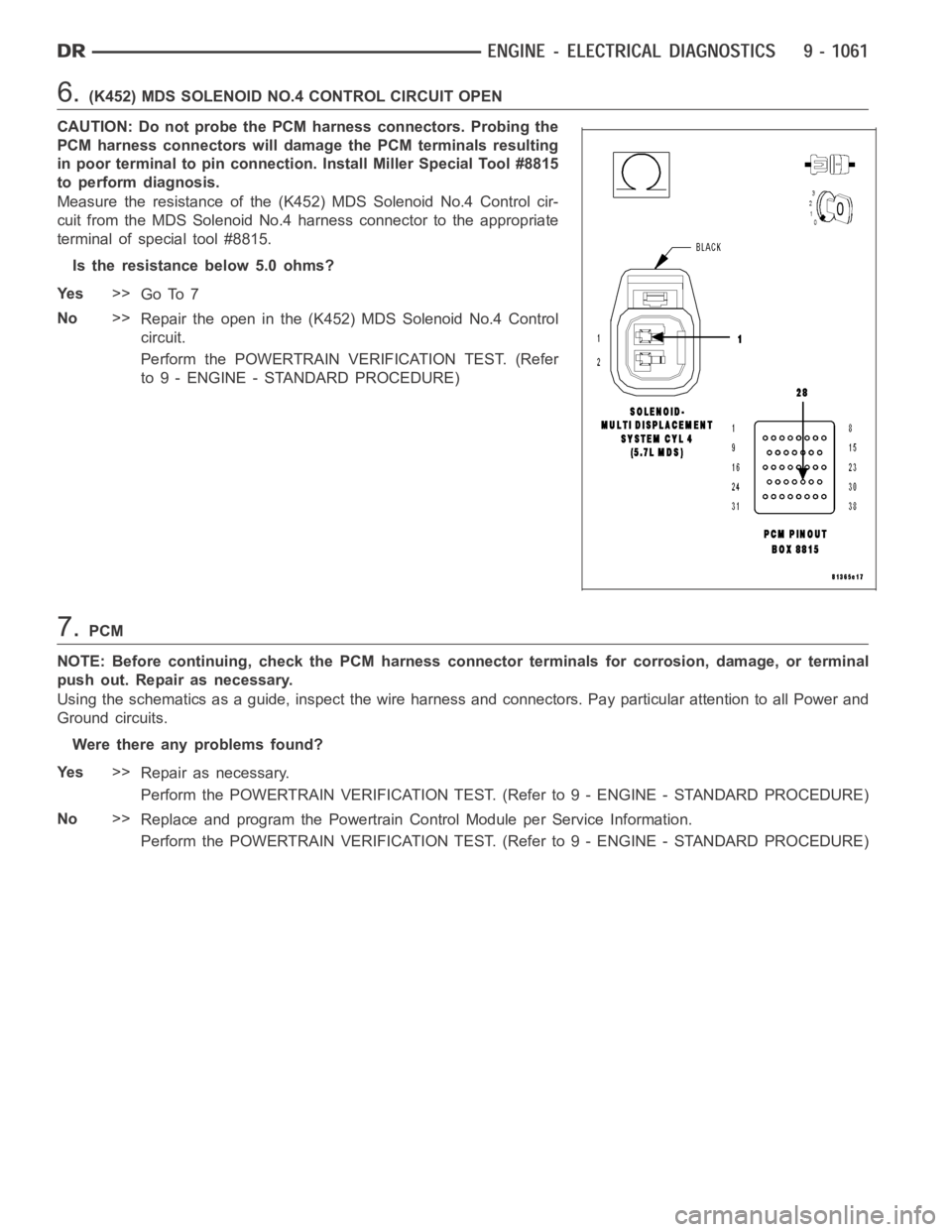

DODGE RAM SRT-10 2006 Service Repair Manual 6.(K452) MDS SOLENOID NO.4 CONTROL CIRCUIT OPEN CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin con

Page 371 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P3426–CYLINDER 4 DEACTIVATION CONTROL PERFORMANCE

Page 372 of 5267

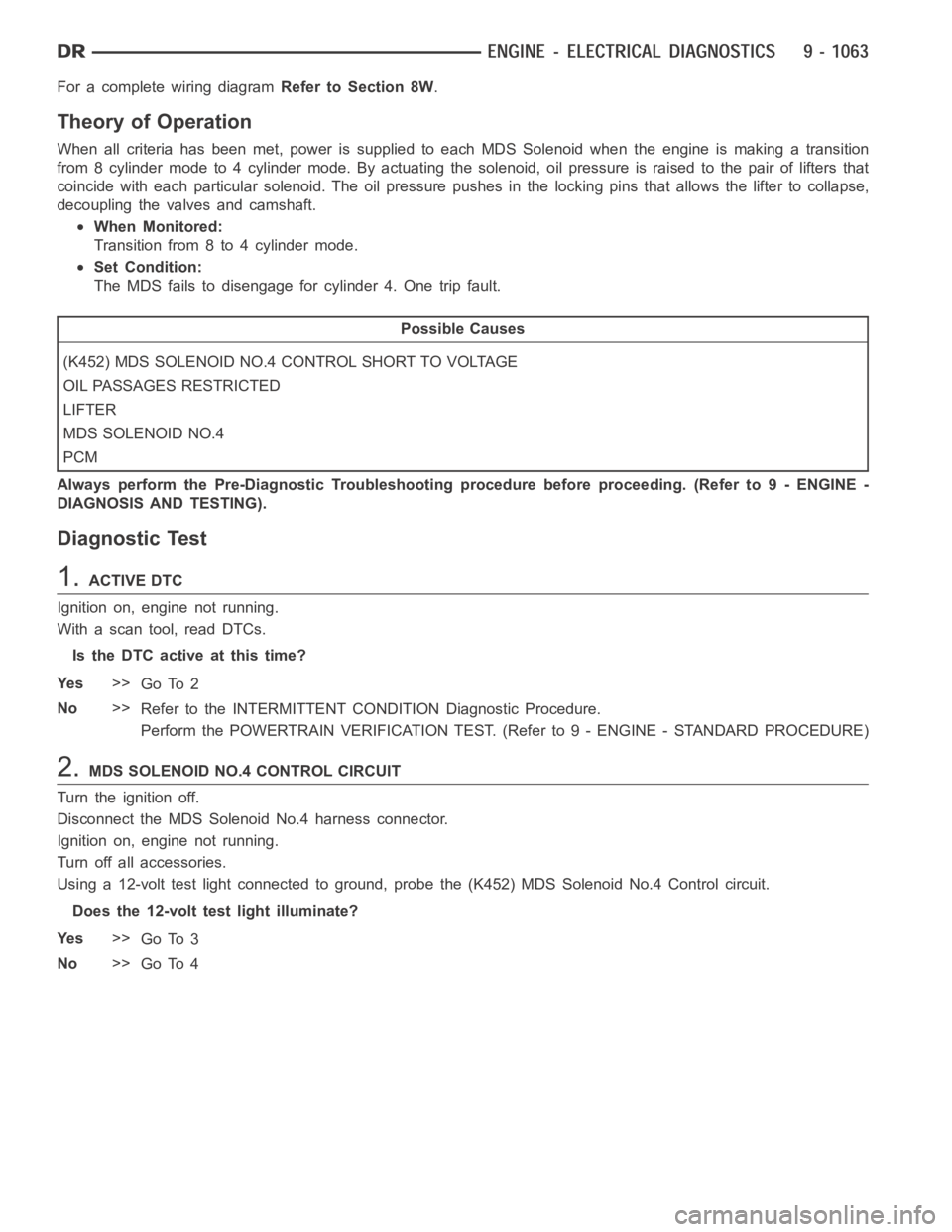

DODGE RAM SRT-10 2006 Service Repair Manual For a complete wiring diagramRefer to Section 8W. Theory of Operation When all criteria has been met, power is supplied to each MDS Solenoid when the engine is making a transition from 8 cylinder mode

Page 373 of 5267

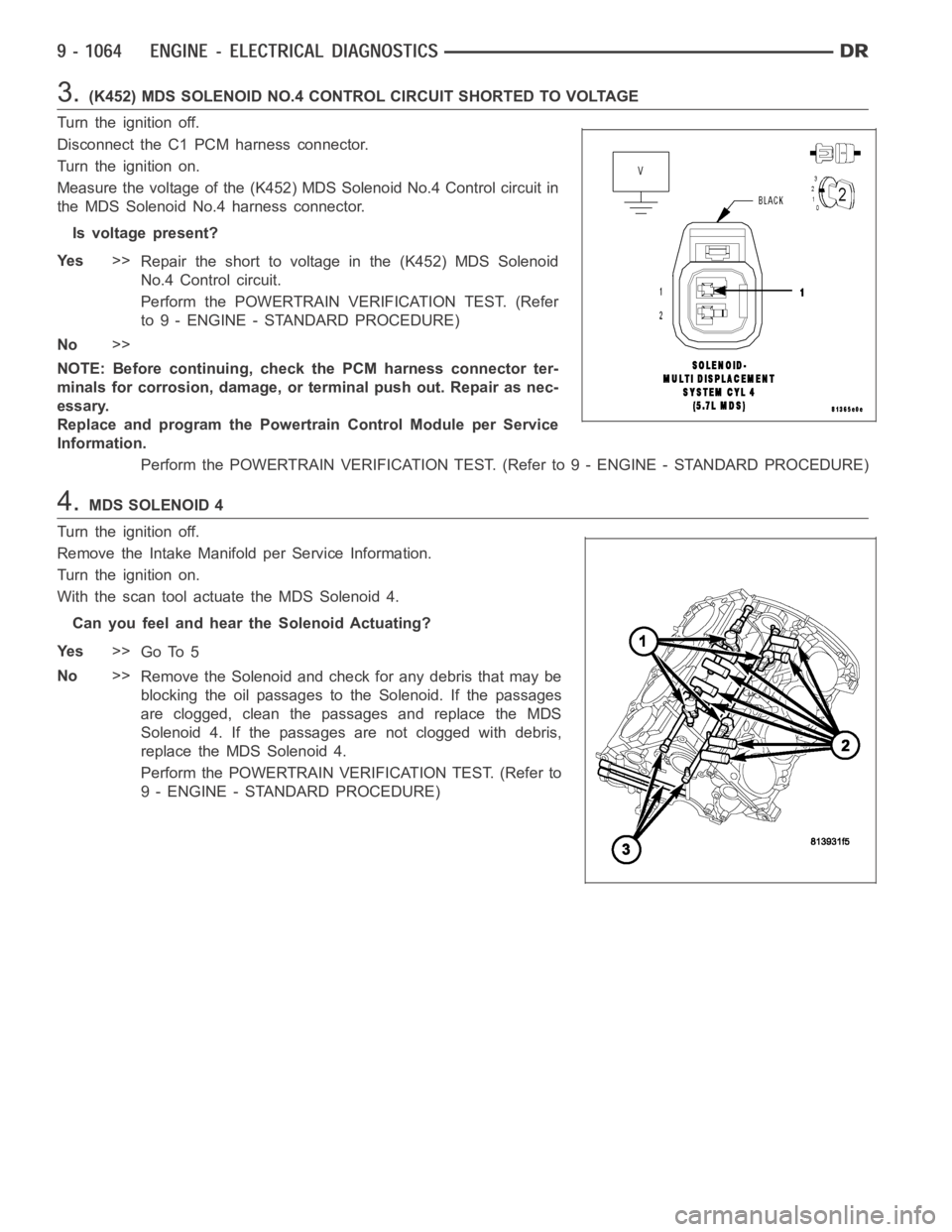

DODGE RAM SRT-10 2006 Service Repair Manual 3.(K452) MDS SOLENOID NO.4 CONTROL CIRCUIT SHORTED TO VOLTAGE Turn the ignition off. Disconnect the C1 PCM harness connector. Turn the ignition on. Measure the voltage of the (K452) MDS Solenoid No.4

Page 374 of 5267

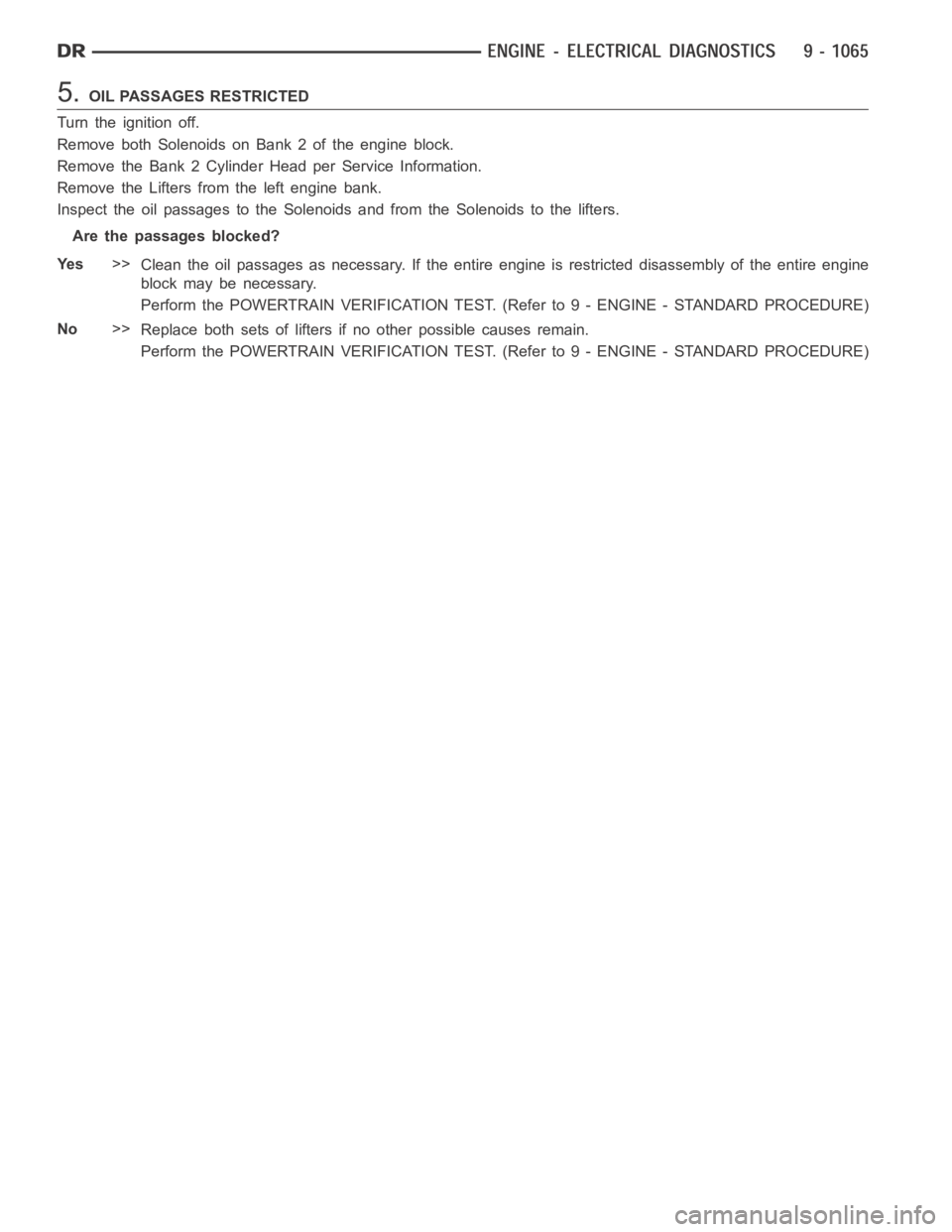

DODGE RAM SRT-10 2006 Service Repair Manual 5.OIL PASSAGES RESTRICTED Turn the ignition off. Remove both Solenoids on Bank 2 of the engine block. Remove the Bank 2 Cylinder Head per Service Information. Remove the Lifters from the left engine b

Page 375 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P3441-MDS SOLENOID 6 CIRCUIT

Page 376 of 5267

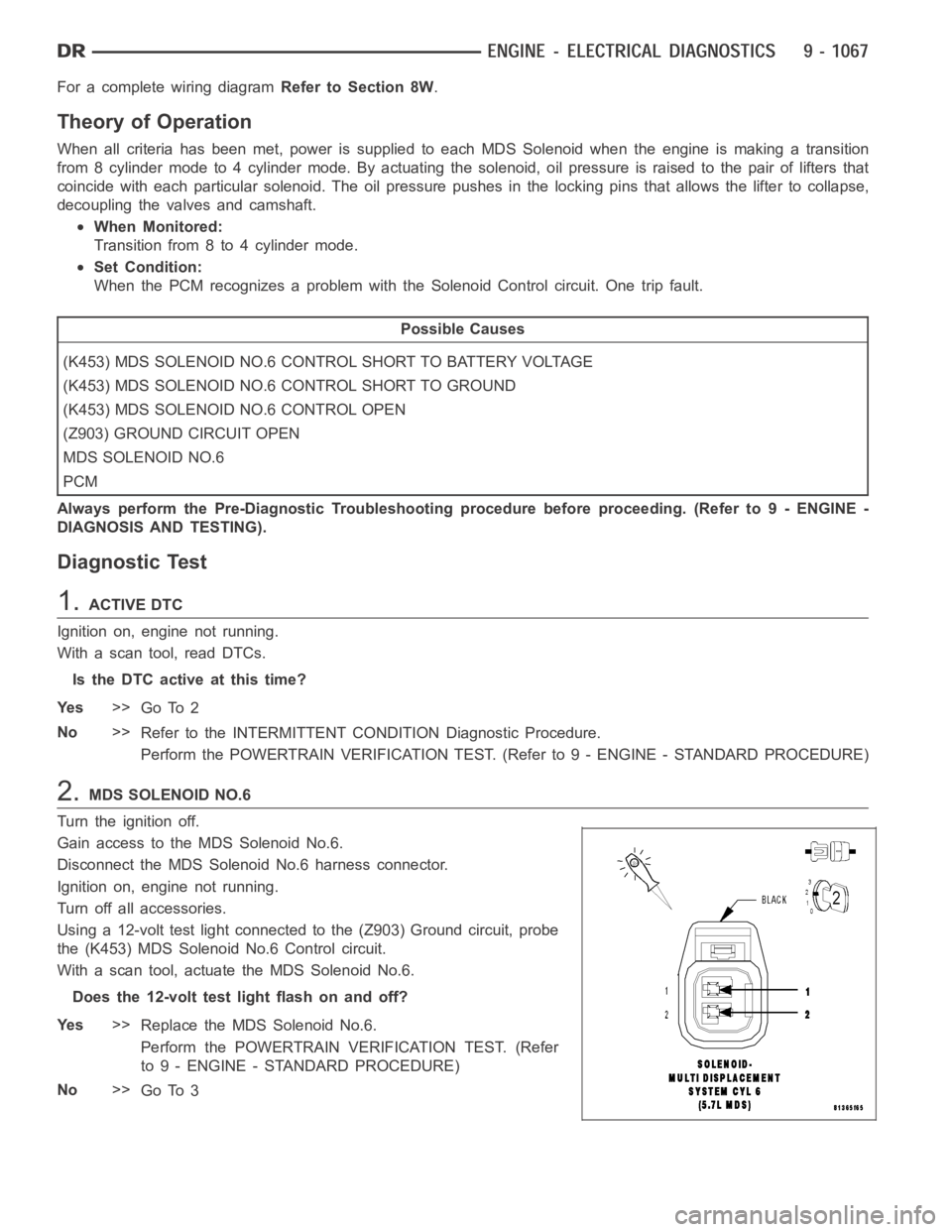

DODGE RAM SRT-10 2006 Service Repair Manual For a complete wiring diagramRefer to Section 8W. Theory of Operation When all criteria has been met, power is supplied to each MDS Solenoid when the engine is making a transition from 8 cylinder mode
