DODGE RAM SRT-10 2006 Service Repair Manual P1750-TRANSMISSION THROTTLE VALVE POSITION SENSOR CIRCUIT HIGH
For a complete wiring diagramRefer to Section 8W

Page 3722 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual Theory of Operation
The transmission throttle valve cable has been replace by the transmission throttle valve actuator (TTVA). The TTVA
consists of an electric DC motor, two potentiometers, and a gear

Theory of Operation
The transmission throttle valve cable has been replace by the transmission throttle valve actuator (TTVA). The TTVA
consists of an electric DC motor, two potentiometers, and a gear drive system. The TTVA is mechanically connected
to the transmission throttle valve in the valve body by the “D” shaped opening in the bottom of the TTVA shaft.
The Transmission Throttle Valve Actuator (TTVA) does not require any mechanical adjustments. All changes in throt-
tle valve position are controlled by the Engine Control Module (ECM).
The TTVA does require an initialization period after the actuator has beenremoved or replaced. After the actuator
has been removed or replaced, move the ignition to the ON position for thirty (30) seconds. This will allow the ECM
sufficient time to perform the internal calibration procedures to learn the TTVA’s current “zero” position.
When Monitored:
Continuously with the ignition on.
Set Condition:
When the Engine Control Module (ECM) detects the monitored Transmission Throttle Valve Position Sensor
voltage rises above a predetermined value.
Possible Causes
(K312) TTVA POSITION SENSOR SIGNAL CIRCUIT SHORT TO VOLTAGE
(K312) TTVA POSITION SENSOR SIGNAL CIRCUIT SHORT TO ANOTHER CIRCUIT
(K900) SENSOR GROUND CIRCUIT OPEN
TRANSMISSION THROTTLE VALVE ACTUATOR
ENGINE CONTROL MODULE
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 21 - TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 48RE - STANDARD PROCEDURE)
Diagnostic Test
1.CHECK IF THE DTC IS CURRENT
Ignition on, engine not running.
With the scan tool, read Engine DTCs.
Record the Freeze Frame data for the reported DTC.
With the scan tool, erase DTCs.
Turn the ignition off to the lock position.
Using the Freeze Frame data recorded earlier, try to duplicate the conditions in which the DTC originally set.
NOTE: It may be necessary to road test the vehicle to duplicate the originalset conditions.
With the scan tool, read Engine DTCs.
Did the DTC reset?
Ye s>>
Go To 2
No>>
Go To 7
2.CHECK THE TTVA
With the scan tool, record and erase Engine DTCs.
Turn the ignition off to the lock position.
Disconnect the TTVA harness connector.
Ignition on, engine not running.
With the scan tool, read Engine DTCs.
Did the DTC Transmission Throttle Valve Position Sensor Circuit High set?
Ye s>>
Go To 4
No>>
Go To 3

Page 3723 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 3.CHECK THE (K900) SENSOR GROUND CIRCUIT FOR AN OPEN
Ignition on, engine not running.
With the scan tool, record and erase Engine DTCs.
Turn the ignition off to the lock position.
Disconnect the TTVA

Page 3724 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 5.CHECK THE (K312) TTVA POSITION SENSOR SIGNAL CIRCUIT FOR A SHORT TO ANOTHERCIRCUIT
Measure the resistance between the (K312) TTVA Position Sensor Sig-
nal circuit and all other circuits in the ECM C

Page 3725 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 7.INTERMITTENT WIRING AND CONNECTORS
The conditions necessary set this DTC are not present at this time.
Use the Freeze Frame Data to help duplicate the conditions that set the DTC.Pay particular atte

Page 3726 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P1751-TRANSMISSION THROTTLE VALVE POSITION MINIMUM RANGE
PERFORMANCE

Page 3727 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual For a complete wiring diagramRefer to Section 8W
Theory of Operation
The transmission throttle valve cable has been replace by the transmission throttle valve actuator (TTVA). The TTVA
consists of an

For a complete wiring diagramRefer to Section 8W
Theory of Operation
The transmission throttle valve cable has been replace by the transmission throttle valve actuator (TTVA). The TTVA
consists of an electric DC motor, two potentiometers, and a gear drive system. The TTVA is mechanically connected
to the transmission throttle valve in the valve body by the “D” shaped opening in the bottom of the TTVA shaft.
The Transmission Throttle Valve Actuator (TTVA) does not require any mechanical adjustments. All changes in throt-
tle valve position are controlled by the Engine Control Module (ECM).
The TTVA does require an initialization period after the actuator has beenremoved or replaced. After the actuator
has been removed or replaced, move the ignition to the ON position for thirty (30) seconds. This will allow the ECM
sufficient time to perform the internal calibration procedures to learn the TTVA’s current “zero” position.
When Monitored:
Ignition on and with or without engine running with transmission in the park or neutral position. Note: Not mon-
itored when either the engine is cranking or while vehicle is moving.
Set Condition:
Each time the ignition is cycled to the on position, the ECM commands a TTVA internal calibration procedure
(autozero) to determine the zero position. If the TTVA does not reach a calibrated minimum position in a pre-
determined amount of time, the DTC will set.
Possible Causes
TRANSMISSION THROTTLE VALVE ACTUATOR BINDING
TRANSMISSION THROTTLE VALVE COMPONENTS
TRANSMISSION THROTTLE VALVE ACTUATOR
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 21 - TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 48RE - STANDARD PROCEDURE)
Diagnostic Test
1.CHECK IF THE DTC IS CURRENT
Ignition on, engine not running.
With the scan tool, read Engine DTCs.
Record the Freeze Frame data for the reported DTC.
With the scan tool, erase DTCs.
Turn the ignition off to the lock position.
Using the Freeze Frame data recorded earlier, try to duplicate the conditions in which the DTC originally set.
NOTE: It may be necessary to road test the vehicle to duplicate the originalset conditions.
With the scan tool, read Engine DTCs.
Did the DTC reset?
Ye s>>
Go To 2
No>>
Go To 5

Page 3728 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 2.CHECK TTVA FOR SIGNS OF DAMAGE
Turn the ignition off to the lock position.
Visually inspect the TTVA shaft for any signs of external damage or improperly mounted.
NOTE: It is not necessary to remove

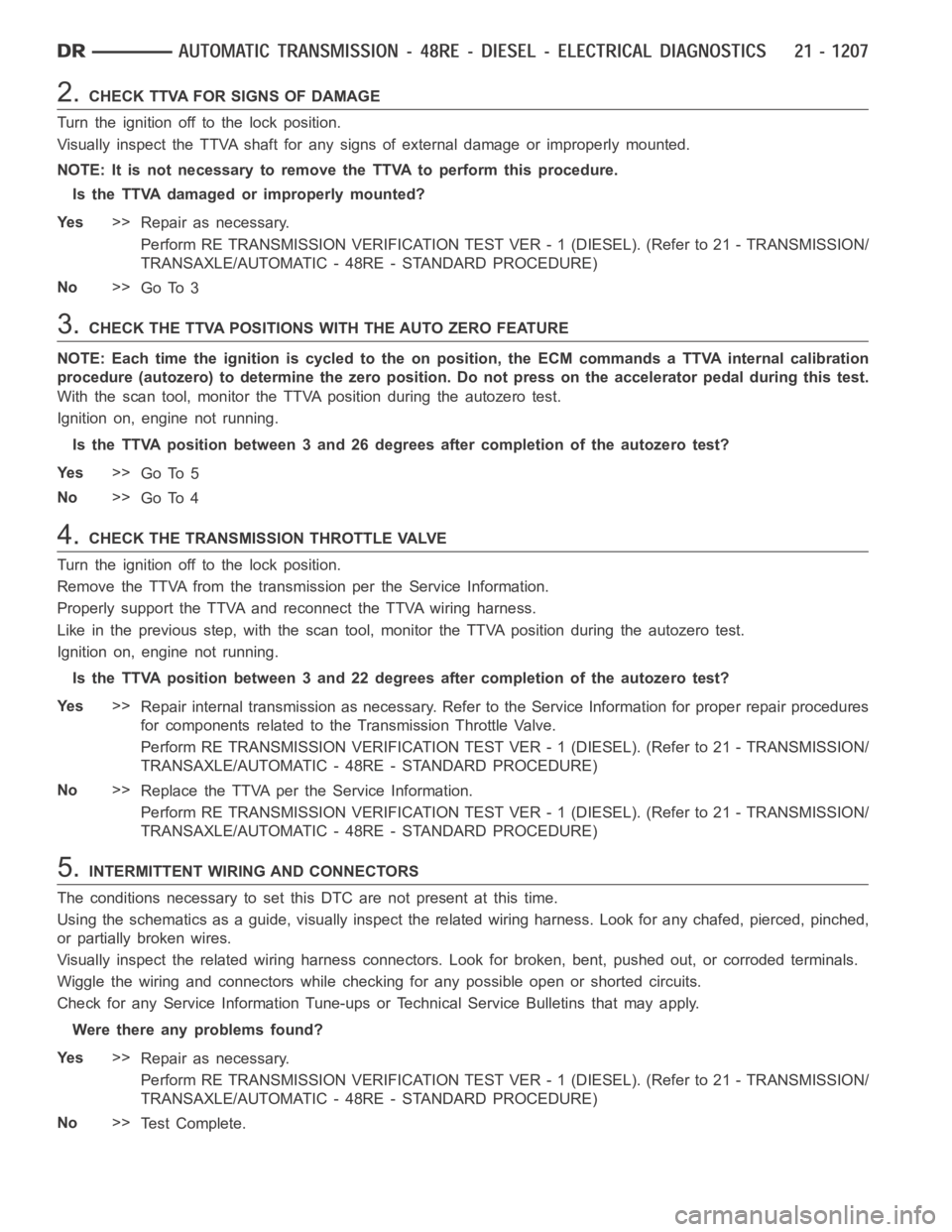

2.CHECK TTVA FOR SIGNS OF DAMAGE
Turn the ignition off to the lock position.
Visually inspect the TTVA shaft for any signs of external damage or improperly mounted.
NOTE: It is not necessary to remove the TTVA to perform this procedure.
Is the TTVA damaged or improperly mounted?
Ye s>>
Repair as necessary.
Perform RE TRANSMISSION VERIFICATION TEST VER - 1 (DIESEL). (Refer to 21 - TRANSMISSION/
TRANSAXLE/AUTOMATIC - 48RE - STANDARD PROCEDURE)
No>>
Go To 3
3.CHECK THE TTVA POSITIONS WITH THE AUTO ZERO FEATURE
NOTE: Each time the ignition is cycled to the on position, the ECM commands aTTVA internal calibration
procedure (autozero) to determine the zero position. Do not press on the accelerator pedal during this test.
With the scan tool, monitor the TTVA position during the autozero test.
Ignition on, engine not running.
Is the TTVA position between 3 and 26 degrees after completion of the autozero test?
Ye s>>
Go To 5
No>>
Go To 4
4.CHECK THE TRANSMISSION THROTTLE VALVE
Turn the ignition off to the lock position.
Remove the TTVA from the transmission per the Service Information.
Properly support the TTVA and reconnect the TTVA wiring harness.
Like in the previous step, with the scan tool, monitor the TTVA position during the autozero test.
Ignition on, engine not running.
Is the TTVA position between 3 and 22 degrees after completion of the autozero test?
Ye s>>
Repair internal transmission as necessary. Refer to the Service Information for proper repair procedures
for components related to the Transmission Throttle Valve.
Perform RE TRANSMISSION VERIFICATION TEST VER - 1 (DIESEL). (Refer to 21 - TRANSMISSION/
TRANSAXLE/AUTOMATIC - 48RE - STANDARD PROCEDURE)
No>>
Replace the TTVA per the Service Information.
Perform RE TRANSMISSION VERIFICATION TEST VER - 1 (DIESEL). (Refer to 21 - TRANSMISSION/
TRANSAXLE/AUTOMATIC - 48RE - STANDARD PROCEDURE)
5.INTERMITTENT WIRING AND CONNECTORS
The conditions necessary to set this DTC are not present at this time.
Using the schematics as a guide, visually inspect the related wiring harness. Look for any chafed, pierced, pinched,
or partially broken wires.
Visually inspect the related wiring harness connectors. Look for broken,bent, pushed out, or corroded terminals.
Wiggle the wiring and connectors while checking for any possible open or shorted circuits.
Check for any Service Information Tune-ups or Technical Service Bulletins that may apply.
Were there any problems found?
Ye s>>
Repair as necessary.
Perform RE TRANSMISSION VERIFICATION TEST VER - 1 (DIESEL). (Refer to 21 - TRANSMISSION/
TRANSAXLE/AUTOMATIC - 48RE - STANDARD PROCEDURE)
No>>
Te s t C o m p l e t e .
