Page 297 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 14.RESISTANCE IN THE (K1) MAP SIGNAL CIRCUIT Turn the ignition off. Disconnect the C2 PCM harness connector. Measure the resistance of the (K1) MAP Signal circuit from the MAP Sensor harness connector

Page 298 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 16.RESISTANCE IN (K900) SENSOR GROUND CIRCUIT Measure the resistance of the (K900) Sensor ground circuit from the MAP Sensor harness connector to the appropriate terminal of special tool #8815. Is the

Page 299 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P2175-LOW AIRFLOW/RESTRICTION DETECTED (SLOW ACCUMULATION) For a complete wiring diagramRefer to Section 8W.

Page 300 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual When Monitored: Ignition on and engine running with no MAP Sensor DTCs. Set Condition: PCM calculated MAP value is greater than actual MAP value plus an offset value. One trip fault and the code will

Page 301 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 2.RESTRICTED AIR INLET SYSTEM Turn the ignition off. Remove the Air Cleaner Assembly. Remove the Air Filter. Inspect the Throttle Body opening for signs of any foreign materials. Check the intake tube

Page 302 of 5267

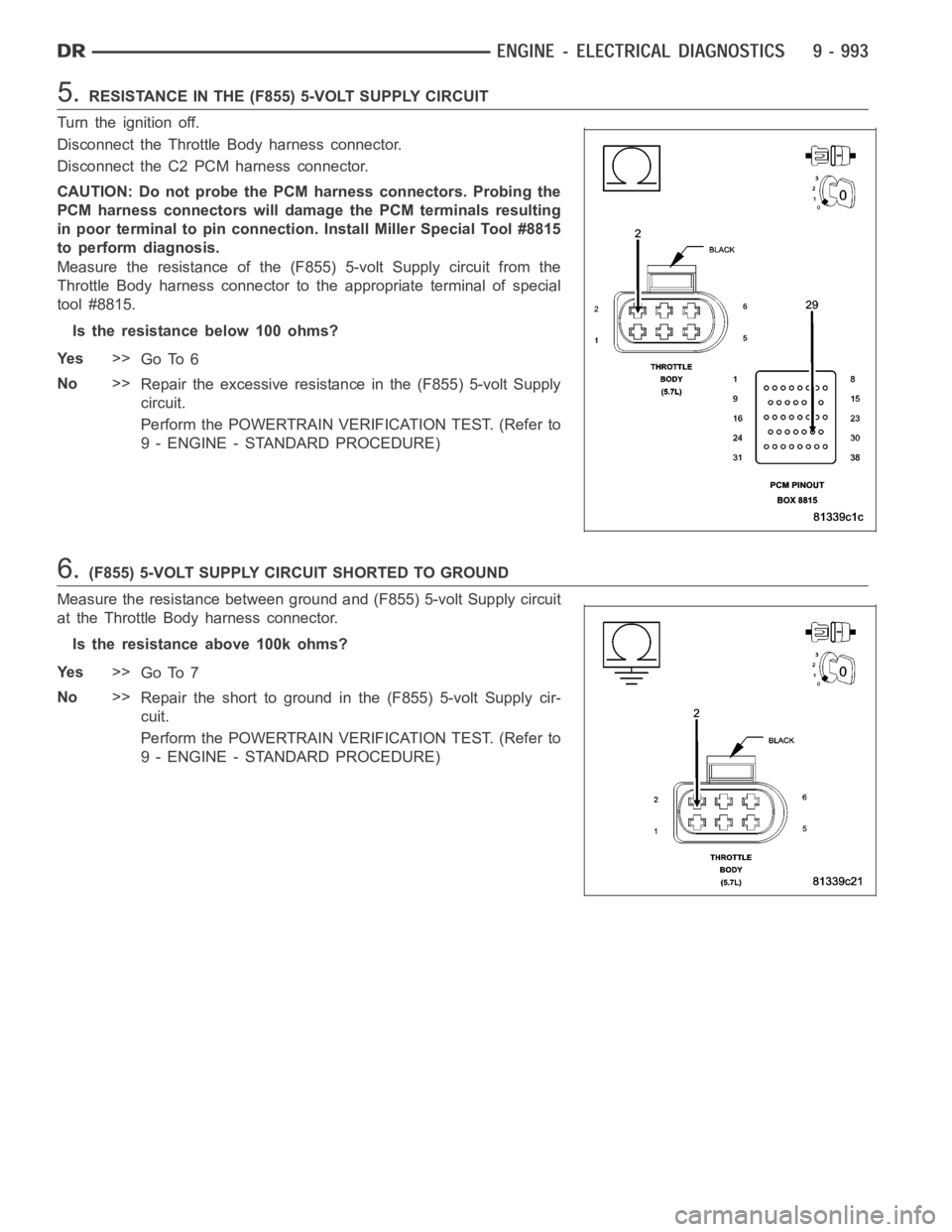

DODGE RAM SRT-10 2006 Service Repair Manual 5.RESISTANCE IN THE (F855) 5-VOLT SUPPLY CIRCUIT Turn the ignition off. Disconnect the Throttle Body harness connector. Disconnect the C2 PCM harness connector. CAUTION: Do not probe the PCM harness c

Page 303 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 7.TP SENSOR Connect the PCM harness connector. Ignition on, engine not running. With a scan tool, monitor the TP Sensor voltage. Connect a jumper wire between the (K22) TP Sensor No.1 Signal circuit a

Page 304 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 9.TP SENSOR SIGNAL CIRCUIT SHORTED TO GROUND Measure the resistance between ground and the (K22) and (K122) TP Signal circuits at the Throttle Body harness connector. Is the resistance above 100k ohms
