Page 4393 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual page page
DOOR
REMOVAL .................................... 57
INSTALLATION ............................... 57
ADJUSTMENTS ............................... 58
DOOR GLASS
REMOVAL .......................

Page 4394 of 5267

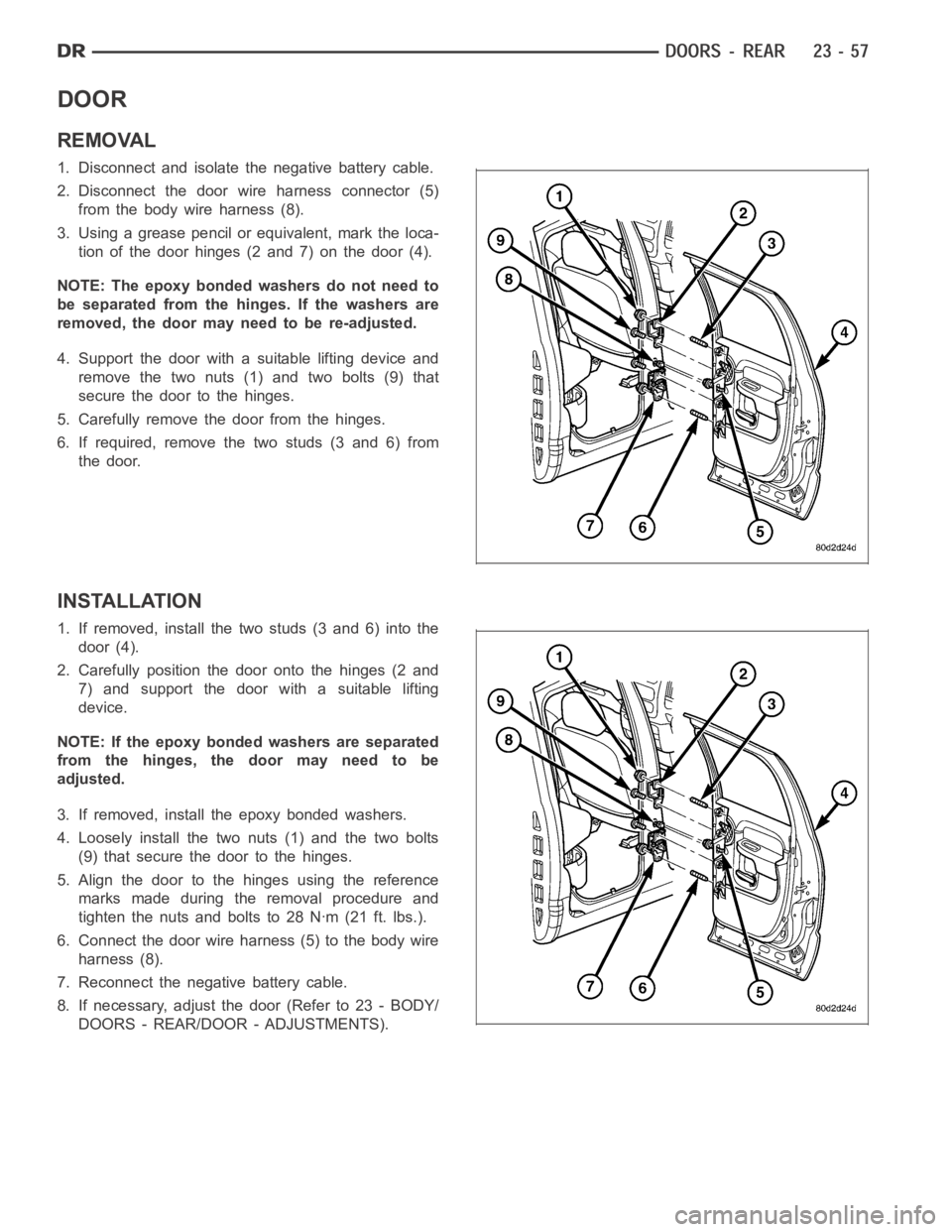

DODGE RAM SRT-10 2006 Service Repair Manual DOOR
REMOVAL
1. Disconnect and isolate the negative battery cable.
2. Disconnect the door wire harness connector (5)
from the body wire harness (8).
3. Using a grease pencil or equivalent, mark the lo

Page 4395 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual ADJUSTMENTS
NOTE: For quad cab vehicles, it is recommended that you adjust the rear doorbefore adjusting the front
door.
Door adjustment measurements should be taken from stationary or welded body pan

ADJUSTMENTS
NOTE: For quad cab vehicles, it is recommended that you adjust the rear doorbefore adjusting the front
door.
Door adjustment measurements should be taken from stationary or welded body panels like the roof,
rocker or quarter panels.
During adjustment procedures, it is recommended that all the hinge fasteners be loosened except for the
upper most fasteners. Adjustments can be made using the upper fasteners tohold the door with final
torque of the fasteners occurring after correct door positioning is achieved.
FORE/AFT
NOTE: Fore/aft (lateral) door adjustment is done
by loosening the hinge to the hinge pillar fasten-
ers one hinge at a time and moving the door to
the correct position.
1. Support the door with a suitable lifting device.
2. Loosen the hinge to hinge pillar fasteners (5) and
(6). (Refer to 23 - BODY/DOORS - REAR/HINGE -
REMOVAL)
3. Adjust the door to the correct position. (Refer to 23
- BODY/BODY STRUCTURE/GAP AND FLUSH -
SPECIFICATIONS)
4. Tighten the upper hinge bolt (2) to 28 Nꞏm (21 ft.
lbs.).
5. Tighten the upper hinge bolt (1) to 28 Nꞏm (21 ft.
lbs.).
6. Tighten the upper hinge bolt (3) to 28 Nꞏm (21 ft.
lbs.).
7. Tighten the lower hinge bolt (4) to 28 Nꞏm (21 ft. lbs.).
8. Tighten the remaining hinge pillar fasteners to 28 Nꞏm (21 ft. lbs.). (Refer to 23 - BODY/DOORS - REAR/HINGE
- INSTALLATION)
NOTE: Use a suitable body sealer on the hinge to body mating surfaces.
UP/DOWN
NOTE: Up/down door adjustment is done by loos-
ening either the hinge to the hinge pillar fasteners
or the hinge to door fasteners and moving the
door to the correct position.
NOTE: When adjustment of the door requires the
loosening of the door to hinge fasteners, it will be
necessary to separate the epoxy bonded washers
with a chisel or other suitable tool.
NOTE: When the up/down adjustments are done
correctly, the top of the door is positioned over
flush to the roof. (Refer to 23 - BODY/BODY
STRUCTURE/GAP AND FLUSH - SPECIFICATIONS)
1. Support the door with a suitable lifting device.

Page 4396 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 2. Remove the latch striker (1). (Refer to 23 - BODY/DOORS - REAR/LATCH STRIKER - REMOVAL)
3. If necessary, loosen the hinge to hinge pillar fasten-
ers (Refer to 23 - BODY/DOORS - REAR/HINGE -
REMOVA

Page 4397 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 6. If necessary, tighten the hinge to pillar bolts.
a. Tighten the upper hinge bolt (2) to 28 Nꞏm (21
ft. lbs.).
b. Tighten the upper hinge bolt (1) to 28 Nꞏm (21
ft. lbs.).
c. Tighten the upper h

Page 4398 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 8. Install the latch striker. (Refer to 23 - BODY/
DOORS - REAR/LATCH STRIKER - INSTALLA-
TION)
IN/OUT
NOTE: In/out door adjustment is done by loosen-
ing the hinge to door fasteners one hinge at a ti

Page 4399 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 3. Loosen the hinge to door fasteners (1) and (9).
(Refer to 23 - BODY/DOORS - REAR/DOOR -
REMOVAL)
4. Adjust the front of the door to the correct position.
(Refer to 23 - BODY/BODY STRUCTURE/GAP
AND

Page 4400 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual DOOR GLASS
REMOVAL
NOTE: Quad Cab model shown, Mega Cab models
are similar.
1. Remove the inner belt molding (Refer to 23 -
BODY/WEATHERSTRIP/SEALS/REAR DOOR
INNER BELT MOLDING - REMOVAL).
2. Remove t
