Page 2425 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 5. Remove the 2 screws on the top of the multi-func- tion switch and relocate. 6. Remove ignition switch mounting screw with a #10 To r x bit. 7. Pull ignition switch from steering column.

Page 2426 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual INSTALLATION - SRT10 1. Ensure the ignition switch is in the RUN position and the actuator shaft (2) in the lock housing (1) is in the RUN position. 2. Carefully install the ignition switch. The switc

Page 2427 of 5267

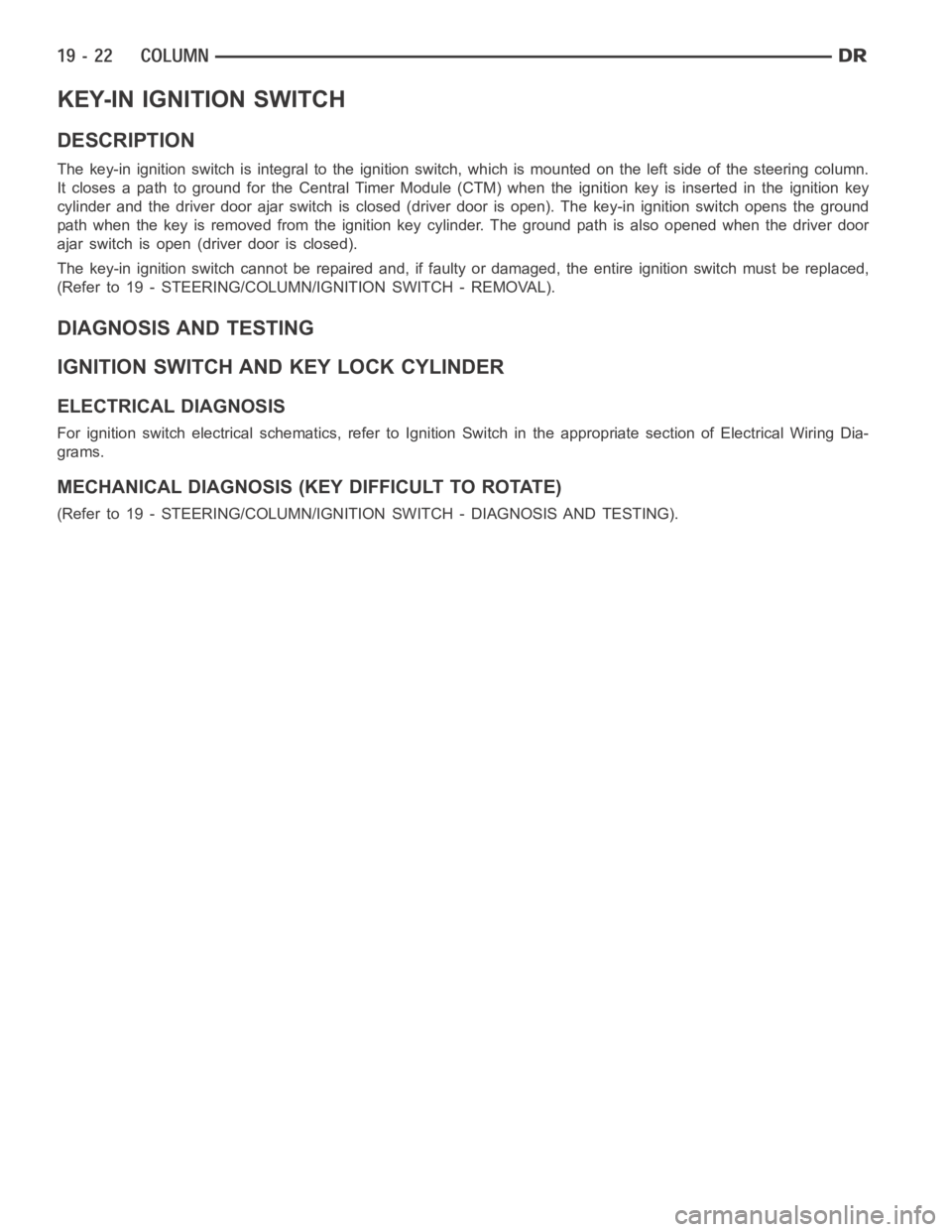

DODGE RAM SRT-10 2006 Service Repair Manual KEY-IN IGNITION SWITCH DESCRIPTION The key-in ignition switch is integral to the ignition switch, which is mounted on the left side of the steering column. ItclosesapathtogroundfortheCentralTimerModul

Page 2428 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual KEY CYLINDER REMOVAL The ignition key must be in the key cylinder (1) for cyl- inder removal. 1. Disconnect negative cable from battery. 2. Remove upper and lower covers (shrouds) from steering column

Page 2429 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual STEERING WHEEL REMOVAL 1. Disable and remove the driver’s side airbag. (Refer to 8 - ELECTRICAL/RESTRAINTS/DRIVER AIR- BAG - REMOVAL). 2. Partially remove the steering wheel bolt and leave theboltin

Page 2430 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual TILT LEVER KNOB RELEASE REMOVAL 1. Remove the screw (1) securing the tilt lever knob (2). 2. Remove the steering column opening cover (Refer to 23 - BODY/INSTRUMENTPANEL/STEERING COLUMN OPENING COVER

Page 2431 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 5. Unseat the rod (2) from the release lever assembly (1). INSTALLATION 1. Route the rod (2) into the tilt lever release knob bracket (1).

Page 2432 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 2. Install the tilt lever release knob bracket (3) to the column and install the two new mounting screws (1). Tighten the two screws to 4.5 Nꞏm (40 in. lbs.). 3. Install the lower shroud. 4. Install
