Page 609 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 8.INTERNAL DAMAGED FUEL INJECTOR
With the scan tool, erase DTCs.
Switch the misfiring injectors & high pressure connector with an injector& high pressure connector from a cylinder
that is firing prope

Page 610 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P0305-CYLINDER # 5 MISFIRE
For a complete wiring diagramRefer to Section 8W.
When Monitored:
While the engine is idling at operating temperature.
Set Condition:
Misfire detected on this cylinder.
Poss

Page 611 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 3.DAMAGED FUEL LINE
Visually inspect the injector supply line for damage.
Do you have any kinked or bent fuel line?
Ye s>>
Repair or replace the damaged fuel line.
Perform POWERTRAIN VERIFICATION TEST

3.DAMAGED FUEL LINE
Visually inspect the injector supply line for damage.
Do you have any kinked or bent fuel line?
Ye s>>
Repair or replace the damaged fuel line.
Perform POWERTRAIN VERIFICATION TEST VER - 1 (DIESEL). (Refer to 8 - ELECTRICAL/ELEC-
TRONIC CONTROL MODULES/ENGINE CONTROL MODULE - DIAGNOSIS AND TESTING)
No>>
Go To 4
4.VA LV E T R A I N
Visually inspect the valve train and check the valve lash on the suspect cylinder.
Is the valve train functional and the lash within the specifications listed in the service manual?
Ye s>>
Go To 5
No>>
Adjust the lash or fix or repair any damaged component(s).
Perform POWERTRAIN VERIFICATION TEST VER - 1 (DIESEL). (Refer to 8 - ELECTRICAL/ELEC-
TRONIC CONTROL MODULES/ENGINE CONTROL MODULE - DIAGNOSIS AND TESTING)
5.OBSTRUCTED FUEL INJECTOR SUPPLY
Remove the fuel injector supply lines for the suspect cylinder.
Inspect both ends of the fuel injector supply lines for damage.
Using shop air pressure, blow out the fuel injector supply lines to verify that they are not obstructed.
Are the fuel lines free of debris or damage?
Ye s>>
Go To 6
No>>
Replace the damaged or obstructed fuel injector supply lines.
Perform POWERTRAIN VERIFICATION TEST VER - 1 (DIESEL). (Refer to 8 - ELECTRICAL/ELEC-
TRONIC CONTROL MODULES/ENGINE CONTROL MODULE - DIAGNOSIS AND TESTING)
6.DAMAGED OR OBSTRUCTED HIGH PRESSURE CONNECTOR
Remove the high pressure connectors for the suspect cylinder.
Inspect both ends of the high pressure connector for signs of damage.
Using shop air pressure, blow out the high pressure connector to verify that they are not obstructed.
Are the high pressure connector free of debris or damage?
Ye s>>
Go To 7
No>>
Replace the damaged or obstructed high pressure connector.
Perform POWERTRAIN VERIFICATION TEST VER - 1 (DIESEL). (Refer to 8 - ELECTRICAL/ELEC-
TRONIC CONTROL MODULES/ENGINE CONTROL MODULE - DIAGNOSIS AND TESTING)
7.FUEL INJECTOR
Remove the suspect fuel injector.
Are the fuel injectors damaged?
Ye s>>
Replace the external damaged fuel injector & high pressure connector.
Perform POWERTRAIN VERIFICATION TEST VER - 1 (DIESEL). (Refer to 8 - ELECTRICAL/ELEC-
TRONIC CONTROL MODULES/ENGINE CONTROL MODULE - DIAGNOSIS AND TESTING)
No>>
Go To 8

Page 612 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual 8.INTERNAL DAMAGED FUEL INJECTOR
With the scan tool, erase DTCs.
Switch the misfiring injector & high pressure connector with an injector &high pressure connector from a cylinder
that is firing proper

Page 613 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P0306-CYLINDER # 6 MISFIRE
For a complete wiring diagramRefer to Section 8W.
When Monitored:
While the engine is idling at operating temperature.
Set Condition:
Misfire detected on this cylinder.
Poss

Page 614 of 5267

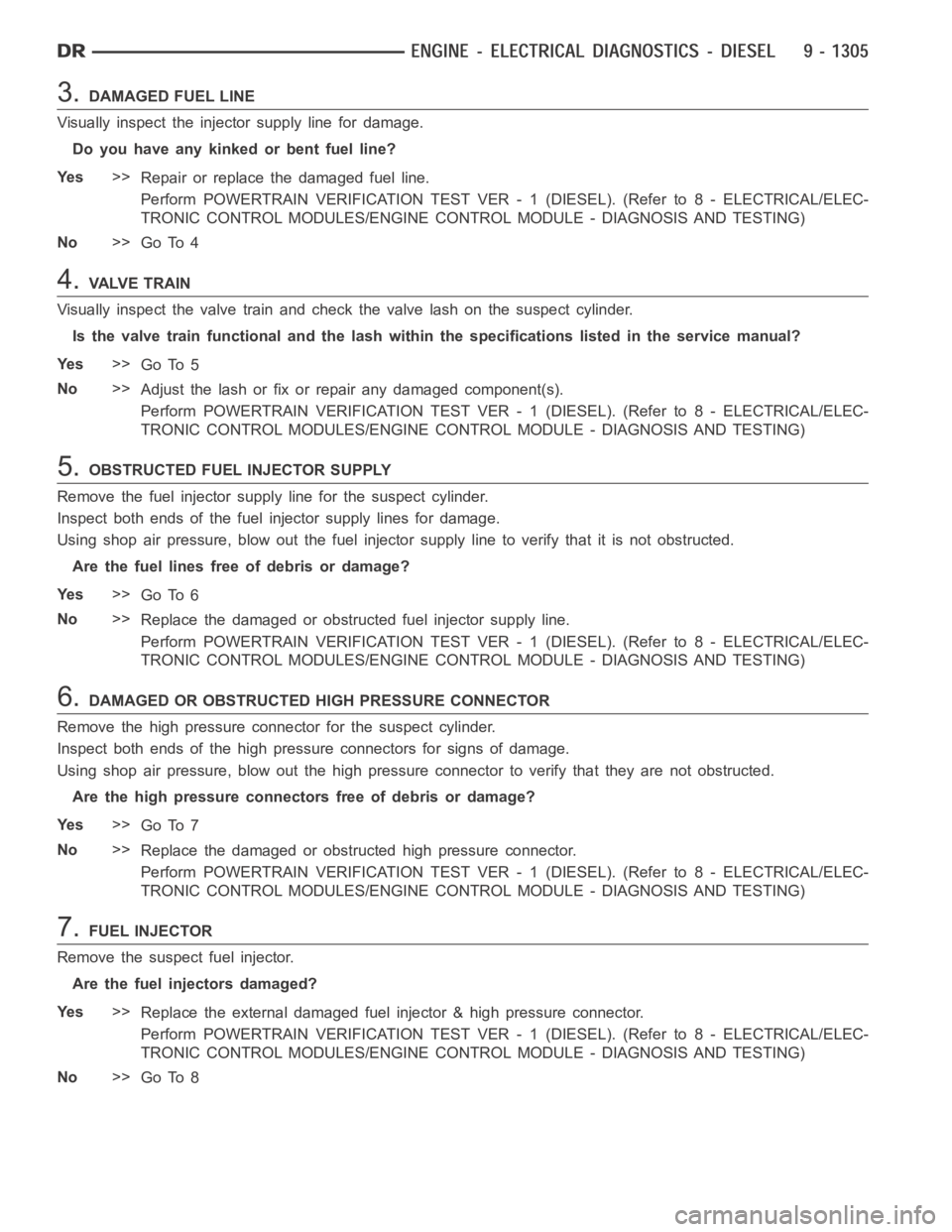

3.DAMAGED FUEL LINE
Visually inspect the injector supply line for damage.
Do you have any kinked or bent fuel line?
Ye s>>
Repair or replace the damaged fuel line.
Perform POWERTRAIN VERIFICATION TEST VER - 1 (DIESEL). (Refer to 8 - ELECTRICAL/ELEC-
TRONIC CONTROL MODULES/ENGINE CONTROL MODULE - DIAGNOSIS AND TESTING)
No>>
Go To 4
4.VA LV E T R A I N
Visually inspect the valve train and check the valve lash on the suspect cylinder.
Is the valve train functional and the lash within the specifications listed in the service manual?
Ye s>>
Go To 5
No>>
Adjust the lash or fix or repair any damaged component(s).
Perform POWERTRAIN VERIFICATION TEST VER - 1 (DIESEL). (Refer to 8 - ELECTRICAL/ELEC-
TRONIC CONTROL MODULES/ENGINE CONTROL MODULE - DIAGNOSIS AND TESTING)
5.OBSTRUCTED FUEL INJECTOR SUPPLY
Remove the fuel injector supply line for the suspect cylinder.
Inspect both ends of the fuel injector supply lines for damage.
Using shop air pressure, blow out the fuel injector supply line to verify that it is not obstructed.
Are the fuel lines free of debris or damage?
Ye s>>
Go To 6
No>>
Replace the damaged or obstructed fuel injector supply line.
Perform POWERTRAIN VERIFICATION TEST VER - 1 (DIESEL). (Refer to 8 - ELECTRICAL/ELEC-
TRONIC CONTROL MODULES/ENGINE CONTROL MODULE - DIAGNOSIS AND TESTING)
6.DAMAGED OR OBSTRUCTED HIGH PRESSURE CONNECTOR
Remove the high pressure connector for the suspect cylinder.
Inspect both ends of the high pressure connectors for signs of damage.
Using shop air pressure, blow out the high pressure connector to verify that they are not obstructed.
Are the high pressure connectors free of debris or damage?
Ye s>>
Go To 7
No>>
Replace the damaged or obstructed high pressure connector.
Perform POWERTRAIN VERIFICATION TEST VER - 1 (DIESEL). (Refer to 8 - ELECTRICAL/ELEC-
TRONIC CONTROL MODULES/ENGINE CONTROL MODULE - DIAGNOSIS AND TESTING)
7.FUEL INJECTOR
Remove the suspect fuel injector.
Are the fuel injectors damaged?
Ye s>>
Replace the external damaged fuel injector & high pressure connector.
Perform POWERTRAIN VERIFICATION TEST VER - 1 (DIESEL). (Refer to 8 - ELECTRICAL/ELEC-
TRONIC CONTROL MODULES/ENGINE CONTROL MODULE - DIAGNOSIS AND TESTING)
No>>
Go To 8

Page 615 of 5267

Page 616 of 5267

DODGE RAM SRT-10 2006 Service Repair Manual P0335-CRANKSHAFT POSITION (CKP) LOST
For a complete wiring diagramRefer to Section 8W.
