REPAIR FOR COMPONENT PARTS
AT-445
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
INSPECTION
Oil Pump Housing, Oil Pump Cover, Inner Gear and Outer Gear
Check for wear or damage.
Side Clearances

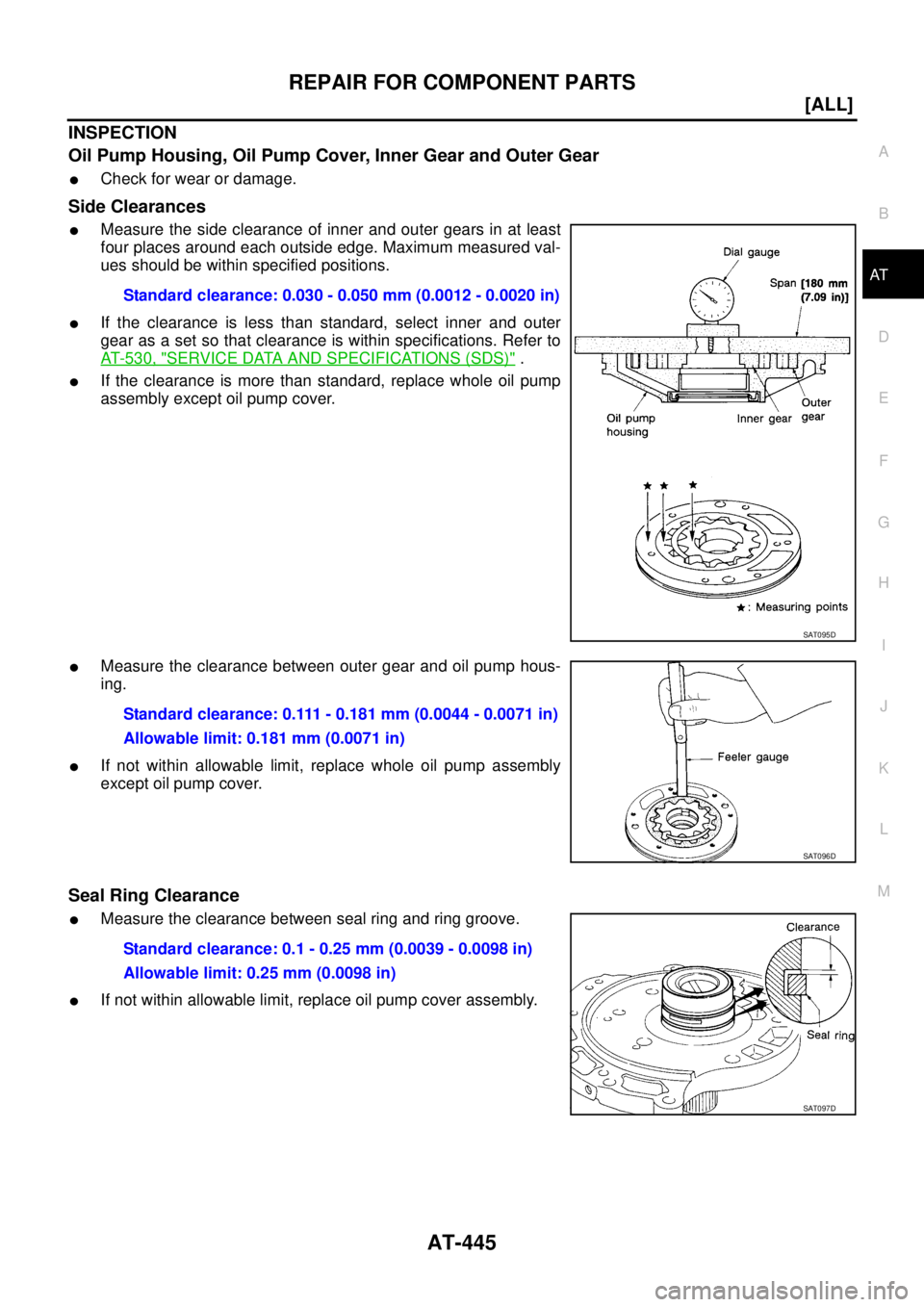

Measure the side clearance of inner and outer gears in at least
four places around each outside edge. Maximum measured val-
ues should be within specified positions.
If the clearance is less than standard, select inner and outer
gear as a set so that clearance is within specifications. Refer to
AT- 5 3 0 , "
SERVICE DATA AND SPECIFICATIONS (SDS)" .
If the clearance is more than standard, replace whole oil pump
assembly except oil pump cover.
Measure the clearance between outer gear and oil pump hous-
ing.
If not within allowable limit, replace whole oil pump assembly
except oil pump cover.
Seal Ring Clearance
Measure the clearance between seal ring and ring groove.
If not within allowable limit, replace oil pump cover assembly.Standard clearance: 0.030 - 0.050 mm (0.0012 - 0.0020 in)
SAT095D
Standard clearance: 0.111 - 0.181 mm (0.0044 - 0.0071 in)
Allowable limit: 0.181 mm (0.0071 in)
SAT096D
Standard clearance: 0.1 - 0.25 mm (0.0039 - 0.0098 in)
Allowable limit: 0.25 mm (0.0098 in)
SAT097D
Page 2482 of 4179
AT-446
[ALL]
REPAIR FOR COMPONENT PARTS
ASSEMBLY

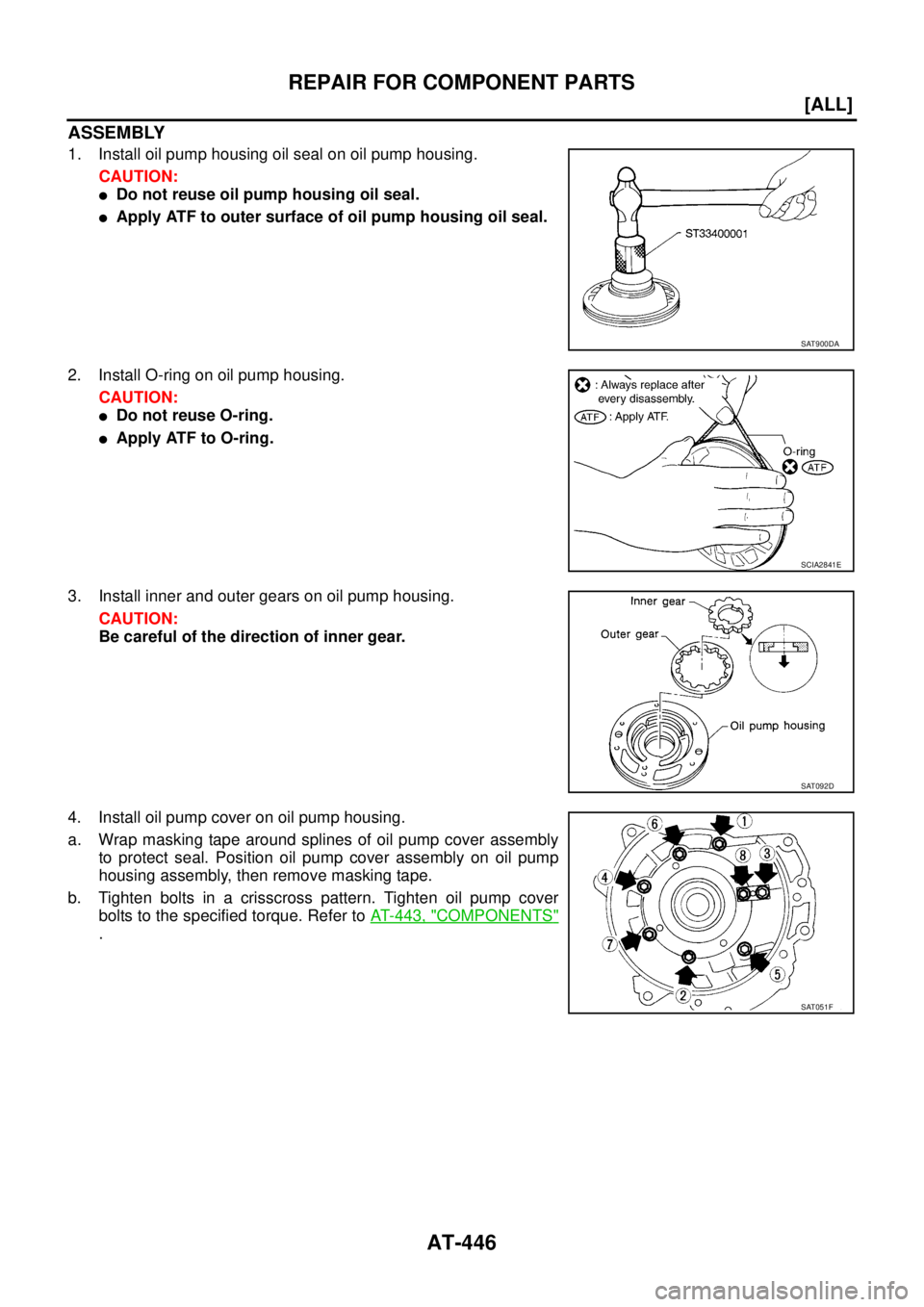

1. Install oil pump housing oil seal on oil pump housing.
CAUTION:
Do not reuse oil pump housing oil seal.
Apply ATF to outer surface of oil pump housing oil seal.
2. Install O-ring on oil pump housing.
CAUTION:
Do not reuse O-ring.
Apply ATF to O-ring.
3. Install inner and outer gears on oil pump housing.
CAUTION:
Be careful of the direction of inner gear.
4. Install oil pump cover on oil pump housing.
a. Wrap masking tape around splines of oil pump cover assembly
to protect seal. Position oil pump cover assembly on oil pump
housing assembly, then remove masking tape.
b. Tighten bolts in a crisscross pattern. Tighten oil pump cover
bolts to the specified torque. Refer to AT- 4 4 3 , "
COMPONENTS"
.
SAT900DA
SCIA2841E
SAT092D
SAT051F
Page 2483 of 4179
REPAIR FOR COMPONENT PARTS
AT-447
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
5. Install new seal rings carefully after packing ring groove with
petroleum jelly.
CAUTION:
Do not spread the gap of seal ring excessively while
installing. The ring may be deformed.
Do not reuse seal rings.
Apply petroleum jelly to seal rings.
SCIA3638E
Page 2484 of 4179
AT-448
[ALL]
REPAIR FOR COMPONENT PARTS
Control Valve AssemblyECS00EC1

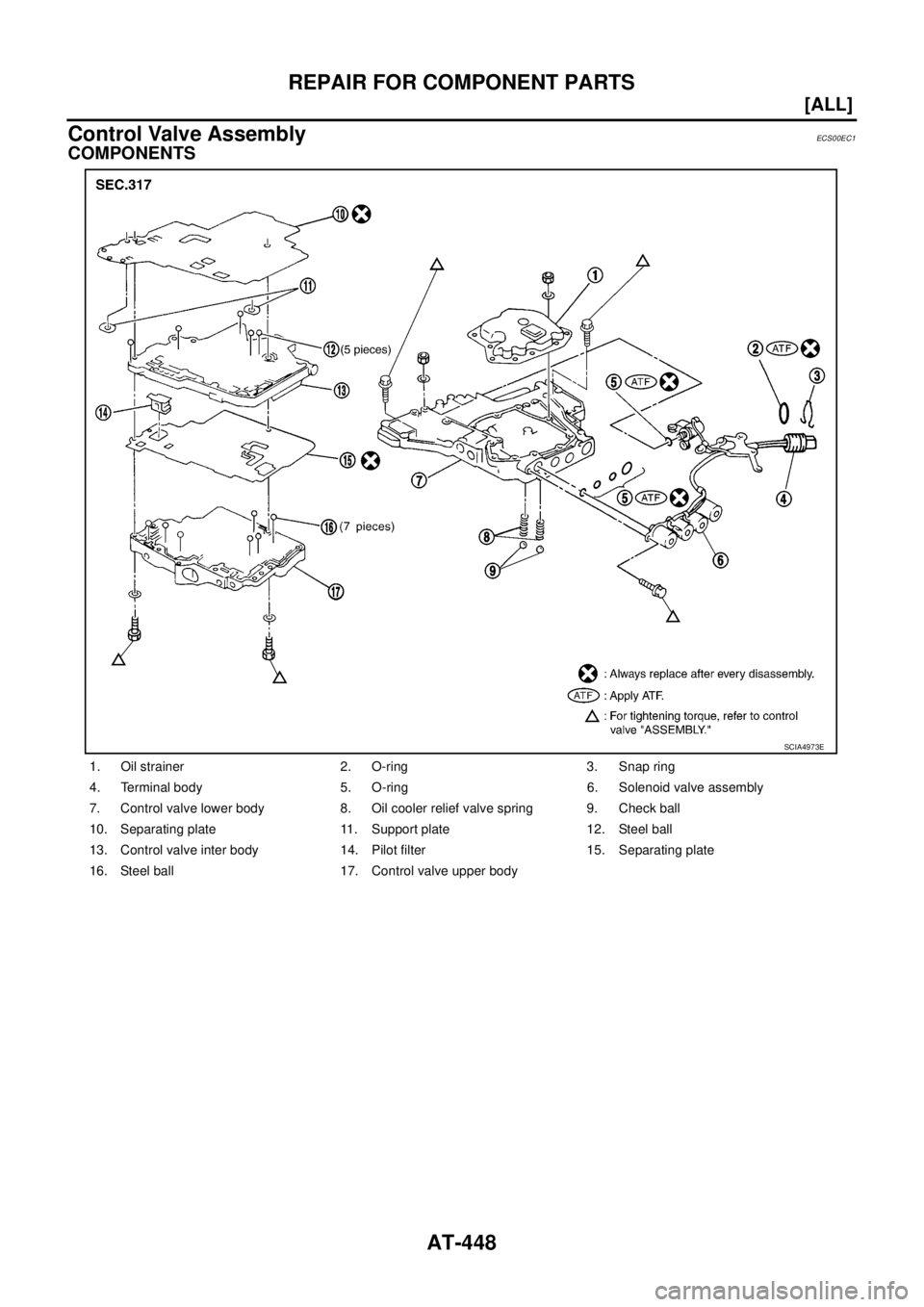

COMPONENTS
1. Oil strainer 2. O-ring 3. Snap ring
4. Terminal body 5. O-ring 6. Solenoid valve assembly
7. Control valve lower body 8. Oil cooler relief valve spring 9. Check ball
10. Separating plate 11. Support plate 12. Steel ball
13. Control valve inter body 14. Pilot filter 15. Separating plate
16. Steel ball 17. Control valve upper body
SCIA4973E
Page 2485 of 4179
REPAIR FOR COMPONENT PARTS
AT-449
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
DISASSEMBLY

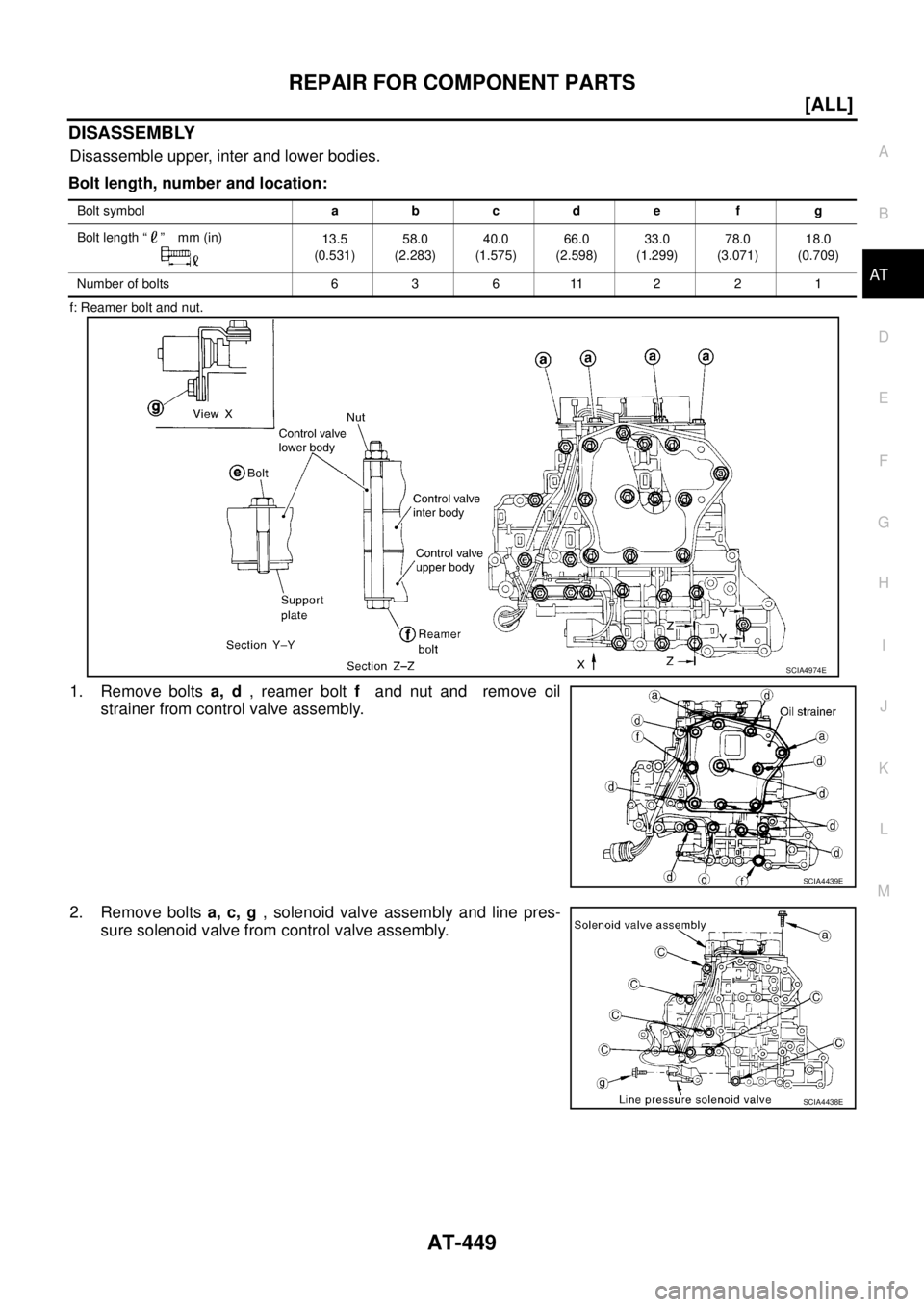

Disassemble upper, inter and lower bodies.
Bolt length, number and location:
f: Reamer bolt and nut.
1. Remove bolts a, d , reamer bolt f and nut and remove oil
strainer from control valve assembly.
2. Remove bolts a, c, g , solenoid valve assembly and line pres-
sure solenoid valve from control valve assembly.
Bolt symbolabcde f g
Bolt length “ ” mm (in)
13.5
(0.531)58.0
(2.283)40.0
(1.575)66.0
(2.598)33.0
(1.299)78.0
(3.071)18.0
(0.709)
Number of bolts 6 3 6 11 2 2 1
SCIA4974E
SCIA4439E
SCIA4438E
Page 2486 of 4179
AT-450
[ALL]
REPAIR FOR COMPONENT PARTS

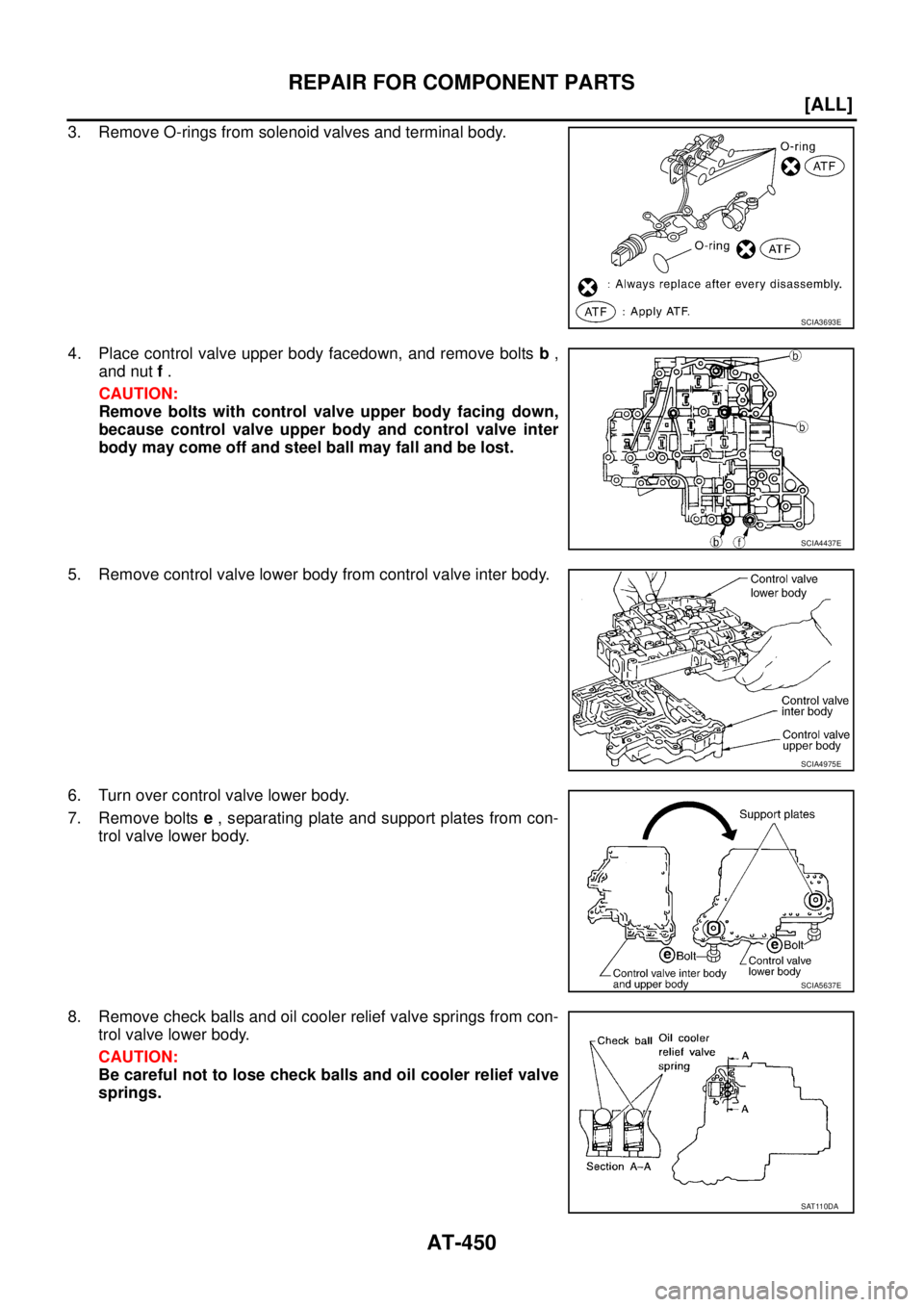

3. Remove O-rings from solenoid valves and terminal body.
4. Place control valve upper body facedown, and remove bolts b ,
and nut f .
CAUTION:
Remove bolts with control valve upper body facing down,
because control valve upper body and control valve inter
body may come off and steel ball may fall and be lost.
5. Remove control valve lower body from control valve inter body.
6. Turn over control valve lower body.
7. Remove bolts e , separating plate and support plates from con-
trol valve lower body.
8. Remove check balls and oil cooler relief valve springs from con-
trol valve lower body.
CAUTION:
Be careful not to lose check balls and oil cooler relief valve
springs.
SCIA3693E
SCIA4437E
SCIA4975E
SCIA5637E
SAT110DA
Page 2487 of 4179
REPAIR FOR COMPONENT PARTS
AT-451
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

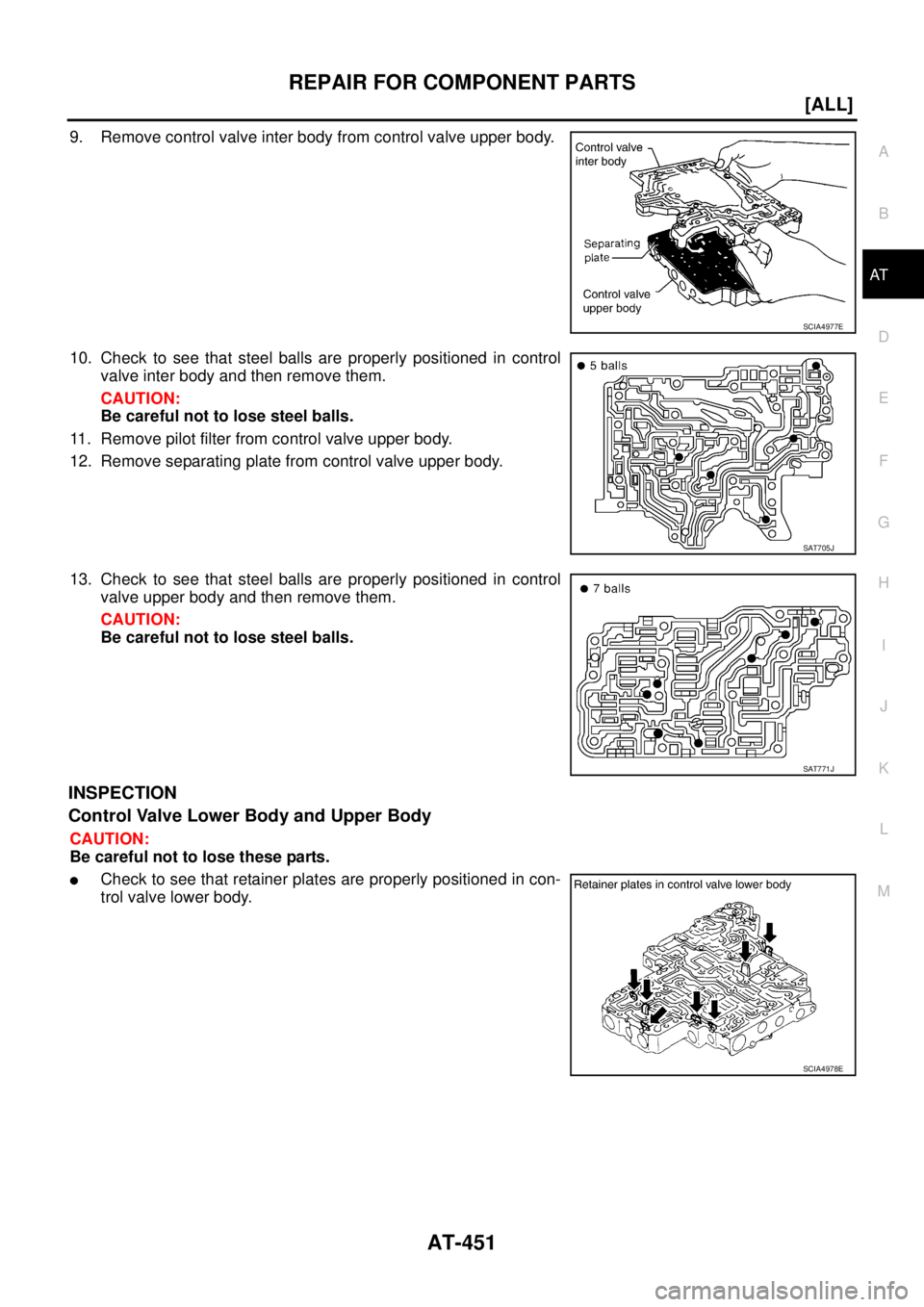

9. Remove control valve inter body from control valve upper body.
10. Check to see that steel balls are properly positioned in control
valve inter body and then remove them.
CAUTION:
Be careful not to lose steel balls.
11. Remove pilot filter from control valve upper body.
12. Remove separating plate from control valve upper body.
13. Check to see that steel balls are properly positioned in control
valve upper body and then remove them.
CAUTION:
Be careful not to lose steel balls.
INSPECTION
Control Valve Lower Body and Upper Body
CAUTION:
Be careful not to lose these parts.
Check to see that retainer plates are properly positioned in con-
trol valve lower body.
SCIA4977E
SAT705J
SAT771J
SCIA4978E
Page 2488 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual AT-452
[ALL]
REPAIR FOR COMPONENT PARTS
Check to see that retainer plates are properly positioned in con-
trol valve upper body.
Oil Strainer
Check wire netting of oil strainer for damage.
Shift S NISSAN X-TRAIL 2003 Service Repair Manual AT-452
[ALL]
REPAIR FOR COMPONENT PARTS
Check to see that retainer plates are properly positioned in con-
trol valve upper body.
Oil Strainer
Check wire netting of oil strainer for damage.
Shift S](/manual-img/5/57404/w960_57404-2487.png)
AT-452

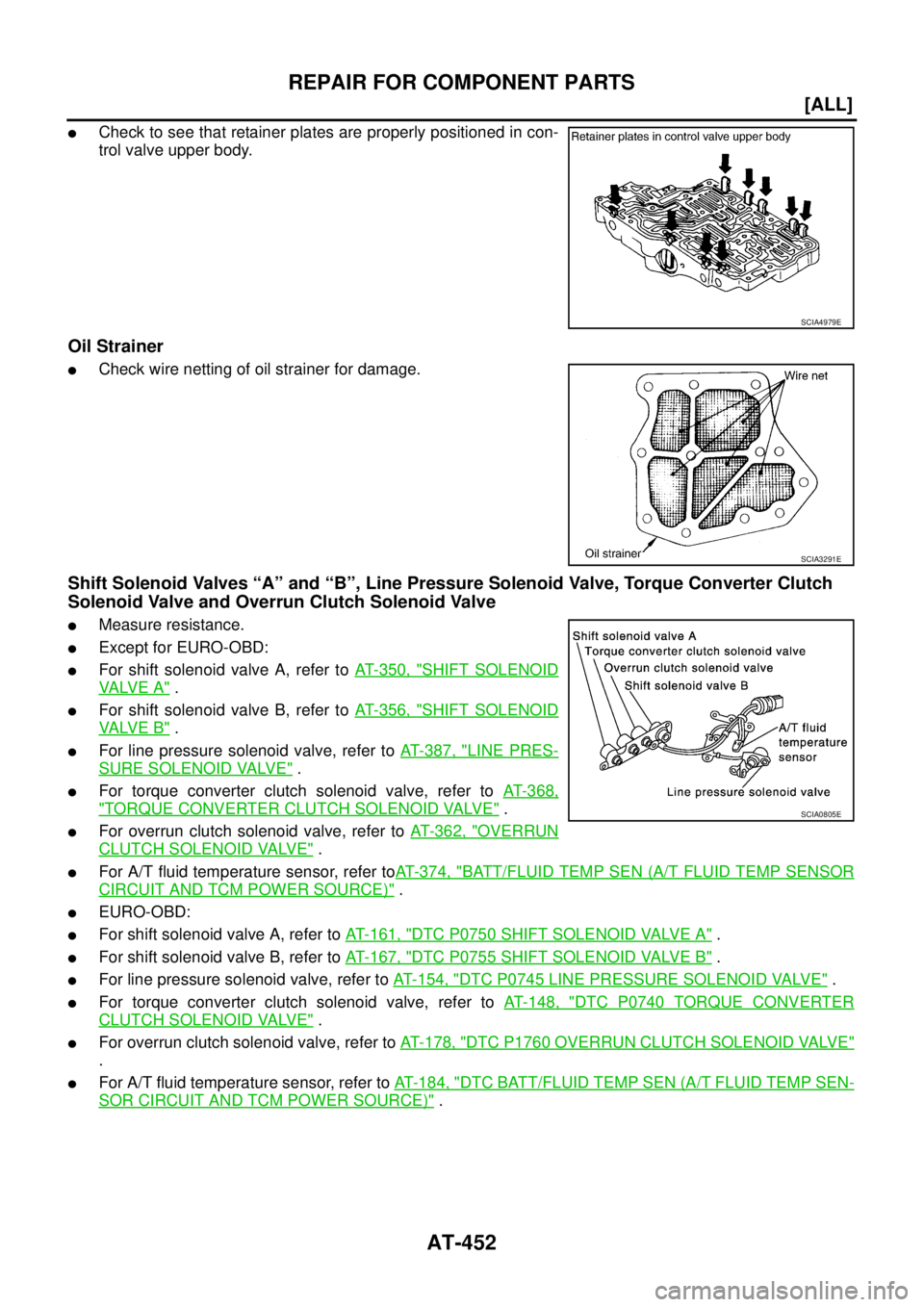

[ALL]
REPAIR FOR COMPONENT PARTS
Check to see that retainer plates are properly positioned in con-
trol valve upper body.
Oil Strainer
Check wire netting of oil strainer for damage.
Shift Solenoid Valves “A” and “B”, Line Pressure Solenoid Valve, Torque Converter Clutch
Solenoid Valve and Overrun Clutch Solenoid Valve
Measure resistance.
Except for EURO-OBD:
For shift solenoid valve A, refer to AT- 3 5 0 , "SHIFT SOLENOID
VALVE A" .
For shift solenoid valve B, refer to AT- 3 5 6 , "SHIFT SOLENOID
VALVE B" .
For line pressure solenoid valve, refer to AT- 3 8 7 , "LINE PRES-
SURE SOLENOID VALVE" .
For torque converter clutch solenoid valve, refer to AT- 3 6 8 ,
"TORQUE CONVERTER CLUTCH SOLENOID VALVE" .
For overrun clutch solenoid valve, refer to AT- 3 6 2 , "OVERRUN
CLUTCH SOLENOID VALVE" .
For A/T fluid temperature sensor, refer toAT-374, "BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR
CIRCUIT AND TCM POWER SOURCE)" .
EURO-OBD:
For shift solenoid valve A, refer to AT- 1 6 1 , "DTC P0750 SHIFT SOLENOID VALVE A" .
For shift solenoid valve B, refer to AT- 1 6 7 , "DTC P0755 SHIFT SOLENOID VALVE B" .
For line pressure solenoid valve, refer to AT- 1 5 4 , "DTC P0745 LINE PRESSURE SOLENOID VALVE" .
For torque converter clutch solenoid valve, refer to AT- 1 4 8 , "DTC P0740 TORQUE CONVERTER
CLUTCH SOLENOID VALVE" .
For overrun clutch solenoid valve, refer to AT- 1 7 8 , "DTC P1760 OVERRUN CLUTCH SOLENOID VALVE"
.
For A/T fluid temperature sensor, refer to AT- 1 8 4 , "DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SEN-
SOR CIRCUIT AND TCM POWER SOURCE)" .
SCIA4979E
SCIA3291E
SCIA0805E
