Page 3625 of 4179

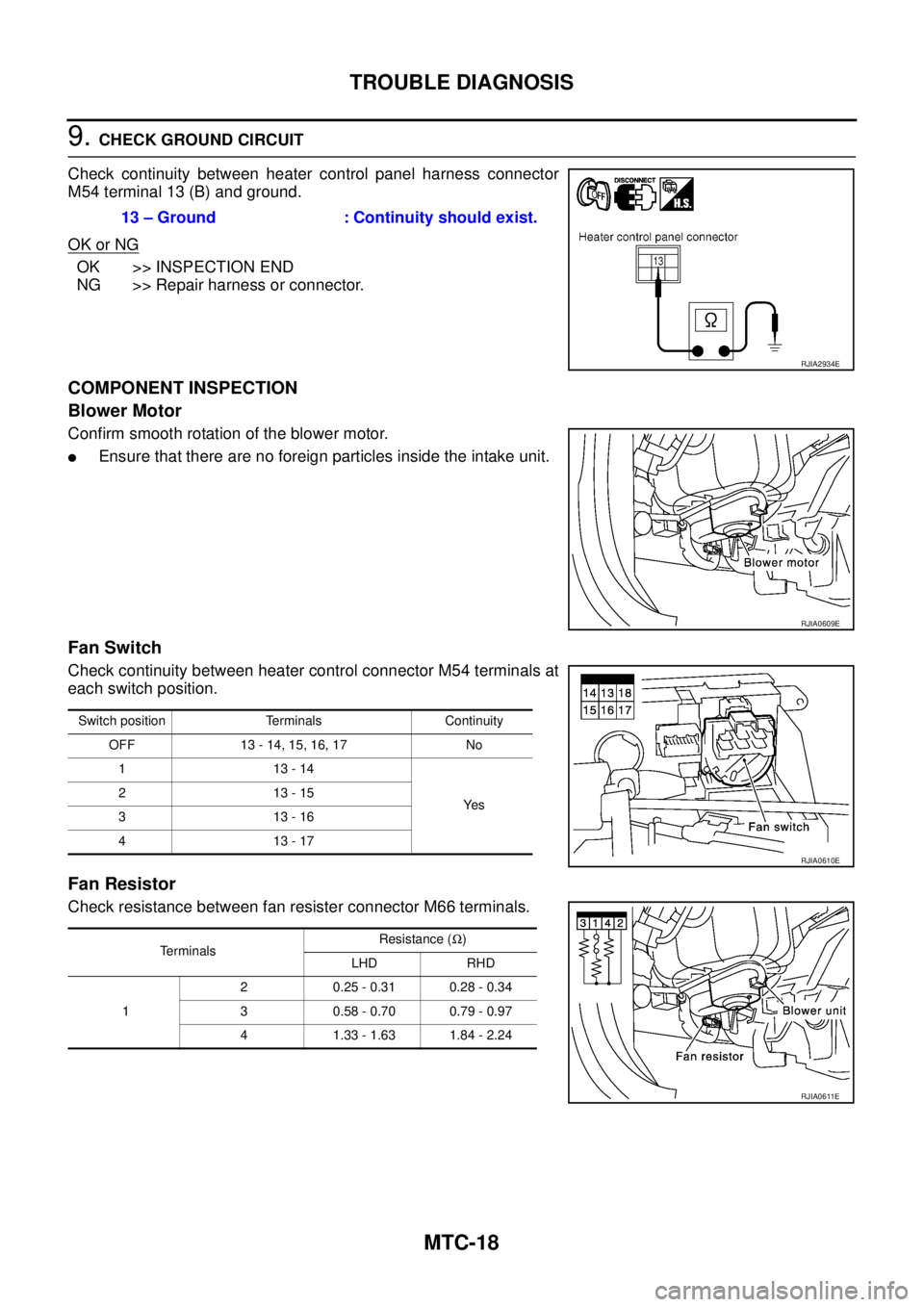

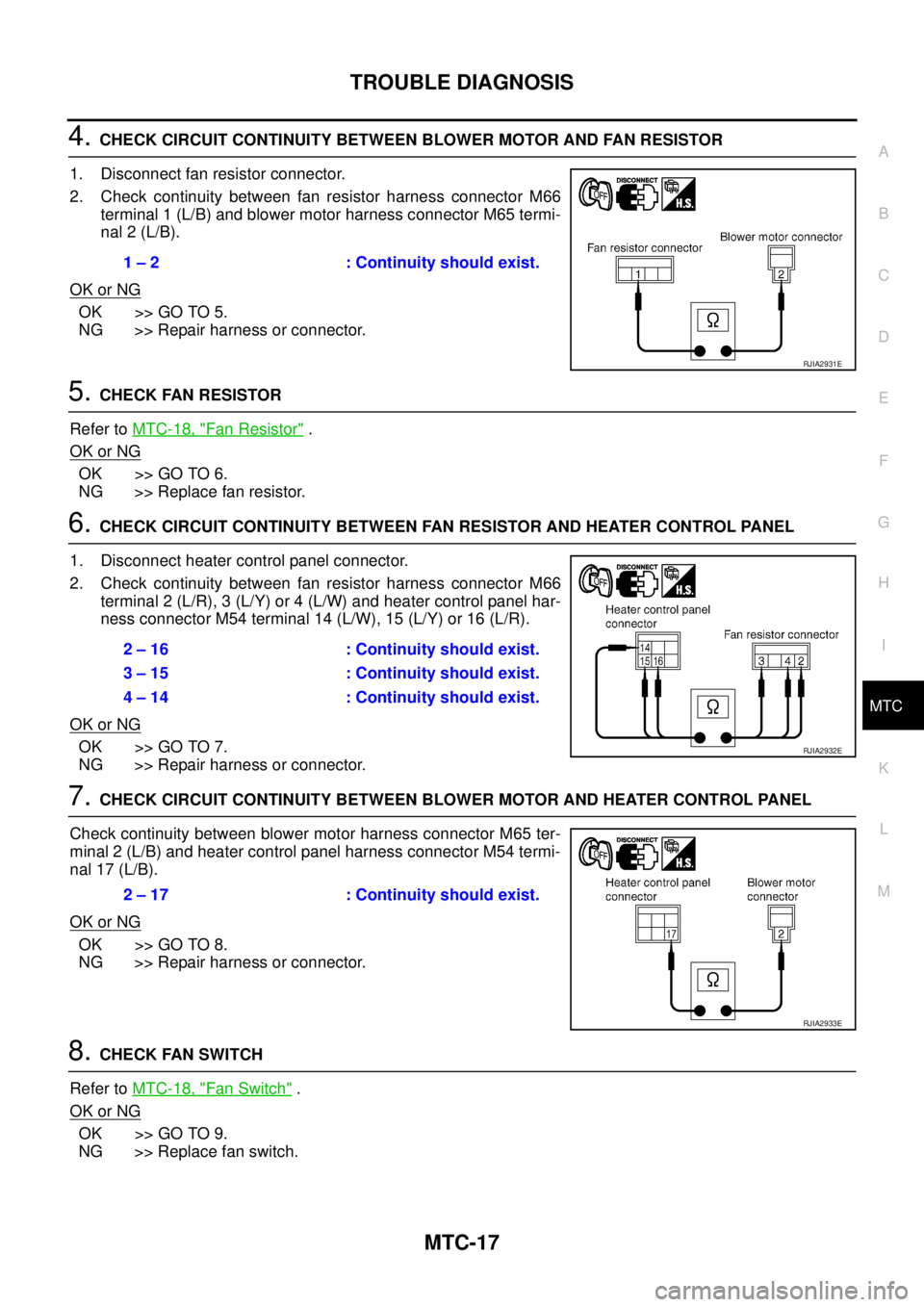

NISSAN X-TRAIL 2003 Service Repair Manual TROUBLE DIAGNOSIS MTC-17 C D E F G H I K L MA B MTC 4. CHECK CIRCUIT CONTINUITY BETWEEN BLOWER MOTOR AND FAN RESISTOR 1. Disconnect fan resistor connector. 2. Check continuity between fan resistor

Page 3626 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual MTC-18 TROUBLE DIAGNOSIS 9. CHECK GROUND CIRCUIT Check continuity between heater control panel harness connector M54 terminal 13 (B) and ground. OK or NG OK >> INSPECTION END NG >> Repair harness or

Page 3627 of 4179

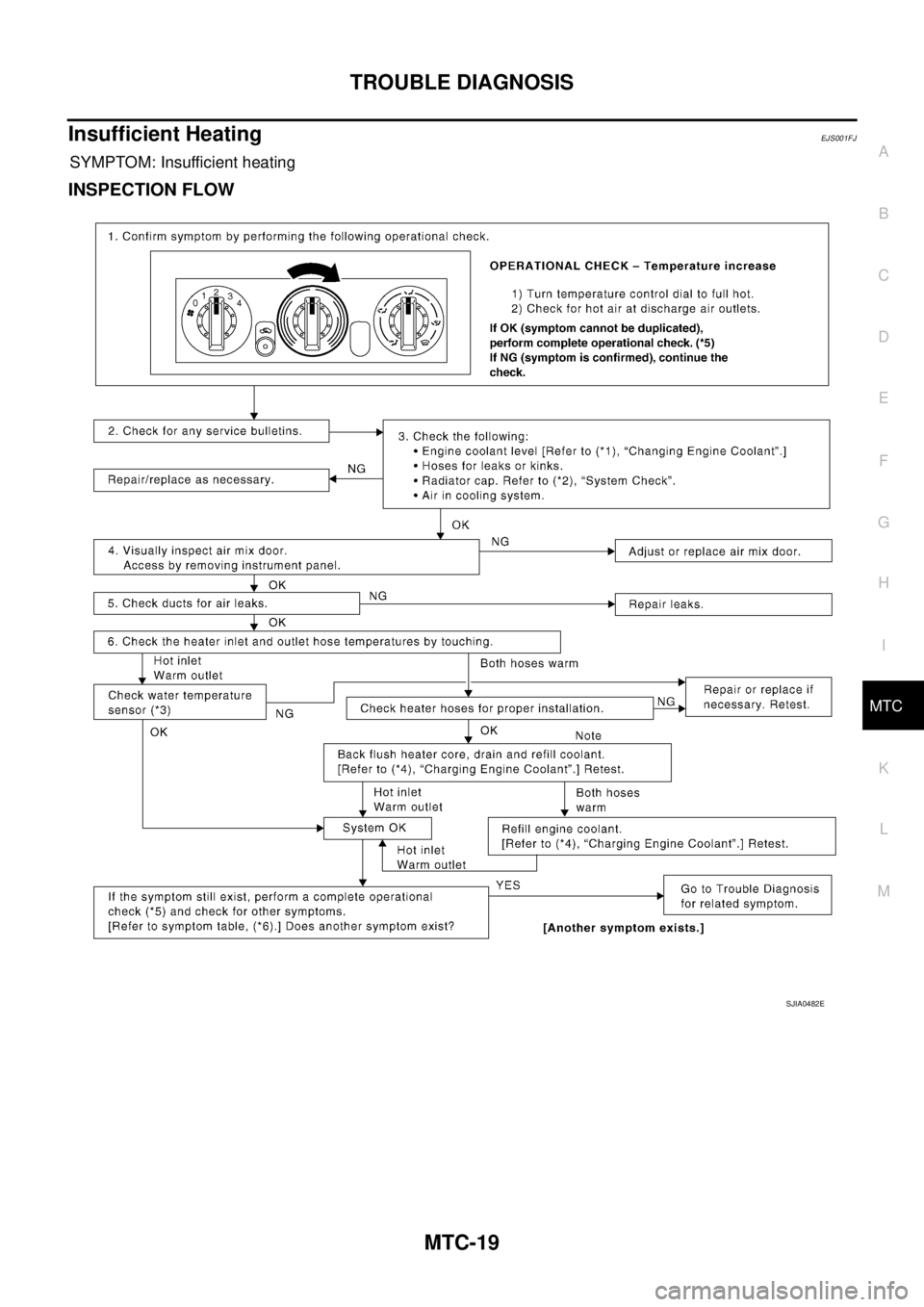

NISSAN X-TRAIL 2003 Service Repair Manual TROUBLE DIAGNOSIS MTC-19 C D E F G H I K L MA B MTC Insufficient HeatingEJS001FJ SYMPTOM: Insufficient heating INSPECTION FLOW SJIA0482E

Page 3628 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual MTC-20 TROUBLE DIAGNOSIS *1 QR engine; CO-9, "Changing Engine Coolant" or YD engine; CO-31, "Changing Engine Coolant" .*2 QR engine; CO-13, " Checking Radi- ator Cap" or YD engine; CO-35, "Chec

Page 3629 of 4179

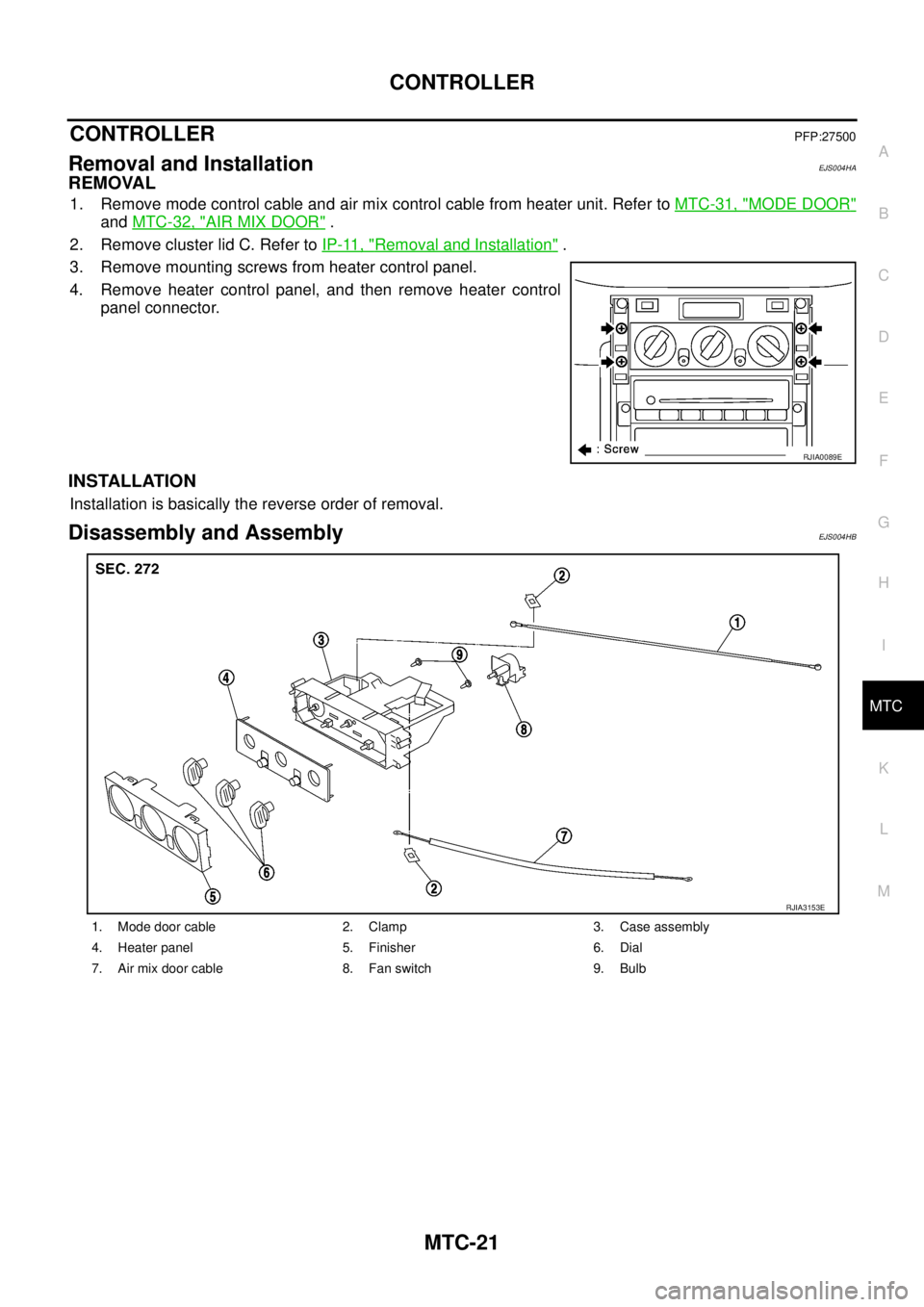

NISSAN X-TRAIL 2003 Service Repair Manual CONTROLLER MTC-21 C D E F G H I K L MA B MTC CONTROLLERPFP:27500 Removal and InstallationEJS004HA REMOVAL 1. Remove mode control cable and air mix control cable from heater unit. Refer to MTC-31, "M

Page 3630 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual MTC-22 BLOWER UNIT BLOWER UNITPFP:27200 Removal and InstallationEJS004YB REMOVAL 1. Remove glove box assembly. 2. Remove glove box cover, instrument passenger lower panel and instrument reinforcemen

Page 3631 of 4179

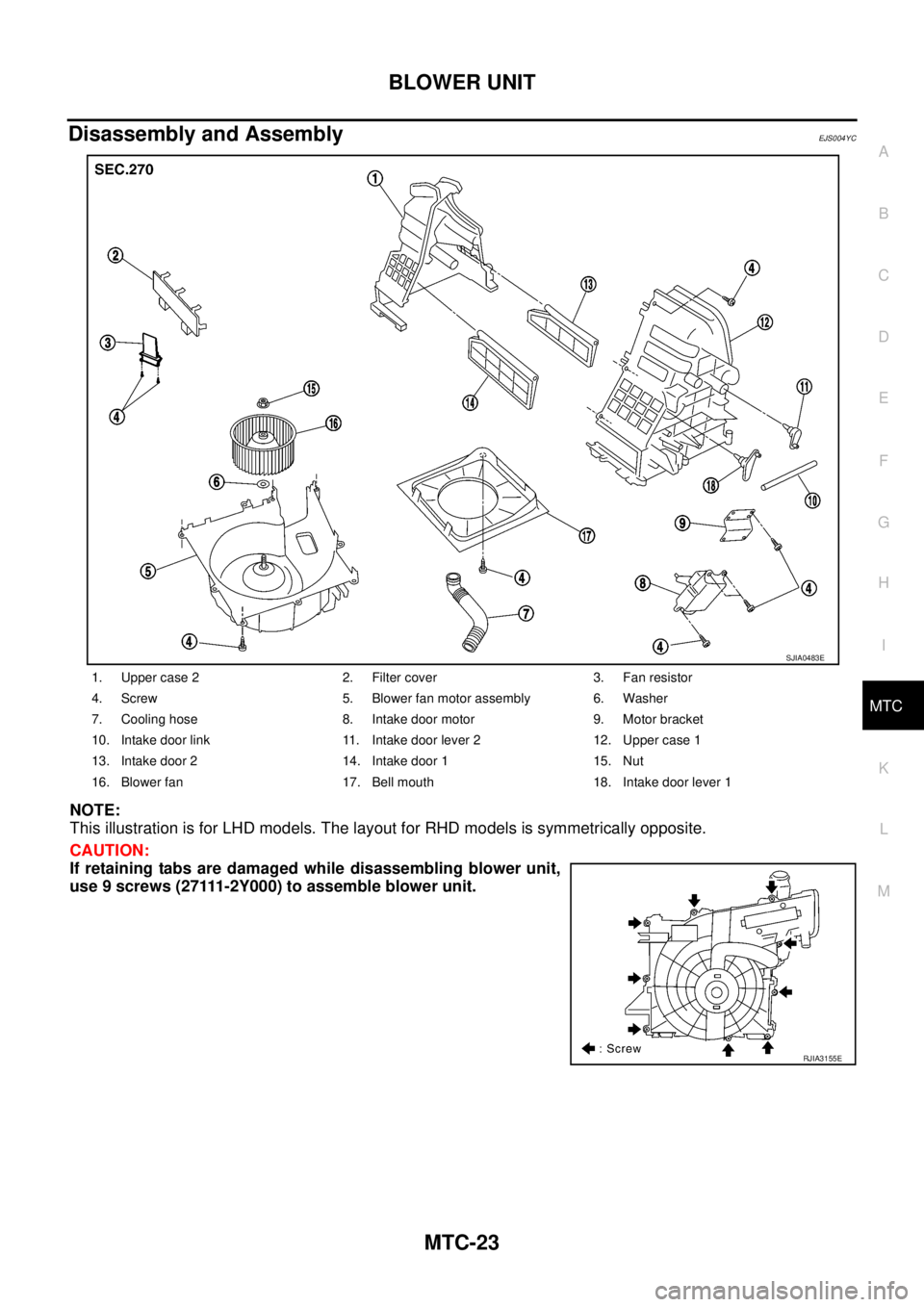

NISSAN X-TRAIL 2003 Service Repair Manual BLOWER UNIT MTC-23 C D E F G H I K L MA B MTC Disassembly and AssemblyEJS004YC NOTE: This illustration is for LHD models. The layout for RHD models is symmetrically opposite. CAUTION: If retaining t

Page 3632 of 4179

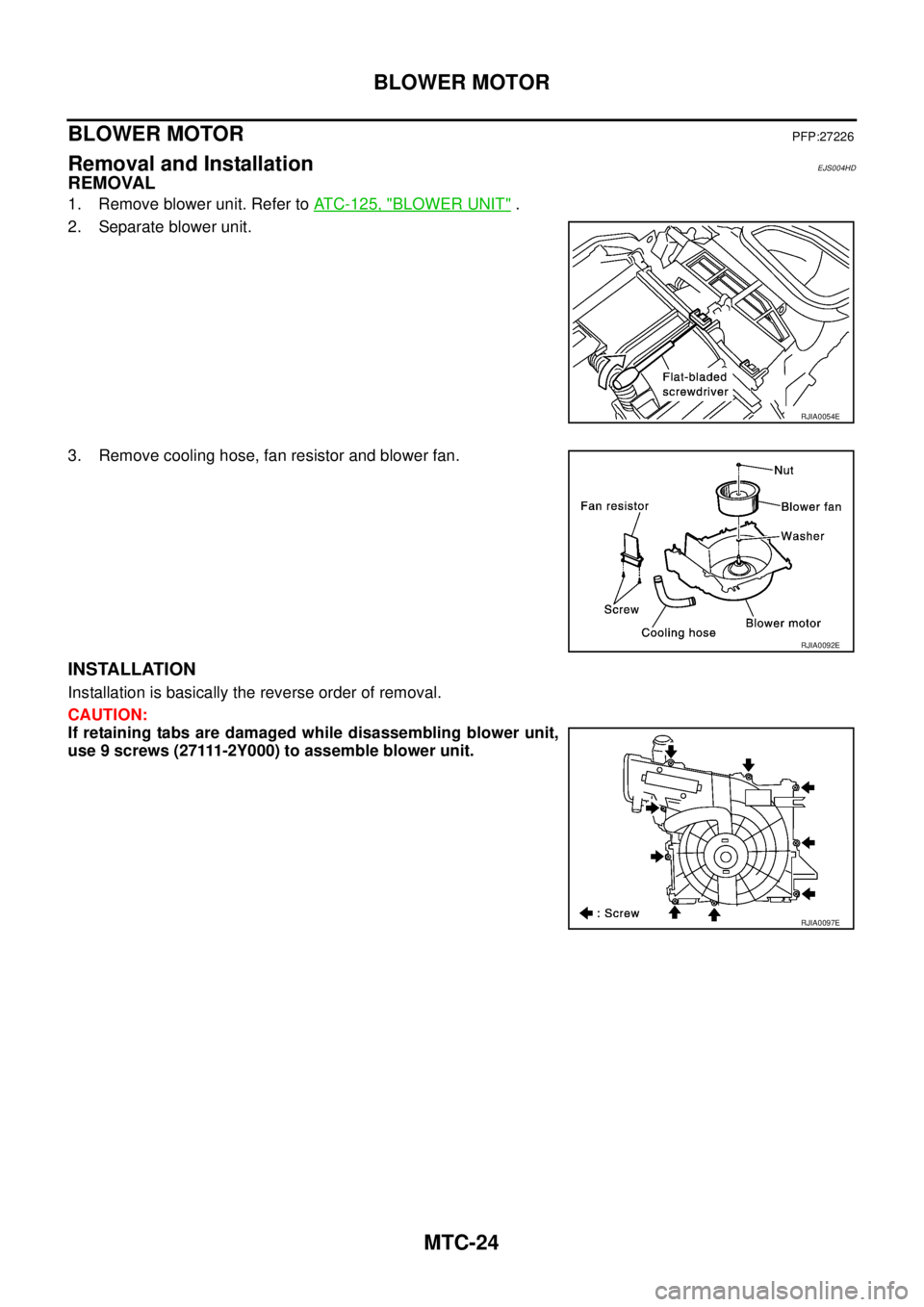

NISSAN X-TRAIL 2003 Service Repair Manual MTC-24 BLOWER MOTOR BLOWER MOTORPFP:27226 Removal and InstallationEJS004HD REMOVAL 1. Remove blower unit. Refer to ATC-125, "BLOWER UNIT" . 2. Separate blower unit. 3. Remove cooling hose, fan resis
