Page 3273 of 4179
DOOR MIRROR
GW-87
C
D
E
F
G
H
J
K
L
MA
B
GW

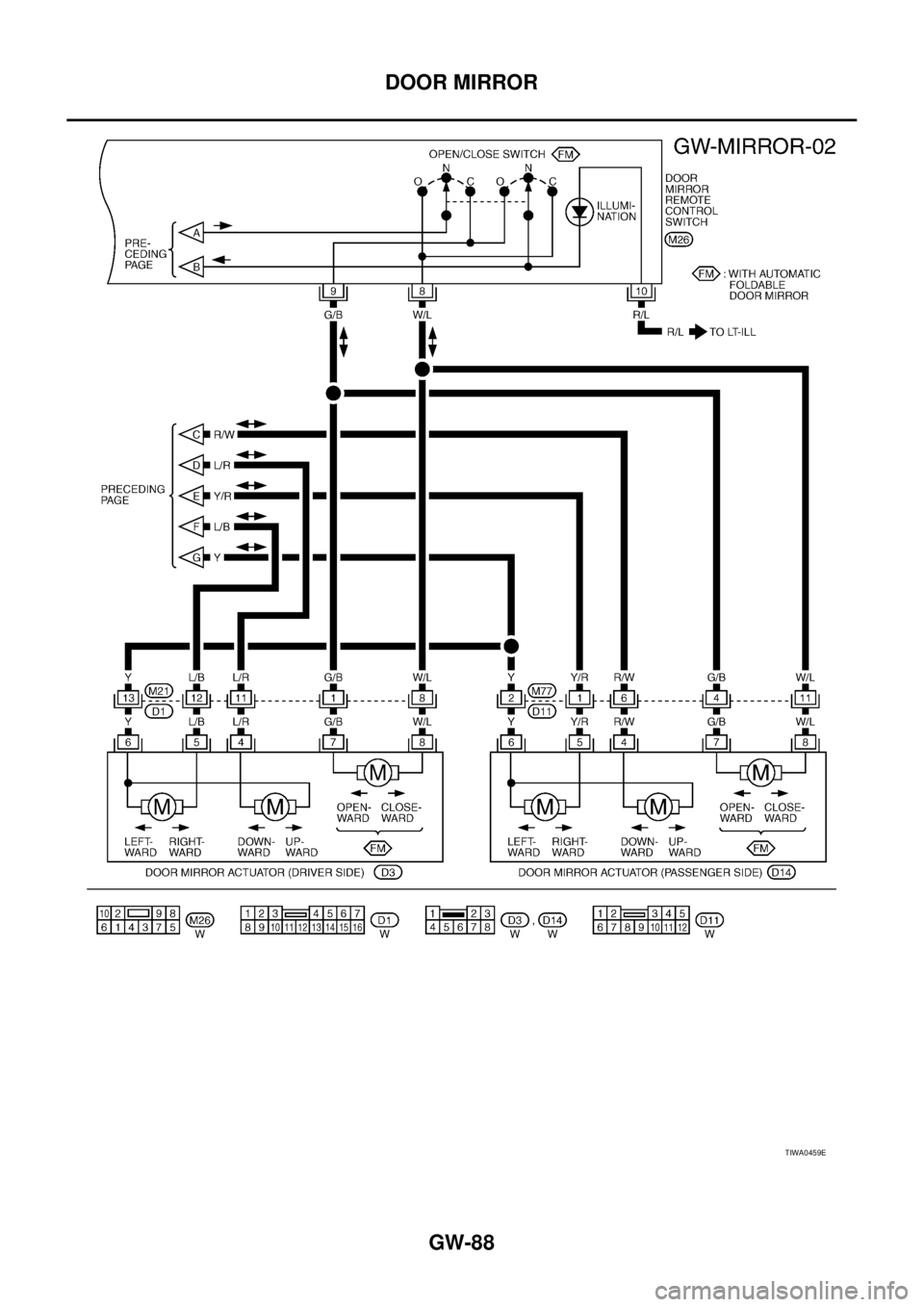

Wiring Diagram — MIRROR — / For LHD modelsEIS004JP
TIWA0458E
Page 3274 of 4179
GW-88
DOOR MIRROR
TIWA0459E
Page 3275 of 4179
DOOR MIRROR
GW-89
C
D
E
F
G
H
J
K
L
MA
B
GW

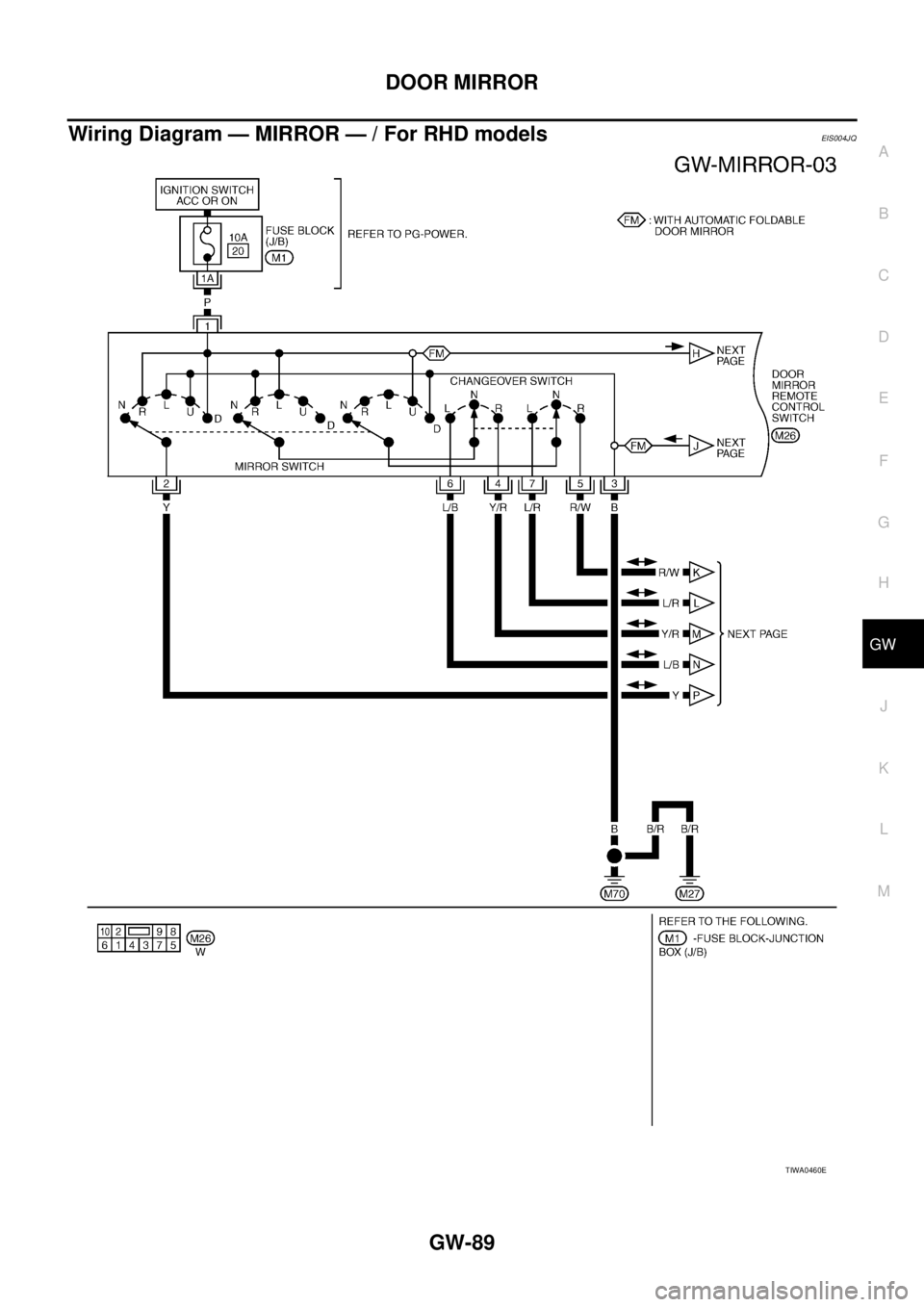

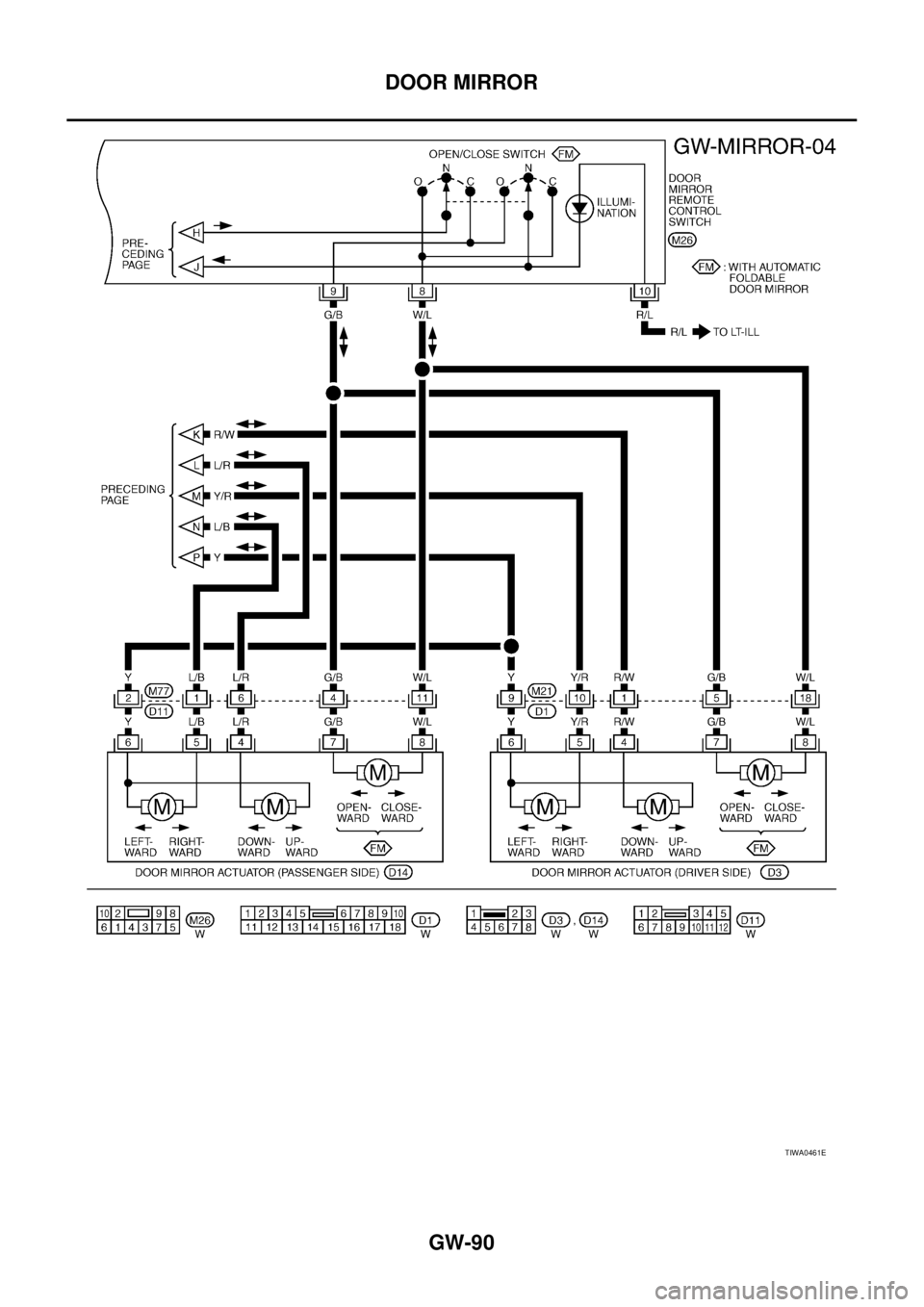

Wiring Diagram — MIRROR — / For RHD modelsEIS004JQ
TIWA0460E
Page 3276 of 4179
GW-90
DOOR MIRROR
TIWA0461E
Page 3277 of 4179
DOOR MIRROR
GW-91
C
D
E
F
G
H
J
K
L
MA
B
GW

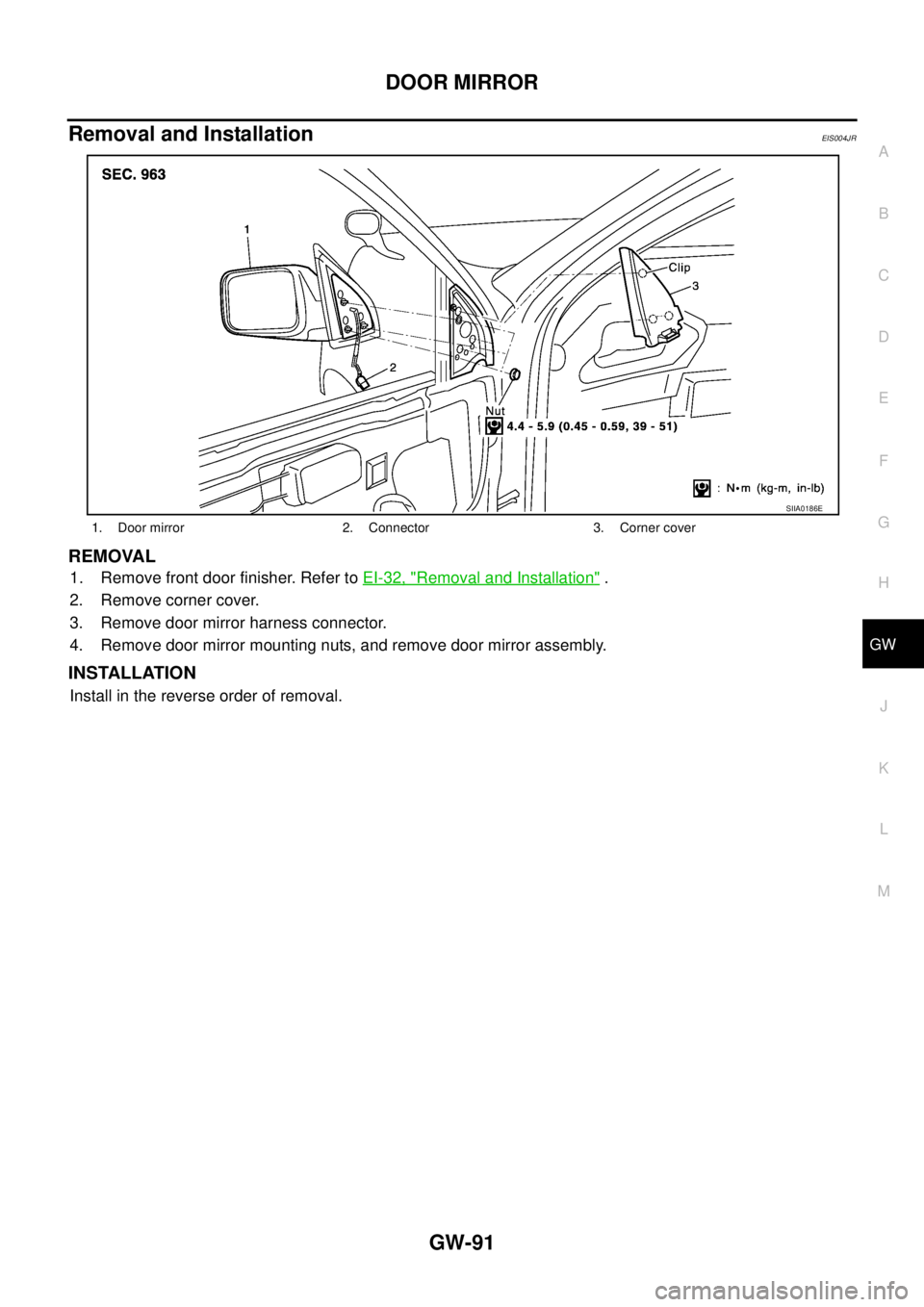

Removal and InstallationEIS004JR
REMOVAL
1. Remove front door finisher. Refer to EI-32, "Removal and Installation" .
2. Remove corner cover.
3. Remove door mirror harness connector.
4. Remove door mirror mounting nuts, and remove door mirror assembly.
INSTALLATION
Install in the reverse order of removal.
1. Door mirror 2. Connector 3. Corner cover
SIIA0186E
Page 3278 of 4179
GW-92
DOOR MIRROR

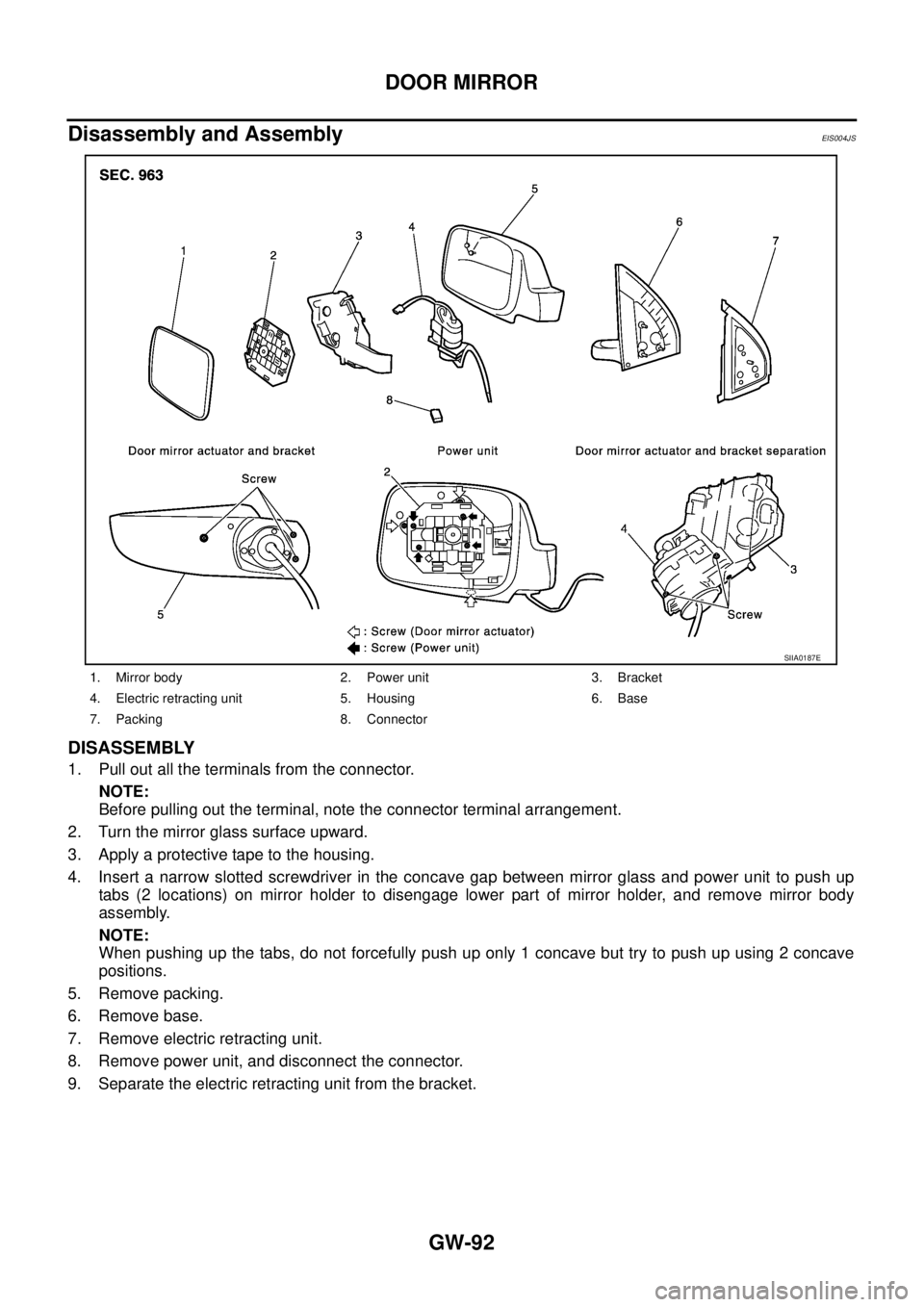

Disassembly and AssemblyEIS004JS
DISASSEMBLY
1. Pull out all the terminals from the connector.
NOTE:
Before pulling out the terminal, note the connector terminal arrangement.
2. Turn the mirror glass surface upward.
3. Apply a protective tape to the housing.
4. Insert a narrow slotted screwdriver in the concave gap between mirror glass and power unit to push up
tabs (2 locations) on mirror holder to disengage lower part of mirror holder, and remove mirror body
assembly.
NOTE:
When pushing up the tabs, do not forcefully push up only 1 concave but try to push up using 2 concave
positions.
5. Remove packing.
6. Remove base.
7. Remove electric retracting unit.
8. Remove power unit, and disconnect the connector.
9. Separate the electric retracting unit from the bracket.
1. Mirror body 2. Power unit 3. Bracket
4. Electric retracting unit 5. Housing 6. Base
7. Packing 8. Connector
SIIA0187E
Page 3279 of 4179
DOOR MIRROR
GW-93
C
D
E
F
G
H
J
K
L
MA
B
GW
ASSEMBLY
1. Install bracket to the electric retracting unit.
2. Connect power unit connector. Install electric retracting unit (bracket).
3. Install electric retracting unit and base to the housing.
4. Place power unit and mirror body assembly in a horizontal position.
5. Engage upper tabs of mirror glass with power unit. Then, press lower part of mirror glass down until the
lower part snaps to allow engagement of lower tabs.
NOTE:
After installation, visually check that the lower tabs (2) are securely engaged when viewed from the bot-
tom of mirror surface.
6. Install the packing to the base.
7. Insert the harness terminal into the connector.
NOTE:
Make sure to insert the harness terminal into the correct connector. Do not confuse the locations.
Page 3280 of 4179
GW-94
INSIDE MIRROR
INSIDE MIRRORPFP:96321
Removal and InstallationEIS008O4
REMOVAL
Remove the screws securing inside mirror assembly and mirror base
as shown in the figure.
INSTALLATION
Install in the reverse order of removal.
SIIA1024E
