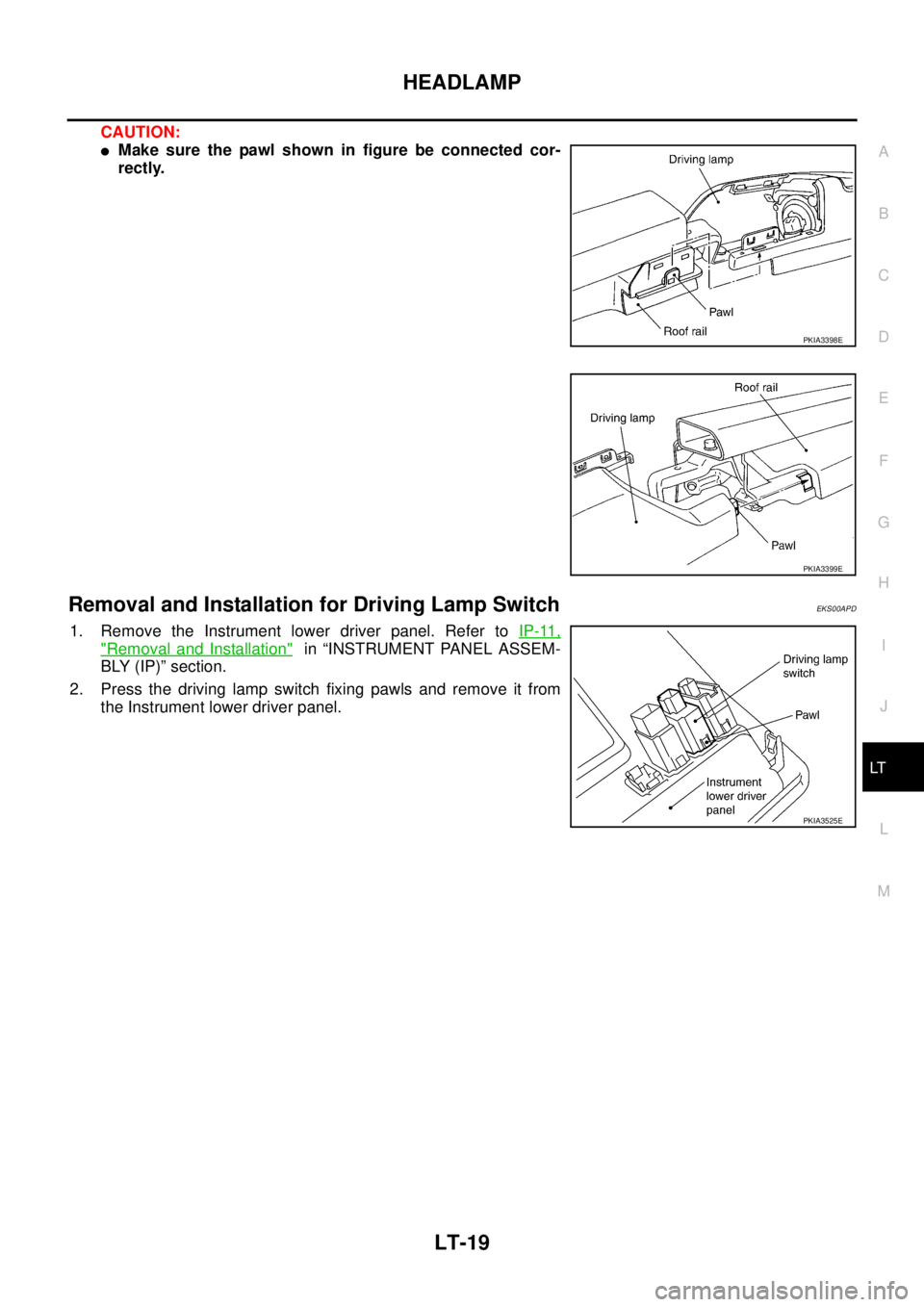

CAUTION:
Make sure the pawl shown in figure be connected cor-
rectly.
Removal and Installation for Driving Lamp SwitchEKS00APD
1. Remove the Instrument lowe

Page 4098 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual LT-20
HEADLAMP - DAYTIME LIGHT SYSTEM -

HEADLAMP - DAYTIME LIGHT SYSTEM -PFP:26010
System DescriptionEKS003BB
DESCRIPTION
The headlamp system on vehicles for North Europe contains a daytime light co

LT-20
HEADLAMP - DAYTIME LIGHT SYSTEM -

HEADLAMP - DAYTIME LIGHT SYSTEM -PFP:26010
System DescriptionEKS003BB
DESCRIPTION
The headlamp system on vehicles for North Europe contains a daytime light control unit. The unit activates the
following whenever the engine is running with the lighting switch in the OFF position:
Low beam headlamps
Parking, license, tail and illumination lamps
Power is supplied at all times
through 10A fuse (No. 31, located in the fuse and fusible link box)
to daytime light control unit terminal 1 and
to lighting switch terminal 11.
Power is also supplied at all times
through 15A fuse (No. 41, located in the fuse and fusible link box)
to daytime light control unit terminal 3 and
to lighting switch terminal 5.
Power is also supplied at all times
through 15A fuse (No. 40, located in the fuse and fusible link box)
to daytime light control unit terminal 2 and
to lighting switch terminal 8.
With the ignition switch in the ON or START position, power is supplied
through 10A fuse [No. 13, located in the fuse block (J/B)]
to daytime light control unit terminal 7.
With the ignition switch in the START position, power is supplied
through 10A fuse [No. 7, located in the fuse block (J/B)]
to daytime light control unit terminal 6.
HEADLAMP OPERATION (DAYTIME LIGHT CANCEL OPERATION)
When the lighting switch is turned to the 1st or 2nd position, power is supplied
through lighting switch terminal 12
to daytime light control unit terminal 11.
Then daytime light will be canceled. And the lighting system operation will be the same as no daytime light
system.
DAYTIME LIGHT OPERATION
With the engine running and the lighting switch in the OFF position, power is supplied
from alternator terminal 3
to daytime light control unit terminal 8,
through daytime light control unit terminal 5
to terminal 3 of headlamp LH,
through daytime light control unit terminal 4
to terminal 3 of headlamp RH and
through daytime light control unit terminal 10
to tail lamp and illumination.
Ground is supplied to terminal 2 of each headlamp through body grounds E24 and E50.
DRIVING LAMP OPERATION
To turn the driving lamp on, push the driving lamp switch when the lighting switch is turned to the 2ND position
and placed in HIGH position or PASS position, power is supplied
from lighting switch terminal 9
to headlamp LH terminal 1
to driving lamp relay-1 terminal 1

Page 4099 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual HEADLAMP - DAYTIME LIGHT SYSTEM -
LT-21
C
D
E
F
G
H
I
J
L
MA
B
LT

to driving lamp switch terminal 7
to combination meter terminal 20 for the HIGH BEAM indicator
to driving lamp relay-2 terminal

Page 4100 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual LT-22
HEADLAMP - DAYTIME LIGHT SYSTEM -

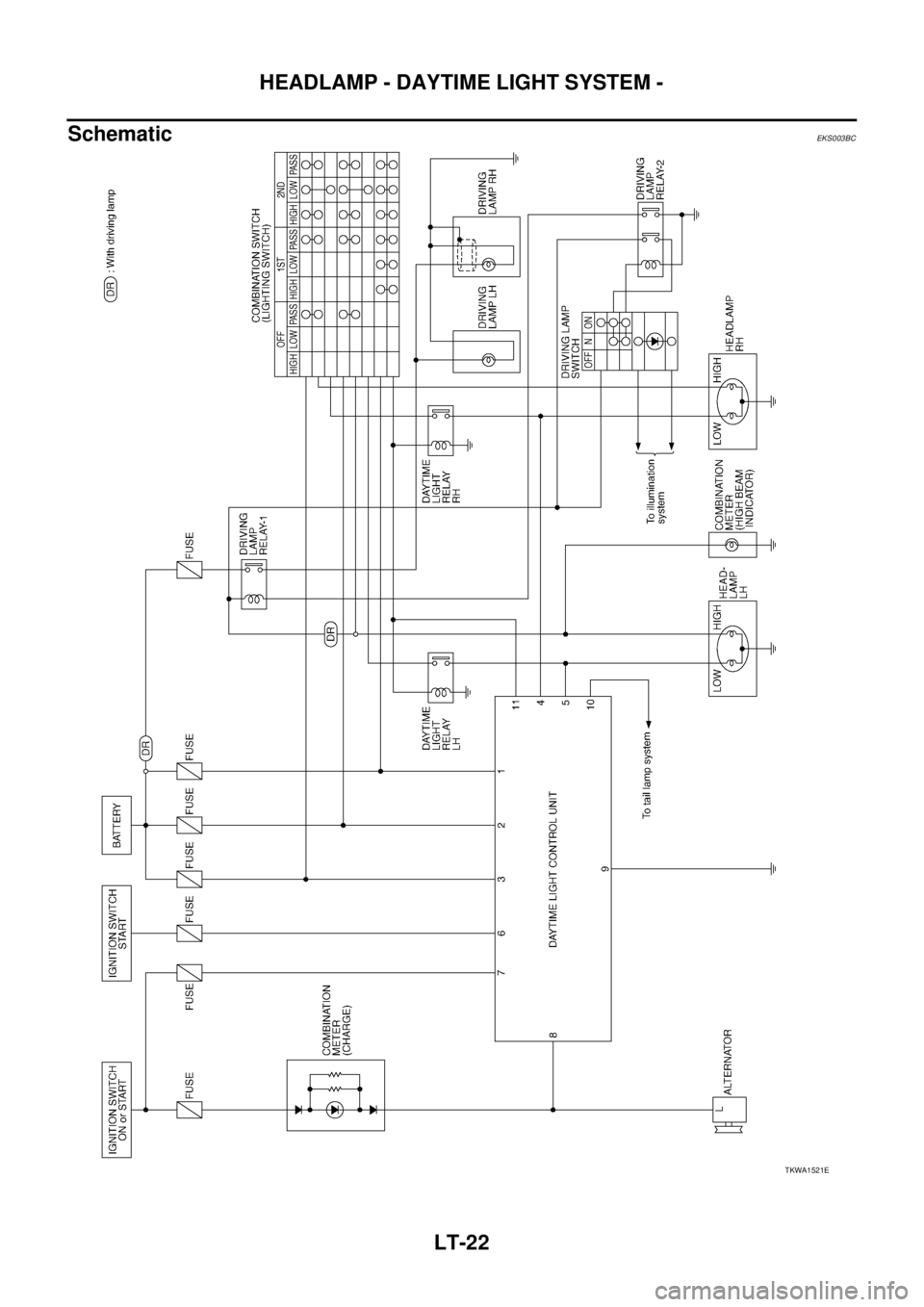

SchematicEKS003BC
TKWA1521E

Page 4101 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual HEADLAMP - DAYTIME LIGHT SYSTEM -
LT-23
C
D
E
F
G
H
I
J
L
MA
B
LT

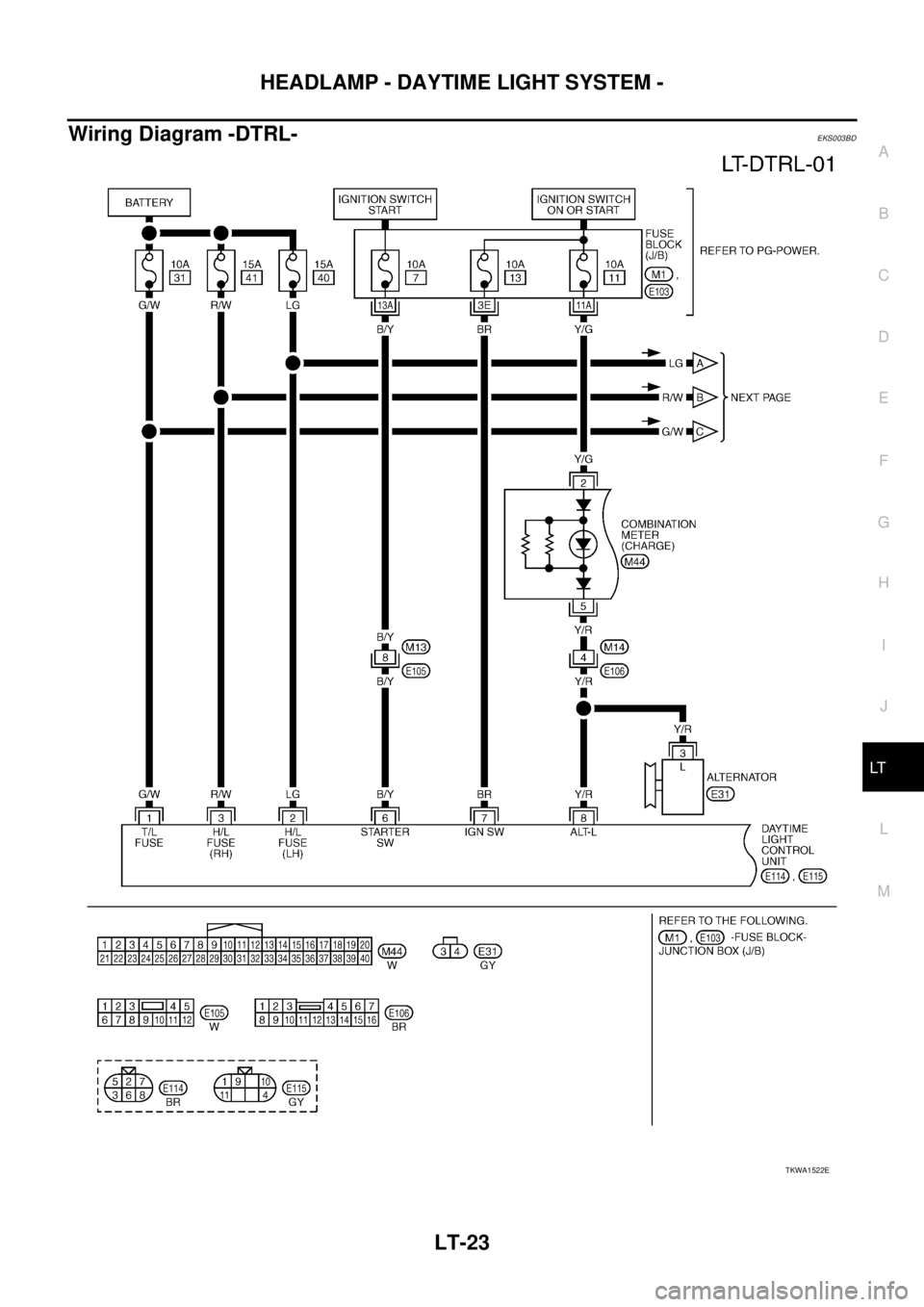

Wiring Diagram -DTRL-EKS003BD
TKWA1522E

Page 4102 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual LT-24
HEADLAMP - DAYTIME LIGHT SYSTEM -

TKWA0062E

Page 4103 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual HEADLAMP - DAYTIME LIGHT SYSTEM -
LT-25
C
D
E
F
G
H
I
J
L
MA
B
LT

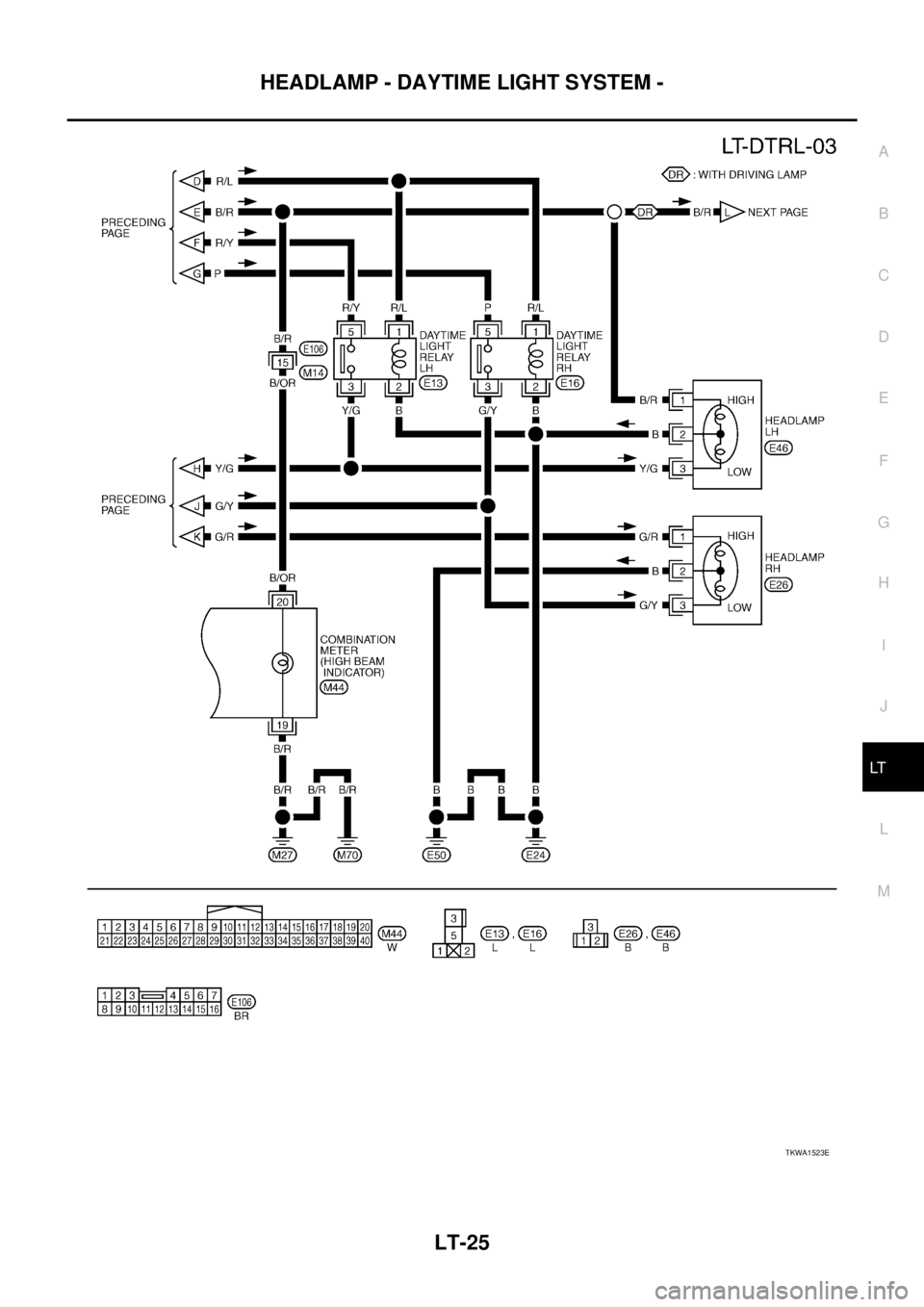

TKWA1523E

Page 4104 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual LT-26
HEADLAMP - DAYTIME LIGHT SYSTEM -

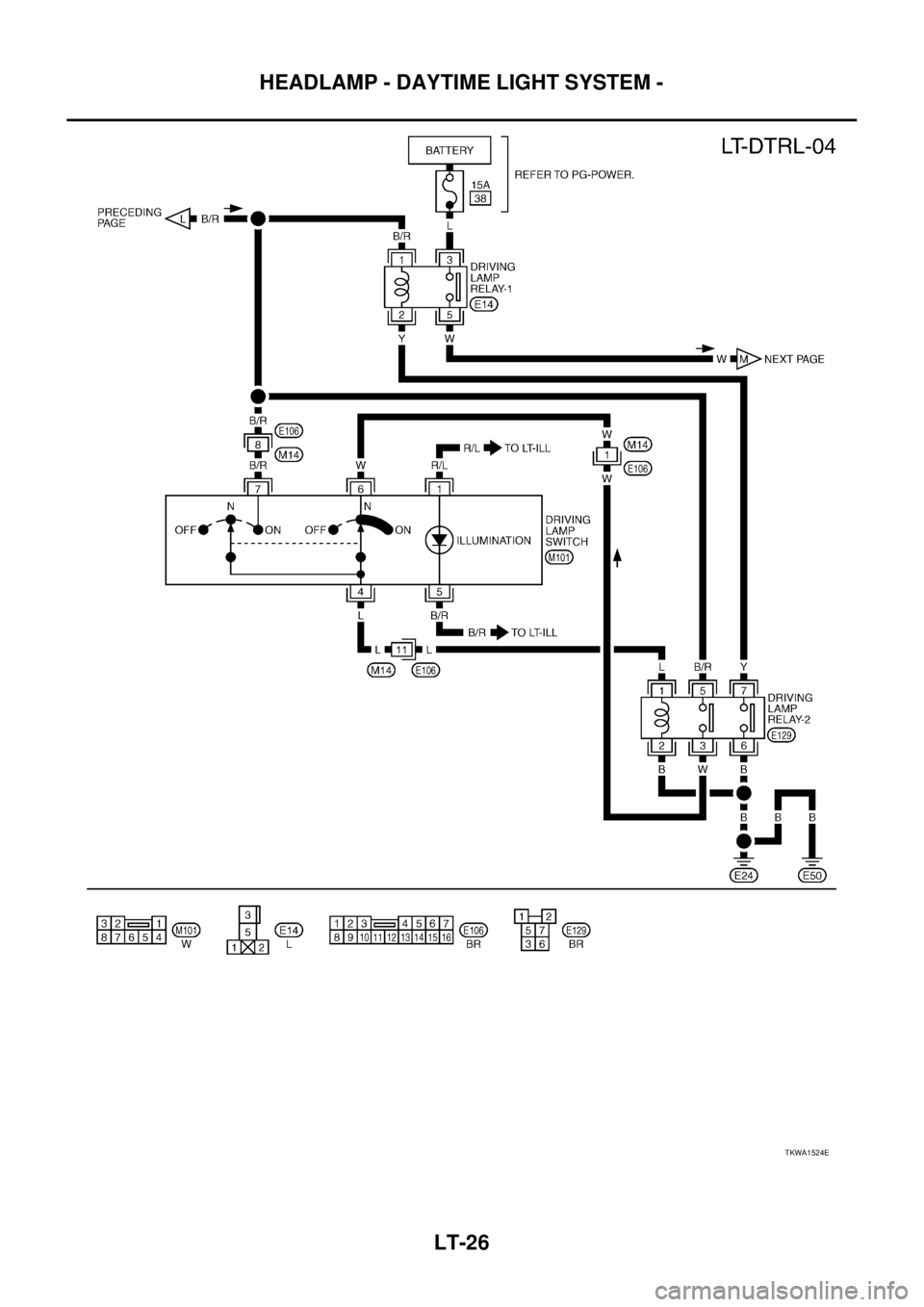

TKWA1524E
