NISSAN X-TRAIL 2003 Service Repair Manual ASSEMBLY AT-517 [ALL] D E F G H I J K L MA B AT c. Install low & reverse brake piston and retainer on transaxle case. CAUTION: Align bracket to specified gutter as indicated in the figure. d. Make s

Page 2554 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual AT-518 [ALL] ASSEMBLY 14. Install snap ring with flat-bladed screwdriver. CAUTION: Forward clutch and bearing must be correctly installed for snap ring to fit into groove of transaxle case. 15. Inst

Page 2555 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual ASSEMBLY AT-519 [ALL] D E F G H I J K L MA B AT b. Install high clutch hub on front sun gear. 17. Install input shaft assembly (high clutch assembly) according to the following procedures. a. Instal

Page 2556 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual AT-520 [ALL] ASSEMBLY 18. Install reverse clutch assembly on input shaft assembly (high clutch drum). Adjustment (2)ECS004MG When any parts listed below are replaced, adjust total end play and rever

Page 2557 of 4179

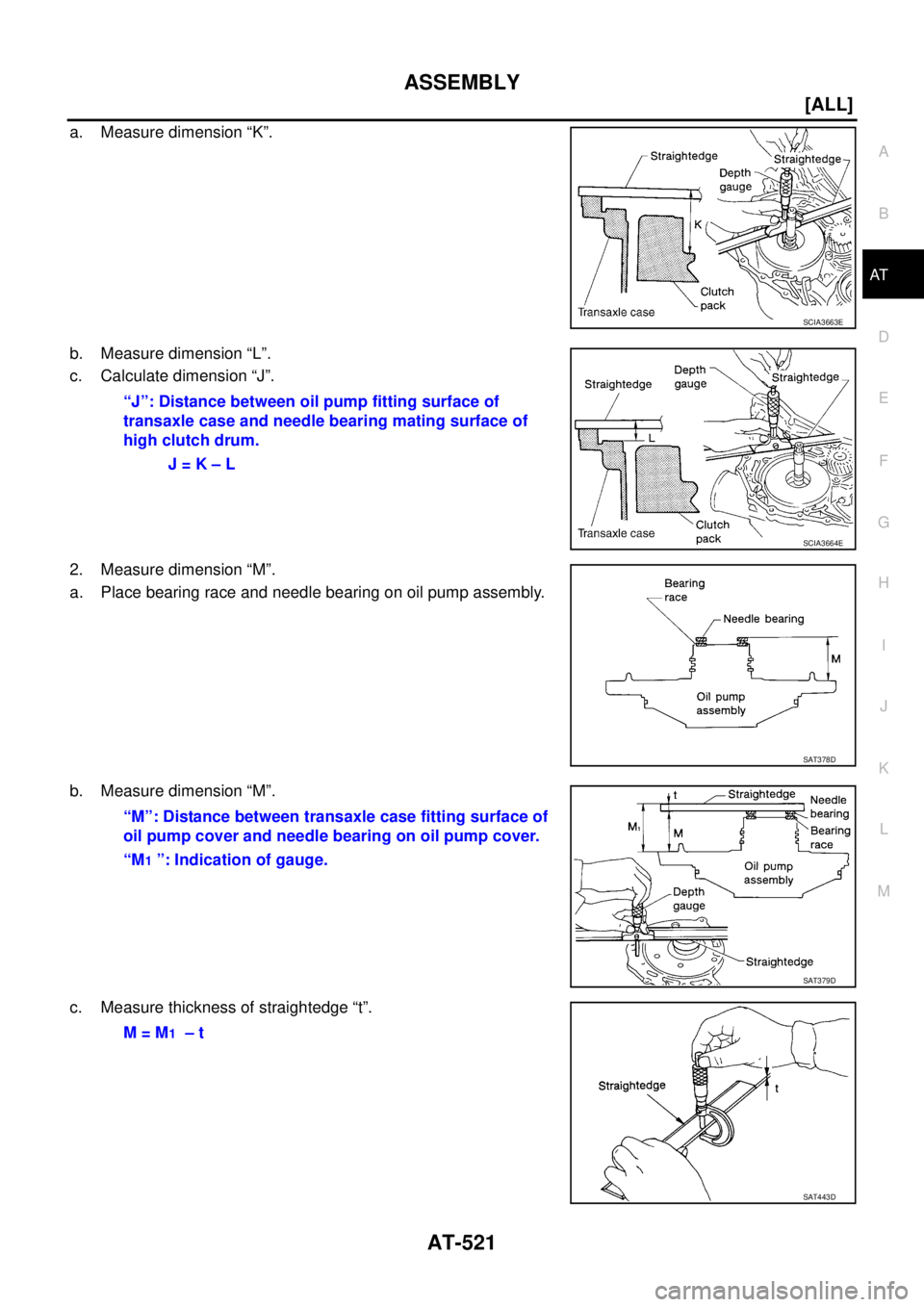

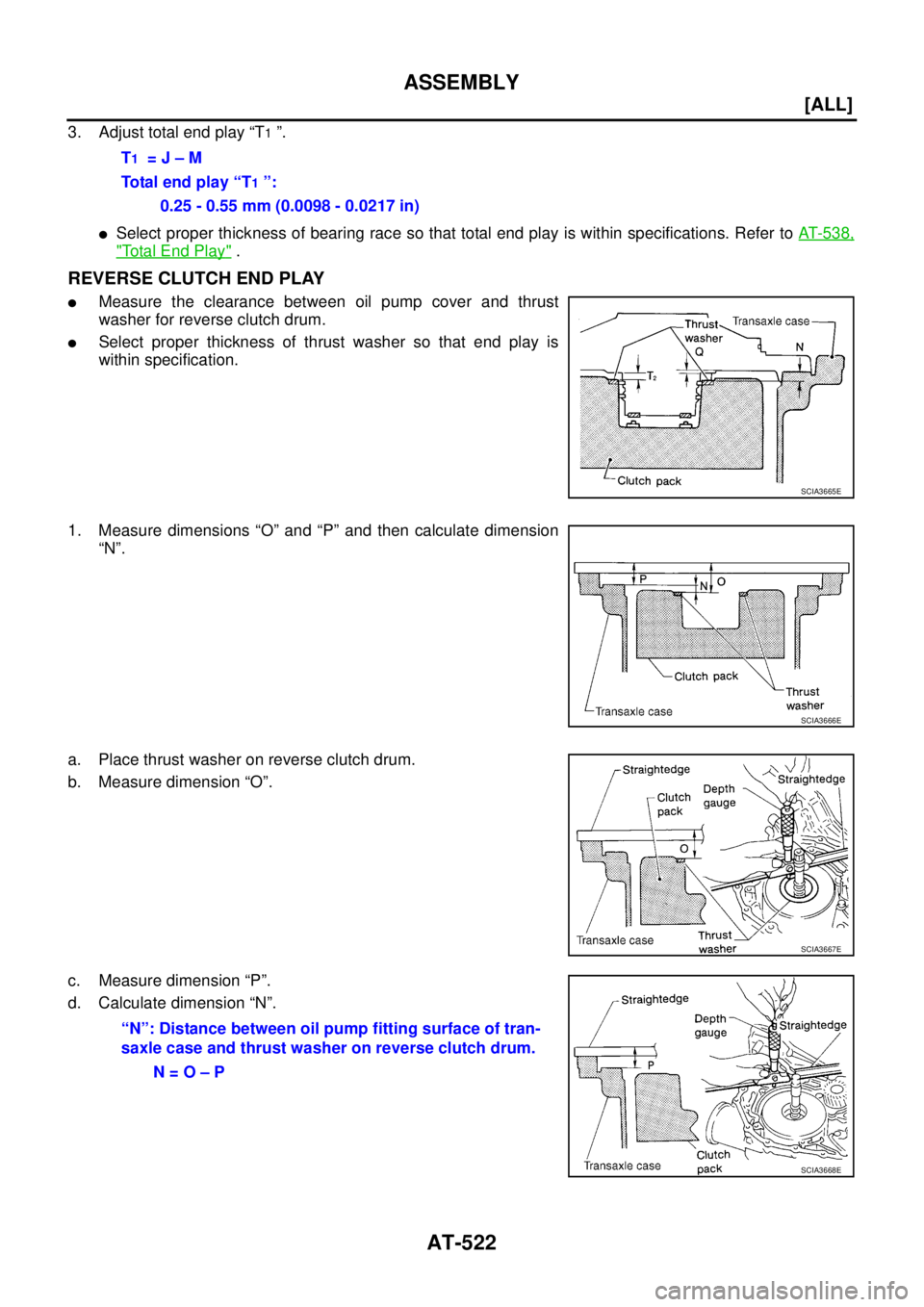

NISSAN X-TRAIL 2003 Service Repair Manual ASSEMBLY AT-521 [ALL] D E F G H I J K L MA B AT a. Measure dimension “K”. b. Measure dimension “L”. c. Calculate dimension “J”. 2. Measure dimension “M”. a. Place bearing race and ne

Page 2558 of 4179

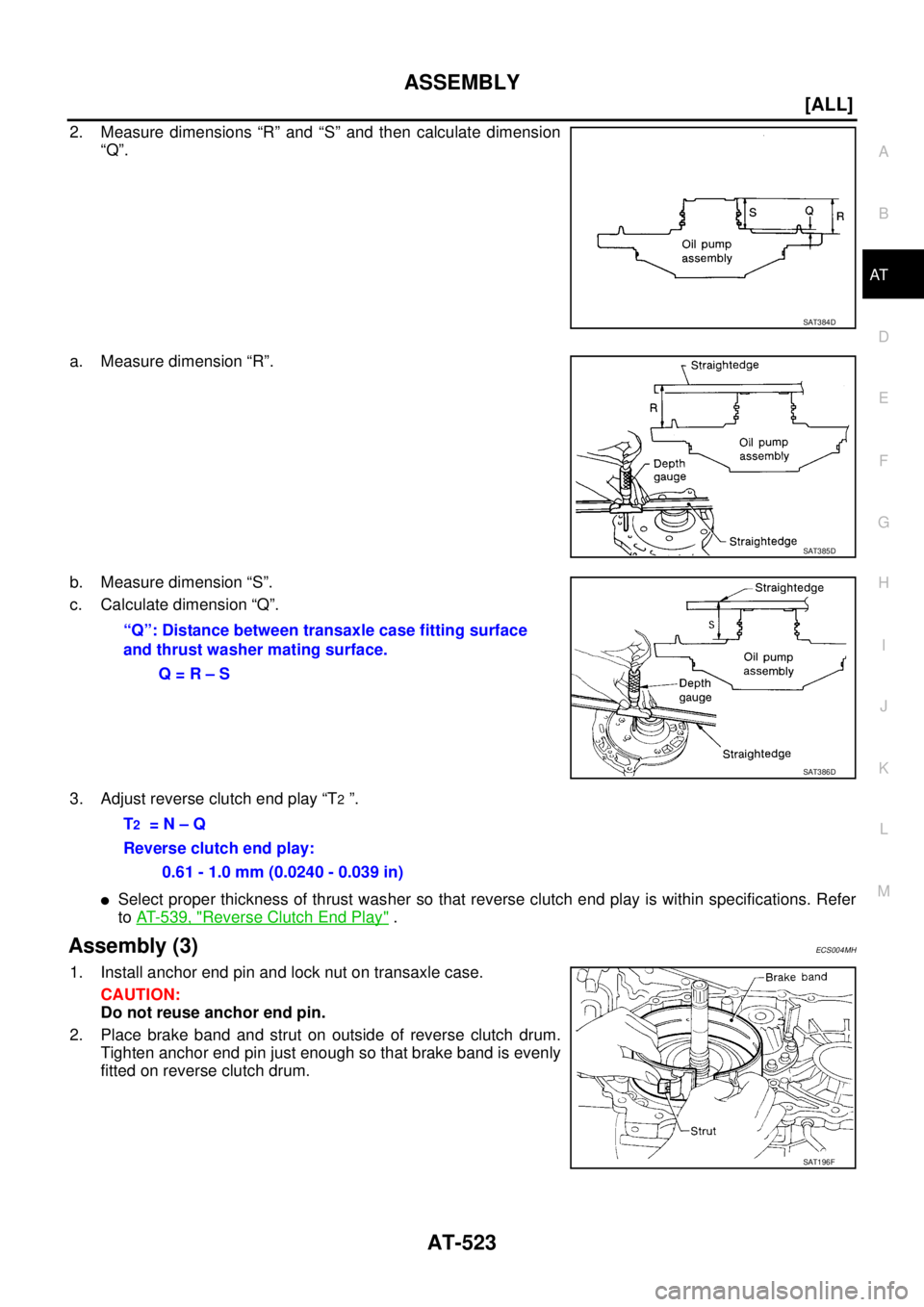

NISSAN X-TRAIL 2003 Service Repair Manual AT-522 [ALL] ASSEMBLY 3. Adjust total end play “T1 ”. Select proper thickness of bearing race so that total end play is within specifications. Refer to AT- 5 3 8 , "Total End Play" . REVERSE CL

Page 2559 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual ASSEMBLY AT-523 [ALL] D E F G H I J K L MA B AT 2. Measure dimensions “R” and “S” and then calculate dimension “Q”. a. Measure dimension “R”. b. Measure dimension “S”. c. Calcula

Page 2560 of 4179

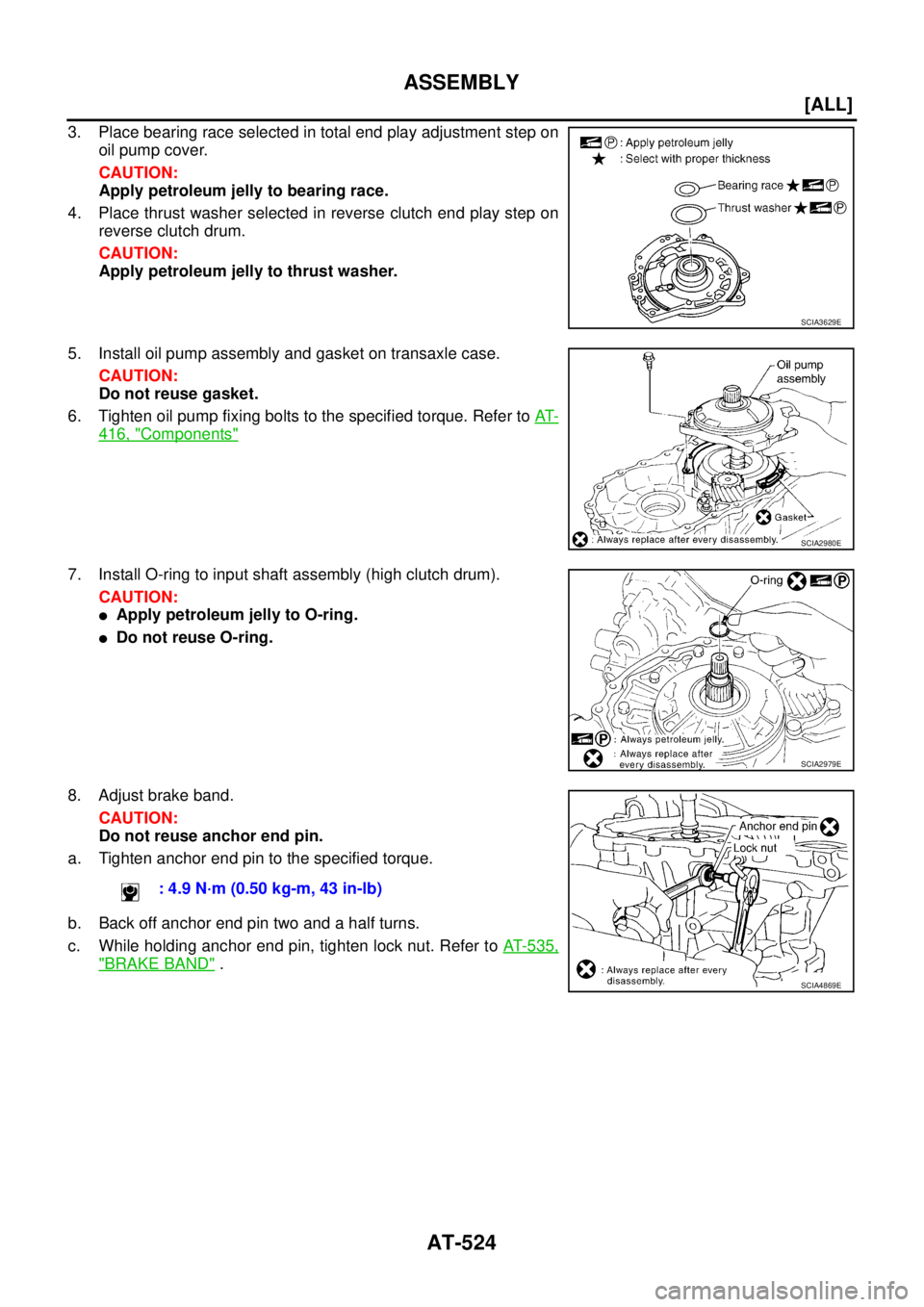

NISSAN X-TRAIL 2003 Service Repair Manual AT-524 [ALL] ASSEMBLY 3. Place bearing race selected in total end play adjustment step on oil pump cover. CAUTION: Apply petroleum jelly to bearing race. 4. Place thrust washer selected in reverse c
