Page 513 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual DTC P0011 IVT CONTROL
EC-135
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0011 IVT CONTROLPFP:23796
DescriptionEBS010MG
SYSTEM DESCRIPTION
*: This signal is sent to the ECM through CAN commun NISSAN X-TRAIL 2003 Service Repair Manual DTC P0011 IVT CONTROL
EC-135
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0011 IVT CONTROLPFP:23796
DescriptionEBS010MG
SYSTEM DESCRIPTION
*: This signal is sent to the ECM through CAN commun](/manual-img/5/57404/w960_57404-512.png)
DTC P0011 IVT CONTROL
EC-135
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0011 IVT CONTROLPFP:23796
DescriptionEBS010MG

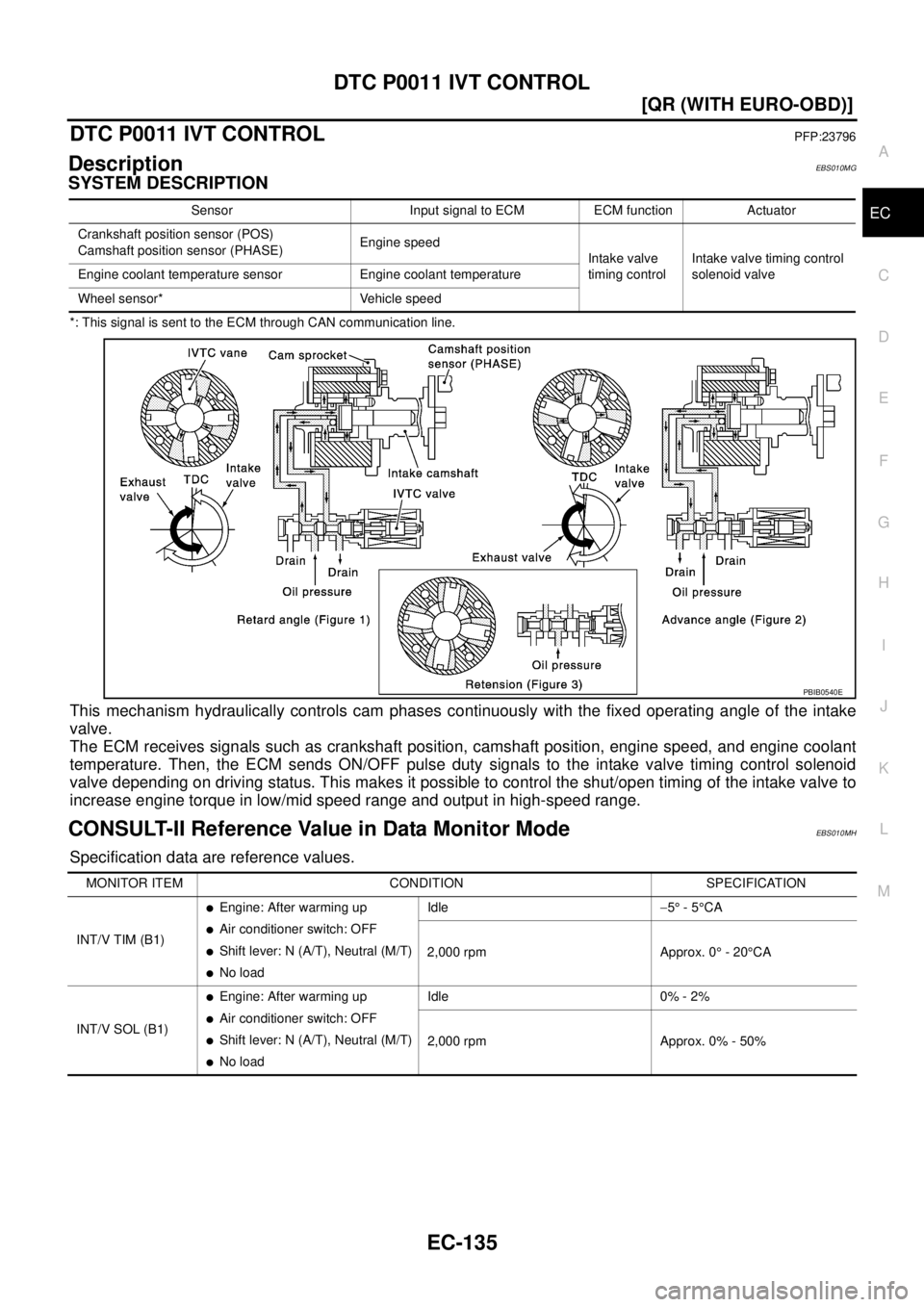

SYSTEM DESCRIPTION
*: This signal is sent to the ECM through CAN communication line.
This mechanism hydraulically controls cam phases continuously with the fixed operating angle of the intake
valve.
The ECM receives signals such as crankshaft position, camshaft position, engine speed, and engine coolant
temperature. Then, the ECM sends ON/OFF pulse duty signals to the intake valve timing control solenoid
valve depending on driving status. This makes it possible to control the shut/open timing of the intake valve to
increase engine torque in low/mid speed range and output in high-speed range.
CONSULT-II Reference Value in Data Monitor ModeEBS010MH
Specification data are reference values.
Sensor Input signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)Engine speed
Intake valve
timing controlIntake valve timing control
solenoid valve Engine coolant temperature sensor Engine coolant temperature
Wheel sensor* Vehicle speed
PBIB0540E
MONITOR ITEM CONDITION SPECIFICATION
INT/V TIM (B1)
Engine: After warming up
Air conditioner switch: OFF
Shift lever: N (A/T), Neutral (M/T)
No loadIdle−5° - 5°CA
2,000 rpm Approx. 0° - 20°CA
INT/V SOL (B1)
Engine: After warming up
Air conditioner switch: OFF
Shift lever: N (A/T), Neutral (M/T)
No loadIdle 0% - 2%
2,000 rpm Approx. 0% - 50%
Page 514 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EC-136
[QR (WITH EURO-OBD)]
DTC P0011 IVT CONTROL
On Board Diagnosis LogicEBS010MI
The MI will not light up for this diagnosis.
FAIL-SAFE MODE
ECM enters in fail-safe mode when the malfunction is de NISSAN X-TRAIL 2003 Service Repair Manual EC-136
[QR (WITH EURO-OBD)]
DTC P0011 IVT CONTROL
On Board Diagnosis LogicEBS010MI
The MI will not light up for this diagnosis.
FAIL-SAFE MODE
ECM enters in fail-safe mode when the malfunction is de](/manual-img/5/57404/w960_57404-513.png)
EC-136
[QR (WITH EURO-OBD)]
DTC P0011 IVT CONTROL
On Board Diagnosis LogicEBS010MI
The MI will not light up for this diagnosis.
FAIL-SAFE MODE
ECM enters in fail-safe mode when the malfunction is detected.
DTC Confirmation ProcedureEBS010MJ
CAUTION:
Always drive at a safe speed.
NOTE:
If DTC P0011 is displayed with DTC P1111, first perform trouble diagnosis for DTC P1111. See EC-
286 .
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait
at least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 10V and 16V at
idle.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.
2. Start engine and warm it up to the normal operating tempera-
ture.
3. Maintain the following conditions for at least 6 consecutive sec-
onds.
Hold the accelerator pedal as steady as possible.
4. Let engine idle for 10 seconds.
5. If the 1st trip DTC is detected, go to EC-137, "
Diagnostic Procedure" .
If the 1st trip DTC is not detected, go to next step.
6. Maintain the following conditions for at least 20 consecutive seconds.
7. If 1st trip DTC is detected, go to EC-137, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
DTC No.Trouble diagnosis
nameDetecting condition Possible cause
P0011
0011Intake valve timing
control performanceThere is a gap between angle of target and
phase-control angle degree.
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)
Accumulation of debris to the signal pick-up
portion of the camshaft
Detected items Engine operating condition in fail-safe mode
Intake valve timing control The signal is not energized to the solenoid valve and the valve control does not function
ENG SPEED 1,200 - 2,000 rpm (A constant rotation is maintained.)
COOLANT TEMPS 60 - 120°C (176 - 194°F)
Selector leverA/T: P or N position
M/T: Neutral position
ENG SPEED 1,700 - 3,175 rpm (A constant rotation is maintained.)
COOLANT TEMPS 70 - 105°C (176 - 194°F)
Selector lever 1st or 2nd position
Driving location uphillDriving vehicle uphill
(Increased engine load will help maintain the driving
conditions required for this test.)
SEF174Y
Page 515 of 4179
DTC P0011 IVT CONTROL
EC-137
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

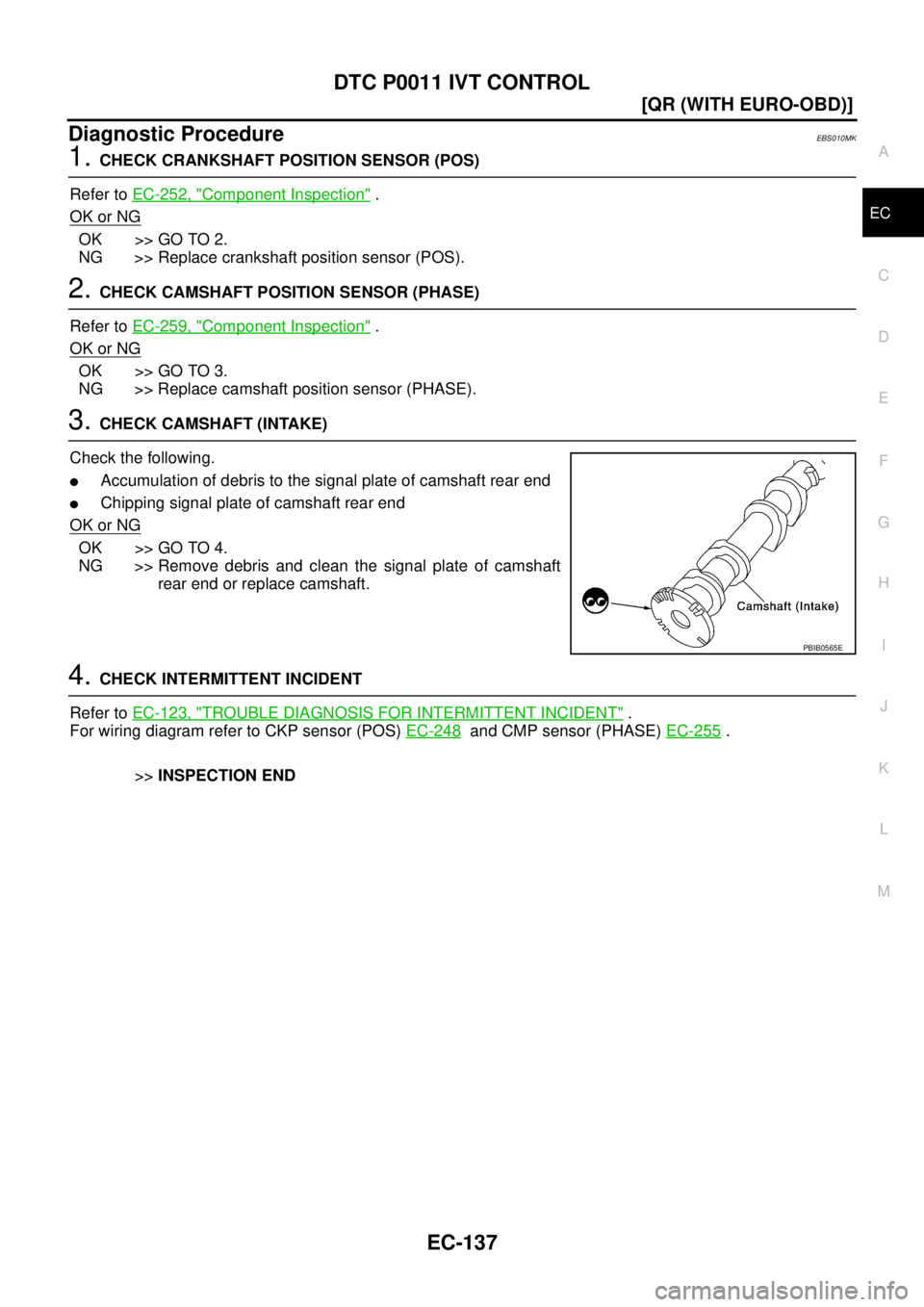

Diagnostic ProcedureEBS010MK
1. CHECK CRANKSHAFT POSITION SENSOR (POS)
Refer to EC-252, "
Component Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Replace crankshaft position sensor (POS).
2. CHECK CAMSHAFT POSITION SENSOR (PHASE)
Refer to EC-259, "
Component Inspection" .
OK or NG
OK >> GO TO 3.
NG >> Replace camshaft position sensor (PHASE).
3. CHECK CAMSHAFT (INTAKE)
Check the following.
Accumulation of debris to the signal plate of camshaft rear end
Chipping signal plate of camshaft rear end
OK or NG
OK >> GO TO 4.
NG >> Remove debris and clean the signal plate of camshaft
rear end or replace camshaft.
4. CHECK INTERMITTENT INCIDENT
Refer to EC-123, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
For wiring diagram refer to CKP sensor (POS) EC-248
and CMP sensor (PHASE) EC-255 .
>>INSPECTION END
PBIB0565E
Page 516 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EC-138
[QR (WITH EURO-OBD)]
DTC P0031, P0032 HO2S1 HEATER
DTC P0031, P0032 HO2S1 HEATERPFP:22690
DescriptionEBS010ML
SYSTEM DESCRIPTION
The ECM performs ON/OFF duty control of the heated oxygen sens NISSAN X-TRAIL 2003 Service Repair Manual EC-138
[QR (WITH EURO-OBD)]
DTC P0031, P0032 HO2S1 HEATER
DTC P0031, P0032 HO2S1 HEATERPFP:22690
DescriptionEBS010ML
SYSTEM DESCRIPTION
The ECM performs ON/OFF duty control of the heated oxygen sens](/manual-img/5/57404/w960_57404-515.png)
EC-138
[QR (WITH EURO-OBD)]
DTC P0031, P0032 HO2S1 HEATER
DTC P0031, P0032 HO2S1 HEATERPFP:22690
DescriptionEBS010ML
SYSTEM DESCRIPTION
The ECM performs ON/OFF duty control of the heated oxygen sensor 1 heater corresponding to the engine
speed and engine coolant temperature. The duty percent varies with engine coolant temperature when engine
is started.
OPERATION
CONSULT-II Reference Value in Data Monitor ModeEBS010MM
Specification data are reference values.
On Board Diagnosis LogicEBS010MN
DTC Confirmation ProcedureEBS010MO
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 10.5V and 16V at
idle.
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
Sensor Input Signal to ECM ECM function Actuator
Camshaft position sensor (PHASE)
Crankshaft position sensor (POS)Engine speed
Heated oxygen sensor 1
heater controlHeated oxygen sensor 1
heater
Engine coolant temperature sensor Engine coolant temperature
Engine speed rpm Heated oxygen sensor 1 heater
Above 3,600 OFF
Below 3,600 ON
MONITOR ITEM CONDITION SPECIFICATION
HO2S1 HTR (B1)
Engine: After warming up
Engine speed: Below 3,600 rpmON
Engine speed: Above 3,600 rpm OFF
DTC No.Trouble diagnosis
nameDTC detecting condition Possible cause
P0031
0031Heated oxygen
sensor 1 heater
control circuit lowThe current amperage in the heated oxygen
sensor 1 heater circuit is out of the normal
range.
(An excessively low voltage signal is sent to
ECM through the heated oxygen sensor 1
heater.)
Harness or connectors
(The heated oxygen sensor 1 heater circuit is
open or shorted.)
Heater oxygen sensor 1 heater
P0032
0032Heated oxygen
sensor 1 heater
control circuit highThe current amperage in the heated oxygen
sensor 1 heater circuit is out of the normal
range.
(An excessively high voltage signal is sent to
ECM through the heated oxygen sensor 1
heater.)
Harness or connectors
(The heated oxygen sensor 1 heater circuit is
shorted.)
Heater oxygen sensor 1 heater
Page 517 of 4179
DTC P0031, P0032 HO2S1 HEATER
EC-139
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
3. Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.
4. Start engine and run it for at least 6 seconds at idle speed.
5. If 1st trip DTC is detected, go to EC-141, "
Diagnostic Procedure"
.
WITH GST
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Start engine and run it for at least 6 seconds at idle speed.
4. Turn ignition switch OFF and wait at least 10 seconds.
5. Start engine and run it for at least 6 seconds at idle speed.
6. Select MODE 3 with GST.
7. If DTC is detected, go to EC-141, "
Diagnostic Procedure" .
When using GST, DTC Confirmation Procedure should be performed twice as much as when using
CONSULT-II because GST cannot display MODE 7 (1st trip DTC) concerning this diagnosis. There-
fore, using CONSULT-II is recommended.
SEF174Y
Page 518 of 4179
EC-140
[QR (WITH EURO-OBD)]
DTC P0031, P0032 HO2S1 HEATER
Wiring DiagramEBS010MP
TBWA0596E
Page 519 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual DTC P0031, P0032 HO2S1 HEATER
EC-141
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measure NISSAN X-TRAIL 2003 Service Repair Manual DTC P0031, P0032 HO2S1 HEATER
EC-141
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measure](/manual-img/5/57404/w960_57404-518.png)
DTC P0031, P0032 HO2S1 HEATER
EC-141
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnostic ProcedureEBS010MQ
1. CHECK HO2S1 POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect heated oxygen sensor 1 harness connector.
3. Turn ignition switch ON.
4. Check voltage between HO2S1 terminal 4 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
24 G/WHeated oxygen sen-
sor 1 heater[Engine is running]
Warm-up condition.
Engine speed is below 3,600 rpmApproximately 7.0V
[Engine is running]
Engine speed is above 3,600 rpmBATTERY VOLTAGE
(11 - 14V)
PBIB0519E
PBIB0500E
Voltage: Battery voltage
PBIB0541E
Page 520 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EC-142
[QR (WITH EURO-OBD)]
DTC P0031, P0032 HO2S1 HEATER
2. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E60, F36
Fuse block (J/B) connector E103
10A fuse
Harness for open NISSAN X-TRAIL 2003 Service Repair Manual EC-142
[QR (WITH EURO-OBD)]
DTC P0031, P0032 HO2S1 HEATER
2. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E60, F36
Fuse block (J/B) connector E103
10A fuse
Harness for open](/manual-img/5/57404/w960_57404-519.png)
EC-142
[QR (WITH EURO-OBD)]
DTC P0031, P0032 HO2S1 HEATER
2. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E60, F36
Fuse block (J/B) connector E103
10A fuse
Harness for open or short between heated oxygen sensor 1 and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
3. CHECK HO2S1 OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 24 and HO2S1 terminal 1.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK HEATED OXYGEN SENSOR 1 HEATER
Refer to EC-143, "
Component Inspection" .
OK or NG
OK >> GO TO 5.
NG >> Replace heated oxygen sensor 1.
5. CHECK INTERMITTENT INCIDENT
Refer to EC-123, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.
