NISSAN X-TRAIL 2003 Service Repair Manual HARNESS PG-63 C D E F G H I J L MA B PG PGC/V EC EVAP Canister Purge Volume Control Solenoid Valve PHASE EC Camshaft Position Sensor (PHASE) PHONE AV Telephone (Pre-wire) PNP/SW AT Park/Neut

Page 4066 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual PG-64 HARNESS WIP/R WW Rear Wiper and Washer WIPER WW Front Wiper and WasherCode Section Wiring Diagram Name

Page 4067 of 4179

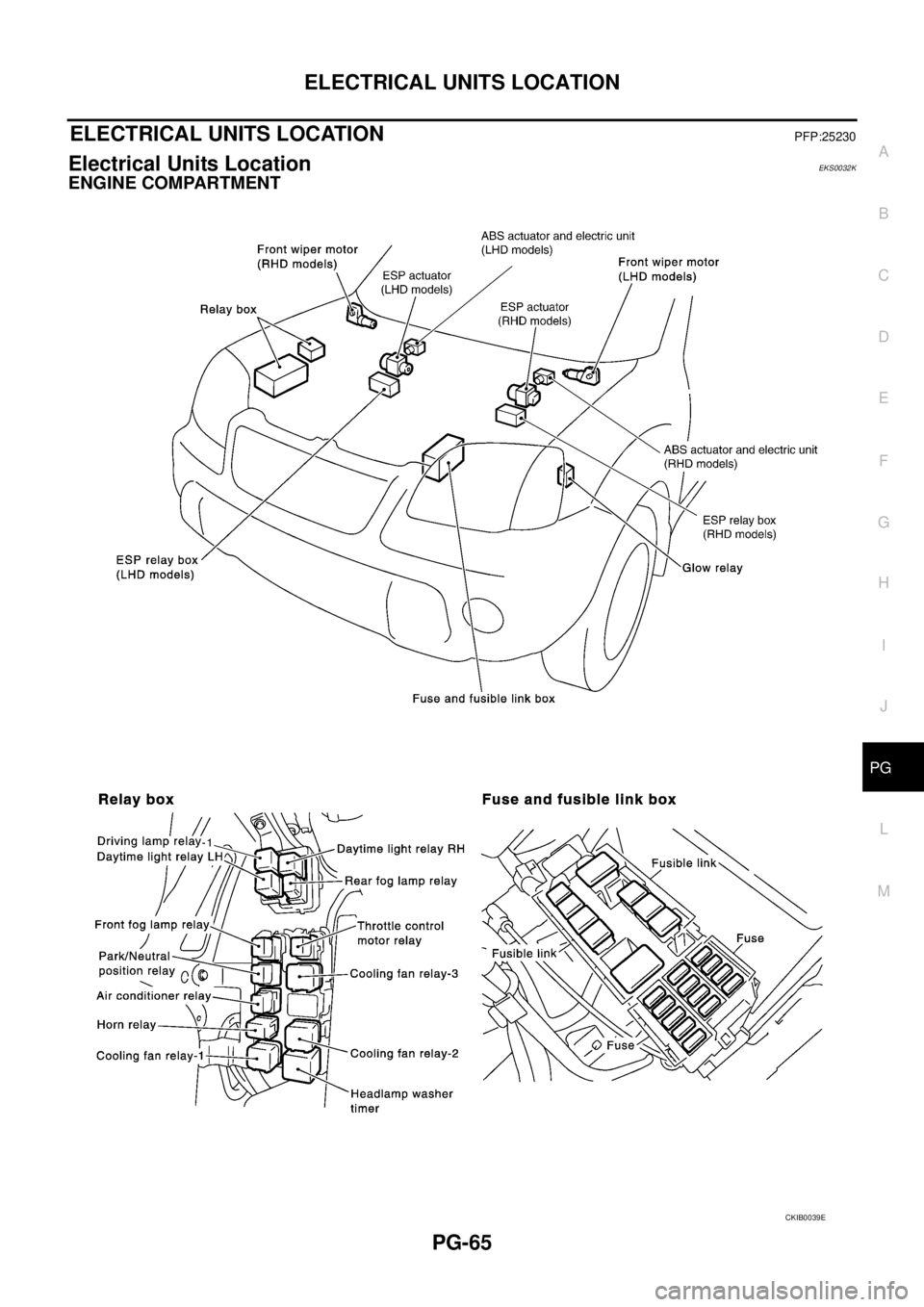

NISSAN X-TRAIL 2003 Service Repair Manual ELECTRICAL UNITS LOCATION PG-65 C D E F G H I J L MA B PG ELECTRICAL UNITS LOCATIONPFP:25230 Electrical Units Location EKS0032K ENGINE COMPARTMENT CKIB0039E

Page 4068 of 4179

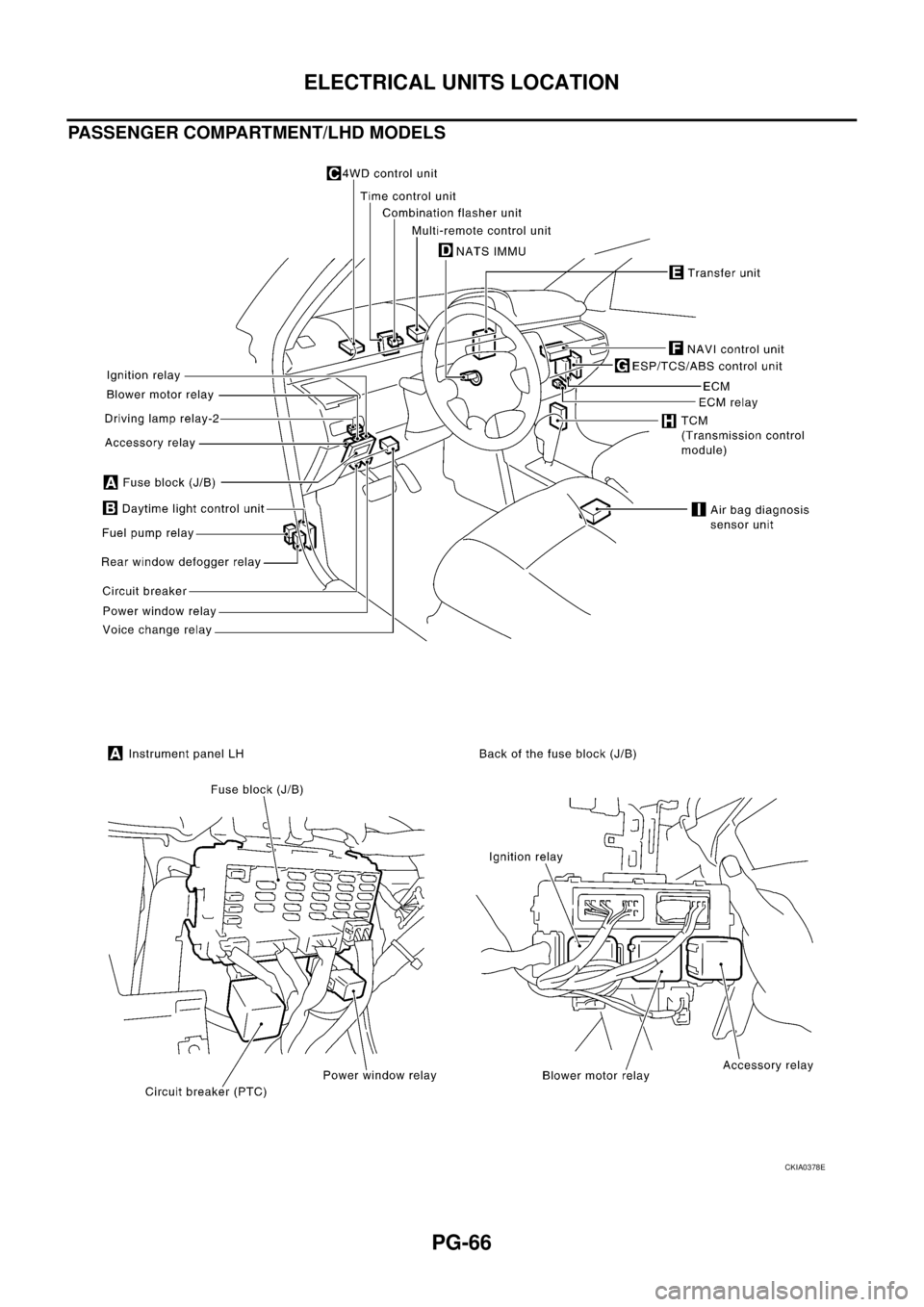

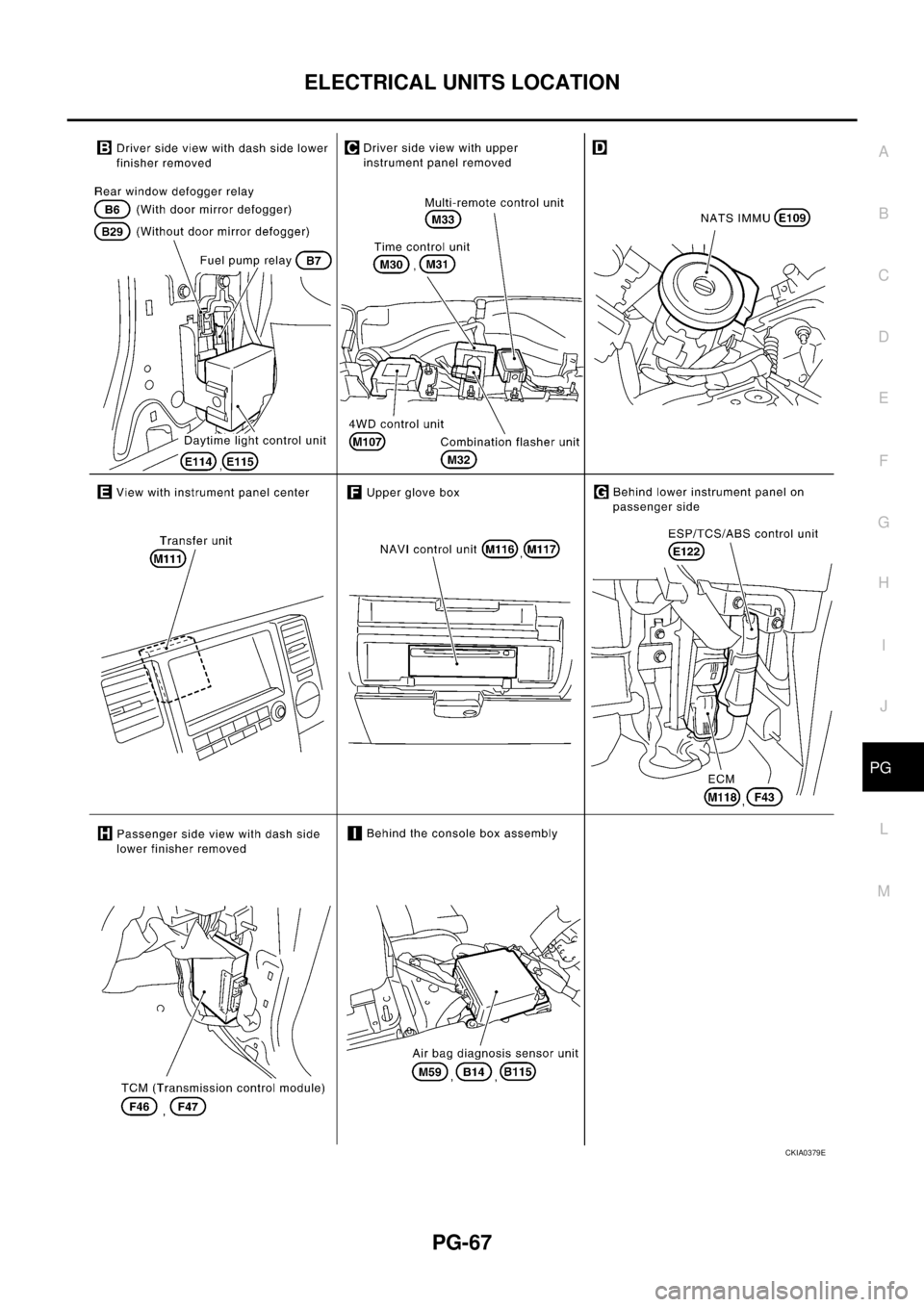

NISSAN X-TRAIL 2003 Service Repair Manual PG-66 ELECTRICAL UNITS LOCATION PASSENGER COMPARTMENT/LHD MODELS CKIA0378E

Page 4069 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual ELECTRICAL UNITS LOCATION PG-67 C D E F G H I J L MA B PG CKIA0379E

Page 4070 of 4179

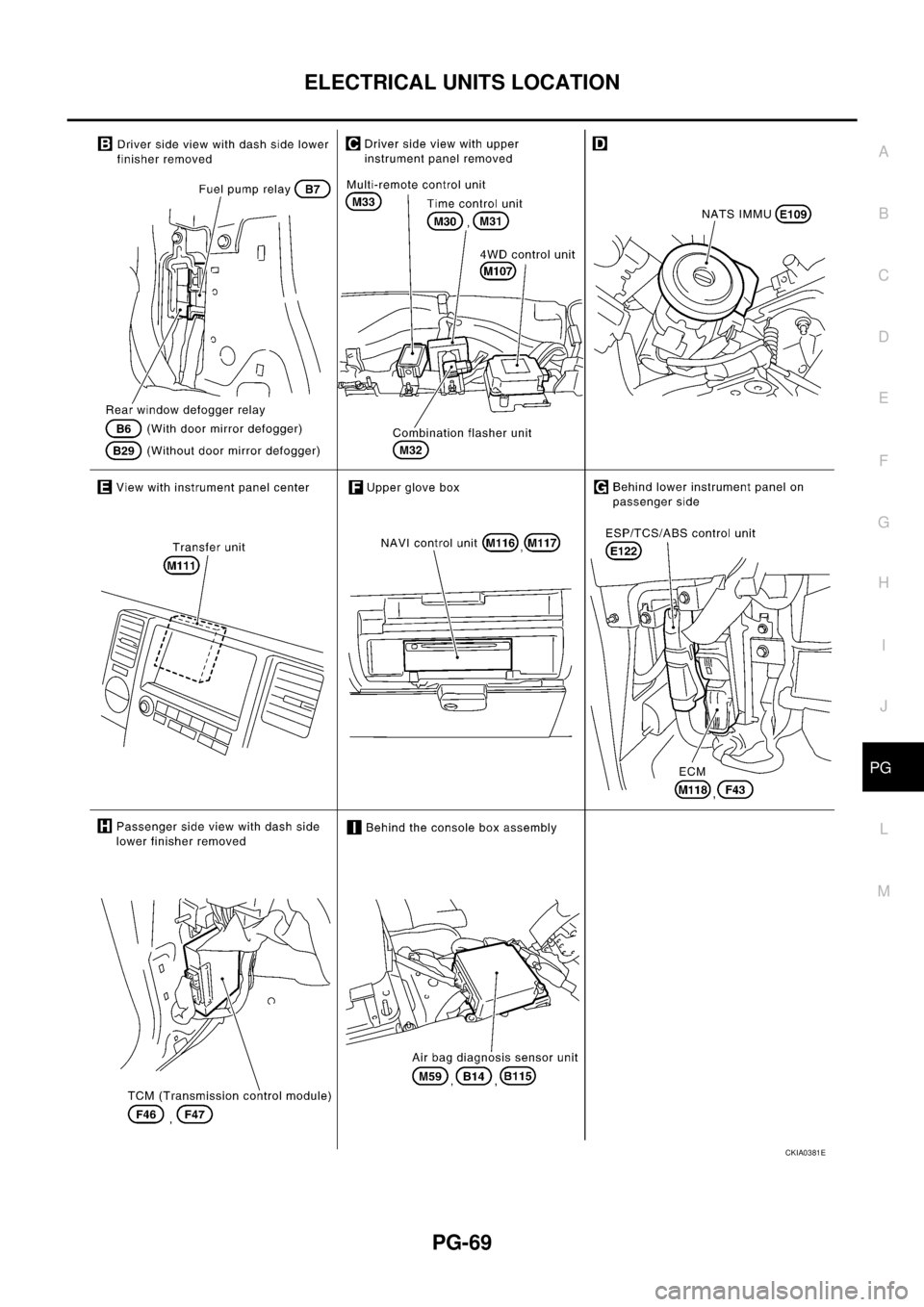

NISSAN X-TRAIL 2003 Service Repair Manual PG-68 ELECTRICAL UNITS LOCATION PASSENGER COMPARTMENT/RHD MODELS CKIA0380E

Page 4071 of 4179

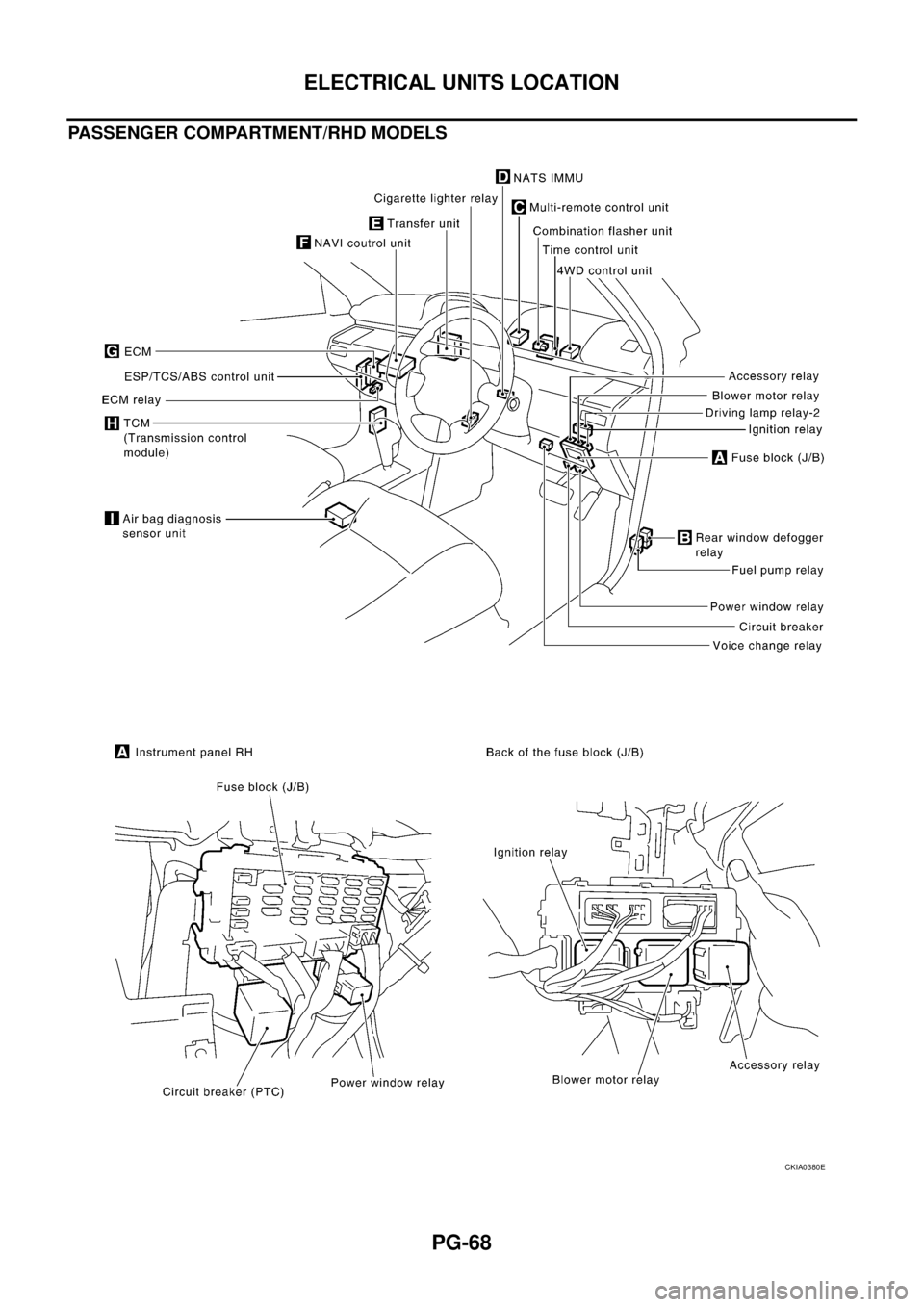

NISSAN X-TRAIL 2003 Service Repair Manual ELECTRICAL UNITS LOCATION PG-69 C D E F G H I J L MA B PG CKIA0381E

Page 4072 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual PG-70 HARNESS CONNECTOR HARNESS CONNECTOR PFP:00011 Description EKS0032B HARNESS CONNECTOR (TAB-LOCKING TYPE) The tab-locking type connectors help prevent accidental looseness or disconnection. Th
