DTC P0112, P0113 IAT SENSOR
EC-1287
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

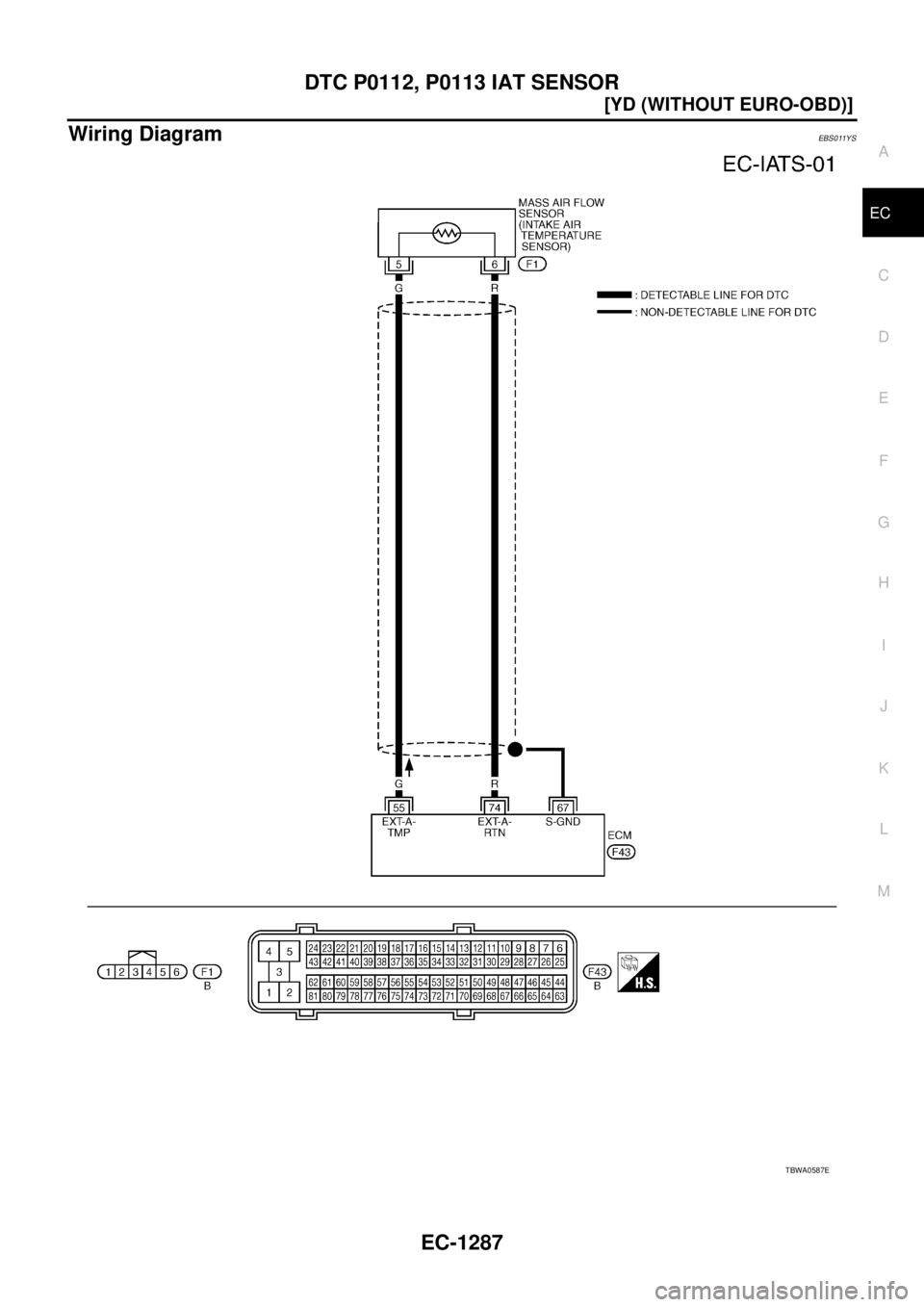

Wiring DiagramEBS011YS
TBWA0587E
Page 1666 of 4179
EC-1288
[YD (WITHOUT EURO-OBD)]
DTC P0112, P0113 IAT SENSOR
Diagnostic ProcedureEBS011YT
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten engine ground screws. Refer to EC-1267, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
PBIB2020E
Page 1667 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual DTC P0112, P0113 IAT SENSOR
EC-1289
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
2. CHECK INTAKE AIR TEMPERATURE SENSOR POWER SUPPLY CIRCUIT
1. Disconnect mass air flow sensor (intake air tempe NISSAN X-TRAIL 2003 Service Repair Manual DTC P0112, P0113 IAT SENSOR
EC-1289
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
2. CHECK INTAKE AIR TEMPERATURE SENSOR POWER SUPPLY CIRCUIT
1. Disconnect mass air flow sensor (intake air tempe](/manual-img/5/57404/w960_57404-1666.png)
DTC P0112, P0113 IAT SENSOR
EC-1289
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

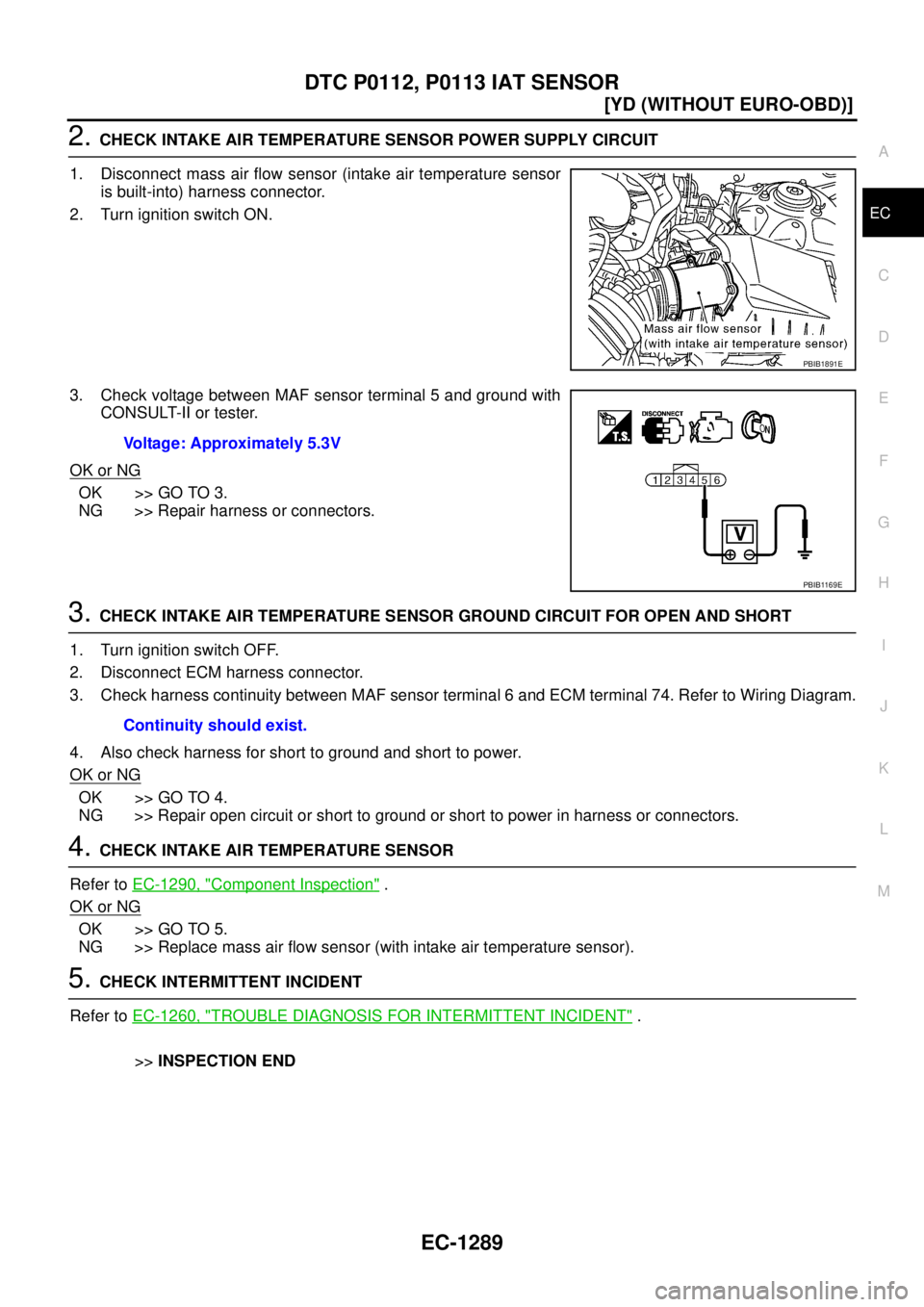

2. CHECK INTAKE AIR TEMPERATURE SENSOR POWER SUPPLY CIRCUIT
1. Disconnect mass air flow sensor (intake air temperature sensor
is built-into) harness connector.
2. Turn ignition switch ON.
3. Check voltage between MAF sensor terminal 5 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connectors.
3. CHECK INTAKE AIR TEMPERATURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between MAF sensor terminal 6 and ECM terminal 74. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK INTAKE AIR TEMPERATURE SENSOR
Refer to EC-1290, "
Component Inspection" .
OK or NG
OK >> GO TO 5.
NG >> Replace mass air flow sensor (with intake air temperature sensor).
5. CHECK INTERMITTENT INCIDENT
Refer to EC-1260, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
PBIB1891E
Voltage: Approximately 5.3V
PBIB1169E
Continuity should exist.
Page 1668 of 4179
EC-1290
[YD (WITHOUT EURO-OBD)]
DTC P0112, P0113 IAT SENSOR
Component InspectionEBS011YU
INTAKE AIR TEMPERATURE SENSOR
1. Check resistance between mass air flow sensor terminals 5 and
6 under the following conditions.
2. If NG, replace mass air flow sensor (with intake air temperature
sensor).
Removal and InstallationEBS011YV
MASS AIR FLOW SENSOR
Refer to EM-133, "AIR CLEANER AND AIR DUCT" .
Intake air temperature °C (°F) Resistance kΩ
25 (77) 1.9 - 2.1
PBIB1604E
SEF012P
Page 1669 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual DTC P0117, P0118 ECT SENSOR
EC-1291
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0117, P0118 ECT SENSORPFP:22630
DescriptionEBS011YW
The engine coolant temperature sensor is used to detect NISSAN X-TRAIL 2003 Service Repair Manual DTC P0117, P0118 ECT SENSOR
EC-1291
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0117, P0118 ECT SENSORPFP:22630
DescriptionEBS011YW
The engine coolant temperature sensor is used to detect](/manual-img/5/57404/w960_57404-1668.png)
DTC P0117, P0118 ECT SENSOR
EC-1291
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0117, P0118 ECT SENSORPFP:22630
DescriptionEBS011YW
The engine coolant temperature sensor is used to detect the engine
coolant temperature. The sensor modifies a voltage signal from the
ECM. The modified signal returns to the ECM as the engine coolant
temperature input. The sensor uses a thermistor which is sensitive to
the change in temperature. The electrical resistance of the ther-
mistor decreases as temperature increases.
*: These data are reference values and measured between ECM terminal 51 (Engine
coolant temperature sensor) and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicEBS011YX
The MI will not light up for these self-diagnoses.
DTC Confirmation ProcedureEBS011YY
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
SEF594K
Engine coolant tempera-
ture °C (°F)Voltage* (V) Resistance (kΩ)
−10 (14) 4.7 7.0 - 11.4
20 (68) 3.8 2.1 - 2.9
50 (122) 2.6 0.68 - 1.00
90 (194) 1.3 0.236 - 0.260
SEF012P
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0117Engine coolant tempera-
ture sensor circuit low
inputAn excessively low voltage from the sensor is
sent to ECM.
Harness or connectors
(The sensor circuit is open or
shorted.)
Engine coolant temperature sensor
P0118Engine coolant tempera-
ture sensor circuit high
inputAn excessively high voltage from the sensor is
sent to ECM.
Page 1670 of 4179
EC-1292
[YD (WITHOUT EURO-OBD)]
DTC P0117, P0118 ECT SENSOR
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If 1st trip DTC is detected, go to EC-1294, "
Diagnostic Proce-
dure" .
SEF817Y
Page 1671 of 4179
DTC P0117, P0118 ECT SENSOR
EC-1293
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

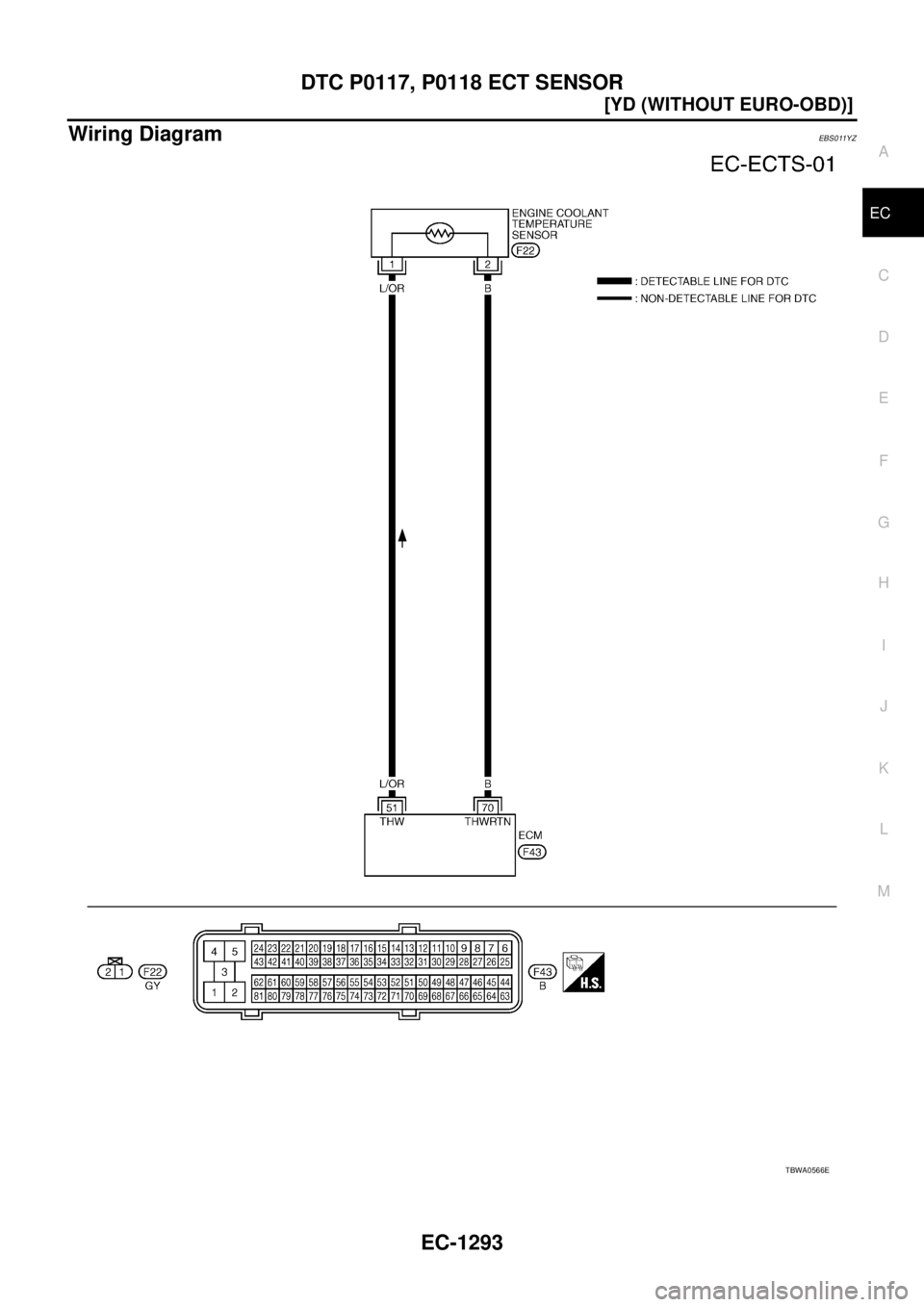

Wiring DiagramEBS011YZ
TBWA0566E
Page 1672 of 4179
EC-1294
[YD (WITHOUT EURO-OBD)]
DTC P0117, P0118 ECT SENSOR
Diagnostic ProcedureEBS011Z0
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten engine ground screws. Refer to EC-1267, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
PBIB2020E
