Page 3737 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual WARNING CHIME
DI-59
C
D
E
F
G
H
I
J
L
MA
B
DI

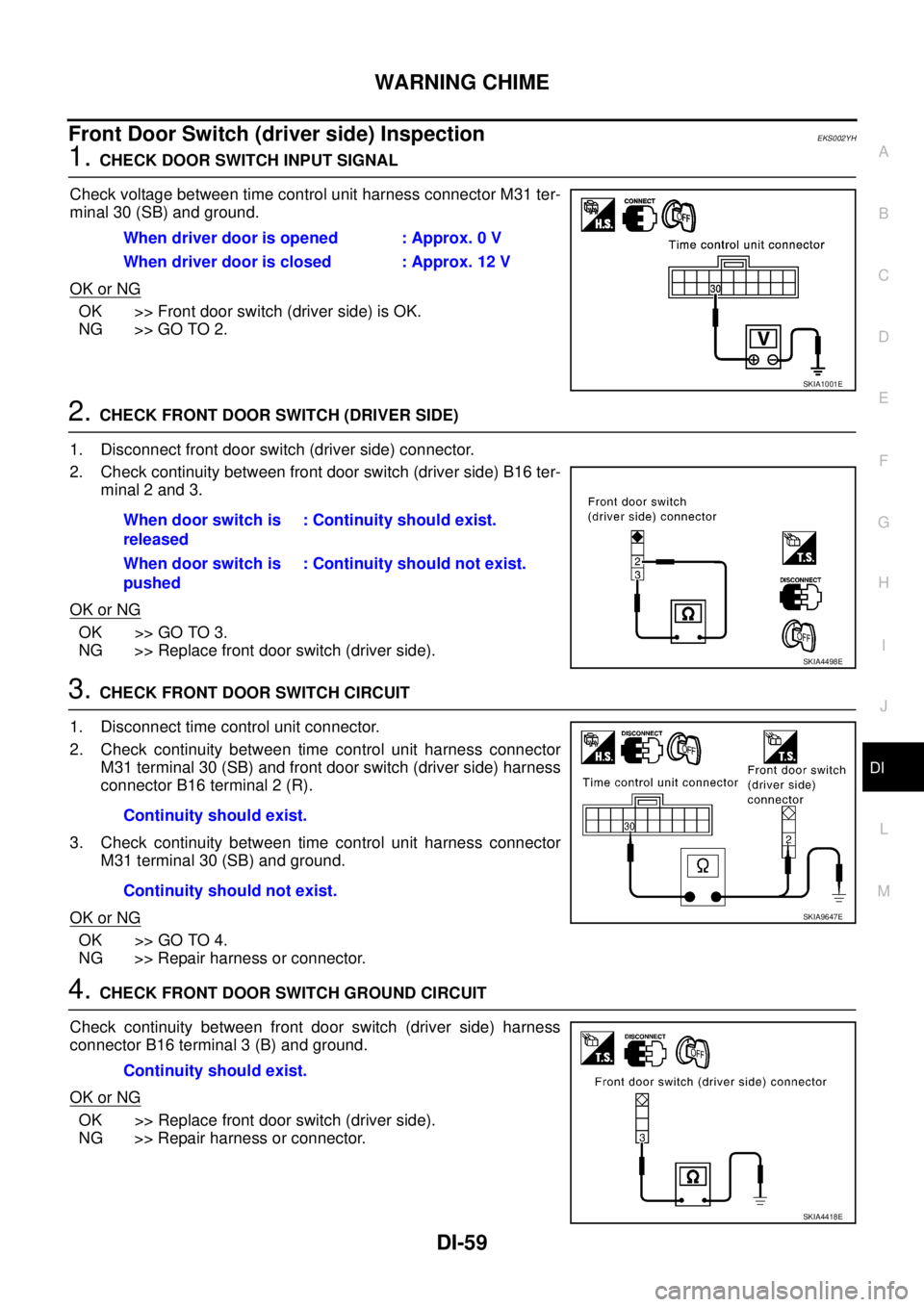

Front Door Switch (driver side) InspectionEKS002YH
1. CHECK DOOR SWITCH INPUT SIGNAL
Check voltage between time control unit harness connector M31 ter-

Page 3738 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DI-60
WARNING CHIME

Lighting Switch Input Signal Inspection EKS002XU
1. CHECK LIGHTING SWITCH INPUT SIGNAL
Check voltage between time control unit harness connector M31 ter-
minal 19(R/L) and ground

Page 3739 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual CLOCK
DI-61
C
D
E
F
G
H
I
J
L
MA
B
DI

CLOCKPFP:25820

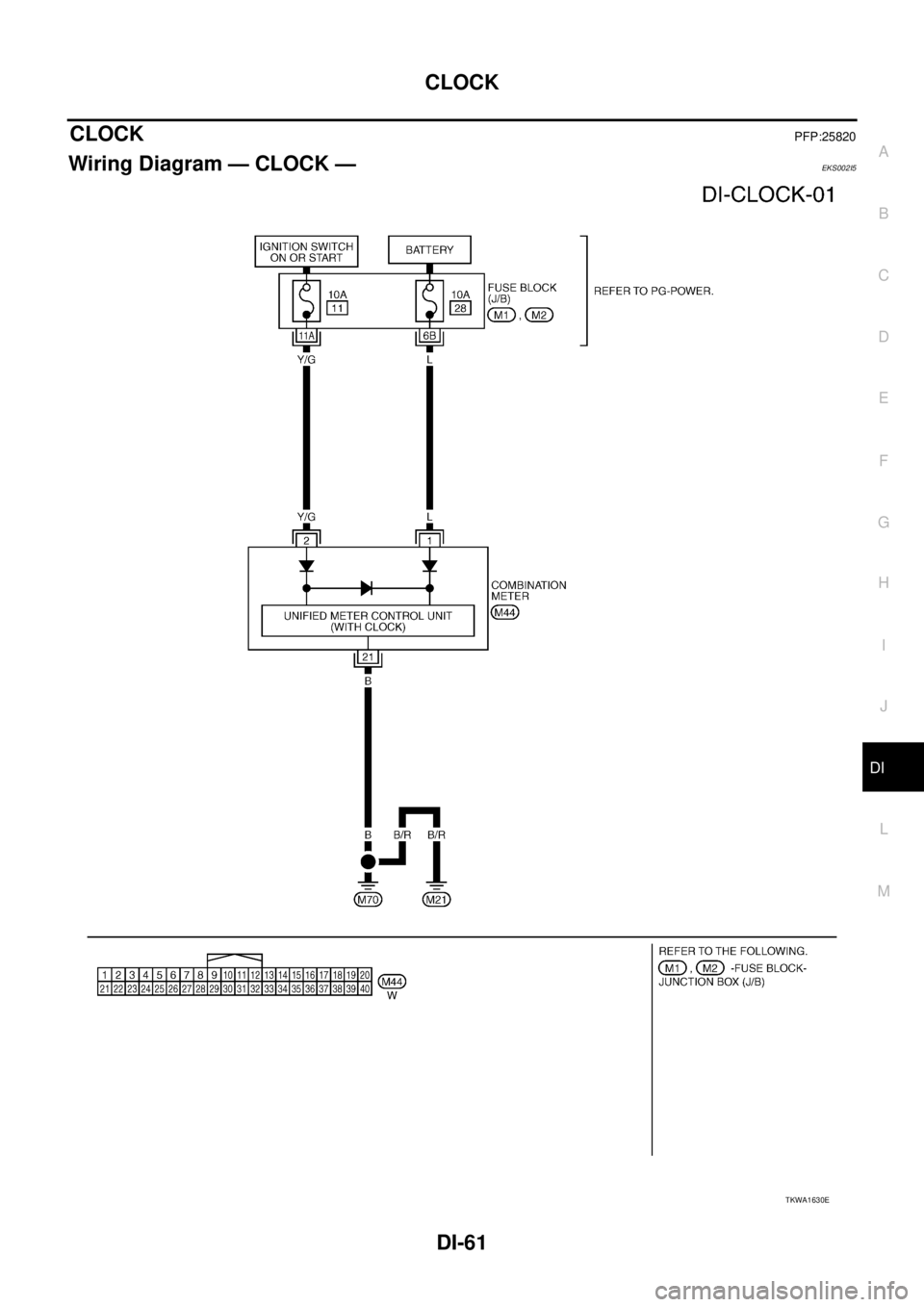

Wiring Diagram — CLOCK —EKS002I5
TKWA1630E

Page 3740 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DI-62
CLOCK

Page 3741 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual WW-1
WIPER, WASHER & HORN
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION
A
B
WW

WIPER, WASHER & HORN
PRECAUTIONS .......................................................... 3
Precautions for Sup

WW-1
WIPER, WASHER & HORN
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION
A
B
WW

WIPER, WASHER & HORN
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Wiring Diagrams and Trouble Diagnosis .................. 3
FRONT WIPER AND WASHER SYSTEM .................. 4
System Description .................................................. 4
WIPER OPERATION ............................................ 4
WASHER OPERATION ......................................... 4
Wiring Diagram — WIPER — .................................. 6
Wiring Diagram — WIPER —/LHD models .............. 7
Terminal and Reference Values for Combination
Switch ....................................................................... 8
Removal and Installation for Front Wiper Arms,
Adjustment for Wiper Arms Stop Location ............... 8
Removal and Installation for Wiper Motor and Link-
age ........................................................................... 9
REMOVAL ........................................................... 10
INSTALLATION ................................................... 10
Washer Nozzle Adjustment ..................................... 11
Washer Tube Layout ............................................... 11
Removal and Installation for Washer Nozzle ......... 12
REMOVAL ........................................................... 12
INSTALLATION ................................................... 12
Inspection for Washer Nozzle ................................ 12
CHECK VALVE ................................................... 12
Removal and Installation for Wiper and Washer
Switch ..................................................................... 12
REMOVAL ........................................................... 12
INSTALLATION ................................................... 12
Removal and Installation for Washer Tank ............. 13
Removal and Installation for Washer Pump ........... 13
REAR WIPER AND WASHER SYSTEM .................. 14
Wiring Diagram — WIP/R — .................................. 14
Terminal and Reference Values for Combination
Switch ..................................................................... 16
Removal and Installation for Rear Wiper Arms ...... 16
WIPER ARMS ..................................................... 16
Removal and Installation for Wiper Motor and Link-
age ......................................................................... 17REMOVAL ........................................................... 17
INSTALLATION ................................................... 17
Washer Nozzle Adjustment .................................... 18
Removal and Installation for Rear Washer Nozzle ... 18
REMOVAL ........................................................... 18
INSTALLATION ................................................... 18
Inspection for Washer Nozzle ................................. 18
CHECK VALVE .................................................... 18
Removal and Installation for Wiper and Washer
Switch ..................................................................... 19
Removal and Installation for Washer Tank ............. 19
Removal and Installation for Washer Pump ........... 19
Washer Tube Layout .............................................. 19
HEADLAMP WASHER ............................................. 20
System Description ................................................. 20
Wiring Diagram —HLC— ....................................... 21
Wiring Diagram —HLC—/RHD models .................. 22
Removal and Installation for Washer Nozzle .......... 23
REMOVAL ........................................................... 23
INSTALLATION ................................................... 23
Inspection for Washer Nozzle ................................. 23
CHECK VALVE .................................................... 23
Removal and Installation for Washer Tank ............. 23
Removal and Installation for Washer Pump ........... 23
Washer Tube Layout .............................................. 24
HORN ........................................................................ 25
Wiring Diagram — HORN — .................................. 25
Removal and Installation ........................................ 26
REMOVAL ........................................................... 26
INSTALLATION ................................................... 26
CIGARETTE LIGHTER ............................................. 27
Wiring Diagram — CIGAR — ................................. 27
Removal and Installation ........................................ 28
REMOVAL ........................................................... 28
INSTALLATION ................................................... 28
POWER SOCKET ..................................................... 29
Wiring Diagram —POWER SOCKET— ................. 29
Removal and Installation for Front Power Socket ... 30
REMOVAL ........................................................... 30

Page 3742 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual WW-2 INSTALLATION .................................................... 30
Removal and Installation for Rear Power Socket ... 30
REMOVAL ........................................................... 30
I

Page 3743 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual PRECAUTIONS
WW-3
C
D
E
F
G
H
I
J
L
MA
B
WW

PRECAUTIONS PFP:00011
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EKS0079K
The Supplemental Restra

Page 3744 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual WW-4
FRONT WIPER AND WASHER SYSTEM

FRONT WIPER AND WASHER SYSTEMPFP:28810
System DescriptionEKS0032N
WIPER OPERATION
The wiper switch is controlled by a lever built into the combination switch.
Ther

WW-4
FRONT WIPER AND WASHER SYSTEM

FRONT WIPER AND WASHER SYSTEMPFP:28810
System DescriptionEKS0032N
WIPER OPERATION
The wiper switch is controlled by a lever built into the combination switch.
There are three wiper switch positions:
LO speed
HI speed
INT (Intermittent)
With the ignition switch in the ON or START position, power is supplied
through 20A fuse [No. 6, located in the fuse block (J/B)]
to front wiper motor terminal 2.
Low and High Speed Wiper Operation
Ground is supplied to front wiper and washer switch terminal 17 through body grounds E24 and E50.
When the wiper switch is placed in the LO position, ground is supplied
through front wiper and washer switch terminal 14
to front wiper motor terminal 3.
With power and ground supplied, the wiper motor operates at low speed.
When the wiper switch is placed in the HI position, ground is supplied
through front wiper and washer switch terminal 16
to front wiper motor terminal 5.
With power and ground supplied, the wiper motor operates at high speed.
Auto Stop Operation
With wiper switch turned OFF, wiper motor will continue to operate until wiper arms reach windshield base.
When wiper arms are not located at base of windshield with wiper switch OFF, ground is provided
from front wiper and washer switch terminal 14
to front wiper motor terminal 3, in order to continue wiper motor operation at low speed.
Ground is also supplied
through front wiper and washer switch terminal 13
to front wiper motor terminal 4
through terminal 1 of the front wiper motor terminal 1 and
through grounds E24 and E50.
When wiper arms reach base of windshield, front wiper motor terminals 2 and 4 are connected instead of ter-
minals 1 and 4. Wiper motor will then stop wiper arms at the STOP position.
Intermittent Operation
The front wiper motor operates the wiper arms one time at low speed at a set interval of approximately 1 to 13
seconds. This feature is controlled by the wiper amplifier (INT SW) combined with front wiper and washer
switch.
When the wiper switch is placed in the INT position, ground is supplied to wiper amplifier.
The desired interval time is input to wiper amplifier (INT VR) from wiper volume switch combined with front
wiper and washer switch.
Then intermittent ground is supplied
through wiper amplifier (OUTPUT) and
through front wiper and washer switch terminal 14
to front wiper motor terminal 3
The wiper motor operates at low speed at the desired interval.
WASHER OPERATION
With the ignition switch in the ON or START position, power is supplied
through 20A fuse [No. 6, located in the fuse block (J/B)]
to front washer motor terminal 1.
When the lever is pulled to the WASH position, ground is supplied
