NISSAN X-TRAIL 2003 Service Repair Manual IGNITION SIGNAL
EC-807
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

16. CHECK IGNITION COIL WITH POWER TRANSISTOR
Refer to EC-807, "
Component Inspection" .
OK or NG
OK >> GO TO 17.
NG >> Repla

Page 1186 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-808
[QR (WITHOUT EURO-OBD)]
IGNITION SIGNAL

IGNITION COIL WITH POWER TRANSISTOR
1. Turn ignition switch OFF.
2. Disconnect ignition coil harness connector.
3. Check resistance between ignition co

Page 1187 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
EC-809
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVEPFP:14920
DescriptionEBS01142
SYSTEM DESCR

EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
EC-809
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVEPFP:14920
DescriptionEBS01142
SYSTEM DESCRIPTION
*1: ECM determines the start signal status by the signals of engine speed and battery voltage.
*2: This signal is sent to the ECM through CAN communication line.
This system controls flow rate of fuel vapor from the EVAP canister. The opening of the vapor by-pass pas-
sage in the EVAP canister purge volume control solenoid valve changes to control the flow rate. The EVAP
canister purge volume control solenoid valve repeats ON/OFF operation according to the signal sent from the
ECM. The opening of the valve varies for optimum engine control. The optimum value stored in the ECM is
determined by considering various engine conditions. When the engine is operating, the flow rate of fuel vapor
from the EVAP canister is regulated as the air flow changes.
COMPONENT DESCRIPTION
The EVAP canister purge volume control solenoid valve uses a ON/
OFF duty to control the flow rate of fuel vapor from the EVAP canis-
ter. The EVAP canister purge volume control solenoid valve is
moved by ON/OFF pulses from the ECM. The longer the ON pulse,
the greater the amount of fuel vapor that will flow through the valve.
CONSULT-II Reference Value in Data Monitor ModeEBS01143
Specification data are reference values.
Sensor Input Signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)Engine speed*
1
EVAP canister
purge flow controlEVAP canister purge volume
control solenoid valve Mass air flow sensor Amount of intake air
Engine coolant temperature sensor Engine coolant temperature
Battery
Battery voltage*1
Throttle position sensor Throttle position
Accelerator pedal position sensor Closed throttle position
Heated oxygen sensor 1Density of oxygen in exhaust gas
(Mixture ratio feedback signal)
Wheel sensor*
2Vehicle speed
SEF337U
MONITOR ITEM CONDITION SPECIFICATION
PURG VOL C/V
Engine: After warming up
Shift lever: N (A/T), Neutral (M/T)
Air conditioner switch: OFF
No loadIdle 0%
2,000 rpm 20 - 30%

Page 1188 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-810
[QR (WITHOUT EURO-OBD)]
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

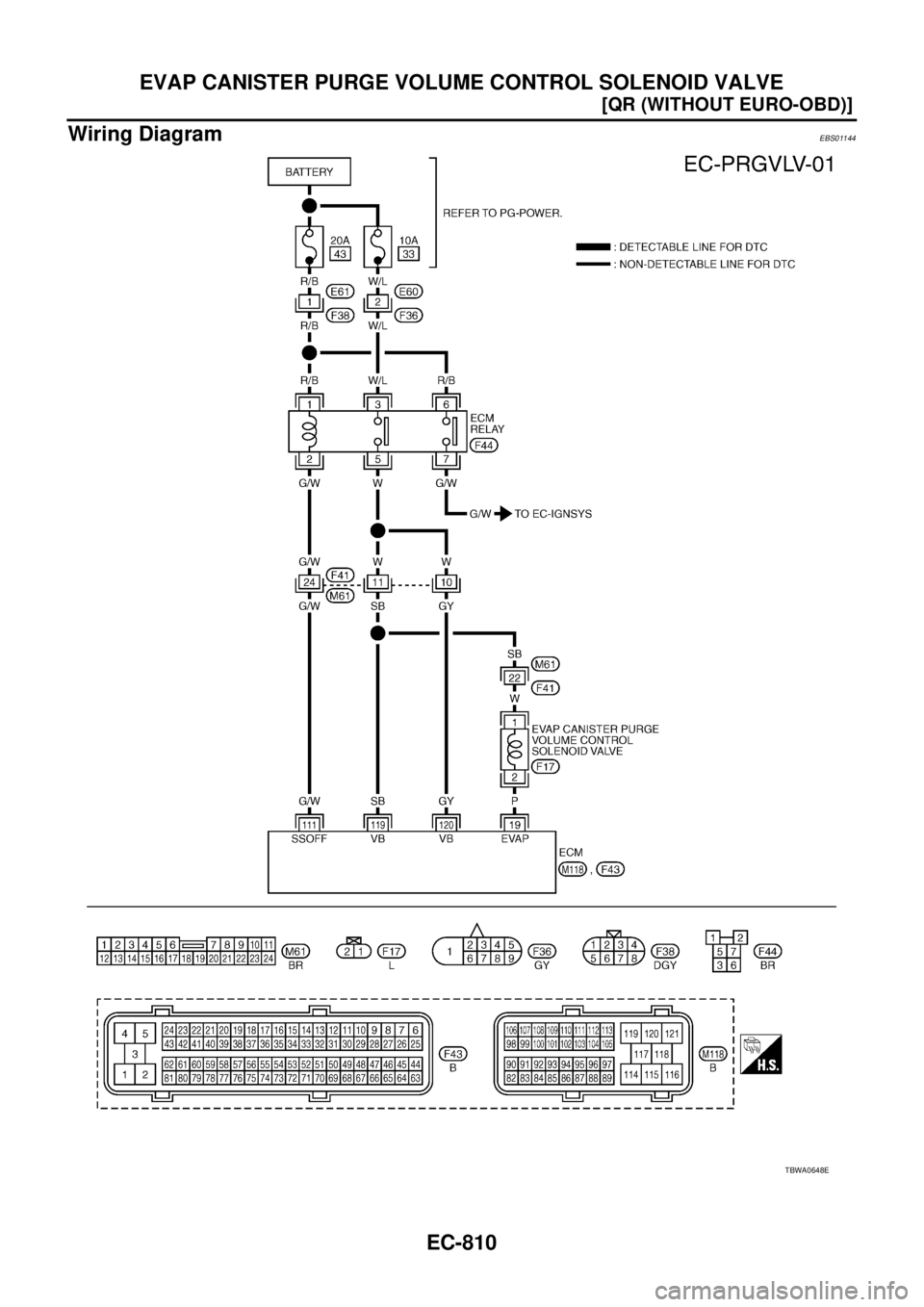

Wiring DiagramEBS01144
TBWA0648E

Page 1189 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
EC-811
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

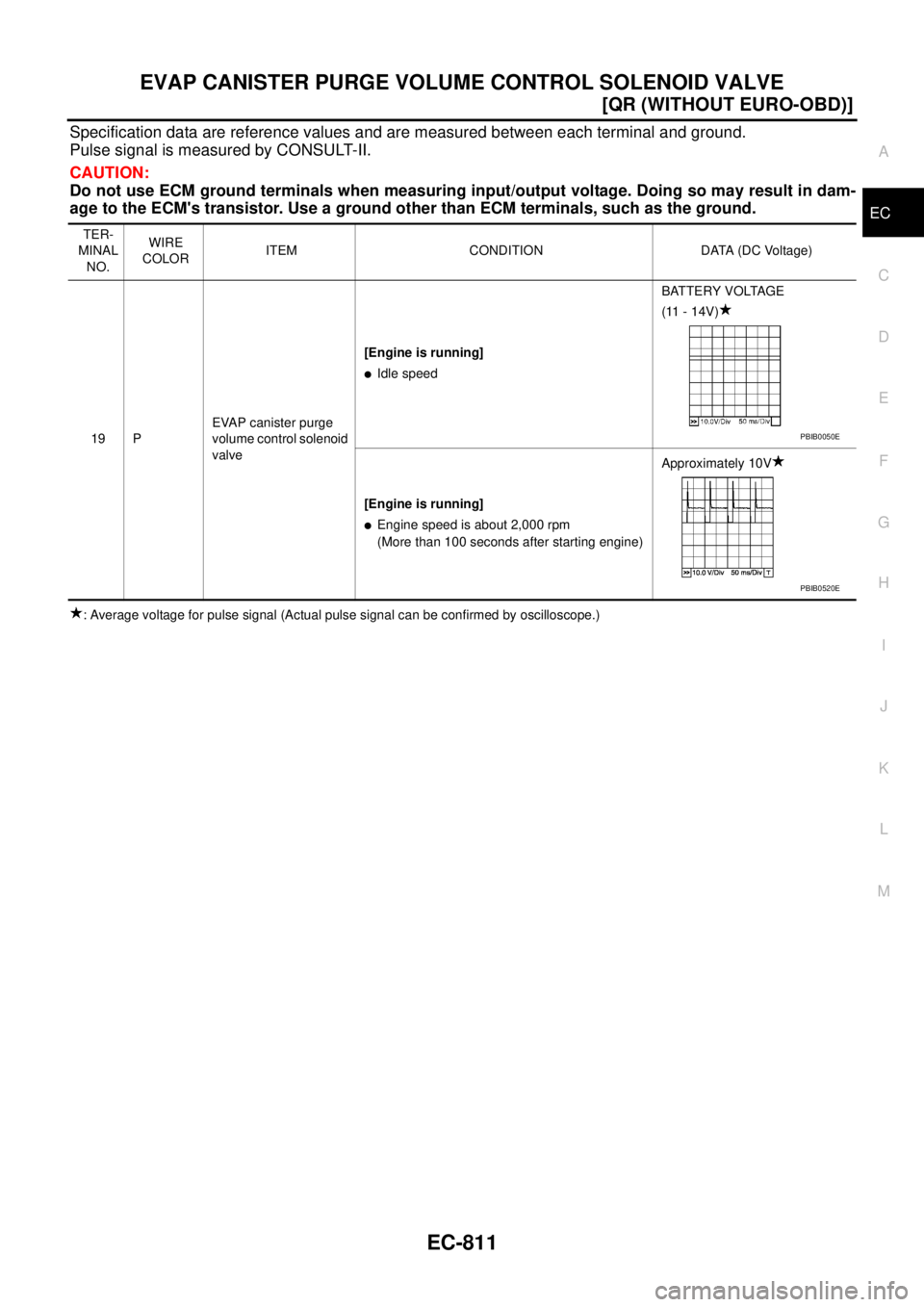

Specification data are reference values and are measured between each terminal and ground.

Page 1190 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-812
[QR (WITHOUT EURO-OBD)]
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

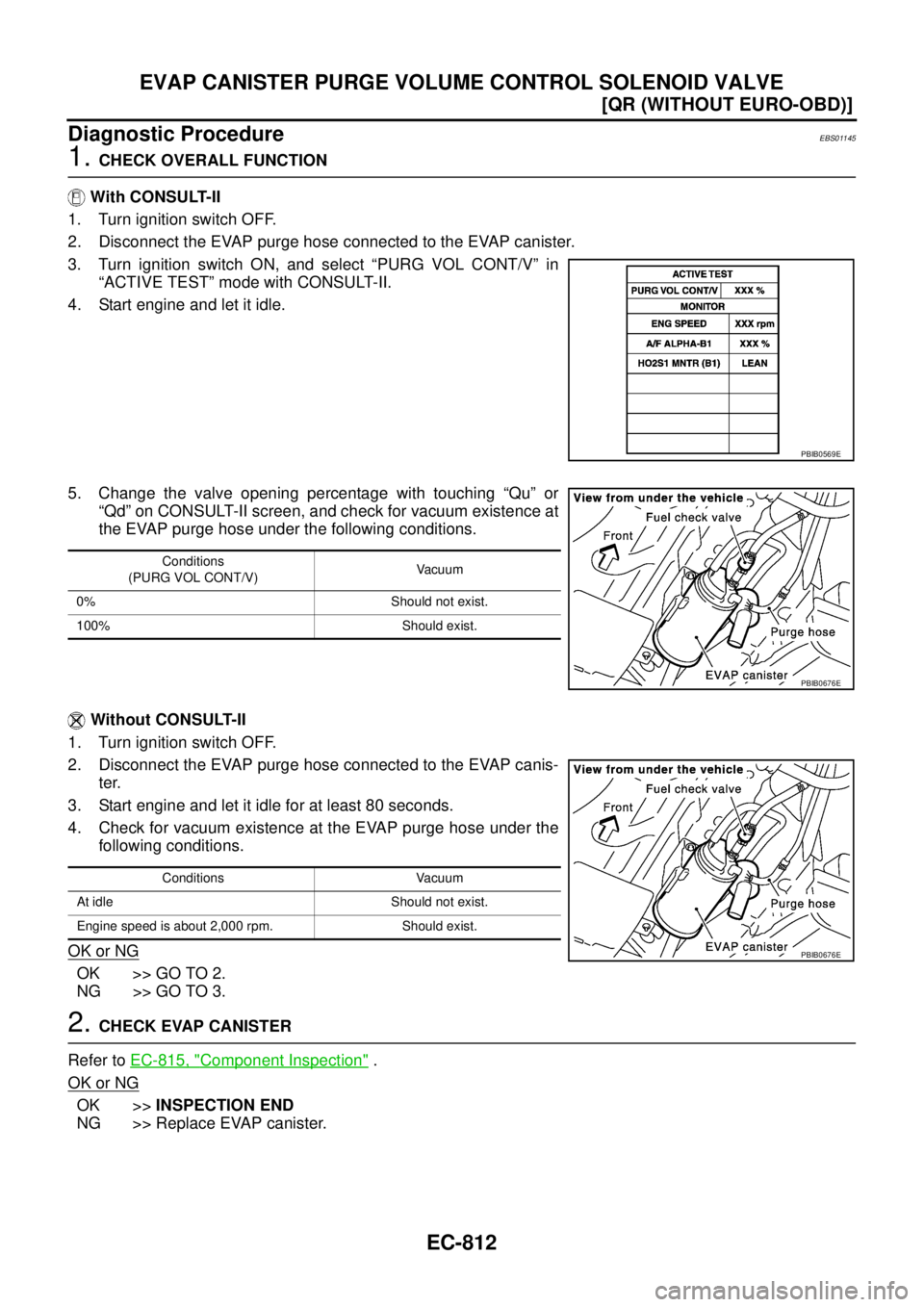

Diagnostic ProcedureEBS01145
1. CHECK OVERALL FUNCTION
With CONSULT-II
1. Turn ignition switch OFF.
2. Disconnect th

Page 1191 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
EC-813
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

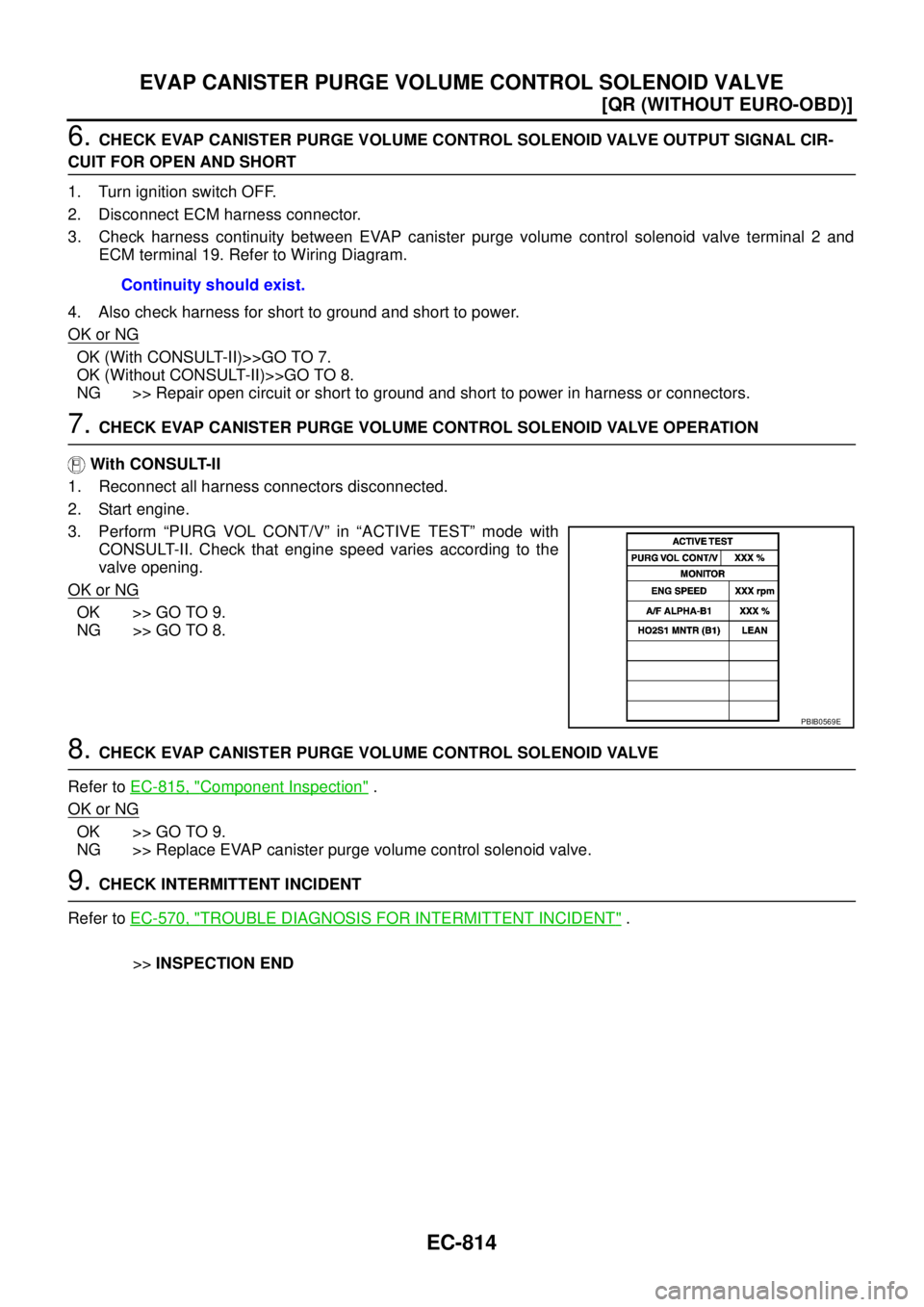

3. CHECK EVAP PURGE LINE
Check EVAP purge line (pipe, rubber tube, fuel tank and EVAP canis

Page 1192 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-814
[QR (WITHOUT EURO-OBD)]
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

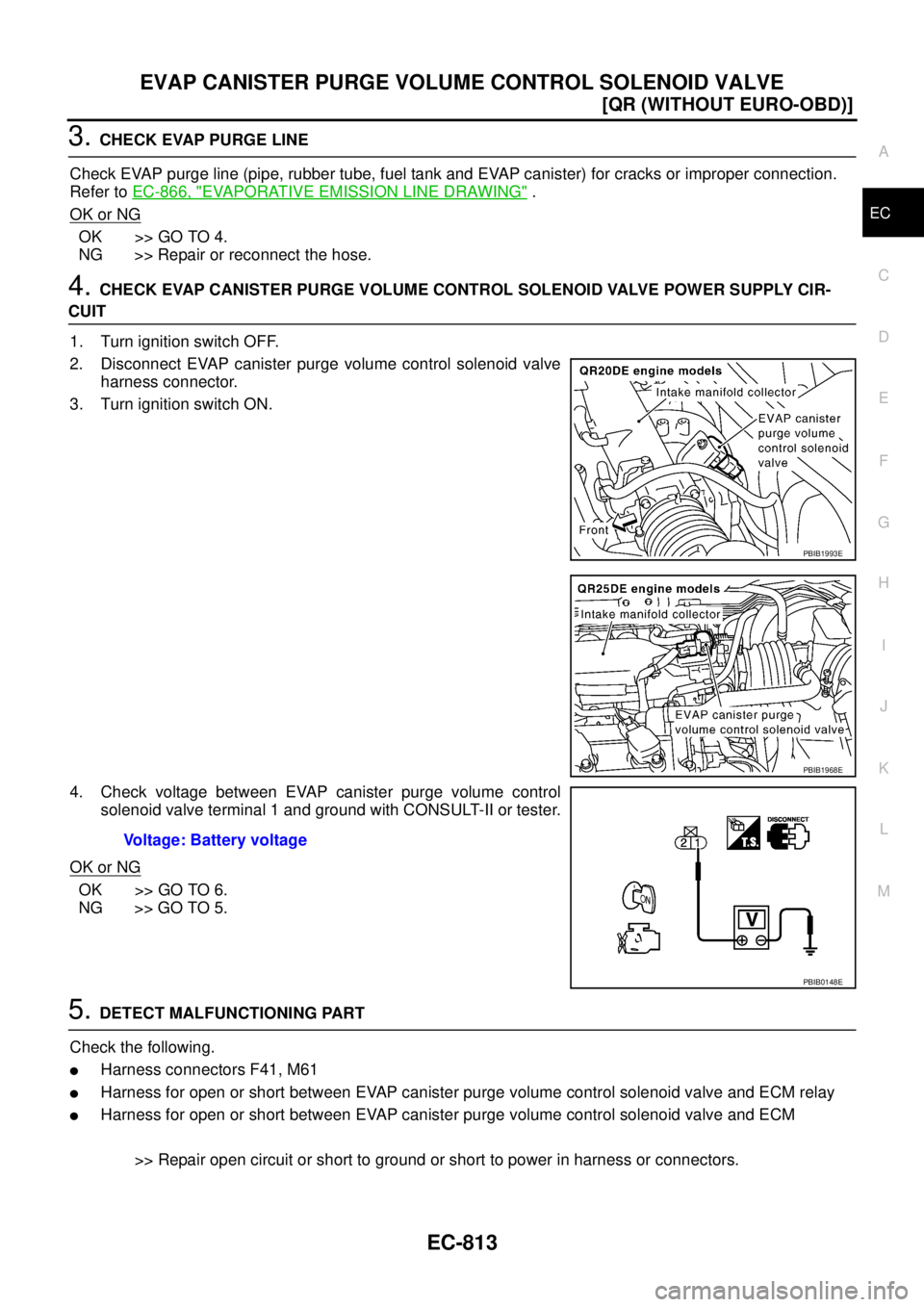

6. CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OUTPUT SIGNAL CIR-
CUIT FOR OPEN AND SHORT
1. Turn ignitio
