Page 2465 of 4179

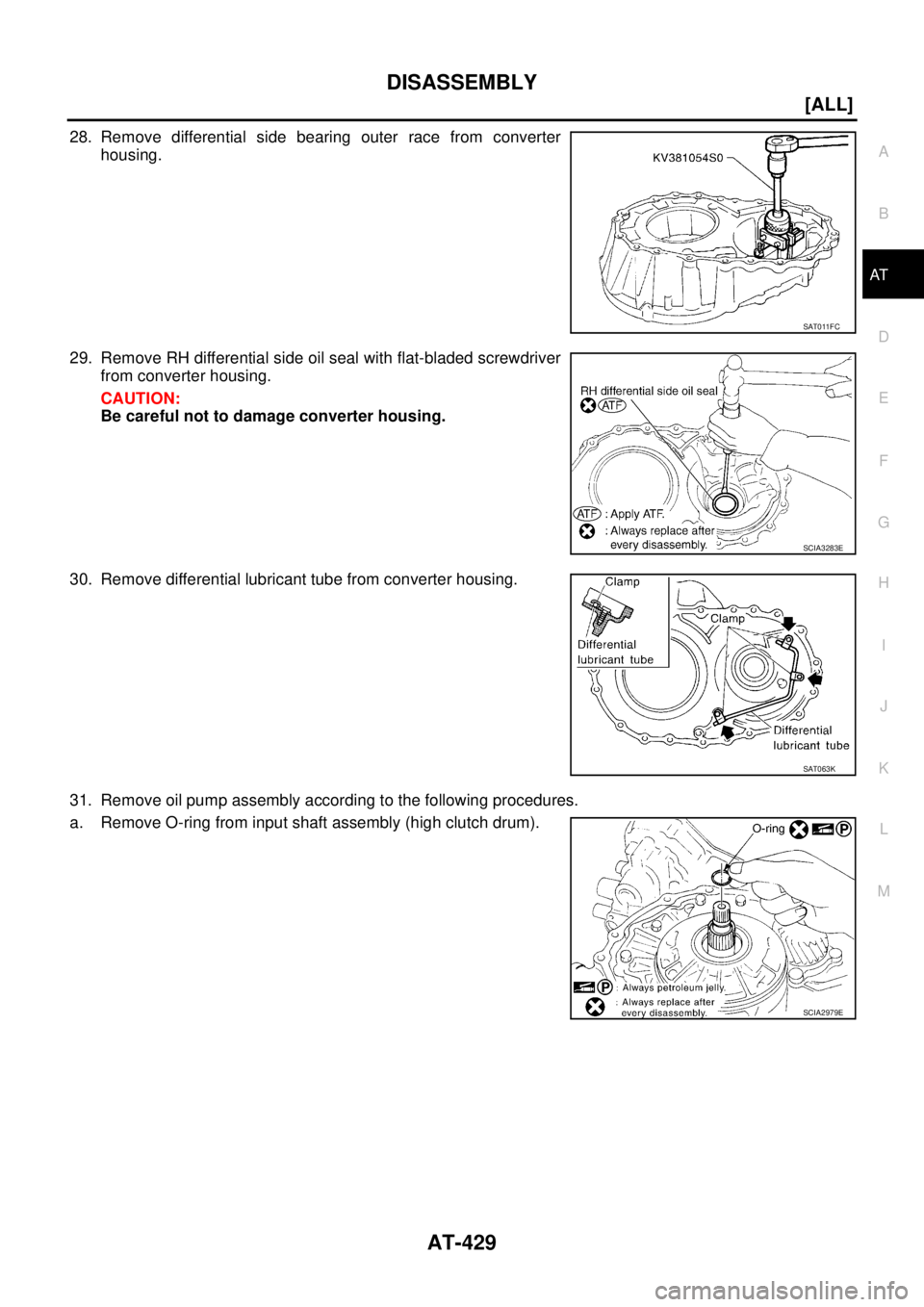

NISSAN X-TRAIL 2003 Service Repair Manual DISASSEMBLY AT-429 [ALL] D E F G H I J K L MA B AT 28. Remove differential side bearing outer race from converter housing. 29. Remove RH differential side oil seal with flat-bladed screwdriver from

Page 2466 of 4179

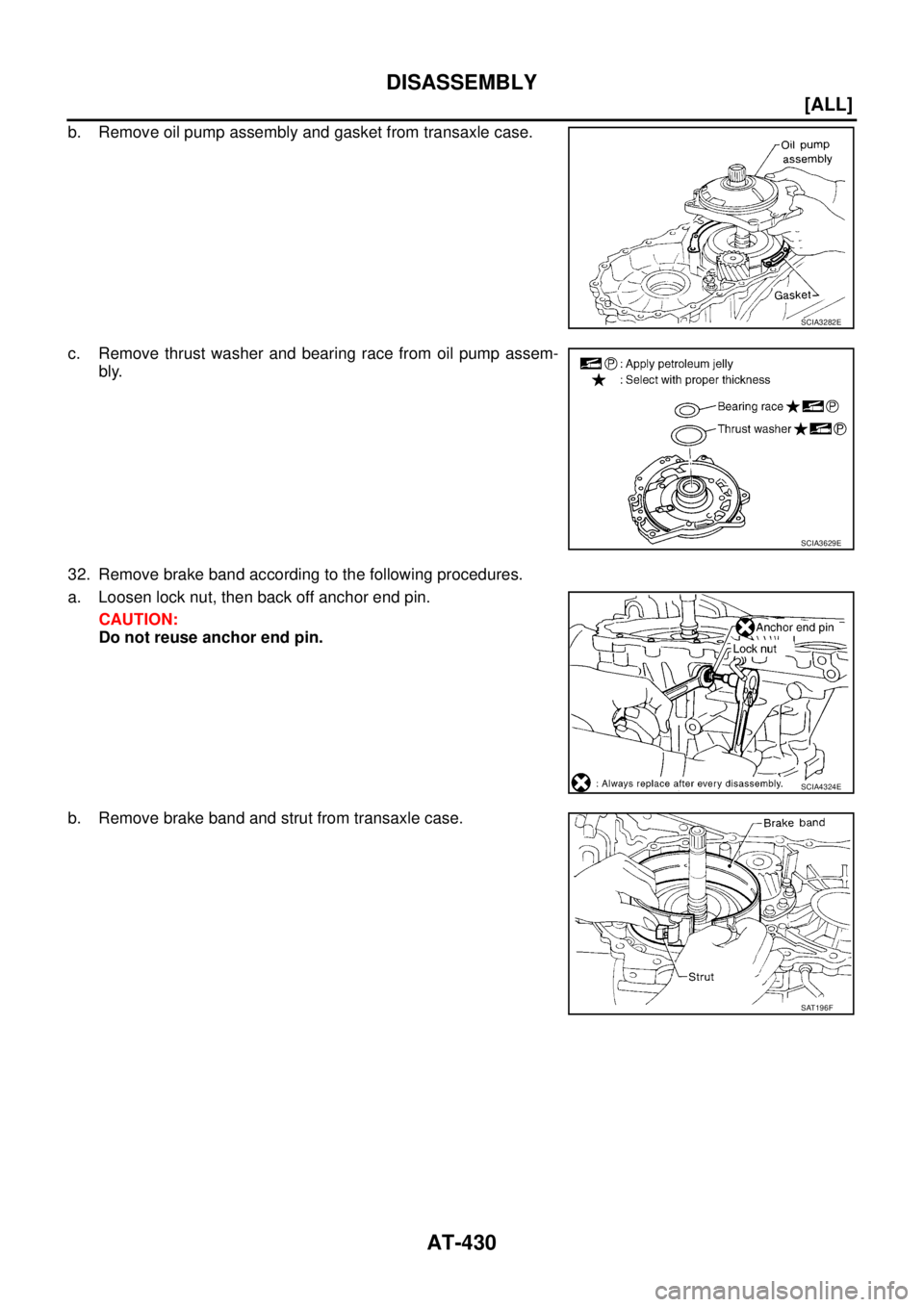

NISSAN X-TRAIL 2003 Service Repair Manual AT-430 [ALL] DISASSEMBLY b. Remove oil pump assembly and gasket from transaxle case. c. Remove thrust washer and bearing race from oil pump assem- bly. 32. Remove brake band according to the followi

Page 2467 of 4179

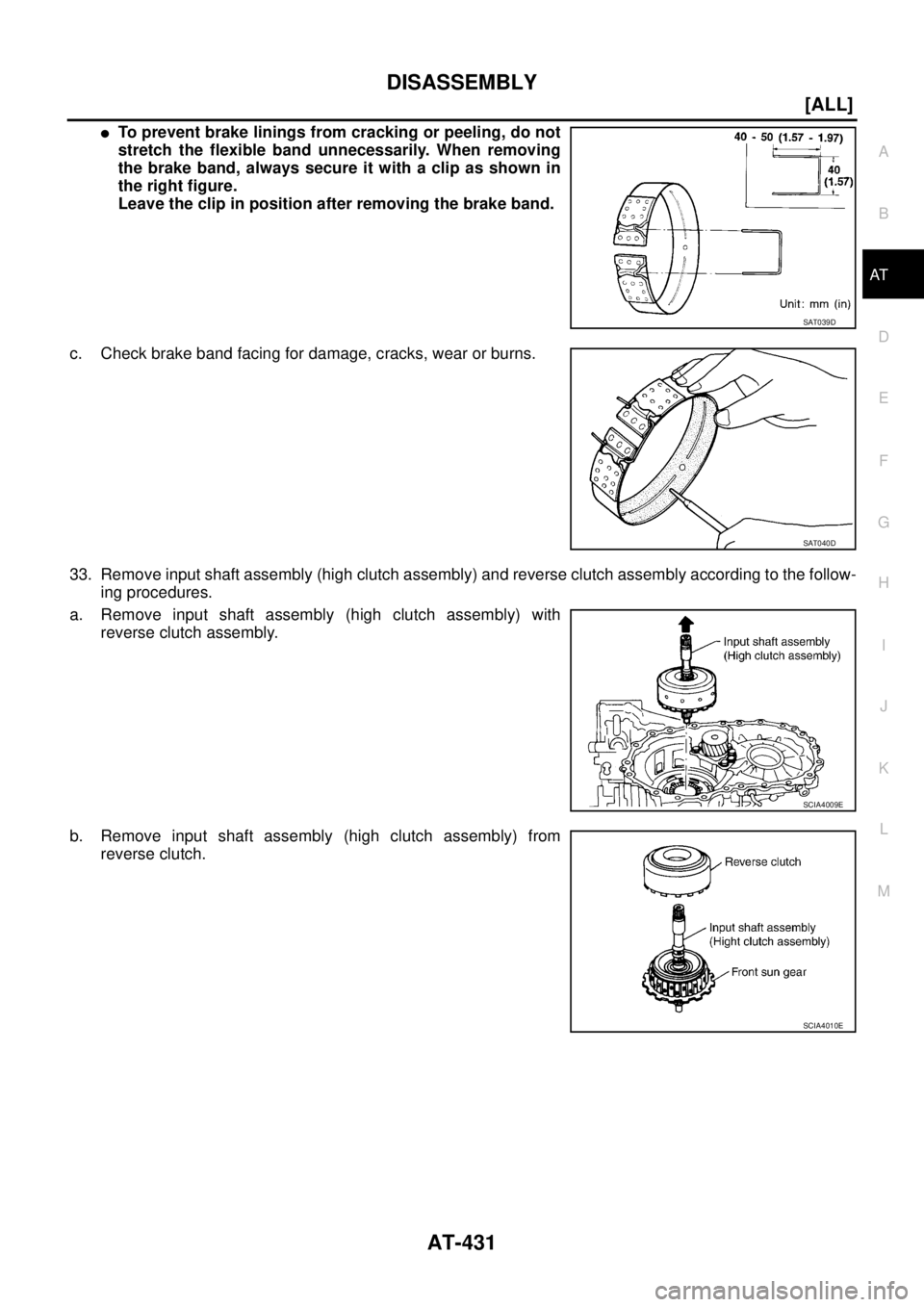

NISSAN X-TRAIL 2003 Service Repair Manual DISASSEMBLY AT-431 [ALL] D E F G H I J K L MA B AT To prevent brake linings from cracking or peeling, do not stretch the flexible band unnecessarily. When removing the brake band, always secure it

Page 2468 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual AT-432 [ALL] DISASSEMBLY c. Remove needle bearing from input shaft assembly (high clutch drum) and check for damage or wear. d. Remove high clutch hub (with front sun gear) and needle bear- ing from

Page 2469 of 4179

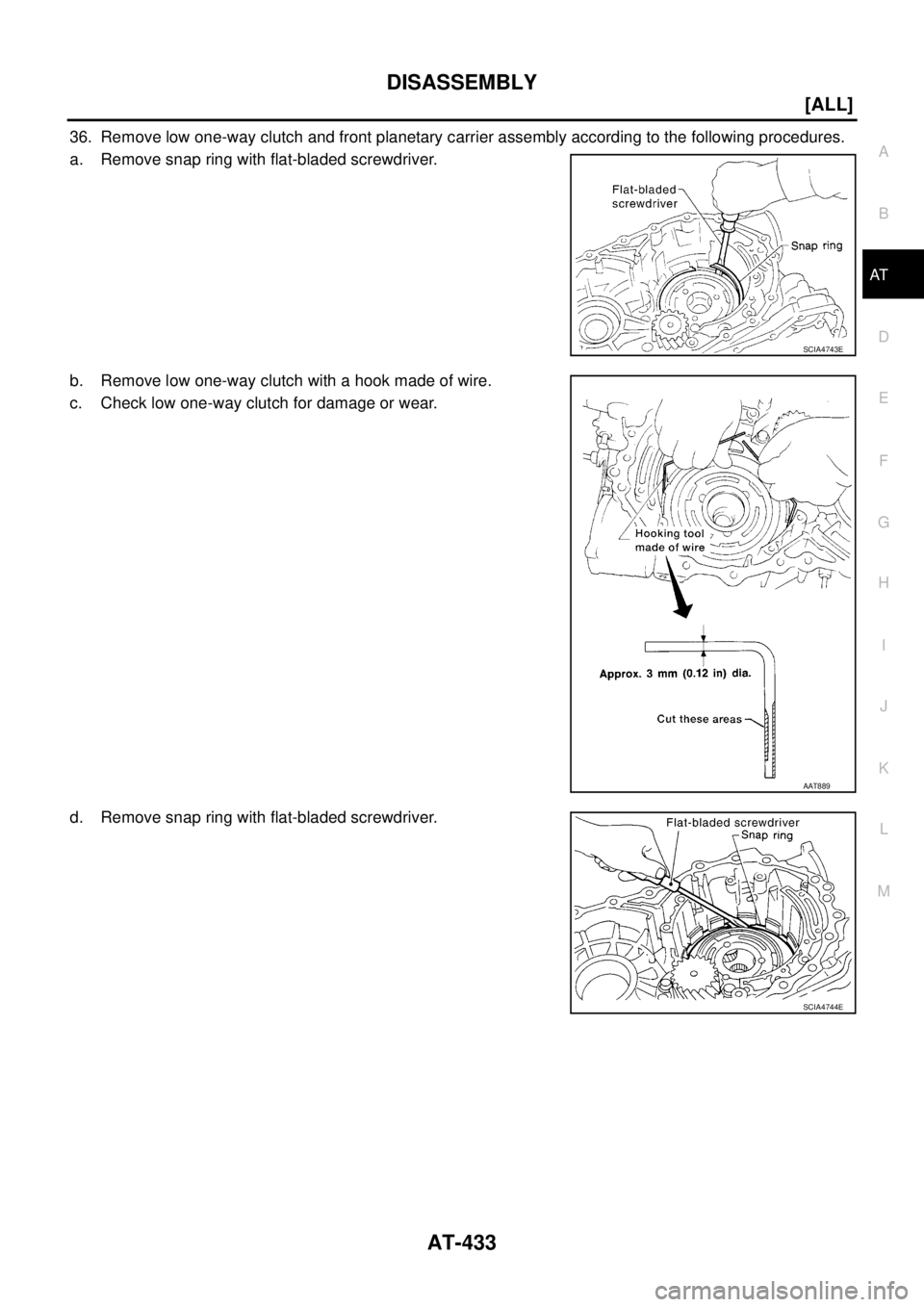

NISSAN X-TRAIL 2003 Service Repair Manual DISASSEMBLY AT-433 [ALL] D E F G H I J K L MA B AT 36. Remove low one-way clutch and front planetary carrier assembly according to the following procedures. a. Remove snap ring with flat-bladed scre

Page 2470 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual AT-434 [ALL] DISASSEMBLY e. Remove front planetary carrier with low & reverse brake piston and retainer. f. Remove low and reverse brake spring retainer. CAUTION: Do not remove return springs from s

Page 2471 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DISASSEMBLY AT-435 [ALL] D E F G H I J K L MA B AT 37. Remove rear planetary carrier and rear sun gear according to the following procedures. a. Remove rear planetary carrier (with rear sun gear) fr

Page 2472 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual AT-436 [ALL] DISASSEMBLY 39. Remove overrun clutch hub from transaxle case. 40. Remove needle bearing from overrun clutch hub and check for damage or wear. 41. Remove forward clutch assembly and ove
