NISSAN X-TRAIL 2003 Service Repair Manual OVERHEATING CAUSE ANALYSIS
CO-5
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO

OVERHEATING CAUSE ANALYSISPFP:00012
Troubleshooting ChartEBS00KOD
Symptom Check items
Cooling sys-
tem parts
malfunctionPoor heat tran

Page 338 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual CO-6
[QR]
OVERHEATING CAUSE ANALYSIS

Except cool-
ing system
parts mal-
function— Overload on engineAbusive drivingHigh engine rpm under no
load
Driving in low gear for
extended time
Driving at

Page 339 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual COOLING SYSTEM
CO-7
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO

COOLING SYSTEMPFP:21020

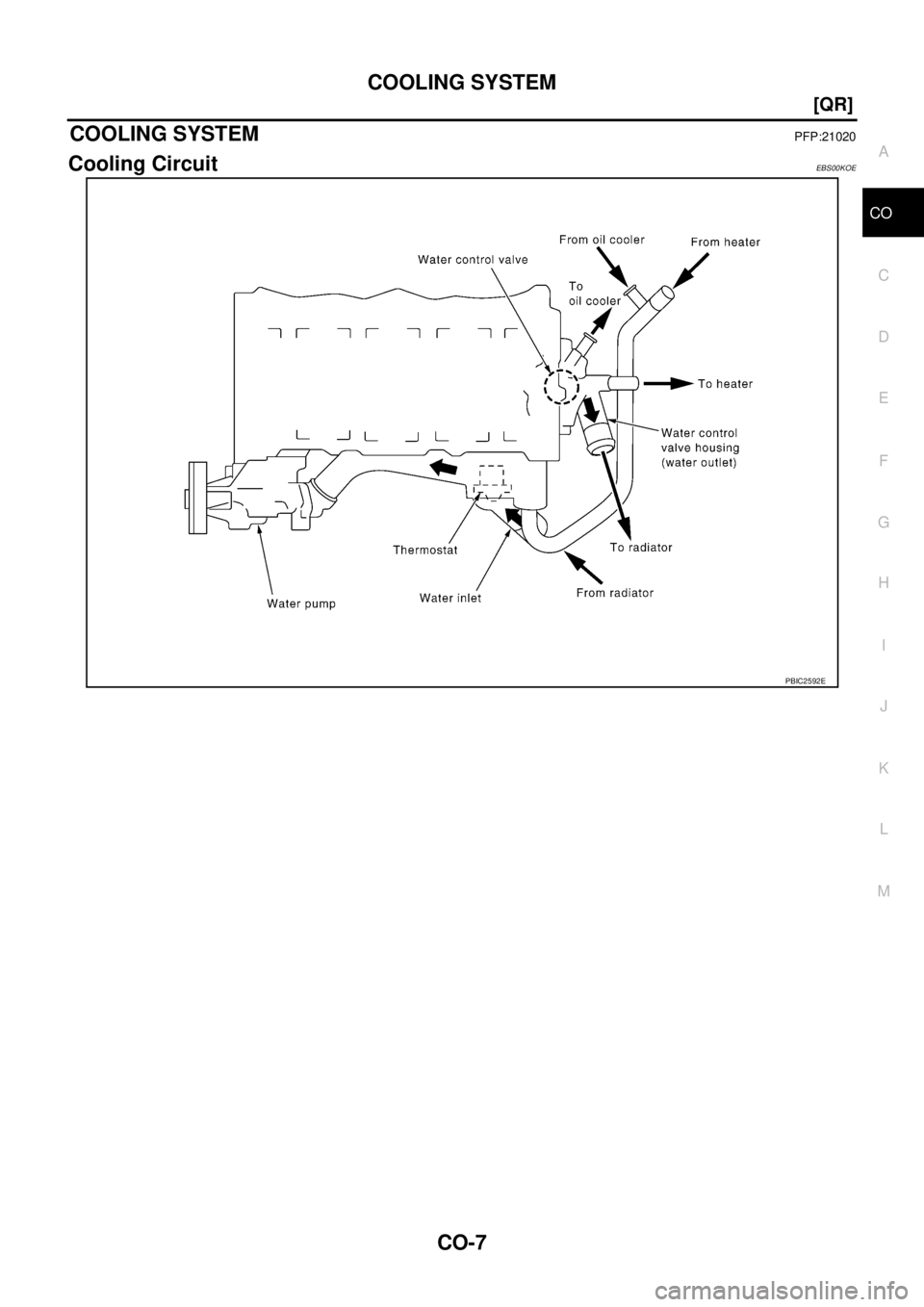

Cooling CircuitEBS00KOE
PBIC2592E

Page 340 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual CO-8
[QR]
COOLING SYSTEM

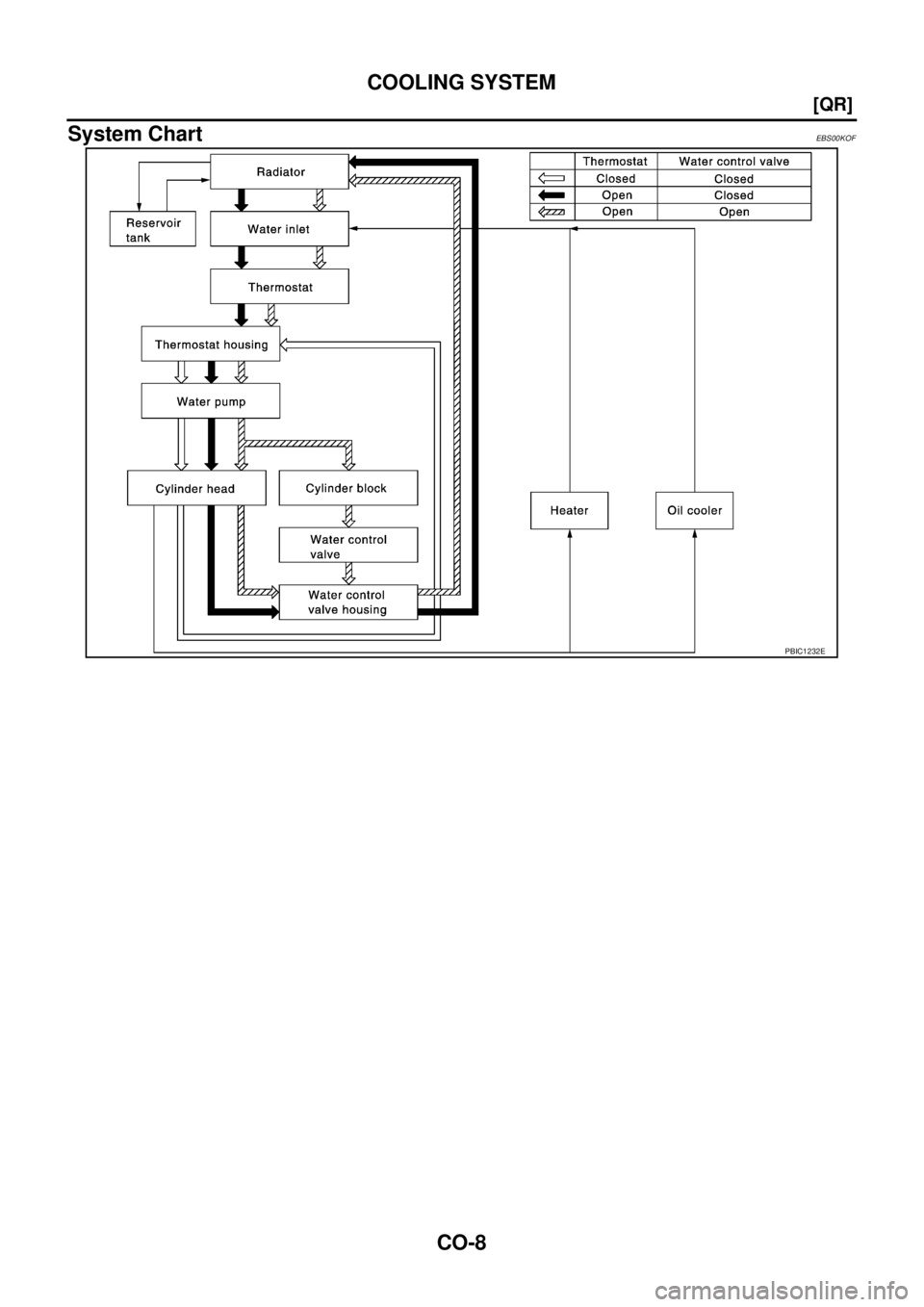

System ChartEBS00KOF
PBIC1232E

Page 341 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual ENGINE COOLANT
CO-9
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO

ENGINE COOLANTPFP:KQ100
InspectionEBS00KOG
LEVEL CHECK
Check if the reservoir tank engine coolant level is within “MIN” to
“MAX” range whe

Page 342 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual CO-10
[QR]
ENGINE COOLANT

4. Check drained engine coolant for contaminants such as rust, corrosion or discoloration. If contaminated,
flush the engine cooling system. Refer to CO-10, "
FLUSHING COOL

CO-10
[QR]
ENGINE COOLANT

4. Check drained engine coolant for contaminants such as rust, corrosion or discoloration. If contaminated,
flush the engine cooling system. Refer to CO-10, "
FLUSHING COOLING SYSTEM" .
REFILLING ENGINE COOLANT
1. Install reservoir tank, and radiator drain plug.
CAUTION:
Be sure to clean radiator drain plug and install with new O-ring.
If water drain plug on cylinder block is removed, close and tighten it. Refer to EM-82, "CYLINDER
BLOCK" .
2. Fill radiator and reservoir tank to specified level.
Pour engine coolant through engine coolant filler neck
slowly of less than 2 (1-3/4 lmp qt) a minute to allow air
in system to escape.
Use Genuine Nissan Anti-freeze Coolant or equivalent
mixed with water (distilled or demineralized). Refer to
MA-17, "
RECOMMENDED FLUIDS AND LUBRICANTS".
3. Warm up engine to normal operating temperature with radiator cap installed.
4. Run engine at 3,000 rpm for 10 seconds and return to idle speed.
Repeat two or three times.
CAUTION:
Watch water temperature gauge so as not to overheat the engine.
5. Stop engine and cool down to less than approximately 50°C (122°F).
Cool down using a fan to reduce the time.
If necessary, refill radiator up to filler neck with engine coolant.
6. Refill reservoir tank to “MAX” level line with engine coolant.
7. Repeat steps 2 through 5 two or more times with radiator cap installed until engine coolant level no longer
drops.
8. Check cooling system for leaks with engine running.
9. Warm up engine, and check for sound of engine coolant flow while running engine from idle up to 3,000
rpm with heater temperature controller set at several position between “COOL” and “WARM”.
Sound may be noticeable at heater unit.
10. Repeat step 9 three times.
11. If sound is heard, bleed air from cooling system by repeating steps 2 through 5 until engine coolant level
no longer drops.
Clean excess engine coolant from engine.
FLUSHING COOLING SYSTEM
1. Fill radiator and reservoir tank with water and reinstall radiator cap.
2. Run engine and warm it up to normal operating temperature.Engine coolant capacity
(with reservoir tank at “MAX” level)
: Approx. 7.1 (6-1/4 lmp qt)
SMA182B
Reservoir tank capacity (at “MAX” level)
: 0.6 (1/2 lmp qt)
SMA412B

Page 343 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual ENGINE COOLANT
CO-11
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO

3. Rev engine two or three times under no-load.
4. Stop engine and wait until it cools down.
5. Drain water from the system. Refer to CO-9, "
DRAI

Page 344 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual CO-12
[QR]
RADIATOR

RADIATORPFP:21400
Removal and InstallationEBS00KOI
WARNING:
Do not remove radiator cap when the engine is hot. Serious burns could occur from high-pressure
engine coolant escapin
