Page 3073 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DOOR BL-19 C D E F G H J K L MA B BL Removal and Installation of Front DoorEIS00A68 CAUTION: When removing and installing the front door assembly, support the door with a jack and cloth to protect

Page 3074 of 4179

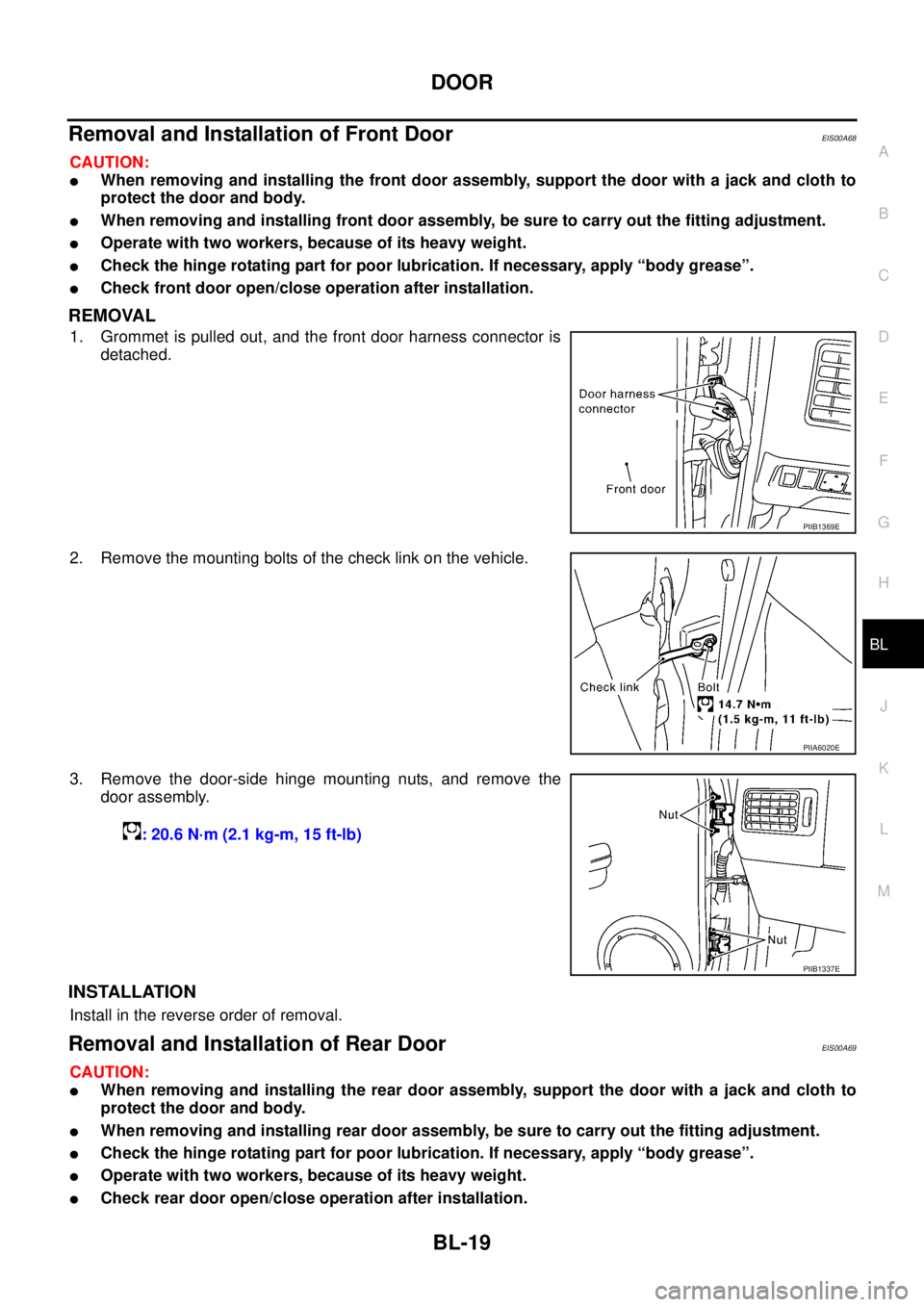

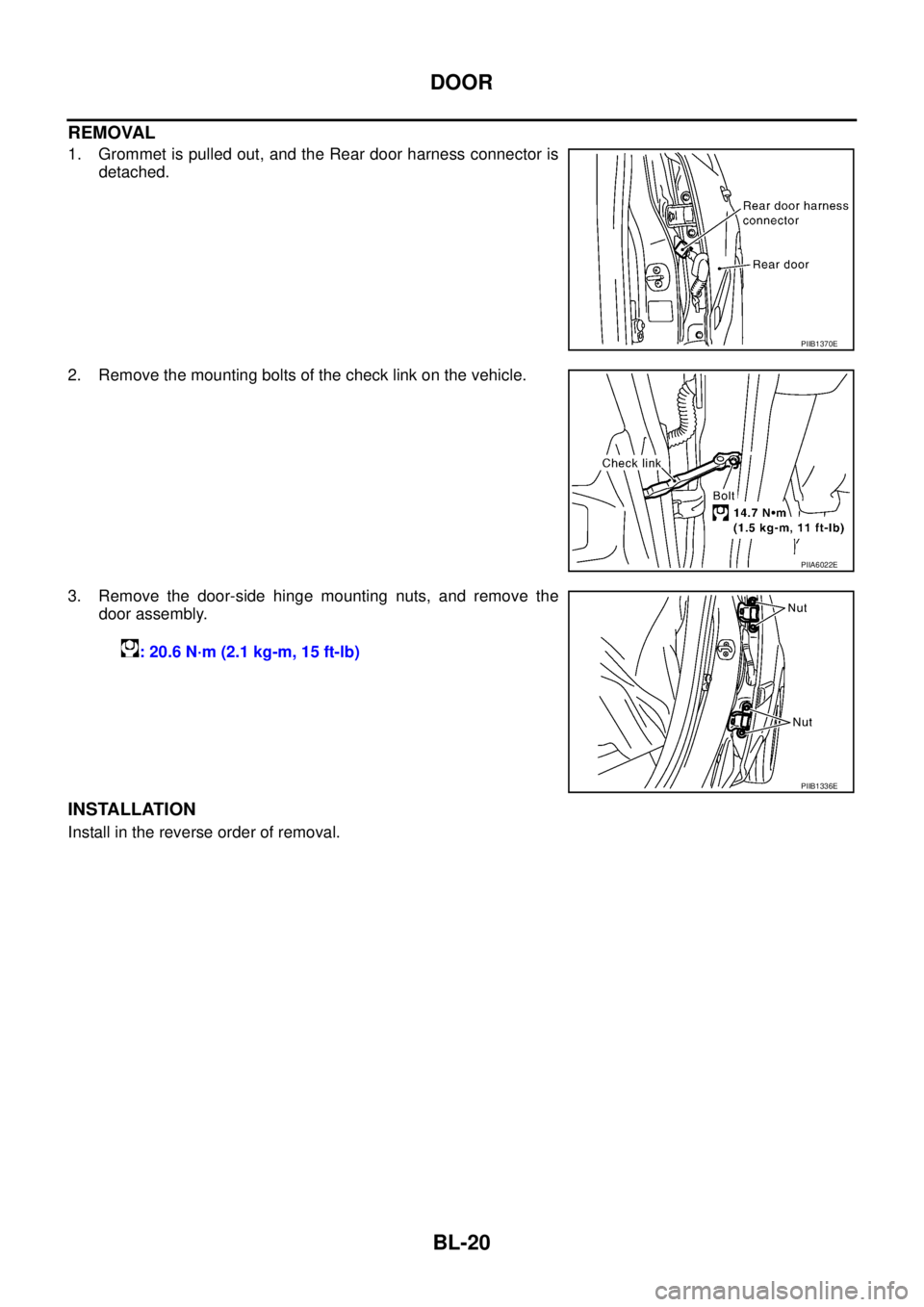

NISSAN X-TRAIL 2003 Service Repair Manual BL-20 DOOR REMOVAL 1. Grommet is pulled out, and the Rear door harness connector is detached. 2. Remove the mounting bolts of the check link on the vehicle. 3. Remove the door-side hinge mounting nu

Page 3075 of 4179

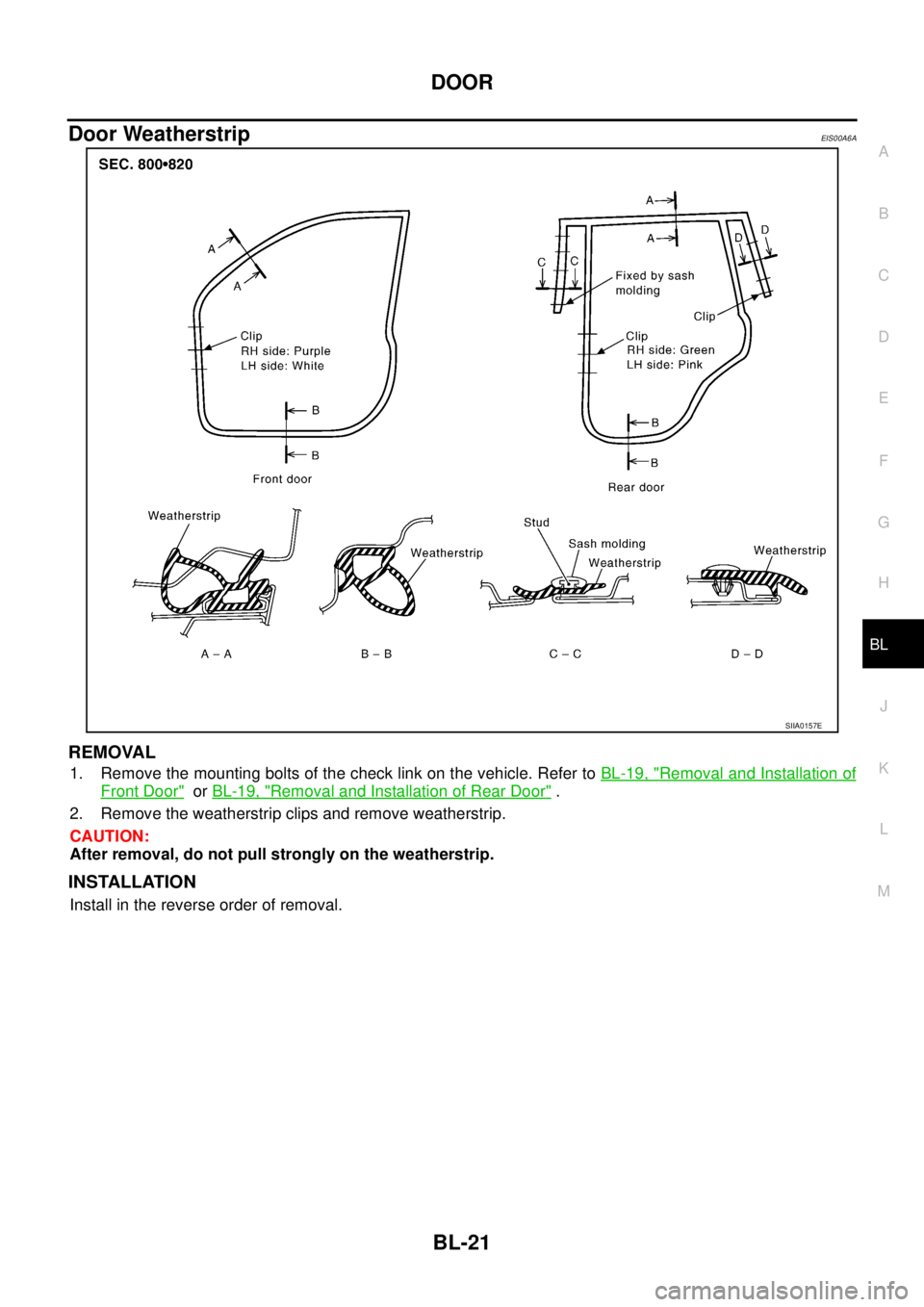

NISSAN X-TRAIL 2003 Service Repair Manual DOOR BL-21 C D E F G H J K L MA B BL Door WeatherstripEIS00A6A REMOVAL 1. Remove the mounting bolts of the check link on the vehicle. Refer to BL-19, "Removal and Installation of Front Door" or BL-

Page 3076 of 4179

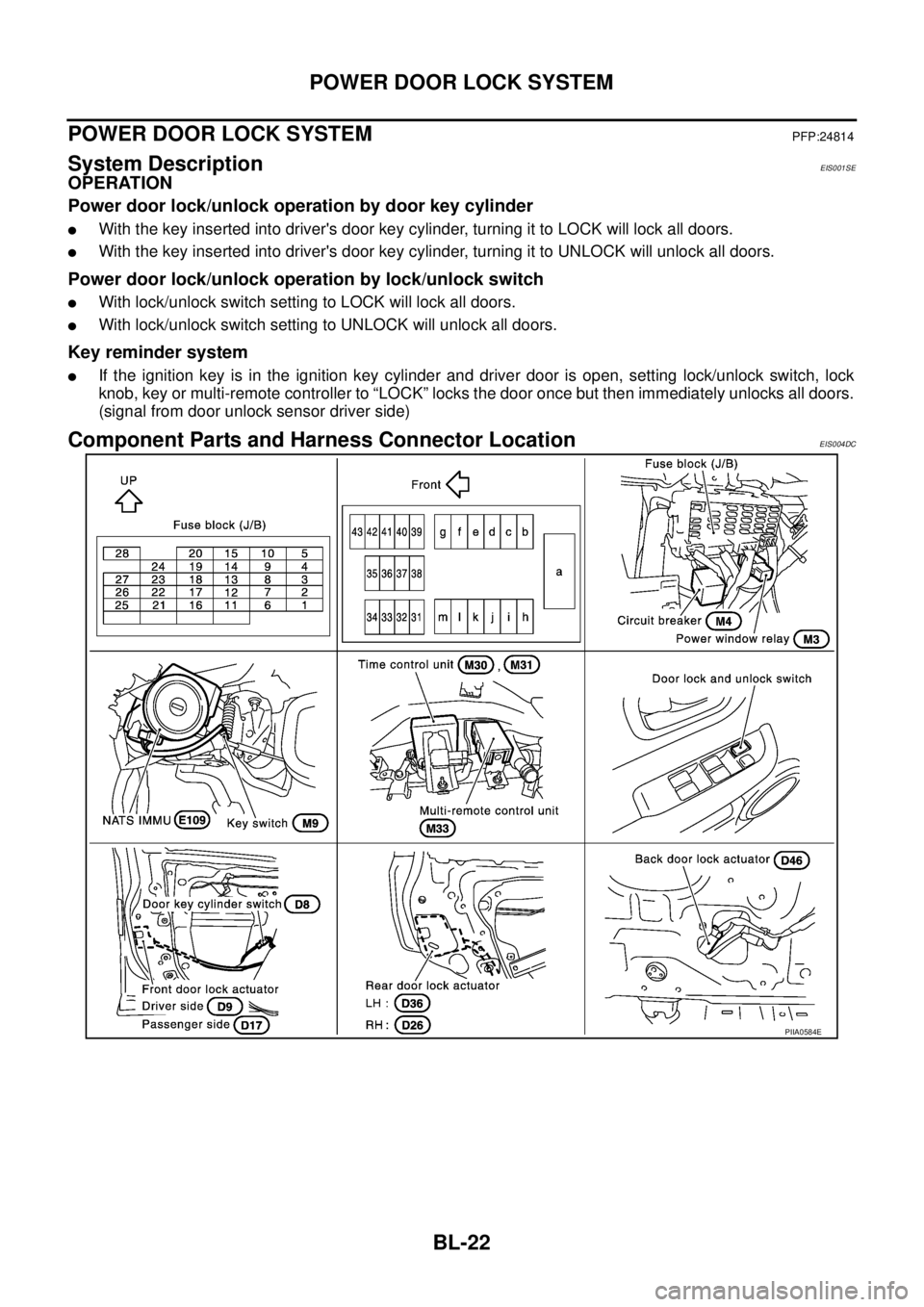

NISSAN X-TRAIL 2003 Service Repair Manual BL-22 POWER DOOR LOCK SYSTEM POWER DOOR LOCK SYSTEMPFP:24814 System DescriptionEIS001SE OPERATION Power door lock/unlock operation by door key cylinder With the key inserted into drivers door key

Page 3077 of 4179

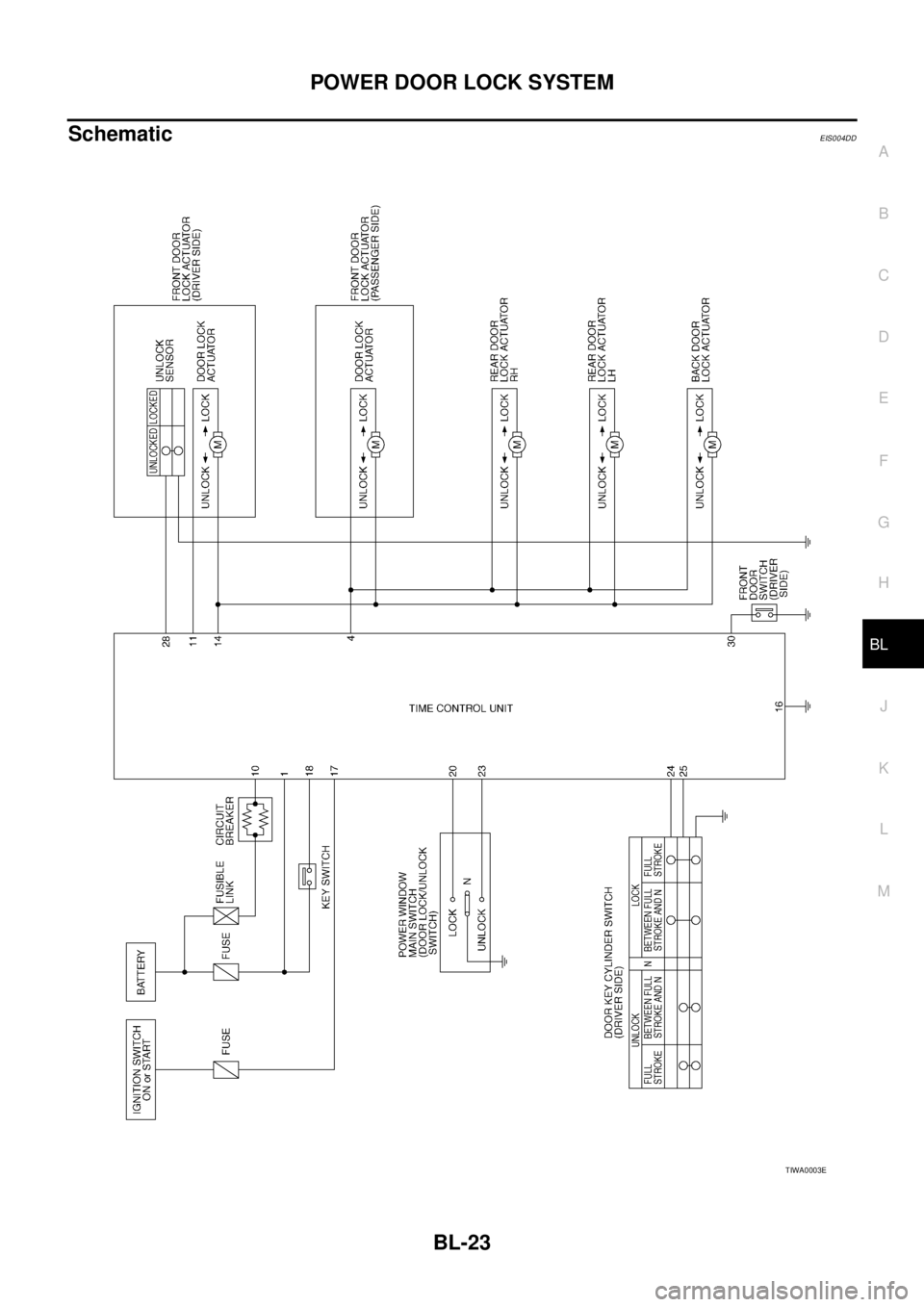

NISSAN X-TRAIL 2003 Service Repair Manual POWER DOOR LOCK SYSTEM BL-23 C D E F G H J K L MA B BL SchematicEIS004DD TIWA0003E

Page 3078 of 4179

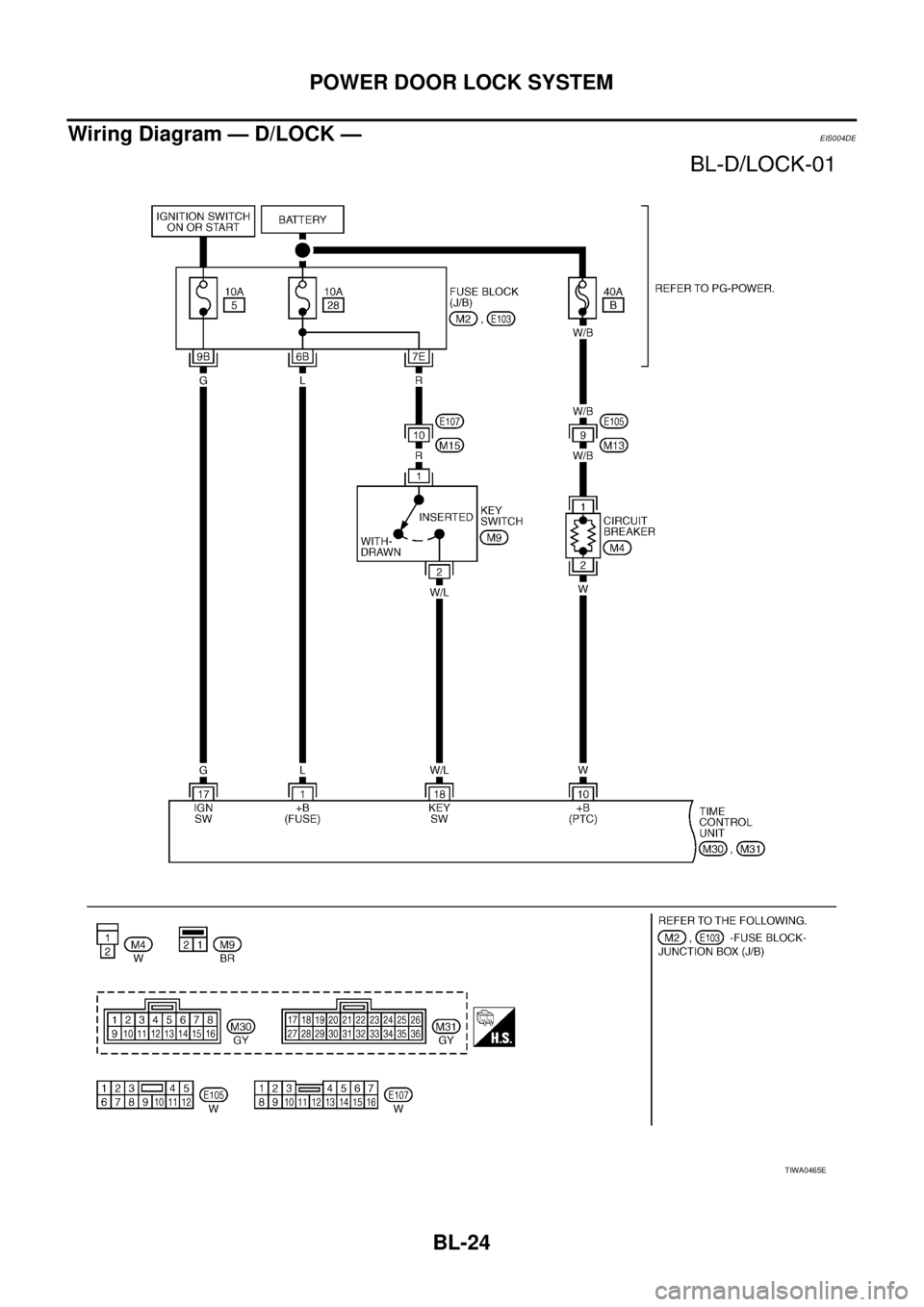

NISSAN X-TRAIL 2003 Service Repair Manual BL-24 POWER DOOR LOCK SYSTEM Wiring Diagram — D/LOCK —EIS004DE TIWA0465E

Page 3079 of 4179

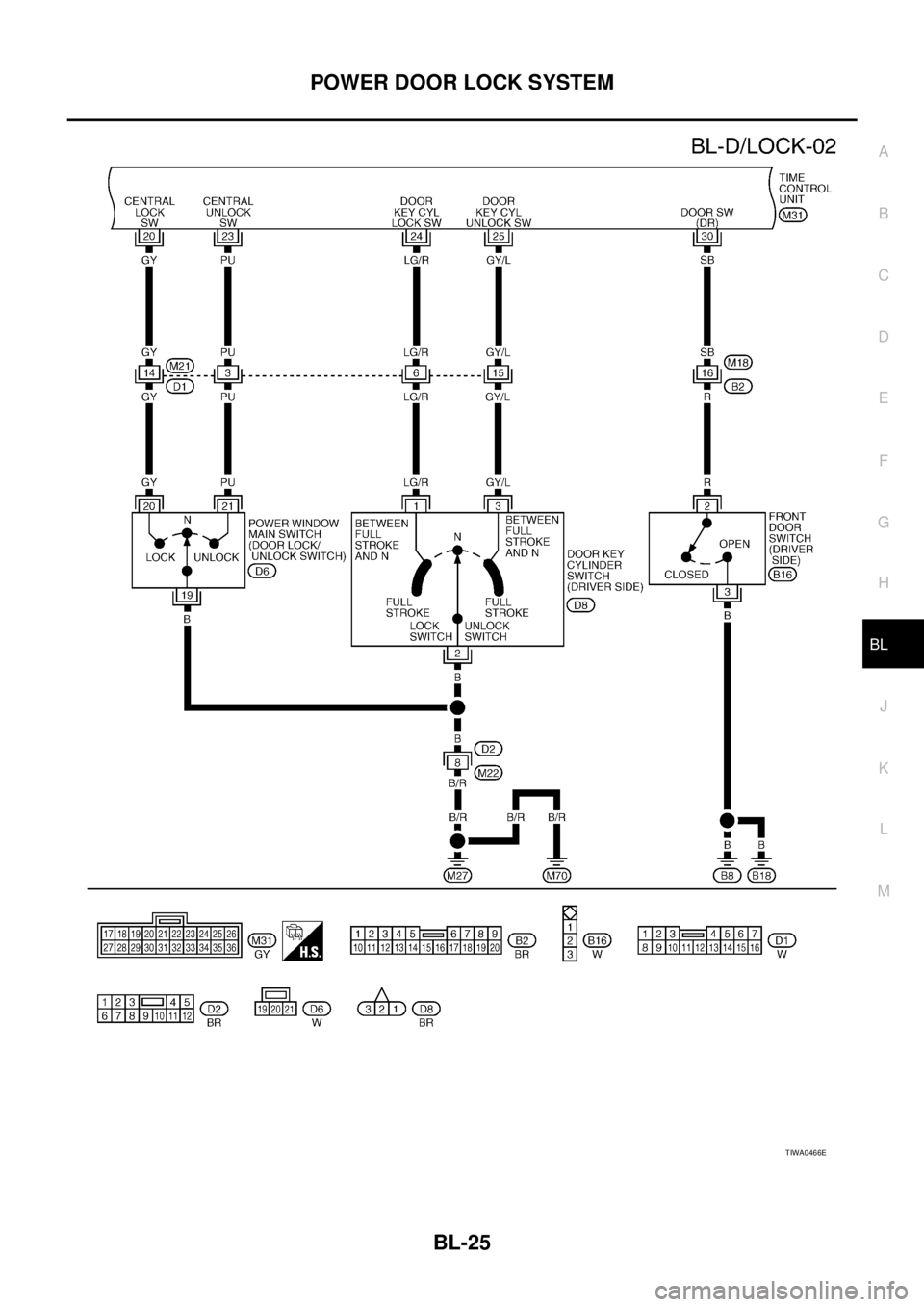

NISSAN X-TRAIL 2003 Service Repair Manual POWER DOOR LOCK SYSTEM BL-25 C D E F G H J K L MA B BL TIWA0466E

Page 3080 of 4179

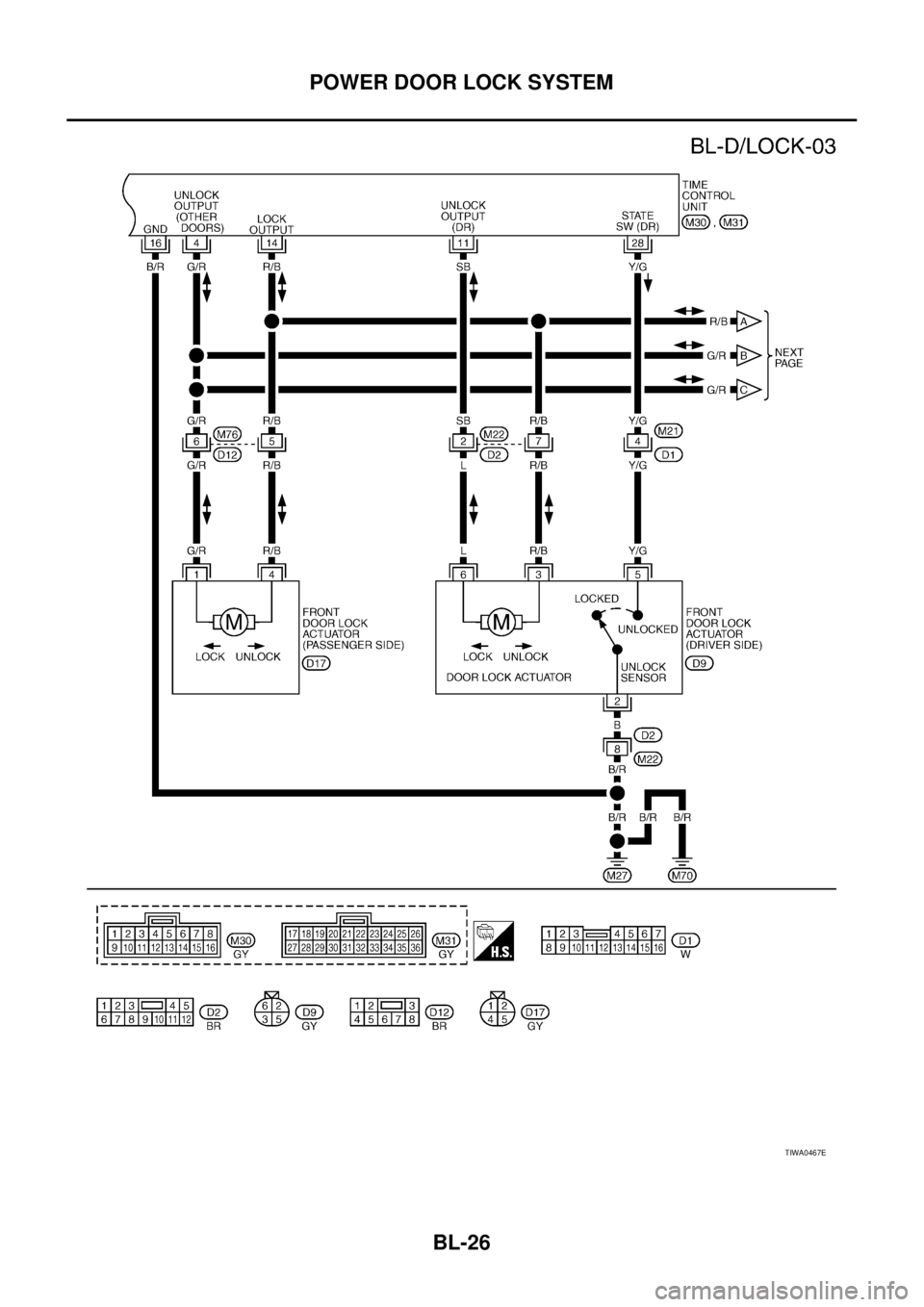

NISSAN X-TRAIL 2003 Service Repair Manual BL-26 POWER DOOR LOCK SYSTEM TIWA0467E
