Page 145 of 4179

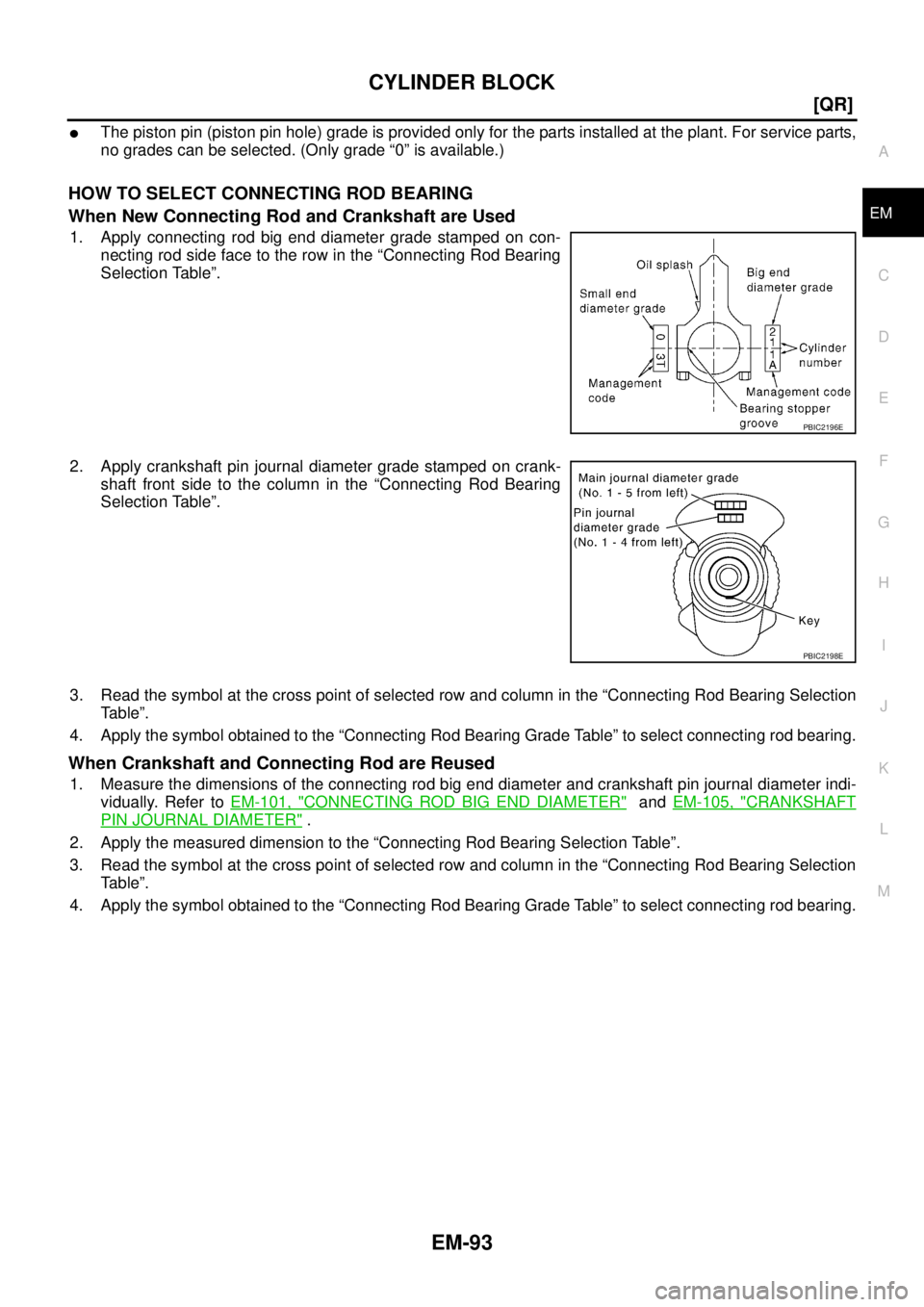

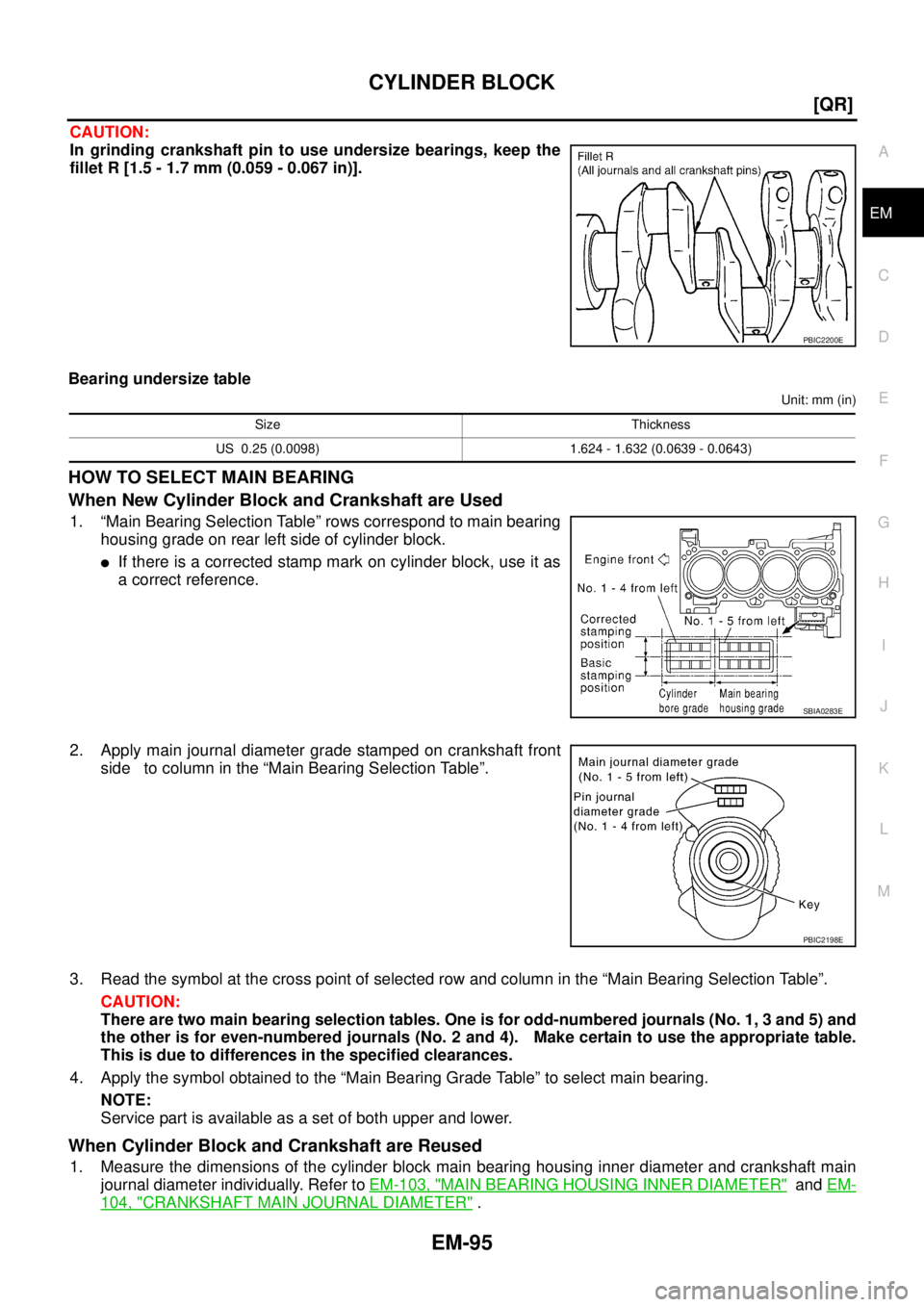

NISSAN X-TRAIL 2003 Service Repair Manual CYLINDER BLOCK EM-93 [QR] C D E F G H I J K L MA EM The piston pin (piston pin hole) grade is provided only for the parts installed at the plant. For service parts, no grades can be selected. (Only

Page 146 of 4179

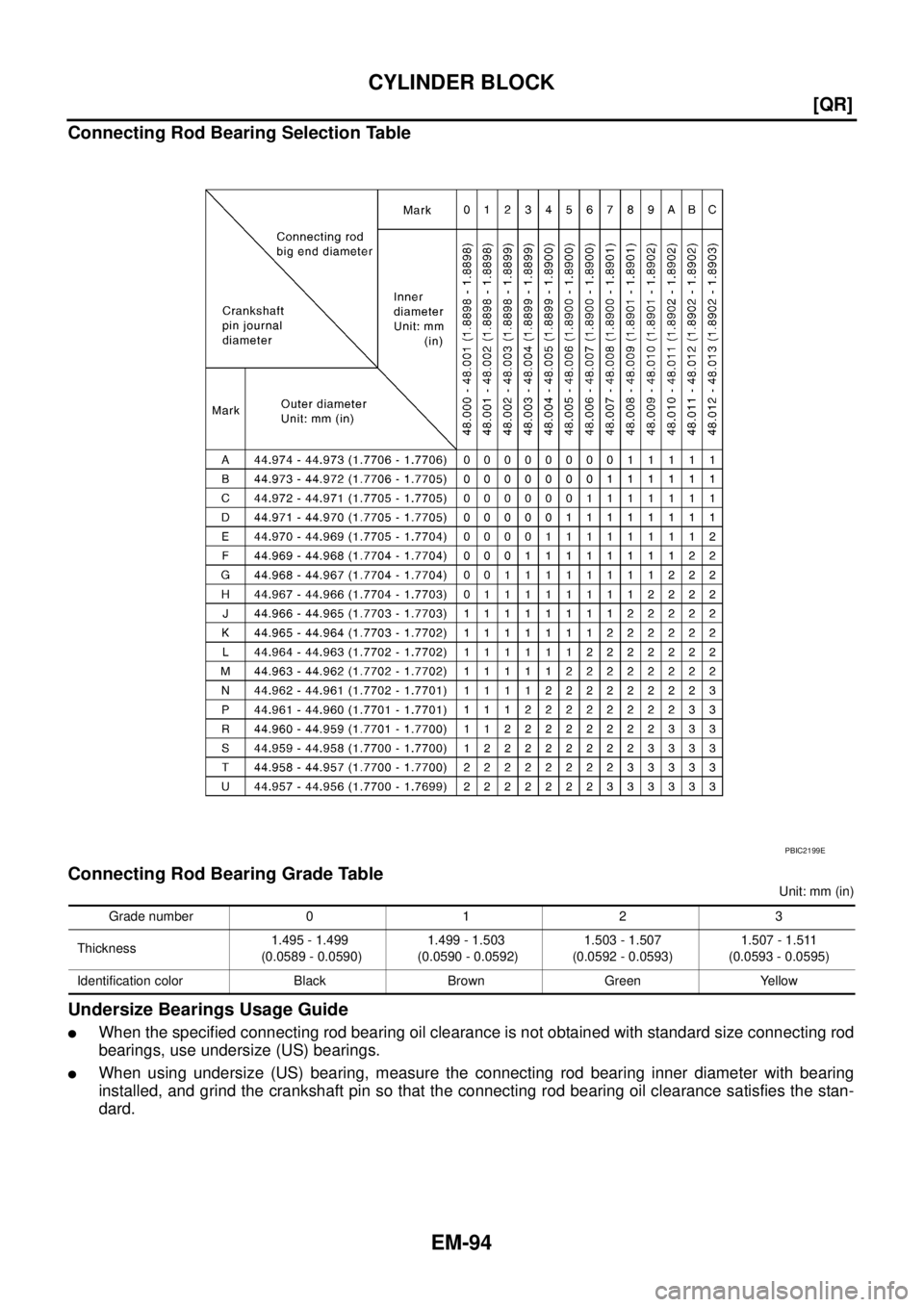

NISSAN X-TRAIL 2003 Service Repair Manual EM-94 [QR] CYLINDER BLOCK Connecting Rod Bearing Selection Table Connecting Rod Bearing Grade Table Unit: mm (in) Undersize Bearings Usage Guide When the specified connecting rod bearing oil cleara

Page 147 of 4179

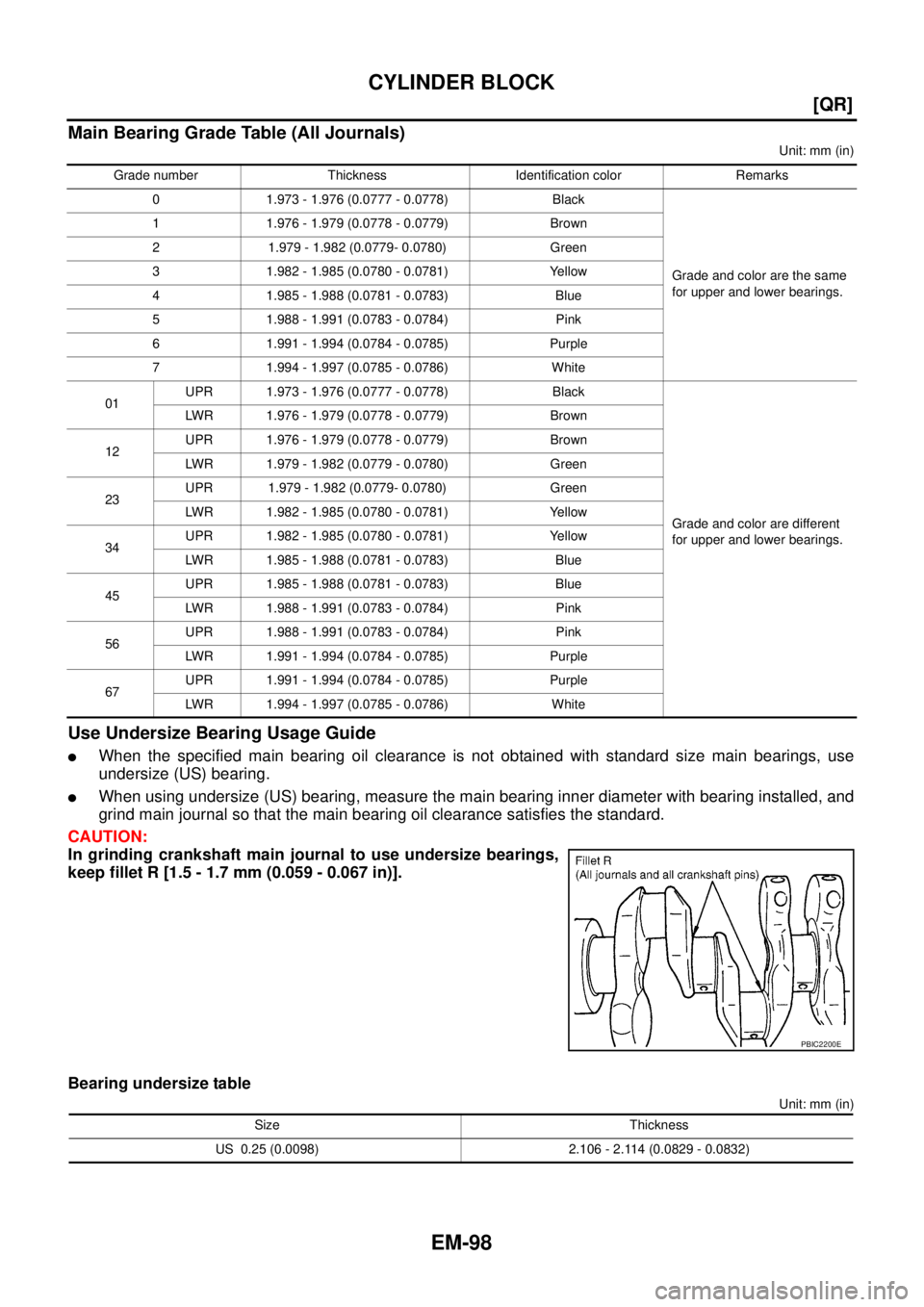

NISSAN X-TRAIL 2003 Service Repair Manual CYLINDER BLOCK EM-95 [QR] C D E F G H I J K L MA EM CAUTION: In grinding crankshaft pin to use undersize bearings, keep the fillet R [1.5 - 1.7 mm (0.059 - 0.067 in)]. Bearing undersize table Unit:

Page 148 of 4179

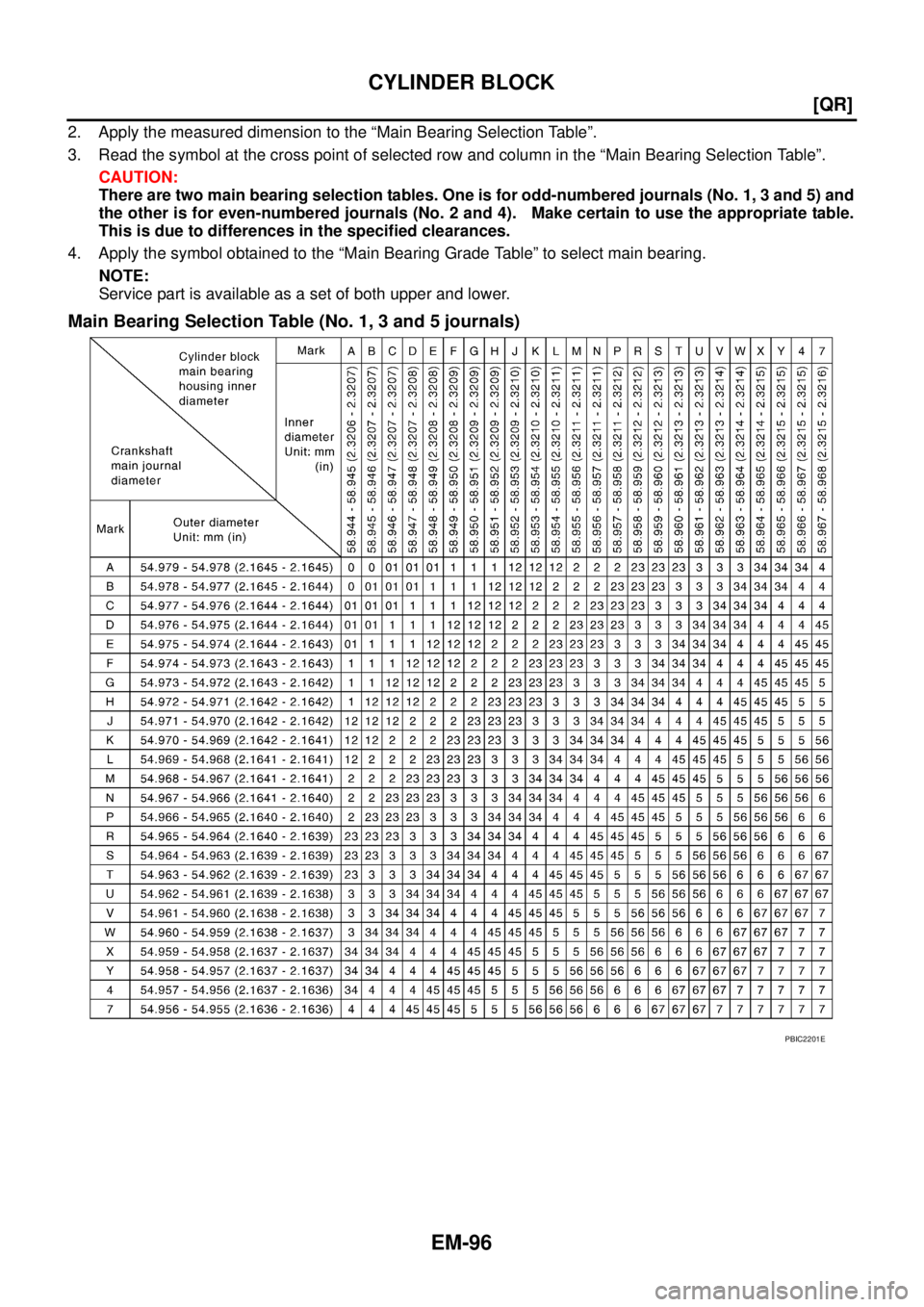

NISSAN X-TRAIL 2003 Service Repair Manual EM-96 [QR] CYLINDER BLOCK 2. Apply the measured dimension to the “Main Bearing Selection Table”. 3. Read the symbol at the cross point of selected row and column in the “Main Bearing Selection

Page 149 of 4179

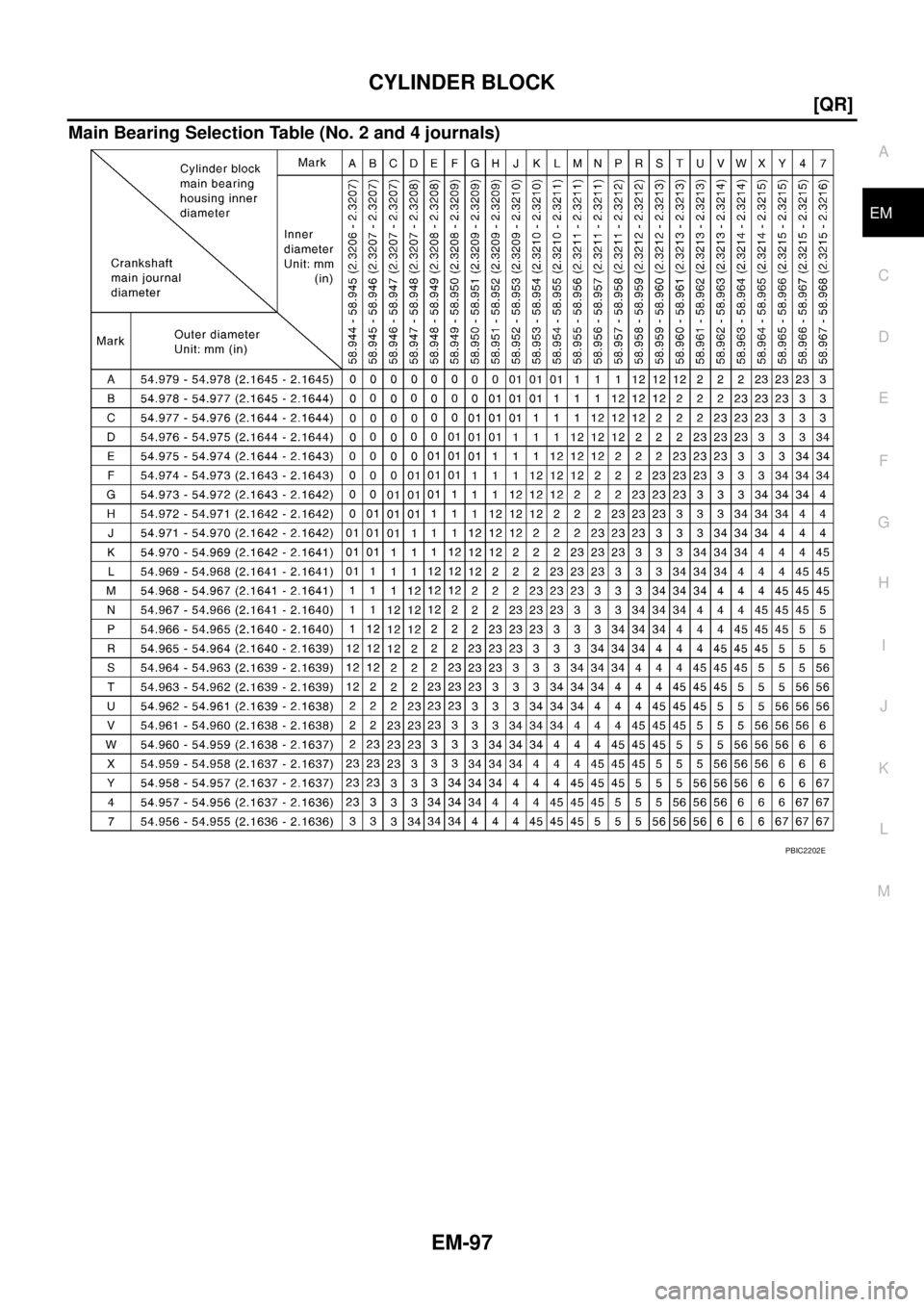

NISSAN X-TRAIL 2003 Service Repair Manual CYLINDER BLOCK EM-97 [QR] C D E F G H I J K L MA EM Main Bearing Selection Table (No. 2 and 4 journals) PBIC2202E

Page 150 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EM-98 [QR] CYLINDER BLOCK Main Bearing Grade Table (All Journals) Unit: mm (in) Use Undersize Bearing Usage Guide When the specified main bearing oil clearance is not obtained with standard size ma

Page 151 of 4179

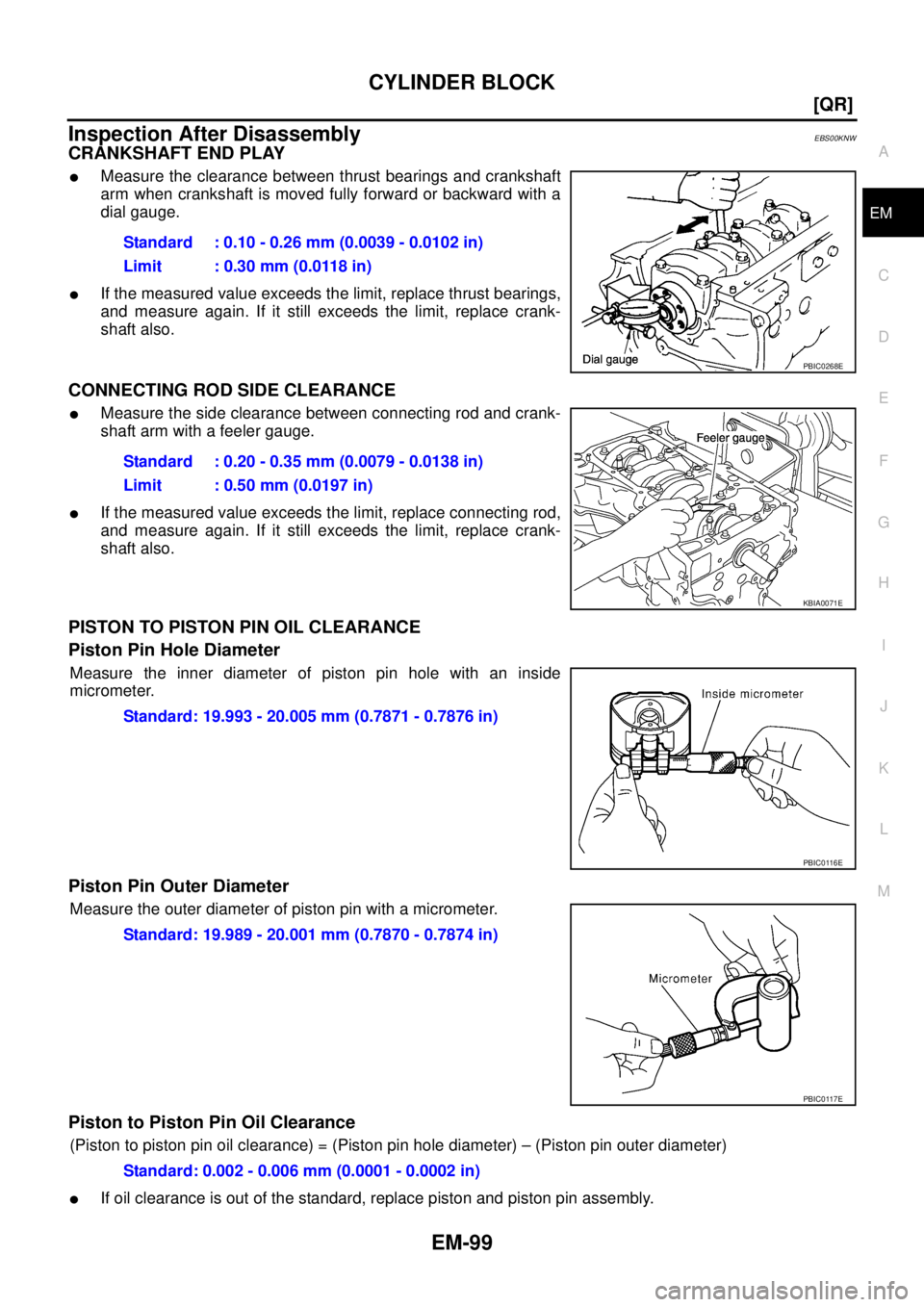

NISSAN X-TRAIL 2003 Service Repair Manual CYLINDER BLOCK EM-99 [QR] C D E F G H I J K L MA EM Inspection After DisassemblyEBS00KNW CRANKSHAFT END PLAY Measure the clearance between thrust bearings and crankshaft arm when crankshaft is move

Page 152 of 4179

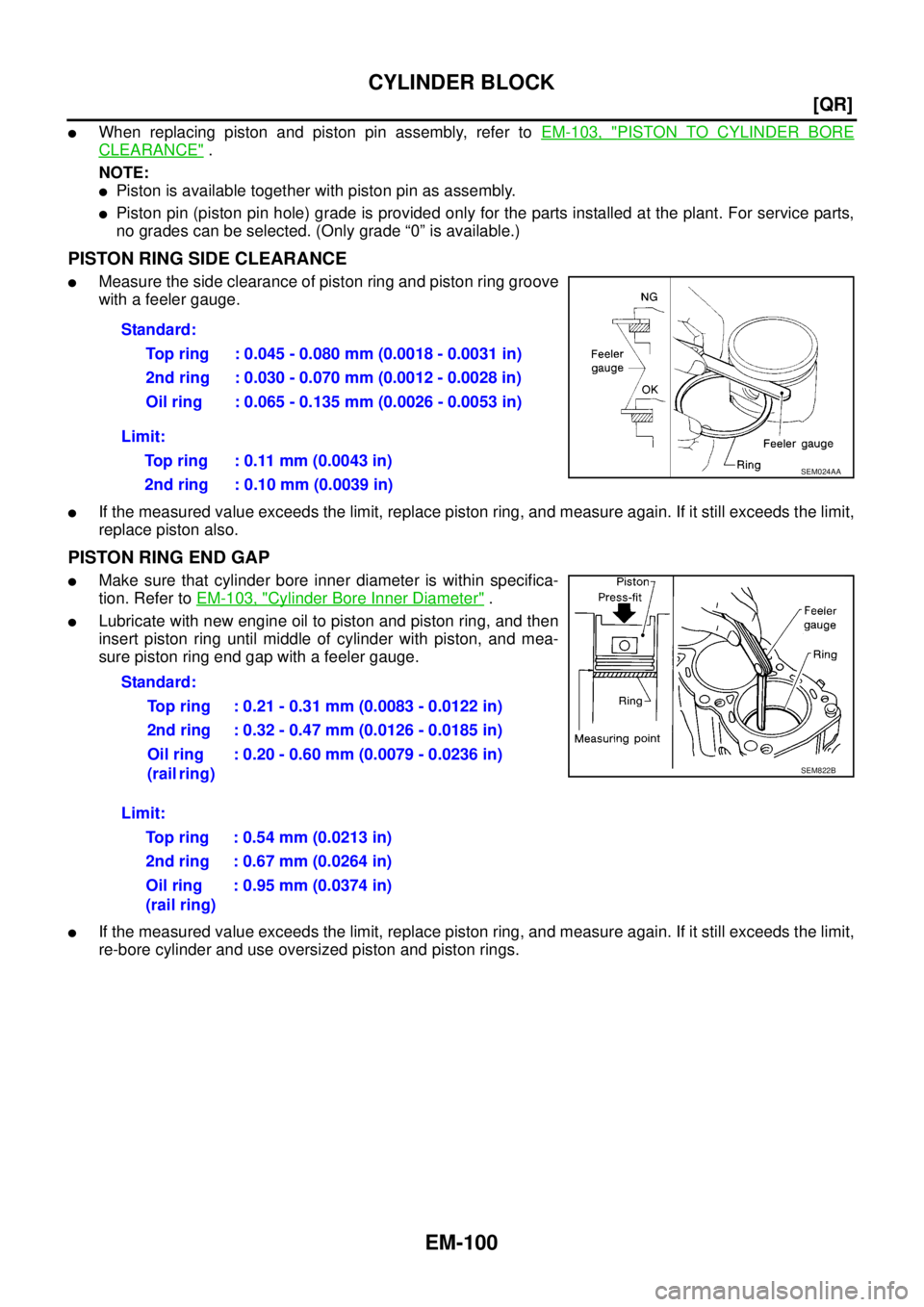

NISSAN X-TRAIL 2003 Service Repair Manual EM-100 [QR] CYLINDER BLOCK When replacing piston and piston pin assembly, refer to EM-103, "PISTON TO CYLINDER BORE CLEARANCE" . NOTE: Piston is available together with piston pin as assembly. Pi
